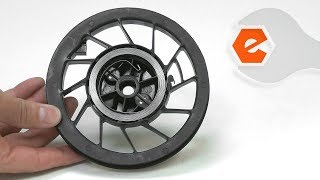

Pulley Spring Assembly

Part Number: 498144
Briggs and StrattonToroLawn Boy
Availability: 25+ in stock
Price: $17.98
Ships within 1 business day

*This part replaces obsolete part #: and 557056.

Product Information
Manufacturer: Briggs and Stratton, Toro, Lawn Boy
Product Number: 498144
Classification: Part
Weight: 0.27 lbs.
Shipping: Ships Worldwide
Description:
This manufacturer approved recoil starter pulley is designed for lawn and garden equipment engines. The recoil starter engages the drive cup on the flywheel to start the engine when pulled. This assembly includes: Plastic Pulley and a Metal Recoil Spring.
Compatibility

This part is compatible with the following machines:

Briggs and Stratton
Toro
38629 (310000001-310999999)(2010) Snowthrower
38629 (290000001-290999999)(2009) Snowthrower
38629 (280000001-280999999)(2008) Snowthrower
38629C (290000001-290999999)(2009) Snowthrower
38629C (280000001-280999999)(2008) Snowthrower
38637 (310000001-310999999)(2010) Snowthrower
38637 (290000001-290999999)(2009) Snowthrower
38624 (290000001-290999999)(2009) Snowthrower
38637 (280000001-280999999)(2008) Snowthrower
38637C (290000001-290999999)(2009) Snowthrower
38639 (280000001-280999999)(2008) Snowthrower
38639C (290000001-290999999)(2009) Snowthrower
38639C (280000001-280999999)(2008) Snowthrower
16401 (890000001-899999999)(1998) Lawn Mower
20010 (9900001-9999999)(1999) Lawn Mower
20010 (200000001-200999999)(2000) Lawn Mower
20011 (210000001-210999999)(2001) Lawn Mower
20020 (9900001-9999999)(1999) Lawn Mower
20020 (210000001-210999999)(2001) Lawn Mower
20021 (9900001-9999999)(1999) Lawn Mower
20021 (200000001-200999999)(2000) Lawn Mower
20021 (210000001-210999999)(2001) Lawn Mower
20022 (9900001-9999999)(1999) Lawn Mower
20022 (200000001-200999999)(2000) Lawn Mower
20022 (210000001-210999999)(2001) Lawn Mower
20023 (210000001-210999999)(2001) Lawn Mower
20023 (200000001-200999999)(2000) Lawn Mower
20023 (9900001-9999999)(1999) Lawn Mower
20023C (210000001-210999999)(2001) Lawn Mower
20025 (200000001-200999999)(2000) Lawn Mower
20025 (210000001-210999999)(2001) Lawn Mower
20025 (9900001-9999999)(1999) Lawn Mower
20027 (9900001-9999999)(1999) Lawn Mower
20027 (200000001-200999999)(2000) Lawn Mower
20027 (210000001-210999999)(2001) Lawn Mower
20028 (9900001-9999999)(1999) Lawn Mower
20028 (200000001-200999999)(2000) Lawn Mower
20028 (210000001-210999999)(2001) Lawn Mower
20029 (9900001-9999999)(1999) Lawn Mower
20030 (9900001-9999999)(1999) Lawn Mower
20030 (200000001-200999999)(2000) Lawn Mower
20035 (210000001-210999999)(2001) Lawn Mower
20042 (210000001-210999999)(2001) Lawn Mower
20042 (200000001-200999999)(2000) Lawn Mower
20042 (9900001-9999999)(1999) Lawn Mower
20043 (210000001-210999999)(2001) Lawn Mower
20043 (200000001-200999999)(2000) Lawn Mower
20043 (9900001-9999999)(1999) Lawn Mower
20045 (210000001-210999999)(2001) Lawn Mower
20048 (210000001-210999999)(2001) Lawn Mower
20110 (280001677-280999999)(2008) Lawn Mower
20445 (7900001-7999999)(1997) Lawn Mower
20448 (7900001-7999999)(1997) Lawn Mower
20449 (7900001-7999999)(1997) Lawn Mower
20450 (8900001-8999999)(1998) Lawn Mower
20452 (8900001-8999999)(1998) Lawn Mower
20457 (7900001-7999999)(1997) Lawn Mower
20458 (7900001-7999999)(1997) Lawn Mower
20469 (7900001-7999999)(1997) Lawn Mower
20478 (7900001-7999999)(1997) Lawn Mower
20479 (7900001-7999999)(1997) Lawn Mower
20480 (7900001-7999999)(1997) Lawn Mower
20489 (8900001-8999999)(1998) Lawn Mower
20490 (8900001-8999999)(1998) Lawn Mower
20493 (8900001-8999999)(1998) Lawn Mower
20494 (8900001-8999999)(1998) Lawn Mower
20495 (8900001-8999999)(1998) Lawn Mower
20716 (8900001-8999999)(1998) Lawn Mower
20716 (9900001-9999999)(1999) Lawn Mower
20637 (280K00001-280K99999)(2008) Lawn Mower
20637 (290000001-290999999)(2009) Lawn Mower
20651 (200000001-200999999)(2000) Lawn Mower
20651 (9900001-9999999)(1999) Lawn Mower
20652 (200000001-200999999)(2000) Lawn Mower
20652 (210000001-210000434)(2001) Lawn Mower
20652 (210000435-210999999)(2001) Lawn Mower
20652 (220000001-220999999)(2002) Lawn Mower
20652 (230000001-230999999)(2003) Lawn Mower
20712 (7900001-7999999)(1997) Lawn Mower
20713 (8900001-8999999)(1998) Lawn Mower
20713 (9900001-9999999)(1999) Lawn Mower
20714 (7900001-7999999)(1997) Lawn Mower
20792 (270000001-270999999)(2007) Lawn Mower
20792 (280000001-280999999)(2008) Lawn Mower
20792 (250000001-250999999)(2005) Lawn Mower
20792 (260000001-260999999)(2006) Lawn Mower
20793 (270000001-270999999)(2007) Lawn Mower
20793 (280000001-280999999)(2008) Lawn Mower
20793 (250000001-250999999)(2005) Lawn Mower
20793 (260000001-260999999)(2006) Lawn Mower
20794 (270000001-270999999)(2007) Lawn Mower
20794 (280000001-280999999)(2008) Lawn Mower
20794 (260000001-260999999)(2006) Lawn Mower
20795 (270000001-270999999)(2007) Lawn Mower
20795 (280000001-280999999)(2008) Lawn Mower
20795 (250000001-250999999)(2005) Lawn Mower
20795 (260000001-260999999)(2006) Lawn Mower
20796 (270000001-270999999)(2007) Lawn Mower
20796 (280000001-280999999)(2008) Lawn Mower
20796 (260000001-260999999)(2006) Lawn Mower
20803 (7900001-7999999)(1997) Lawn Mower
20803 (8900001-8999999)(1998) Lawn Mower
20803 (9900001-9999999)(1999) Lawn Mower
20803B (6900001-6999999)(1996) Lawn Mower
20804 (7900001-7999999)(1997) Lawn Mower
20804 (8900001-8999999)(1998) Lawn Mower
20804 (9900001-9999999)(1999) Lawn Mower
20805 (200000001-200999999)(2000) Lawn Mower
20808 (7900001-7999999)(1997) Lawn Mower
20808 (8900001-8999999)(1998) Lawn Mower
20808 (9900001-9999999)(1999) Lawn Mower
20808B (6900001-6999999)(1996) Lawn Mower
20809 (7900001-7999999)(1997) Lawn Mower
Expand the 150+ compatible machines
Products Compatibility

This item works with the following types of products:

  • • Engine
  • • Generator
  • • Lawn Mower
  • • Snowblower
Questions & Answers

will this fit lawn boy model 10641
betty jackson for model number 10641 asked on 2019-04-18
Hello Betty, thank you for your inquiry! We can confirm that part 498144 will fit your model 10641. I hope this information helps!
in need of a starter pulley for model 195707 type 0141 01 code 9311111B is this still available
Earl for model number 195707 asked on 2018-10-15
Hello Earl, thank you for your question. The starter assembly is part number Starter-Rewind Part Number: 693900, just the pulley handle is part number Grip-Starter Rope Part Number: 490652. I hope this helps!
Cord broke and tried to remove assembly and re-attach the cord but could no get the spring to pull cord in all the way. I would like to replace the recoil starter assembly but mine is riveted on to the housing so cannot replace. Can I get the whole assembly including the pull starter and housing? cannot find this as a parts option.
Don for model number 12V802-1776-B1 asked on 2019-06-03
Hello Don, Thank you for contacting us. I have researched the model you have provided and have found the part you are looking for is Part Number: 497680. Hope this helps!
Is the pulley/spring assy compatible with my listed engine type. Spring broke unexpectedly, was below zero temp.
Donald for model number 12E394-0110-E1 asked on 2020-02-26
Hello Donald, thank you for your inquiry. Pulley spring assembly 498144 is compatible with your model 12E394-0110-E1. We hope this information helps!
I need a starter pulley coil do you have one available
James for model number 126L02-0675-F1 07122157 asked on 2020-02-15
Hello and thank you for writing. The recoil starter assembly # 497680 is in the list of compatible parts for your model. We hope this helps. Please contact us anytime if you require further assistance.
I need a new starter pulley assembly for my Briggs and Stratton Engine. I have taken the following numbers off of the engine but am not sure what it really is: 121432 0036 E2 020422FD There is one number on the old assembly: 041826 Can you identify the replacement part I need? Thanks!
Peter for model number 121432-0036-E2 asked on 2019-10-28
Hello Peter, thank you for your inquiry! All parts for your starter are sold separately. They can be found under the link below. Thank you. https://www.ereplacementparts.com/briggs-and-stratton-1214320036e2-engine-parts-c-16758_17347_17312_242078.html
I have a Briggs and Stratton 8 HP engine that needs a new pull start assembly. Model 192432, type 0159 01, code 9406091A. I bought a pull start that was supposed to fit. It has Pals (think that's what they're called). My pull start does not. It has a plastic start that fits over the rectangular post to turn the engine. Do you have a pull start that fits over this 1" post?
John Gorski for model number 192432 asked on 2019-10-17
Hello John, thank you for writing. The only available replacement listed for your model is Rewind Starter part number 693900, but it is indicated that it is only used for your model with a code date after 99022800. You will need to reach out to Briggs and Stratton directly for a possible compatible part number to match your code date and get back in touch with us. We look forward to hearing back from you!
What are the dimensions of this part?
john battaile for model number 227772 asked on 2019-08-03
Hello John, Thanks for your question! The product dimensions are 1 x 7 x 8 inches. We hope this helps!
Does this pulley Assy. Include the friction pate assy. Attached to the pulley?
Mark asked on 2019-07-29
Hello Mark, thank you for contacting us, In order for us to locate the correct parts and repair information we will require the model number of the unit. Once you have located the model number please feel free to resubmit the question and we will be happy to help you. Look forward to hearing from you!
Repair Instructions: Submitted by Customers Like You
9 of 12 people found this instruction helpful
Tool Type:
Lawn Mower
Parts Used:
Pulley Spring Assembly - 498144
Starter Rope - 697316
Repair Difficulty:
Medium
Time Spent Repairing:
15-30 minutes
Tools Used:
Screwdriver, Pliers, Nutdriver
Lawnmower starter rope broke (also the pulley/spring assembly)
The starter rope broke, as well as, I found out when I disassembled the housing, the pulley / spring assembly had also broken. I removed the entire shroud / cover, cleaned the assembly, removed the old pulley assembly and inserted the new one. Feed the starter rope into the pulley and tie off.
Have a screwdriver handy and turn the pulley assembly counter-clockwise until its taught, insert the screwdriver to keep the spring from unwinding and mount the shroud back to the engine. Once that's done, remove the screwdriver while keeping tension on the cord.
Reattach the cord to the mower handle.
Did you find this story helpful?
Thanks for voting and helping fellow customers!
2 of 2 people found this instruction helpful
Tool Type:
Engine
Parts Used:
Pulley Spring Assembly - 498144
Repair Difficulty:
Medium
Time Spent Repairing:
15-30 minutes
Tools Used:
Power Drill, Socket set, Wrench Set
The recoil spring on the starter broke.
1. Removed the cover on the engine.
2. Removed the housing for the recoil starter.
3. Unbolted the pulley and the starter spring.
4. Installed the pulley and the spring.
5. Rotated the pulley.
6. Used a screwdriver to hold the pulley with the spring compressed.
7. Fed the starter rope through the housing hole and the pulley hole.
8. Tied the knot to secure to the pulley.
9. Held the starter rope and removed the screwdriver.
10. Let the spring wind the starter rope.
11. Replaced the housings and started up the power washer.
Did you find this story helpful?
Thanks for voting and helping fellow customers!
1 of 1 people found this instruction helpful
Tool Type:
Engine
Parts Used:
Pawl Friction Plate - 692299
Ratchet Pawl - 281505S
Pulley Spring Assembly - 498144
Repair Difficulty:
Medium
Time Spent Repairing:
1-2 hours
Tools Used:
Screwdriver, Socket set, Vice grip
Paul broke and damaged friction plate.
Removed engine cover, gas tank and pull starter assembly.
Disassembled pull starter assembly.
Installed new parts in starter assembly and rewound starter rope.
Reinstalled pull starter assembly, gas tank and engine cover.
Did you find this story helpful?
Thanks for voting and helping fellow customers!
Tool Type:
Lawn Mower
Parts Used:
Pulley Spring Assembly - 498144
Repair Difficulty:
Medium
Time Spent Repairing:
15-30 minutes
Tools Used:
Screwdriver, Socket set
Starter pulls needed replacement
Removed starter assembly from engine.
Cut starter rope.
Removed starter pulls assembly.
Removed rope from pully.
Made sure spring on new pully caught on housing.
Tightened spring and threaded on starter rope.
Recoiled rope about 1/2 way and attached pull grip.
Recoiled rope fully and tested pull and recoil.
Reattached starter assembly to engine.
Engine started in one pull.


Did you find this story helpful?
Thanks for voting and helping fellow customers!
Tool Type:
Lawn Mower
Parts Used:
Pulley Spring Assembly - 498144
Starter Rope - 697316
Repair Difficulty:
Easy
Time Spent Repairing:
15-30 minutes
Tools Used:
Screwdriver, Socket set, Nutdriver
Lawn mower rope broke and messed the spring up so it had to be replaced
put the new pulley on the shaft so the spring was hooked then wound the pulley a few turns counter clockwise and held it in place with a screw driver. Fed the new rope in and tied it the held the rope and slowly let the pulley wind the rope on to it. Then put the fly wheel cover on the engine and started the engine with one pull.
A small sheet of instructions came with the parts so no mistakes were made on winding the spring.
Did you find this story helpful?
Thanks for voting and helping fellow customers!
Tool Type:
Engine
Parts Used:
Pulley Spring Assembly - 498144
Repair Difficulty:
Easy
Time Spent Repairing:
15-30 minutes
Tools Used:
Pliers, Wrench Set
Tiller engine starter cord and spring broke.
1. Removed the pull cord assembly from engine, 4 bolts.
2. Wound cord on new spring assembly.
3. Installed new spring assembly.
4 Installed pull cord assembly on engine.
5. Took up the slack in the cord at the handle by shortening the cord.
6. Cranked the engine
Did you find this story helpful?
Thanks for voting and helping fellow customers!
Tool Type:
Lawn Mower
Parts Used:
Pulley Spring Assembly - 498144
Repair Difficulty:
Medium
Time Spent Repairing:
30-60 minutes
Tools Used:
Screwdriver, Socket set
Pawl came out of starter rope recoil spring housing
Disassembled after watching a u tube video, reinstalled pawl, rewound the spring and reassembled. Was very pleased with the order and fast response. Would definitely order from you again when I need a part.
Did you find this story helpful?
Thanks for voting and helping fellow customers!
Tool Type:
Lawn Mower
Parts Used:
Pawl Friction Plate - 692299
Ratchet Pawl - 281505S
Spring-Friction - 691855
Pulley Spring Assembly - 498144
Starter Rope - 697316
Repair Difficulty:
Medium
Time Spent Repairing:
30-60 minutes
Tools Used:
Screwdriver, Pliers, Nutdriver, two pair of needle nose pliers.
Lawn mower rope broke and coil spring loop had become undone and twisted.
Remove the engine shroud and then remove three bolts holding the gas down. Loosen another bolt left rear & down of the gas tank and you can tilt the gas tank back w/o removing it completely. Then remove another bolt holding the oil fill tube, pull up slightly and turn to the side so that it clears the engine cover. Remove 4 bolts holding the engine cover/pulley spring assembly and lift it up slowly(make sure you recall how it is mounted over some engine flanges). Remove a bolt holding down the Pawl friction plate over the pulley spring assembly and lift up on the assembly carefully as it contains the recoil starter spring. I then discovered that my new pulley spring assembly had the anchoring loop (the one that anchors on the center tab of the engine cover) looping to the right. My original spring looped to the left. I then had to use two needle nose pliers to carefully grab the spring loop and bend it around to the left making a new anchoring loop. This was very time consuming as you have to be careful of the spring not uncoiling. Once you done the new loop, bent the spring loop towards the center of the coiled spring so that it can catch on the center tab of the engine cover. Once you insert the pulley spring assembly, turn it counter clockwise until tight and then turn it back one turn to release some tension. You have to stick a small screwdriver in-between the pulley assembly and one of the slots in the engine cover to keep the spring from uncoiling. You them align the rope hole in the pulley with the rope hole in the engine cover and insert the new rope, grab it with needle nose and pull it, giving you some slack to tie the knot. You can now release the rope slowly (make sure you have the pull rope handle attached to the other end of rope) until the rope winds completely. You now attach cover back onto engine, making sure it fits correcting onto its location. You can now reattach all other parts in reverse of how you took them off. If you have a digital camera or phone, take pictures before or as you unassemble the engine, so you can remember what goes where.
Did you find this story helpful?
Thanks for voting and helping fellow customers!
1 of 2 people found this instruction helpful
Tool Type:
Lawn Mower
Parts Used:
Pulley Spring Assembly - 498144
Float Bowl - 796611
Carburetor Kit - 799866
Repair Difficulty:
Easy
Time Spent Repairing:
30-60 minutes
Tools Used:
Screwdriver, Socket set, Gas supply line clamp, Can choke spray cleaner
Snapped rope and pulley spring.
Initial problem was snapped rope& pulley spring. Decided to do other maintenance like cleaning carb well, draining & cleans gas container, air filter, general over-all cleaning of motor, replacement of pulley spring assembly.
Started by removing exterior housing, air filter holder, carb float bowl, gas tank and old pulley/spring assembly.
Replaced old pulley spring assembly and new rope.
Re-assembled unit, adjusted idle.
Good as new ! No problems.
Had 2 units to repair - similar except one replaced non- Autochoke carb
Doing your own maintenance on simple engines like these are a snap and saves many $s. Just need right tools and be willing to get hands dirty and an easy place to get replacement parts.
Did you find this story helpful?
Thanks for voting and helping fellow customers!
1 of 2 people found this instruction helpful
Tool Type:
Lawn Mower
Parts Used:
Pulley Spring Assembly - 498144
Repair Difficulty:
Medium
Time Spent Repairing:
30-60 minutes
Tools Used:
Screwdriver, Pliers, Socket set
Lawn mower starter spring broke
Had to remove old pulley and attached broken spring and replace it with new unit.
The trick was to not let the spring unwind from the pulley.
The hardest part was to place the pulley on the motor and with spring upside down you have to get the end of spring to grab a stationary post.
You also had to be sure the pull rope was wrapped perfect length on pulley for it to be right length after everything is assembled.
Did you find this story helpful?
Thanks for voting and helping fellow customers!
Reviews
4.8
Average Rating (out of 5):
5 Reviews
Click to filter by ratings:
5 stars
4
4 stars
1
3 stars
0
2 stars
0
1 stars
0
  • Highest Rating
  • Most Recent
< PREV
  • 1
NEXT >
  • Part was exact replacement
    Worked as intended!
    Mike - 28 days ago Verified Purchase
    Everything Worked Out Swimmingly!
    I have to say, from watching the videos to diagnose my repair job, to finding the right part/assembly to replace, then watching the installation video, this was a tremendously seamless operation. I am really impressed with the way things are set up by this organization, and will be back should something else fail on my equipment! Thank you for putting this all together to help us DIYers get ti done!
    Guest - April 18, 2020 Verified Purchase
    Pulley Spring Assembly
    Original part from Briggs and Straton. $10.00 cheaper than my local store.
    keith - October 25, 2019 Verified Purchase
    Worked
    Happy!
    J - June 17, 2019 Verified Purchase
    Part was correct and arrived in a timely manner
    The part fit correctly and was easy to install. Video was helpful.
    Guest - May 26, 2020 Verified Purchase
    Verified Purchase
    eReplacementParts Team
    • Highest Rating
    • Most Recent
    < PREV
    • 1
    NEXT >
    Product Information
    Manufacturer: Briggs and Stratton, Toro, Lawn Boy
    Product Number: 498144
    Classification: Part
    Weight: 0.27 lbs.
    Shipping: Ships Worldwide
    Repair Guides
    Watch the Repair Video for Pulley Spring Assembly
