12087499-1-M-Husqvarna-587819701-Lawn Tractor Mandrel Assembly
Part Location Diagram of 587819701 Husqvarna Lawn Tractor Mandrel Assembly
See part I-33 in the diagram
12087499-1-S-Husqvarna-587819701-Lawn Tractor Mandrel Assembly 360 view

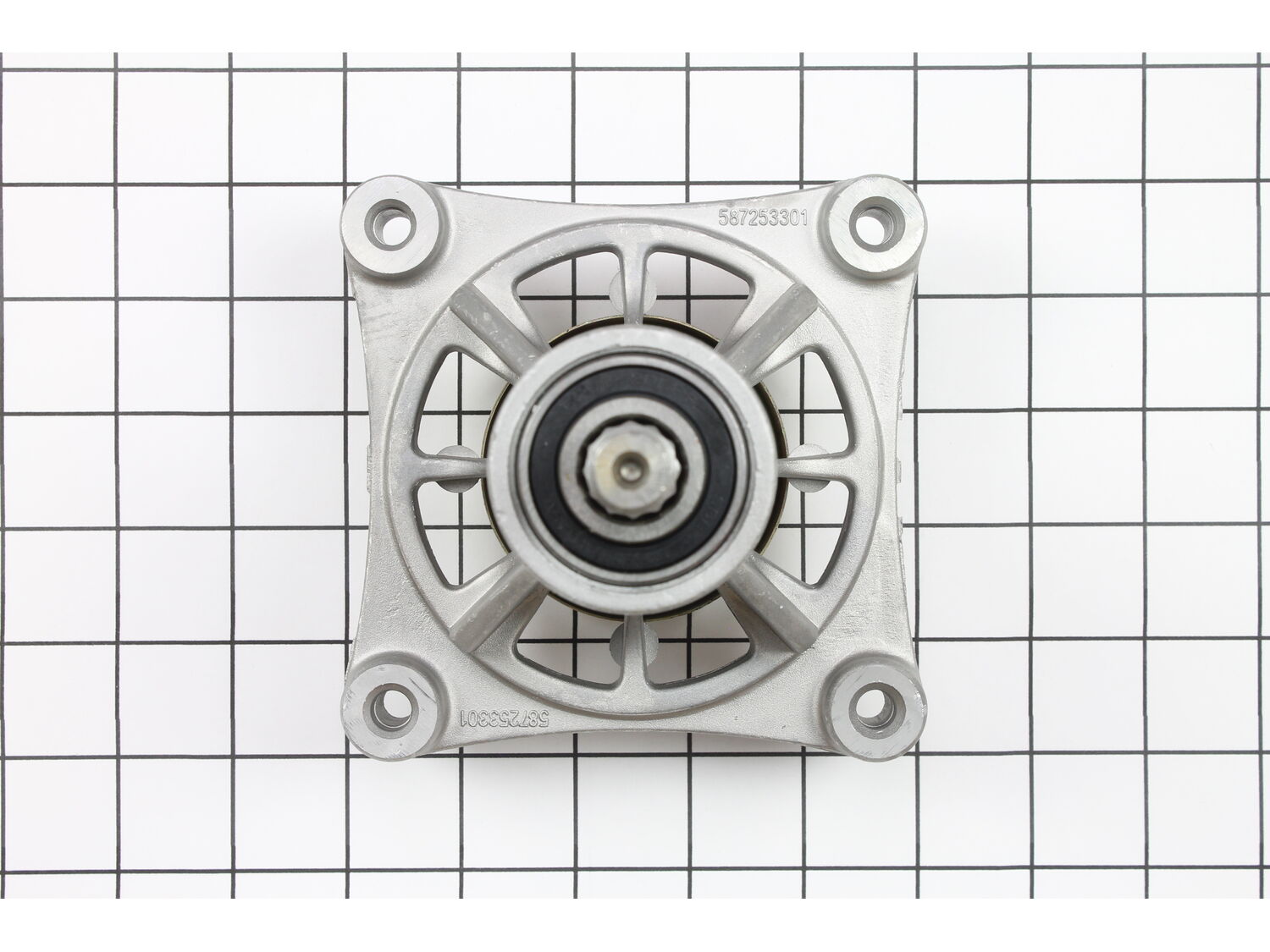

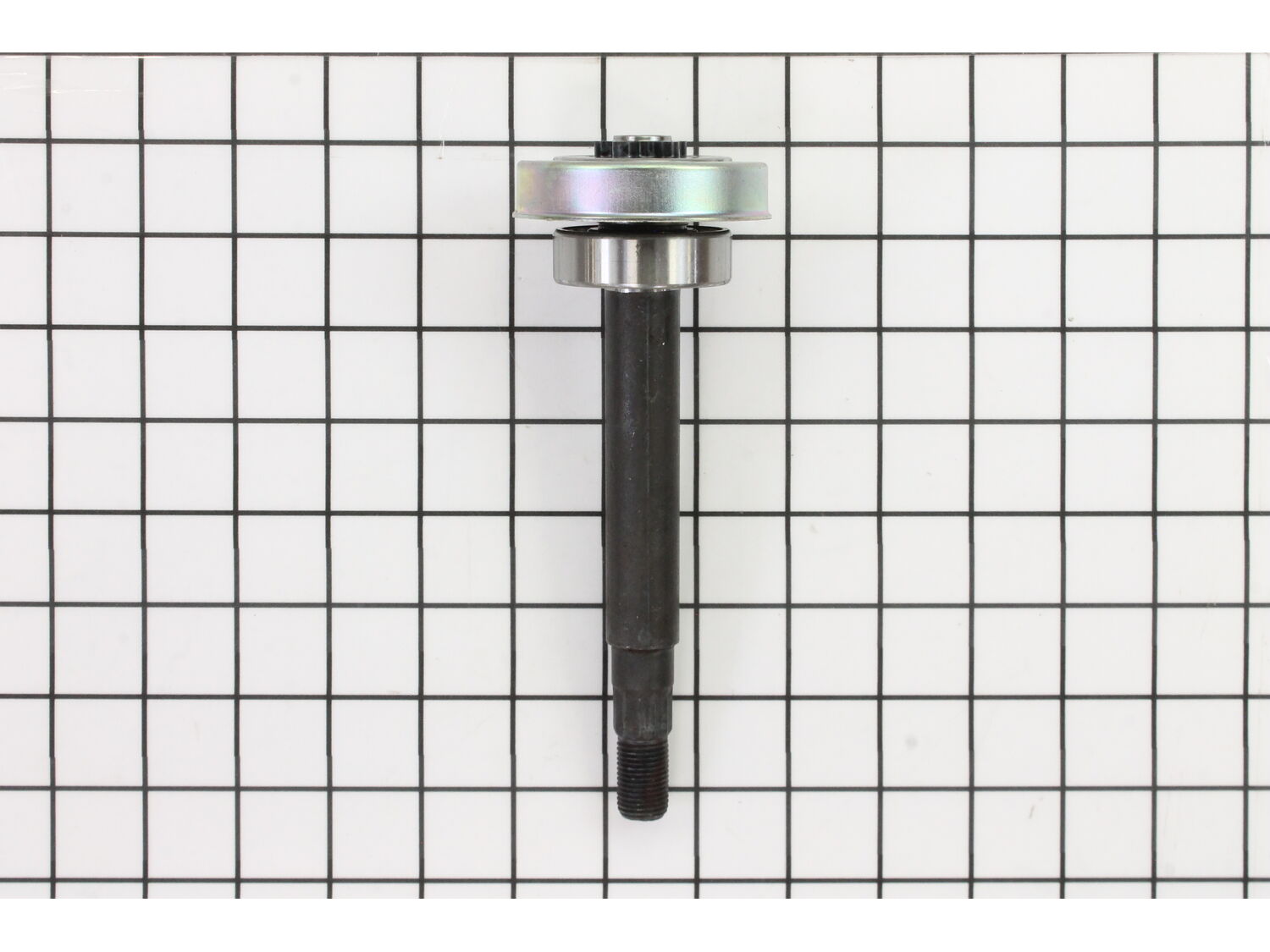

( Grid squares measure 1x1 inch )
12087499-1-S-Husqvarna-587819701-Lawn Tractor Mandrel Assembly 12087499-2-S-Husqvarna-587819701-Lawn Tractor Mandrel Assembly 12087499-3-S-Husqvarna-587819701-Lawn Tractor Mandrel Assembly 12087499-1-S-Husqvarna-587819701-Lawn Tractor Mandrel Assembly 360 view
Part Location Diagram of 587819701 Husqvarna Lawn Tractor Mandrel Assembly

Lawn Tractor Mandrel Assembly 587819701

Manufactured by:
Husqvarna
ERP Number:
ERP12087499
Part Number:
587819701
Original Equipment Manufacturer ?
$56.31
★★★★★
★★★★★
217 Reviews
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

30 - 60 mins

(104 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Description Frequently Purchased Together Troubleshooting Reviews Questions & Answers Repair Instructions Model Cross Reference

Product Description

?

This OEM mandrel assembly is a genuine replacement part sourced directly from the manufacturer and is designed for use with riding lawn mowers. Sold individually, this tall-style mandrel includes the housing, shaft assembly, bearing, and nut. Please note that the pulley, washer, blade bolt, and washers are not included. The mandrel is the component to which the mower blade attaches and is mounted to the mower deck using four bolts. The mounting holes on the mandrel are not threaded; however, the bolts used are self-tapping to ensure a secure fit. For proper installation, the spacer must be positioned underneath the pulley. Installing the spacer on top—or omitting it entirely—can result in damage to the shaft and pulley. The mandrel shaft passes through the deck, where the pulley is attached, and the drive belt is then routed around the pulley to power the blades.

Frequently Purchased Together

?
Washer Head Screw
★★★★★
★★★★★
(29)
$6.15
In Stock
Minimum Quantity of 2 required
Shoulder Bolt
★★★★★
★★★★★
(27)
$4.13
In Stock
Minimum Quantity of 2 required
Lawn Mower Washer
★★★★★
★★★★★
(17)
$4.13
In Stock
Minimum Quantity of 2 required
Lawn Mower Cotter Pin
★★★★★
★★★★★
(9)
$4.13
In Stock
Minimum Quantity of 2 required
Washer 5/16 Std Flt
★★★★★
★★★★★
(5)
$8.30
In Stock
Minimum Quantity of 2 required
Lawn Mower Screw
★★★★★
★★★★★
(4)
$6.27
In Stock
Minimum Quantity of 2 required
Bowtie Cotter Pin
★★★★★
★★★★★
(6)
$6.15
In Stock
Minimum Quantity of 2 required
Bolt, Shoulder
★★★★★
★★★★★
(1)
$4.13
In Stock
Minimum Quantity of 2 required
Lawn Mower Return Spring
★★★★★
★★★★★
(2)
$5.29
In Stock
Minimum Quantity of 2 required
Deck Shell Only
$1199.99
In Stock
Spring Torsion Retainer
$6.49
In Stock
Linkage Brake
$42.50
In Stock
Link Brake
$14.24
In Stock

Troubleshooting

This part works with the following brands:
  • Husqvarna
  • Craftsman
  • Poulan
  • Jonsered
  • Weed Eater
  • Ariens
  • RedMax
  • Murray
This part works with the following products:
  • Lawn Tractor
  • Lawn Mower
Part# 587819701 replaces these:
  • 532187281
  • 532192870
  • 532192872
  • 587253301
  • 587256501
  • 587819701
★

Customer Part Reviews

?
4.7
Average Rating (out of 5):
★★★★★
★★★★★
(217 Reviews)
Click to filter by ratings:
  • 5 stars
    178
  • 4 stars
    26
  • 3 stars
    7
  • 2 stars
    3
  • 1 star
    3
  • 1
  • 2
  • 3
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Easy repair Great part worked just as it should have
This showed up fast and worked great
Guest - April 25, 2019
Verified Purchase
★★★★★
★★★★★
Great choice of parts
Everything was perfect, easy to install. All the parts were available to complete the repairs. Came in a timely fashion. I recommend getting all your parts here
Guest - April 26, 2019
Verified Purchase
★★★★★
★★★★★
On time and fit perfectly
Will deff order again
Guest - May 1, 2019
Verified Purchase
★★★★★
★★★★★
Mandrel assembly
recieved part ordered, was exact match as original. I think on your shipping options should add USPS priority mail. This method would get the part to customer in 3 days. I chose lest cost shipping and this method said would take 4-8 business days(arrived in 6 business days) for $8.47 I think. Even if was couple more dollars would have been worth it to get part in 3 days. Just something to think about. I will still use your service for addirional parts because I like the fact it gave me a coumplete layout of deck with all parts numbered and labeled. Made choosing the right part very easy.After getting part had mandrel replaced and deck back on mower in about one hour.Thanks again for having exact parts
Arthur - May 1, 2019
Verified Purchase
★★★★★
★★★★★
The right part
Fit perfectly, good quality and fast delivery.
George - May 2, 2019
Verified Purchase
★★★★★
★★★★★
Mandrel broke
Part arrived, installed, works great! Appreciate the quick delivery.
Guest - May 2, 2019
Verified Purchase
★★★★★
★★★★★
correct parts and easy fix
Took a long time to come in, but parts were correct and in good shape, and cost was better then stores price.
Guest - June 13, 2019
Verified Purchase
★★★★★
★★★★★
Been keeping my old Craftsman riding mower working like new .
Relatively easy repair. Great part. Worked as expected. Recommended and would purchase again. No problems at all with shipment. Great customer service!
Guest - June 2, 2019
Verified Purchase
★★★★★
★★★★★
Great fit, easy to install
Fast shipping. Exact part as original very easy to install. Will use ereplacement parts again.
Guest - May 27, 2019
Verified Purchase
★★★★★
★★★★★
Component was complete; Installed easily
The mandrel assembly was delivered in a timely fashion. The installation instructions were complete. All parts were present and in new condition. Installation was simple. Price was reasonable.
Michael - May 30, 2019
Verified Purchase
  • 1
  • 2
  • 3

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

30 - 60 mins

(104 rated repairs) ?
  • 1
  • 2
  • 3
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

The original mandrel assembly cracked badly around the screws that hold it to the deck, and the brake arm was bent and no longer contacting the pulley

Zach from Clermont, Georgia

69 of 70 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Socket set, Wrench (Adjustable), Wrench set
Parts Used:
597074201, 587819701
Once the mower deck was removed the repair was simple. Remove nut on top of mandrel holding the pulley wheel in place and remove wheel. Remove screws holding the old mandrel assembly to the deck, make note of where the belt guides are, and remove old mandrel (blade still attached and must remove by pulling the mandrel down through the d eck). Remove nut holding blade on and remove blade. Take the mandrel screws and use them to cut threads into the screw holes of the new mandrel (the holes in the new mandrel are not pre-threaded). Put new mandrel in place, replace belt guides in their proper positions, line up the holes and replace the screws and tighten firmly. The brake pad is self explanatory: remove nut and take off old brake, put new brake on and replace nut.
Read less
Did you find this story helpful?
Thank you for voting!

The old mandrel star gear that fits into mower blade had galled causing blade to not rotate

Phil from Cody, Wyoming

34 of 34 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Wrench set
Parts Used:
587819701
Set lawn tractor front wheels up on ramps. Blocked rear wheels.
Set mower deck to lowest setting.
Used wood block to secure mower blade and removed top nut on mandrel housing.
Set mower deck to highest setting.
Removed bolt below mower blade. Removed mower blade.
Set mower deck to lowest setting for clearance to tap out old mandrel.
Used hammer and block of wood to tap out old mandrel. After old mandrel is free, set mower deck to highest setting (must have about 6\" clearance below mower deck) to completely remove old mandrel.
Install new mandrel into mandrel housing from below mower deck by gently tapping block of wood held against star gear. After bearing seated, reinstall top nut on mandrel and reinstall mower blade making sure blade fully engaged with star gear on mandrel.

Thanks for sending the mandrel quickly so I could get back to mowing my lawn.

Read less
Did you find this story helpful?
Thank you for voting!

I hit my water meter and bent the deck a little. I was able to straighten the deck and when I turned the blades back on, the left pulley started smoking and it felt like the deck was vibrating apart.

Don from Greenwood, South Carolina

23 of 23 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Socket set, Wrench set
Parts Used:
587819701
I removed my deck, found that the left blades was a little harder to turn and made a roaring noise when spinning it. I removed the top pulley and then the blade. Next I removed the spindle ( mandrel ). The fall bearings had came out of the top bearing. Also the bottom bearing was bad as well. I ordered my spindle or mandrel from eReplacem entparts.com and when it came in I replaced it and my blades...which it is a good time to do since the deck was already off. Reinstalled the deck and was back in business.
Thank you eReplacementparts.com

This was on my 46 inch cut Husqvarna riding mower.
Make sure to remove spark plug wire before starting any work on or near the blades.
Wear gloves and eye protection!
Read less
Did you find this story helpful?
Thank you for voting!

Had damaged the blades and busted the mandrel assembly. Also, had stripped the teeth on the mandrel pulley,

Donald from Raleigh , North Carolina

17 of 17 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers, Socket set
Parts Used:
587819701, 584953901, 532403107, 532195945
I removed the deck completely from the craftsman lawn tractor. Removed all damaged parts from the mower deck with the necessary tools making sure to take a cell phone picture prior to disassembly. FYI, I did not realize the mandrel assembly was not threaded at the 4 points where you attach the mandrel to the deck with the washer head scre ws. Don\'t panic though, because the washer head screws self-thread into the mandrel assembly making for a very firm attachment. This project was a little more time consuming because the old mandrel assembly had sheared off at 3 points and the broken pieces under the washer head screws were troublesome to remove. Liquid wrench helped with the removal though. FYI, make sure you don\'t forget to put the spacer on top of the mandrel before you attach the pulley to the top of the mandrel. All new parts went together very nicely on re-assembly. I re-attached the deck to the Lawn tractor. I started the mower and it worked flawlessly.
Read less
Did you find this story helpful?
Thank you for voting!

Bearing and shaft...shot

Nicholas from Dover, Delaware

10 of 10 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Wrench (Adjustable), Wrench set
Parts Used:
587819701
1: Removed lawnmower deck and cleaned
2: Removed old mandrel assemblies and blades
3: Cleaned deck with wire brush attachment (power drill)
4: Painted deck (2 coats) Black spray paint (1 can)
5: New mandrel\'s had 4 bolts each, old had 3. Drilled new bolt holes for mandrel\'s
6: Attached mandrel\'s with new h ardware and attached new blades.
7: Reattached mower deck

Note: only 1 mandrel bearing was shot, but replaced both Mandrel\'s. Total time was about 90 minutes, not counting drying time for spray paint.
Read less
Did you find this story helpful?
Thank you for voting!

Mower made metal on metal noise and stopped running.

Hector from Midlothian, Texas

9 of 9 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Parts Used:
589676103, 587819701
The mandrel broke in two places, and also the deck ripped out at the mandrel mounting position bolt holes. Removing the blade and mandrel was fairly easy since I have done this previously. This model of Husqvarna allows for very easy removal of deck assembly from mower. What took the bulk of time was taking deck to welder to make repairs to the damaged mounting holes on deck. He used metal washers then scraped and painted to match original deck. Once I picked up deck re-attaching every thing else was done within 20-25 minutes. Mower now sounds quiet and runs & cuts maybe better now then when it was new. So the lesson here is when an unusual noise starts don\'t hesitate investigating before continuing to operate mower.
Read less
Did you find this story helpful?
Thank you for voting!

Product came without mounting holes threaded for mounting bolts

Kevin from Rowley, Massachusetts

6 of 6 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Socket set
Parts Used:
587819701
Took the mower deck off. Removed damaged mandrel, spindle assy. Tapped threads in new assy and re-installed. I have a tap and die set, but most dyi guys donÆt.
Did you find this story helpful?
Thank you for voting!

Bearing in the mandrel assembly were bad.

mark from marshall, North Carolina

5 of 5 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Socket set, Wrench set
Parts Used:
587819701
1. Remove the belt.
2. Remove the lawnmower blade.
3. Remove the old mandrel assembly.
4. Bolted on the new assembly.
5. Put the lawnmower blade back on.
6. Put belt back on the pulleys.

Easy to do if you stand lawnmower up on its rear end. I used a 2 x 4 to help level the mower out on its rear e nd.
Read less
Did you find this story helpful?
Thank you for voting!

Damaged parts

joel from templeton, California

5 of 5 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Pliers, Socket set, Wrench (Adjustable), Wrench set
Parts Used:
531167701, 587819701, 584953901, 532138971, 532144959
Removed the deck and replaced parts.
Did you find this story helpful?
Thank you for voting!

hit a rock and damaged the mandrel assembly.

Sidney from Cheyenne, Wyoming

5 of 5 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
More than 2 hours
Tools:
Socket set, Wrench set
Parts Used:
587819701, 532415598, 532193003, 532416405
1. Removed the mower deck, ( not needed if the housing is clean)
2. Removed the mandrel assembly on both sides.
3. Pressure washed the entire deck.
4. After letting it dry repainted the under side of the deck. (let dry, reason for the length of time to complete ( about 1.5 hrs to dry)
5 Installed the new mandrel a ssemblies.. and new blades.
6. Remounted the deck on tractor. set the belt.

When i engaged the belt for the deck I could not believe how quiet it was, it was a new lawn tractor...
Read less
Did you find this story helpful?
Thank you for voting!
  • 1
  • 2
  • 3

Model Cross Reference

This part works with the following models:
ERP Number: ERP12087499
Manufacturer Part Number: 587819701
Brand Model Number Description
Poulan 11597 Lawn Mower - Lawn Tractor
Husqvarna 124C Trimmer - 952715671 String Trimmer
Husqvarna 12530 Lawn Tractor - Pxt Tractor
Husqvarna 1538 Lawn Tractor - Ride Mower
Husqvarna 1542XP Lawn Tractor - (T) (96043000602) (2006-10) Ride Mower
Husqvarna 1542XPT Lawn Tractor - Ride Mower
Husqvarna 155BT Leaf Blower / Vacuum - 155 Bt - 20053300001-Current (Us)
Husqvarna 164T Lawn Tractor - Cth Tractor
Husqvarna 1848XPT Lawn Tractor - Ride Mower
Husqvarna 184T Lawn Tractor - Cth Tractor
Husqvarna 18542 Lawn Tractor - Ride Mower
Husqvarna 2042 Lawn Tractor - Ride Mower
Husqvarna 2042LS Lawn Tractor - Ride Mower
Husqvarna 20B42T Lawn Tractor - Ride Mower
Husqvarna 20F42T Lawn Tractor - Ride Mower
Husqvarna 20K46 Lawn Tractor - Ride Mower
Husqvarna 2146XLS Lawn Tractor - Tractor
Husqvarna 2146XP Lawn Tractor - Ride Mower
Husqvarna 2242T Lawn Tractor - Ride Mower
Husqvarna 2246 Lawn Tractor - Ride Mower
Husqvarna 2246LS Lawn Tractor - 2246 Ls, 96043004300, 2008-01
Husqvarna 224T Lawn Tractor - Yth Tractor
Husqvarna 2254XP Lawn Tractor - Ride Mower
Husqvarna 2254XPA Lawn Tractor - Ride Mower
Husqvarna 2254XPB Lawn Tractor - Ride Mower
Husqvarna 2346XLS Lawn Tractor - 2346 Xls - 96043004500 (2007-12)
Husqvarna 2348 Lawn Tractor - Ride Mower
Husqvarna 2348LS Lawn Tractor - 2348 Ls, 96043004400, 2008-01
Husqvarna 2354GXLS Lawn Tractor - Tractor
Husqvarna 236R Brush Cutter - 236 R (20200400001-Current)
Lawn Tractor Mandrel Assembly
$ 56.31
In Stock
✖
Stock Status
✖
Mail-In Recycling Rebate

Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

✖
