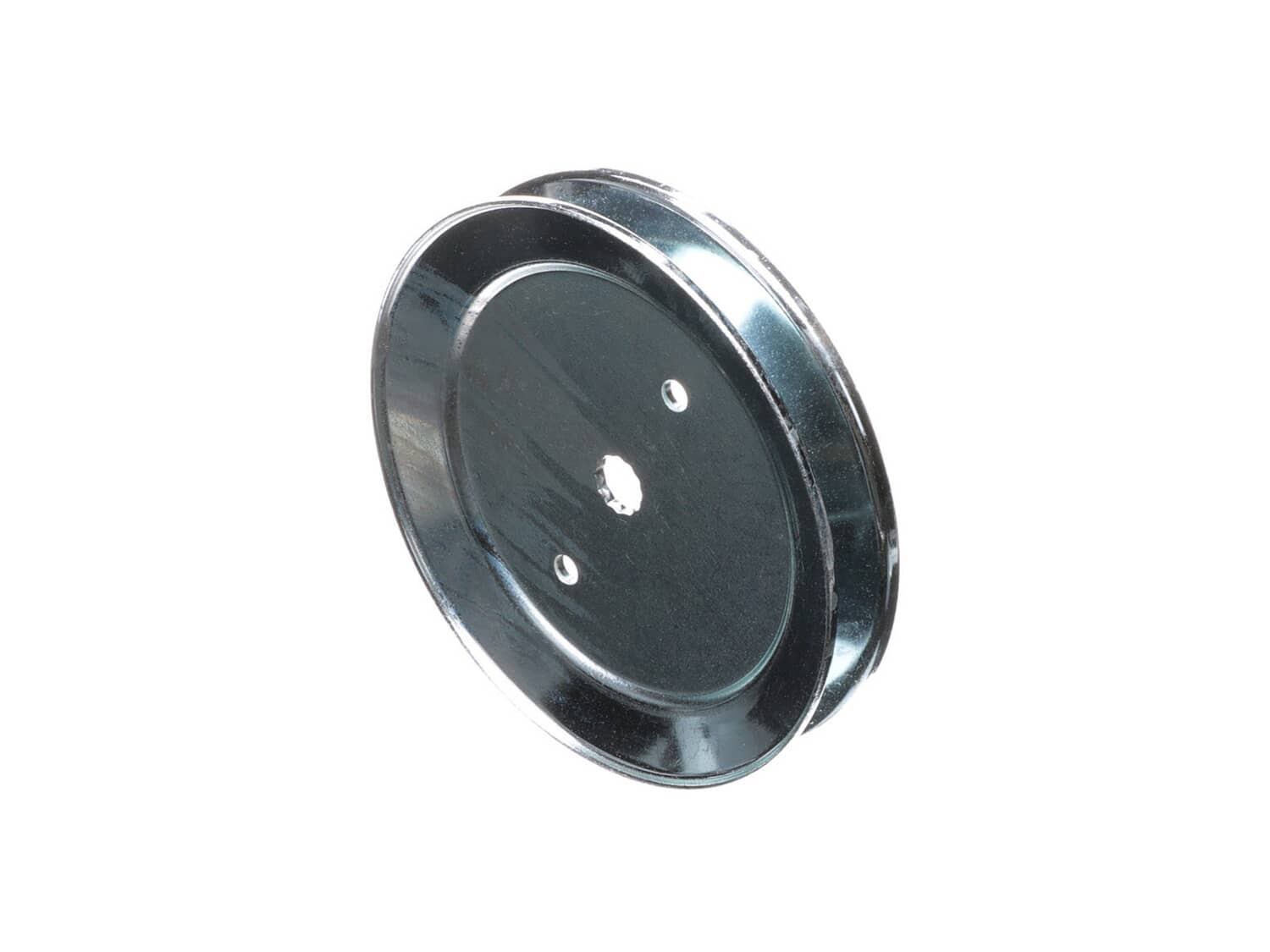

9015257-1-M-Husqvarna-532195945-Mandrel Pulley Assembly

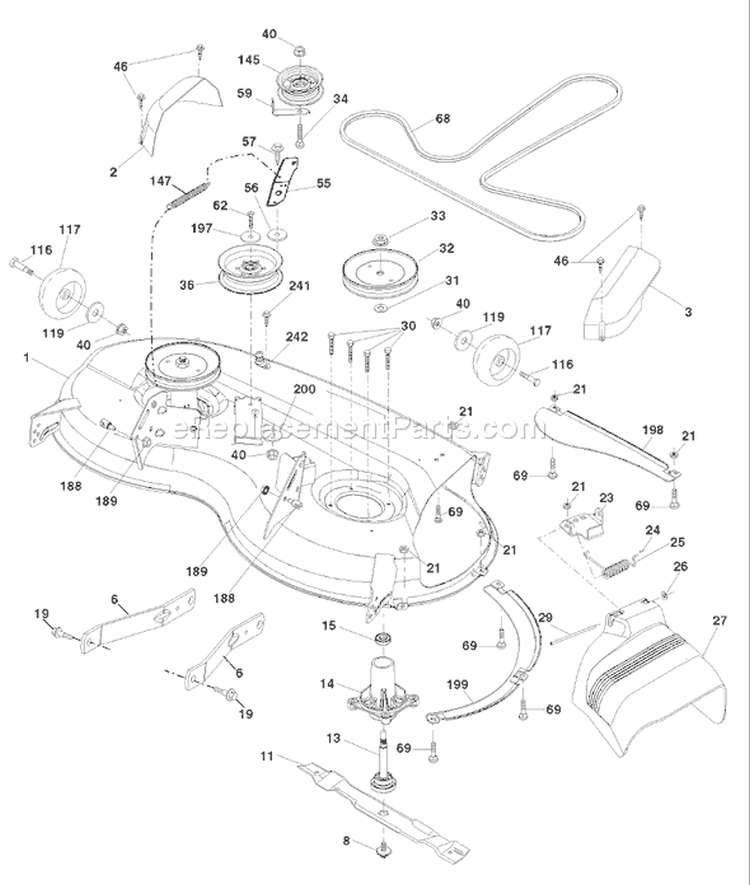

Part Location Diagram of 532195945 Husqvarna Mandrel Pulley Assembly
See part F-32 in the diagram

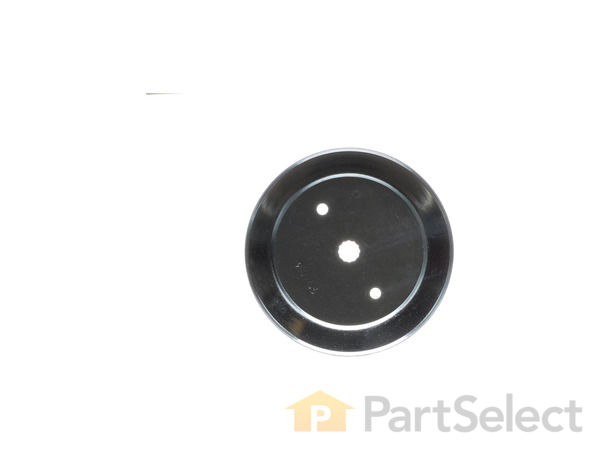

9015257-1-S-Husqvarna-532195945-Mandrel Pulley Assembly 360 view
( Grid squares measure 1x1 inch )
9015257-1-S-Husqvarna-532195945-Mandrel Pulley Assembly 9015257-2-S-Husqvarna-532195945-Mandrel Pulley Assembly 9015257-3-S-Husqvarna-532195945-Mandrel Pulley Assembly 9015257-1-S-Husqvarna-532195945-Mandrel Pulley Assembly 360 view
Part Location Diagram of 532195945 Husqvarna Mandrel Pulley Assembly

Mandrel Pulley Assembly 532195945

Manufactured by:
Husqvarna
ERP Number:
ERP9015257
Part Number:
532195945
Original Equipment Manufacturer ?
$13.38
★★★★★
★★★★★
21 Reviews
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

1- 2 hours

(24 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Description Frequently Purchased Together Troubleshooting Reviews Questions & Answers Repair Instructions Model Cross Reference

Product Description

?

This authentic manufacturer-sourced mandrel pulley is designed for use with Craftsman lawn mowers. It serves as a direct replacement for a missing or damaged pulley originally installed on the unit, helping to maintain proper blade and deck operation. Constructed from durable metal for long-lasting performance, this high-quality part is sold individually. Please refer to your model’s parts diagram to ensure correct placement and compatibility. Note that the hardware required to secure the pulley is sold separately.

Frequently Purchased Together

?
Washer Head Screw
★★★★★
★★★★★
(29)
$6.15
In Stock
Minimum Quantity of 2 required
Linkage Brake
$42.50
In Stock
Link Brake
$14.24
In Stock

Troubleshooting

This part works with the following brands:
  • Husqvarna
  • Poulan
  • Jonsered
  • Craftsman
  • RedMax
  • Weed Eater
This part works with the following products:
  • Lawn Mower
  • Lawn Tractor
Part# 532195945 replaces these:
  • 532195945
  • 532197473
★

Customer Part Reviews

?
4.8
Average Rating (out of 5):
★★★★★
★★★★★
(21 Reviews)
Click to filter by ratings:
  • 5 stars
    17
  • 4 stars
    3
  • 3 stars
    1
  • 2 stars
    0
  • 1 star
    0
  • 1
  • 2
  • 3
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Easy repair went on great
Got it in two days
Guest - May 4, 2019
Verified Purchase
★★★★★
★★★★★
Good job
Thanks for finding a replacement for my Kenmore part that was back ordered from Kenmore it fit perfectly
Guest - May 14, 2019
Verified Purchase
★★★★★
★★★★★
Exactly what I ordered
N/A
Guest - June 10, 2019
Verified Purchase
★★★★★
★★★★★
Exactly
I got exactly what I wanted and it was even two days earlier than expected.
Guest - July 1, 2019
Verified Purchase
★★★★★
★★★★★
Great parts!
The pulley and mandrel were the right parts to get my mower deck working again.
Cory - July 1, 2019
Verified Purchase
★★★★★
★★★★★
Fits perfectly.
Received quicker than the quoted time frame.
Guest - July 23, 2019
Verified Purchase
★★★★★
★★★★★
Pully
The part fit and worked in yesterday I expected it to great doing business who you people!
Guest - July 30, 2019
Verified Purchase
★★★★★
★★★★★
Craftsman Mower
Exact fit. Fast shipping.
Mike - October 5, 2019
Verified Purchase
★★★★★
★★★★★
EASY REPAIR...
Glad that you make parts available and have easy access. Delivery was prompt.
Guest - November 2, 2019
Verified Purchase
★★★★★
★★★★★
very easy repair...part was exactly as advertised. perfect fit
very well made part...fit exactly as needed. Excellent quality
Guest - June 1, 2020
Verified Purchase
  • 1
  • 2
  • 3

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?
  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Looking for deck pulleys both of them
Garry For model number 917287120 - March 28, 2023

Hello Garry, Thank you for your inquiry. Researching the model number that you have provided, we show the flat idler pulley as part# 532196106, the mandrel pulley as part# 532195945, and the tension pulley as part# 532177968. Good luck with your repair.

eReplacementParts Team
March 28, 2023

Did this question help you?
Thank you for voting!
Pully assembly on right blade
Ron Dunn For model number 223830 - February 24, 2022

Hi Ron, Thank you for your question. The part number listed under your model number for the mandrel pulley is 532195945. If you would like to place an order for it, customer service is open 7 days a week and anyone will be happy to assist you. Please feel free to give us a call. We look forward to hearing from you!

eReplacementParts Team
February 24, 2022

Did this question help you?
Thank you for voting!

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

1- 2 hours

(24 rated repairs) ?
  • 1
  • 2
  • 3
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Had damaged the blades and busted the mandrel assembly. Also, had stripped the teeth on the mandrel pulley,

Donald from Raleigh , North Carolina

17 of 17 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers, Socket set
Parts Used:
587819701, 584953901, 532403107, 532195945
I removed the deck completely from the craftsman lawn tractor. Removed all damaged parts from the mower deck with the necessary tools making sure to take a cell phone picture prior to disassembly. FYI, I did not realize the mandrel assembly was not threaded at the 4 points where you attach the mandrel to the deck with the washer head scre ws. Don\'t panic though, because the washer head screws self-thread into the mandrel assembly making for a very firm attachment. This project was a little more time consuming because the old mandrel assembly had sheared off at 3 points and the broken pieces under the washer head screws were troublesome to remove. Liquid wrench helped with the removal though. FYI, make sure you don\'t forget to put the spacer on top of the mandrel before you attach the pulley to the top of the mandrel. All new parts went together very nicely on re-assembly. I re-attached the deck to the Lawn tractor. I started the mower and it worked flawlessly.
Read less
Did you find this story helpful?
Thank you for voting!

The mandrel pulley and the shaft broke.

Mark from Sanborn, New York

3 of 3 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Socket set
Parts Used:
587819701, 584953901, 584453101, 532195945
Replaced the spindle shaft assembly and the pulley, then replaced the mower deck belt. Job complete.
Did you find this story helpful?
Thank you for voting!

Mower deck cracked where mandrel bolts down

Raymond from Pearland, Texas

3 of 3 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Screw drivers, Socket set
Parts Used:
596134801, 587819701, 532187690, 532193003, 532195945
1) I removed the mower deck from the tractor had to unhook the clips and the lowering cable
2) I removed the upper pulley (used an impact and it came off easy)
3) I removed the blade(also used my impact wrench
4) Removed the mandrel
5) Ihad to weld repair the mower deck where it had split ( this is why the mandrel broke one of the hold down bolts off)
6) I reinforced the bolt pattern with thick fender washers at the correct bolt pattern for the new mandrel and welded the washers in place
7) Ground off the welded areas to make them flush so the mandrel would not be in a bind when bolted back down
8) Repainted the deck before I installed all the new parts I ordered
9) Reinstalled the mower deck and adjusted the height to be level with the ground
10) Checked to make sure it worked correctly and went out and mowed the grass
11) All the parts were a perfect match to the ones I replaced and everything works as it should.

I work with my hands all the time and repair a lot of machines where I work. To me it was an easy fix prolly because of my experience. Your average homeowner might have a hard time fixing a mower deck if he or she doesn\'t have access to a welder which I needed in my situation. If there repair only requires a mandrel replacement because of a bad bearing it should be no problem for your average person to unbolt the broken pieces and replace them. Good luck and don\'t be afraid to get your hands dirty!
Read less
Did you find this story helpful?
Thank you for voting!

Mandrel assembly bearings were bad. Brake pads needed to be replaced.

Albert from WALLER, Texas

2 of 2 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Socket set, Wrench set
Parts Used:
587819701, 584953901, 584453101, 532400132, 532405380, 532199478, 532195945
Removed the deck from mower. Easier to remove then I thought
Inspected and removed worn out parts. Got parts numbers from my manual.
Found Replacement Parts.Com on line and called the phone number.
Every part was on in stock. Delivered in a few days. Order was complete and accurate.
I used the impact wrench to brake off the bolts that hold the
mandrel assemblies. These are self taping screws that will not be reusable. Note: the mandrel assemblies had the required 4 screws in the box. I have a smooth running deck. Mower cuts like new again. As long as the motor is good I will rebuild the deck again.
Thank you Replacement Parts this was a great project.
Read less
Did you find this story helpful?
Thank you for voting!

Mandrel and pulley wore out.

chris from perry, Ohio

2 of 2 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Socket set, Wrench (Adjustable), Wrench set
Parts Used:
587819701, 532195945
Removed mower deck from tractor. Disassembled mandrel and pulley from deck and replaced with new mandrel, and pulley. Remounted mower deck to tractor.
Did you find this story helpful?
Thank you for voting!

Drive belt

William from Petal, Mississippi

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Socket set, Wrench set
Parts Used:
532125907, 532195945
Replaced drive belt and pulleys
Did you find this story helpful?
Thank you for voting!

Mandrel assemblyÆs broke

Cathy from Arley, Alabama

1 person found this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
More than 2 hours
Parts Used:
584953901, 532187690, 532195945
Have not received the 2mandrel assemblies yet so no repairs have been done
Did you find this story helpful?
Thank you for voting!

Had to replace the Mandrel and pulley.

Harvey from Hephzibah, Georgia

1 person found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Socket set, Wrench (Adjustable)
Parts Used:
596434404, 531169501, 589527301, 587819701, 817000612, 532409149, 532195945
Removed the Deck from the tractor.
Removed the pulley
Removed 4 bolts from the mandrel
Replaced the mandrel with the new one purchased
Put on the new pulley
Replaced the old blade
Reconnected the deck to the tractor
Did you find this story helpful?
Thank you for voting!

Someone patched it to get rid of it and my son bought it not knowing it

william from WINDER, Georgia

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Socket set
Parts Used:
596134801, 587819701, 532187690, 532195945
Remove the deck unbolted old spindle and bolted new one on reinstalled deck
Did you find this story helpful?
Thank you for voting!

Mandrel pulley was stripped out, clutch cable and bracket was broken, plastic was broken on console Assm.

Tim from JOPLIN, Missouri

1 person found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set, Wrench set
Parts Used:
532197026, 532110452, 532435111, 532414579, 532197250, 532195945
1. Removed the deck from the mower, used a socket to remove the nut holding the pulley on the mandrel.
2. Replaced the pulley and tightened the nut.
3. Removed the broken clutch cable using needle nose pliers to pull the spring off of the lever. The spring is just held on by a lock ring that will fall off when spring is remov ed, so be sure to hold your hand under it to catch it. Installed the new cable pulling the spring back over the lever pin with the lock ring in place.
4. Routed the new cable through the mower frame like the old one and attached to the lever.
Replaced the clutch cable bracket (It had snapped off, on the deck, one bolt holds it on.) (where the other end of the cable connects) and attached the clutch cable spring to the pulley arm.
Read less
Did you find this story helpful?
Thank you for voting!
  • 1
  • 2
  • 3

Model Cross Reference

This part works with the following models:
ERP Number: ERP9015257
Manufacturer Part Number: 532195945
Brand Model Number Description
Husqvarna 2042 Lawn Tractor - Ride Mower
Husqvarna 20K46 Lawn Tractor - Ride Mower
Husqvarna 2146XLS Lawn Mower - Husqvarna Lawn Mower Model 2146XLS Parts
Husqvarna 2146XP Lawn Tractor - Ride Mower
Husqvarna 2246 Lawn Tractor - Ride Mower
Husqvarna 2246LS Lawn Tractor - Ride Mower
Husqvarna 224T Lawn Tractor - Yth Tractor
Husqvarna 224TFI Lawn Tractor - Yth Tractor
Husqvarna 2346XLS Lawn Tractor - Ride Mower
Husqvarna 236R Brush Cutter - 236 R (20200400001-Current)
Husqvarna 240460 Lawn Mower - Husqvarna Lawn Mower Model 240460 Parts
Husqvarna 240461 Lawn Mower - Husqvarna Lawn Mower Model 240461 Parts
Husqvarna 240462 Lawn Mower - Husqvarna Lawn Mower Model 240462 Parts
Husqvarna 240464 Lawn Mower - Husqvarna Lawn Mower Model 240464 Parts
Husqvarna 250180 Lawn Mower - Husqvarna Lawn Mower Model 250180 Parts
Husqvarna 250190 Lawn Mower - Husqvarna Lawn Mower Model 250190 Parts
Poulan 380ZX Lawn Mower - Ride-On Mower
Husqvarna 49 Lawn Mower - Royal 49
Craftsman 917273900 Lawn Tractor - Lawn Tractor
Craftsman 917273980 Lawn Tractor - Lawn Tractor
Craftsman 917276180 Lawn Tractor - Tractor
Craftsman 917276630 Lawn Tractor - Tractor
Craftsman 917276632 Lawn Tractor - Tractor
Craftsman 917276640 Lawn Tractor - Tractor
Craftsman 917276641 Lawn Tractor - Tractor
Craftsman 917276642 Lawn Tractor - Tractor
Craftsman 917287120 Lawn Tractor - Lawn Tractor
Craftsman 917287230 Lawn Tractor - Tractor
Craftsman 917287241 Lawn Tractor - Tractor
Craftsman 917287242 Lawn Tractor - Tractor
Mandrel Pulley Assembly
$ 13.38
In Stock
✖
Stock Status
✖
Mail-In Recycling Rebate

Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

✖
