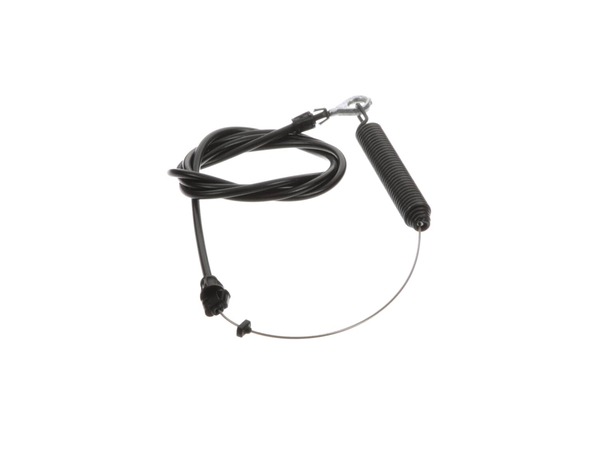

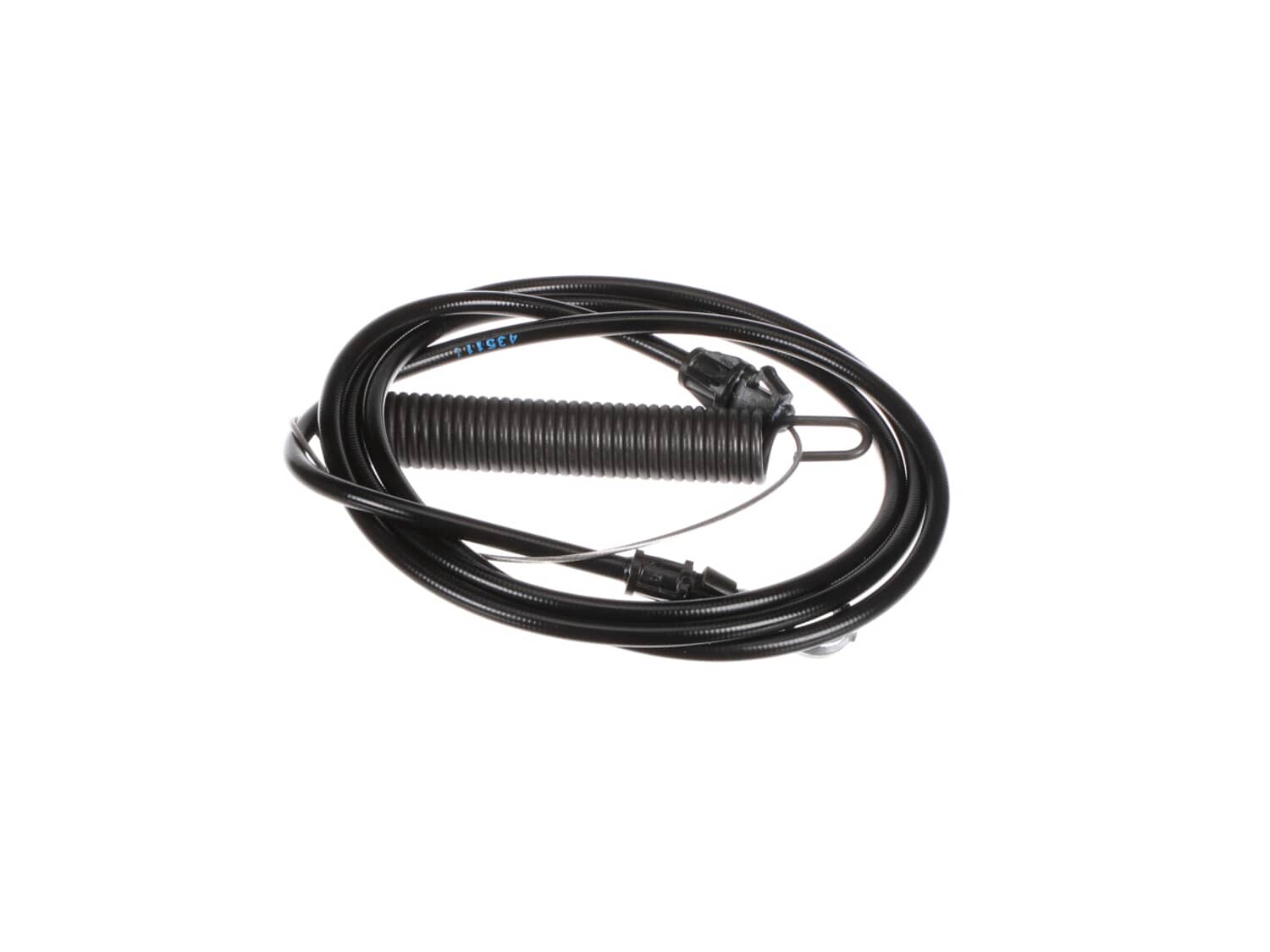

This is a genuine replacement part sourced from the original manufacturer for use with riding mowers and lawn tractors made by Husqvarna, Weedeater, Jonsered and Poulan. This part attaches the lever to the idler arm on the mower deck and grants you access to disengage and engage the blades. This manual clutch cable includes the cable, cable sheath with connection clips and the spring hook. You will need a socket set to replace this part. This part is made of metal, rubber and wire.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Perfect match
The cable assy is exactly as advertised and works perfectly
Guest - May 14, 2019
Verified Purchase
★★★★★
★★★★★
Exactly what we needed!
Clutch cable is exact ly what we needed plus it arrived within the week, that was GREAT, will definitely order from you again=perfect!
Keven - June 3, 2019
Verified Purchase
★★★★★
★★★★★
Exactly the correct part.
The part I ordered was exactly the replacement I neeed. Part was perfect match. Delivered within 3 days. I will most definitely order from this company again. Great experience
Charles - July 1, 2019
Verified Purchase
★★★★★
★★★★★
exactly what I needed
arrived quickly, all parts exactly what I ordered
Guest - July 12, 2019
Verified Purchase
★★★★★
★★★★★
Every thing worked out as it should!
Parts arrived in good time, was able to get my mower up and running, everything fit as it should!
Guest - August 7, 2019
Verified Purchase
★★★★★
★★★★★
Impressed, very impressed.
The part arrived when you said it would, the quality was excellent and it fit perfect.
Guest - August 20, 2019
Verified Purchase
★★★★★
★★★★★
The part was a perfect fit and work like expected
The part arrive quickly in great condition and lawnmower running like new again.Thanks ereplacement
Guest - September 12, 2019
Verified Purchase
★★★★★
★★★★★
A part to keep me working
It was just what I needed, Fast shipping, good job...........
Guest - January 15, 2020
Verified Purchase
★★★★★
★★★★★
Arrived on time and like there price
Was in great condition and fit my mower perfectly
Guest - February 6, 2020
Verified Purchase
★★★★★
★★★★★
Easy to use site for ordering what you need.
The replacement part I ordered was an adequate "knock off" or imitation. The original Craftsman cable that broke was about 10 yrs old. This replacement cable isn't as solid/beefy but will probably last
6-7 years.
Guest - April 8, 2020
Verified Purchase
< Prev
1
2
3
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Removed the two bolts holding the gas tank.
2. Removed the tension adjustment plate from the mower deck.
3. Removed the remaining clutch cable.
4. Attached both ends of the new clutch cable.
5. Replaced the tension plate, and the gas tank.
6. The replacement part was a perfect fit.
I simply started at the top and followed the broken cable down. As I removed the broken cable, I replaced it with the new one. This system worked good for me.
1. Removed gas tank.
2. Removed clutch arm spring.
3. Remove cable upper retaining holder
4. Install new cable in reverse order, getting clutch arm spring on you need three hands. Hurt my bad back, but no one complain to.
5. Then remove the mower, lower cable retaining holder, lower cable clutch spring and then i
... Read morenstall the other end of the new cable.
6 .Be very careful that you correctly route this cable to prevent the damage that was done to the used tractor I purchased. Just for your info, I am 83 1/2 yrs.
1. To replace the clutch cable, remove the gas tank first so it is easier to get to the cable.
2. I find it easier to replace the blades by removing the deck. It only takes about 15 min. to remove the deck, change the blades and then reinstall the deck.
Remove bolts from fuel tank, pull forward toward engine. Disconnect keeper, washer and end of cable from lever. disconnect cable from and spring from clutch break assembly after dropping and disconnecting mower deck. reroute new cable between break clutch lever and mower break clutch assembly. Reattach cable end to pin at lever, washer an
... Read mored safety pin.Replace fuel tank and replace hold down screws. cable replacement completed.
After drooping mower deck and removing safety pins from mower brackets slide mower deck out the left side of tractor. tilt mower deck up so you have access to bolt holding blade. hold bolt with wrench, and using a larger wrench hole upper spindle bolt. Remove lower bolt, washer, and blade. Loosed and remove upper bolt from shaft along with pulley.. remove bolts from around Mandrel assembly and remove through bottom of mower deck. Replace with new assembly is reverse of removal.Reattach deck to mower and your done.
Read less
Did you find this story helpful?
Thank you for voting!
Tractor front wheels- Toe out & cluch cable broke & replaced blades
ANDREW from DIX HILLS, New York
1 personfound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Jack up Tractor off wheels, removed both wheels on both sides, disconnect & removed cutting assembly under tractor, removed brake clutch cable and replaced all parts & Greased wheel bracket . Removed cutting blades from assembly and replaced blades and installed it back under tractor.
Did you find this story helpful?
Thank you for voting!
Manual clutch cable spring broke where it connects to the mower deck.
Was nice to see a brief video outlining the repair. I looked at the machine I reached in and manually removed the spring on the clutch lever freeing the end of the cable. Placed new cable on and again replaced the spring with my hand. I did not have to remove the control lever and had the repair completely accomplished in about 3 minutes
... Read more- counting unhooking the mower connecting spring and rerouting the cable to a more secured spot on the machine. Counting refueling time, I was mowing well within 10 minutes of starting.
Disconnected old cable from engaging lever.
Removed top cable holder.
Installed new cable at engaging lever
snaked new cable thru same path as old cable
had to cut lower cable holder with dremel
Could not attach lower spring due to tension so I disconnected at lever end, then connected lower spring end and
... Read morereconnected upper lever end.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
3
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9019323
Manufacturer Part Number: 532435111
Lawn Mower
- Husqvarna Lawn Mower Model 96041017003 Parts
✖
Stock Status
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
