This is a genuine replacement belt sourced from the original manufacturer, designed for use with riding lawn mowers and tractors. Made from durable rubber and sold individually, this belt is responsible for driving the mower blades, making it a key component for effective cutting performance. To ensure optimal operation and extend the life of the belt, it’s important to clean the pulleys before installation. Regular inspection is recommended, and the belt should be replaced if it becomes worn or stretched. A set of wrenches is required to complete the installation.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Worked like it should
The belt i ordered was spot on. My lawn mower is working like new . Thanks for the excellent service.
Guest - May 4, 2020
Verified Purchase
★★★★★
★★★★★
Received fast
Mower makes no more noise pullies fixed
Eugene - May 10, 2020
Verified Purchase
★★★★★
★★★★★
Great Service
Excellent parts breakout. Simple ordering procedures. Quick delivery. Right parts that fit. Super experience.
Guest - June 12, 2020
Verified Purchase
★★★★★
★★★★★
easy quick fit to broken belt
This was the best solution, went to 3 stores, none in stock, very fast delivery and perfect fit......thanks
Guest - June 23, 2020
Verified Purchase
★★★★★
★★★★★
Perfect Fit
This belt is a replacement for an older model Craftsman Lawn Tractor. Perfect match to the original, easy to install, keeping the lawn under control again!
Guest - June 27, 2020
Verified Purchase
★★★★★
★★★★★
The belts came and are exactly what I needed. My mower is working now just like new. Thank you . I will definitely order from you again .
Great condition of both belts I ordered.
Guest - July 7, 2020
Verified Purchase
★★★★★
★★★★★
Perfect, hard to find mower deck belt, works great!
Finding the part and ordering it was simple and easy. The belt I received was the correct one, and something I couldn't find locally. My only complaint is that it took about 10 days to arrive, so if you are in a hurry you might want to ask for expedited shipping. I was lucky, it was very dry here so the grass didn't grow much. I will use ReplacementParts again!
Guest - September 26, 2020
Verified Purchase
★★★★★
★★★★★
Great parts
Fit perfectly
Guest - September 6, 2019
Verified Purchase
★★★★★
★★★★★
Easy repair part worked great
Part fit great
Guest - August 14, 2023
Verified Purchase
★★★★★
★★★★★
Looks right. Still waiting on blade bolts I ordered from you on June 25th.
Looks like the correct belt.
Eric - July 5, 2025
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed or loosened side safety covers from the outside spindles. Threaded the new belt on the same as the old one was threaded. The old one broke, but did not fly off the pulleys.
Replaced safety covers.
Remove the deck from the mower. Then remove the blade from the worn shaft assembly. Take a picture of how the deck drive belt is routed and remove it. Then remove the mandrel pulley cover. Then remove the nut on top of the mandrel pulley, Then remove the mandrel pulley. Remove the shaft assembly by tapping on it with a rubber mallet until
... Read more it falls out from inside the mandrel housing. Turn the deck on its side and use the rubber mallet to insert the new shaft assembly into the mandrel housing. Place the deck upright. You may have moved the upper mandrel bearing. If so, take a piece of wood and place it under the new mandrel, then use a socket the same size of the inner race of the upper bearing, and tap it back in with the mallet. Then in reverse order place all of the parts that where removed install them. Then attach the deck to the mower.
1. Released the mower deck belt tension lever.
2. Remove the mandrel covers.
3. Removed old mower deck belt.
4. Installed new mower deck belt.
5. Engaged the mower deck belt tension lever.
6. Installed the mandrel covers.
Did you find this story helpful?
Thank you for voting!
Stationary idler pulley bearing failed (melted) and mower deck drive belt came off.
Ralph from Lake Stevens, Washington
2 of 2 peoplefound this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
1. Separated mower deck from lawn tractor and cleaned both units thoroughly.
2. Removed and replaced tractor mounted idler pulleys, since bearings were noisy.
3. Disassembled mower deck - opted to overhaul blade tower supports (3) to clean and renew lubrication. RECOMMEND REPLACING THESE PARTS AS A UNIT, instead of overhaul.
... Read more 4. Bearing failure had caused hole in deck-mounted pivot support bracket for belt tensioner to become elongated - opted to do nothing at this time.
5. Replacement pulley on pivot support was not sized to accept 7/16\" dia bolt!!! Hardened spacer washer hole was too small as well. Re purposed another bolt from the ordered parts, and added washers as necessary to allow pulley to track properly without binding against the tensioner arm.
6. Removed and replaced other pulleys and hardware (these replacement parts were identical to the removed ones).
7. Installed new belt as per diagram on belt slip cover.
8. Reinstalled mower deck underneath the lawn tractor.
Works great!
Read less
Did you find this story helpful?
Thank you for voting!
Drag Link was ready to break and Drive belt for deck was almost broken.
Removed mower deck
Unbolted spindle and removed blade
Replaced spindle back on deck and installed blade back on spindle use a wooden block to hold blade against deck to tighten blade on spindle
Replace drive belt and route as per manufacturers instructions
Replace deck on mower
Not hard to fix just time co
... Read morensuming need to pay attention as to how deck is fastened to mower
Lawn Mower
- Husqvarna Lawn Mower Model 96043000801 Parts
✖
Stock Status
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

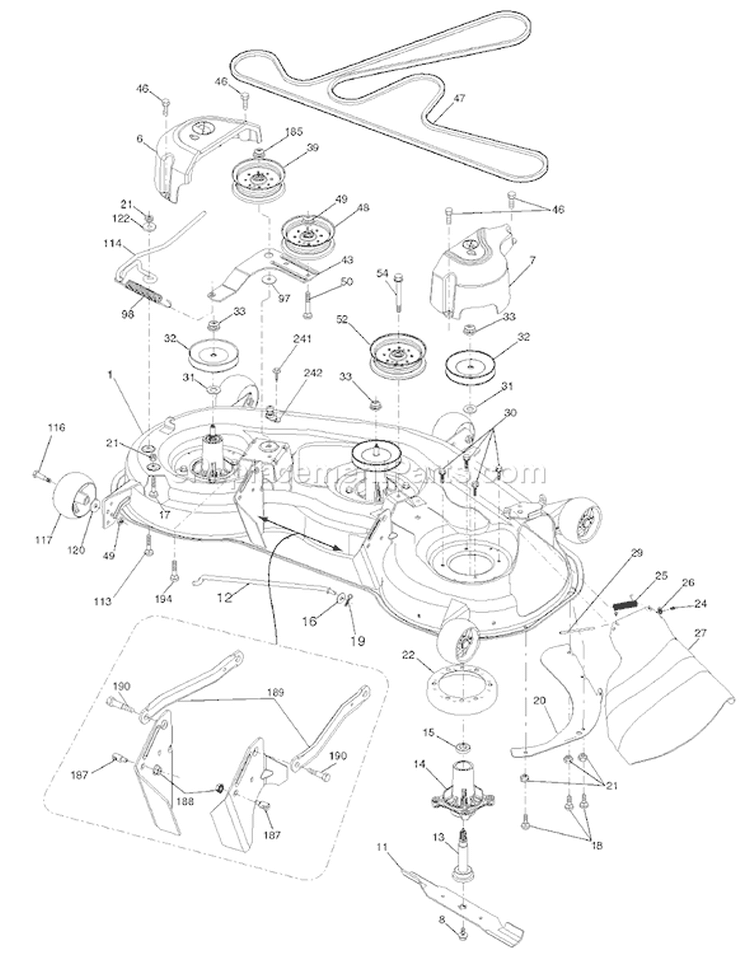

_(2008-01)_WW_6.gif "Part Location Diagram of 593773401 Husqvarna Belt Drive Deck")
_(2008-01)_WW_6.gif "Part Location Diagram of 593773401 Husqvarna Belt Drive Deck")
