9016377-1-M-Husqvarna-532194326-Ground Drive Fixed Idler Pulley
Part Location Diagram of 532194326 Husqvarna Ground Drive Fixed Idler Pulley
See part C-52 in the diagram
9016377-1-S-Husqvarna-532194326-Ground Drive Fixed Idler Pulley 360 view
( Grid squares measure 1x1 inch )
9016377-1-S-Husqvarna-532194326-Ground Drive Fixed Idler Pulley 9016377-2-S-Husqvarna-532194326-Ground Drive Fixed Idler Pulley 9016377-3-S-Husqvarna-532194326-Ground Drive Fixed Idler Pulley 9016377-1-S-Husqvarna-532194326-Ground Drive Fixed Idler Pulley 360 view
Part Location Diagram of 532194326 Husqvarna Ground Drive Fixed Idler Pulley

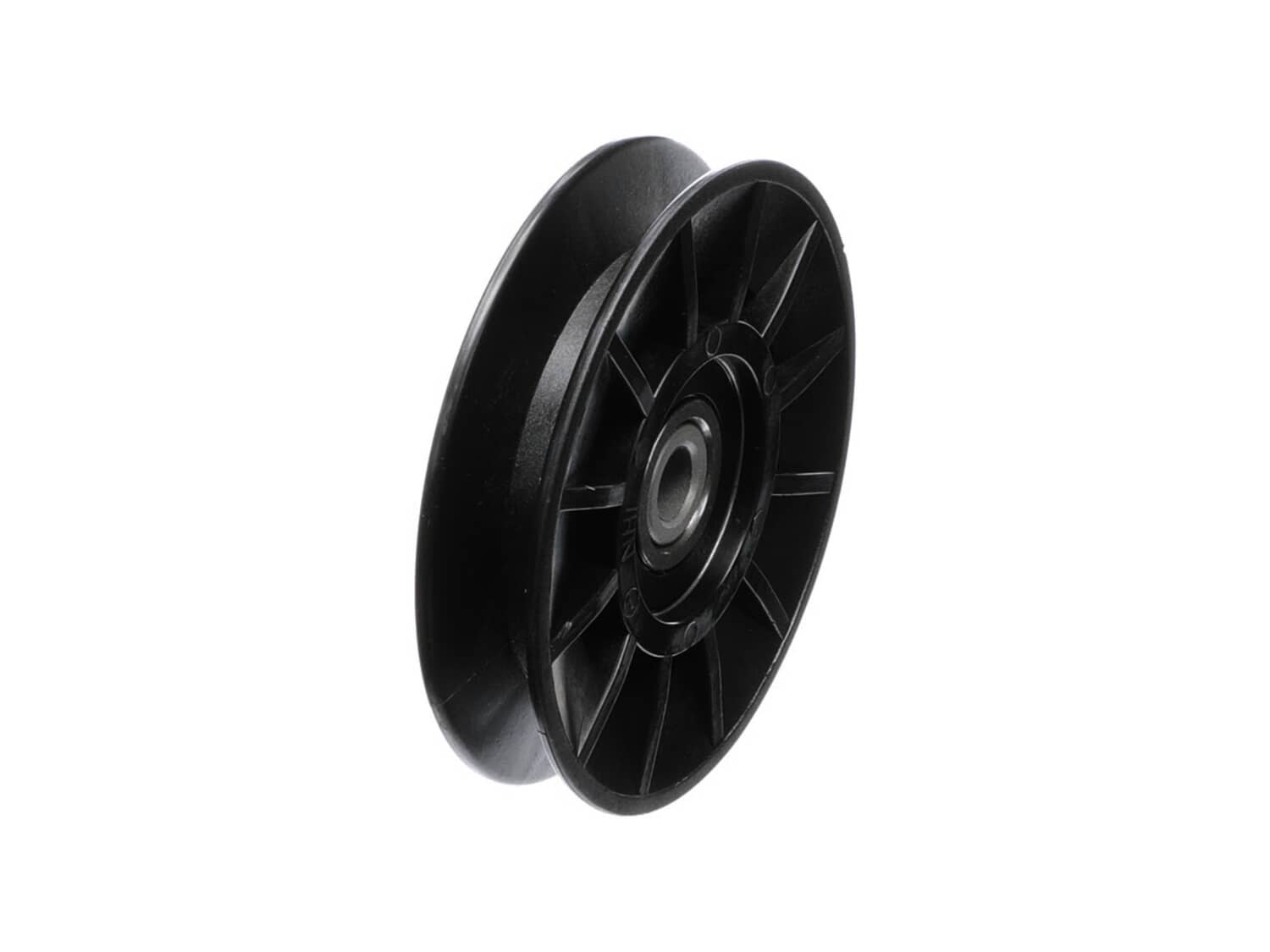

Ground Drive Fixed Idler Pulley 532194326

Manufactured by:
Husqvarna
ERP Number:
ERP9016377
Part Number:
532194326
Original Equipment Manufacturer ?
$21.21
★★★★★
★★★★★
14 Reviews
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

1- 2 hours

(26 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Description Frequently Purchased Together Troubleshooting Reviews Questions & Answers Repair Instructions Model Cross Reference

Product Description

?

This ground drive fixed idler pulley is for lawn tractors. 910 inch offset Ground drive fixed idler pulley helps apply tension to the drive belt, allowing the belt to turn. Wear work gloves to protect your hands when installing this part.

Frequently Purchased Together

?
Shoulder Bolt
★★★★★
★★★★★
(27)
$4.13
In Stock
Minimum Quantity of 2 required
Lawn Mower Cotter Pin
★★★★★
★★★★★
(9)
$4.13
In Stock
Minimum Quantity of 2 required
Bolt Fin Hex 3/8-16 Unc X 2-3/
$4.23
In Stock
Minimum Quantity of 2 required
Bellcrank Ground Drive
$8.33
In Stock

Troubleshooting

This part fixes the following symptoms:
  • Drive system does not work
This part works with the following brands:
  • Husqvarna
  • Jonsered
  • Poulan
  • Craftsman
  • Ariens
  • RedMax
  • Weed Eater
This part works with the following products:
  • Lawn Mower
  • Lawn Tractor
Part# 532194326 replaces these:
  • 532194326
★

Customer Part Reviews

?
4.9
Average Rating (out of 5):
★★★★★
★★★★★
(14 Reviews)
Click to filter by ratings:
  • 5 stars
    13
  • 4 stars
    0
  • 3 stars
    1
  • 2 stars
    0
  • 1 star
    0
  • 1
  • 2
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Husqvarna 22v46
Arrived fairly quick and what can i say its OEM parts, fits perfect
Guest - June 8, 2019
Verified Purchase
★★★★★
★★★★★
Worked as expected
Worked good
Guest - June 19, 2019
Verified Purchase
★★★★★
★★★★★
Perfect fit
Arrived on time, fit perfectly. Thanks!
Guest - July 1, 2019
Verified Purchase
★★★★★
★★★★★
Good fit
Looks like a well made part.
Guest - July 2, 2019
Verified Purchase
★★★★★
★★★★★
Worked out good
The part was correct n replacement went great. Lawnmower is back in use
Guest - July 15, 2019
Verified Purchase
★★★★★
★★★★★
Correct part, easy repairs.
Arrived quickly and mower is running as new ( no more noisy pulleys).
Guest - September 17, 2019
Verified Purchase
★★★★★
★★★★★
Part was correct and made for easy repair
Part arrived on time and in good condition. Part was correct and made for an easy repair Pictures on website helped a great deal
Guest - September 20, 2019
Verified Purchase
★★★★★
★★★★★
It arrived on time, an a perfect fit, got my old mower back to work
Ok
Guest - August 14, 2020
Verified Purchase
★★★★★
★★★★★
Right part
Using the diagram I was able to get the right part and it arrived sooner than expected
Guest - June 21, 2021
Verified Purchase
★★★★★
★★★★★
Replacement parts
Received all replacement parts in short time, will put on my riding mower this spring.
John L. - January 6, 2022
Verified Purchase
  • 1
  • 2

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

1- 2 hours

(26 rated repairs) ?
  • 1
  • 2
  • 3
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Pulley material worn and destroying belt. Bearings worn in pulley creating a loud grinding noise

David from Pinehurst, Texas

17 of 17 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set
Parts Used:
532407287, 532194327, 532194326
1. Remove mower deck (can be done with deck attached but limited room to work)

2. Remove drive belt

3. Remove bolts and washers from each pulley using appropriately sized socket and/or wrench
(Bolts were ceased due to being in place for 6 years. Required WD-40 and ratchet with extended handle for mor e leverage)

4. Reverse process to install new pulleys, drive belt and mower deck
Read less
Did you find this story helpful?
Thank you for voting!

Drive belt slipping off pulley.

Chuck from Statesville, North Carolina

12 of 12 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Socket set
Parts Used:
592855201, 532407287, 532194327, 532194326
1) Remove deck.
2) Remove old pulleys, tag and identify for correct placement of new pulleys.
3) Remove drive belt, unplug connector, and bracket for PTO.
4) Install 3 new pulleys.
5) Install drive belt start at motor and work your way back to rear, drive belt goes to the left of the steering shaft.
6) Instal l deck.
Read less
Did you find this story helpful?
Thank you for voting!

My idler pullies were worn out and squealing,and causing my tractor drive belt to slip

Randy from Prattsville, Arkansas

11 of 11 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Socket set
Parts Used:
532194327, 532194326
I dropped the deck off my Husqvarna 2654, slid it away and had open access to all three pulls I used my Ryobi impact with a socket and remove all three in a flash.Put on the new pulleys and reassembled unit.working great!
Did you find this story helpful?
Thank you for voting!

Noise under mower when clutch engaged

michael from cedar creek, Texas

9 of 9 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Socket set
Parts Used:
532194327, 532194326
Removed mower deck. replaced the 3 drive belt pulleys from the engine to the transaxle. replaced mower deck. No more noise
Did you find this story helpful?
Thank you for voting!

Idler pulley separated from its bearing

David from Quinton, Alabama

7 of 7 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set, Wrench set
Parts Used:
532194326
1. Removed mower deck to allow access to drive belt
2. Removed old bearing (pulley had already fallen off).
3. Released belt tension by applying park brake
4. Installed new pulley
5. Tested tractor drive
6. Reinstalled mower deck
Did you find this story helpful?
Thank you for voting!

Mower would not move very well

Mike from Midland, Virginia

4 of 4 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Parts Used:
532194326
Cleaned all the accumulated grass clippings from the brake pedal rod area. The pedal could not return fully so the belt was never as tight as it should be resulting in slipping
Did you find this story helpful?
Thank you for voting!

Bearings were bad in pulleys

Randy from Marcy, New York

3 of 3 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers, Socket set, Wrench set
Parts Used:
532194327, 532194326, 532140218
Removed mower deck and bad pulleys. Had to remove electric clutch for mower drive to replace belt. Reassembled in reverse order. Pretty straight forward.
Did you find this story helpful?
Thank you for voting!

Lawn mower jerked and would stop moving

Robert from Rochester, Massachusetts

3 of 3 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Socket set, Wrench (Adjustable)
Parts Used:
592855201, 532194327, 532194318, 532194326
1. Removed cutting deck & belt
2. Removed drive belt
3. Remove 2 old pulleys (one was completely ruined, Bell crank keeper was broken)
4. Replaced pulleys & keeper bell crank ground drive
5. Replaced drive belt
6. Replaced cutting deck & belt
Did you find this story helpful?
Thank you for voting!

Drive belt and pulleys

Joseph from MINERSVILLE, Pennsylvania

2 of 2 people found this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
More than 2 hours
Tools:
Screw drivers, Socket set
Parts Used:
592855201, 532194327, 532194326
Place tractor on it\'s side. remove drive belt, and remove pulleys and place new pulleys, drive belt
Did you find this story helpful?
Thank you for voting!

Stationary idler pulley bearing failed (melted) and mower deck drive belt came off.

Ralph from Lake Stevens, Washington

2 of 2 people found this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Parts Used:
593773401, 596435101, 596136301, 596136101, 596135501, 532196106, 532194321, 532178515, 532177968, 532409149, 532196104, 532194327, 532194326
1. Separated mower deck from lawn tractor and cleaned both units thoroughly.
2. Removed and replaced tractor mounted idler pulleys, since bearings were noisy.
3. Disassembled mower deck - opted to overhaul blade tower supports (3) to clean and renew lubrication. RECOMMEND REPLACING THESE PARTS AS A UNIT, instead of overhaul.
4. Bearing failure had caused hole in deck-mounted pivot support bracket for belt tensioner to become elongated - opted to do nothing at this time.
5. Replacement pulley on pivot support was not sized to accept 7/16\" dia bolt!!! Hardened spacer washer hole was too small as well. Re purposed another bolt from the ordered parts, and added washers as necessary to allow pulley to track properly without binding against the tensioner arm.
6. Removed and replaced other pulleys and hardware (these replacement parts were identical to the removed ones).
7. Installed new belt as per diagram on belt slip cover.
8. Reinstalled mower deck underneath the lawn tractor.

Works great!
Read less
Did you find this story helpful?
Thank you for voting!
  • 1
  • 2
  • 3

Model Cross Reference

This part works with the following models:
ERP Number: ERP9016377
Manufacturer Part Number: 532194326
Brand Model Number Description
Husqvarna 12530 Lawn Tractor - Pxt Tractor
Husqvarna 142R Brush Cutter - 142 R (20001900001-Current)
Husqvarna 143RII Brush Cutter - 143 Rii (20150400001-20180500000)
Husqvarna 1538 Lawn Tractor - Ride Mower
Husqvarna 1542XP Lawn Tractor - (T) (96043000602) (2006-10) Ride Mower
Husqvarna 1542XPT Lawn Tractor - Ride Mower
Husqvarna 155BT Leaf Blower / Vacuum - 155 Bt - 20053300001-Current (Us)
Husqvarna 164T Lawn Tractor - Cth Tractor
Husqvarna 1848XPT Lawn Tractor - Ride Mower
Husqvarna 184T Lawn Tractor - Cth Tractor
Husqvarna 2042 Lawn Tractor - Ride Mower
Husqvarna 2042LS Lawn Tractor - Ride Mower
Husqvarna 20B42T Lawn Tractor - Ride Mower
Husqvarna 20F42T Lawn Tractor - Ride Mower
Husqvarna 20K46 Lawn Tractor - Ride Mower
Husqvarna 2146XLS Lawn Mower - Husqvarna Lawn Mower Model 2146XLS Parts
Husqvarna 2146XP Lawn Tractor - Ride Mower
Husqvarna 2242T Lawn Tractor - Ride Mower
Husqvarna 2246 Lawn Tractor - Ride Mower
Husqvarna 2246LS Lawn Tractor - Ride Mower
Husqvarna 224T Lawn Tractor - Yth Tractor
Husqvarna 224TFI Lawn Tractor - Yth Tractor
Husqvarna 2346XLS Lawn Tractor - Ride Mower
Husqvarna 2348 Lawn Tractor - Ride Mower
Husqvarna 2348LS Lawn Tractor - Ride Mower
Husqvarna 2354GXLS Lawn Mower - Husqvarna Lawn Mower Model 2354GXLS Parts
Husqvarna 236R Brush Cutter - 236 R (20200400001-Current)
Husqvarna 240442 Lawn Mower - Husqvarna Lawn Mower Model 240442 Parts
Husqvarna 240443 Lawn Mower - Husqvarna Lawn Mower Model 240443 Parts
Husqvarna 240460 Lawn Mower - Husqvarna Lawn Mower Model 240460 Parts
