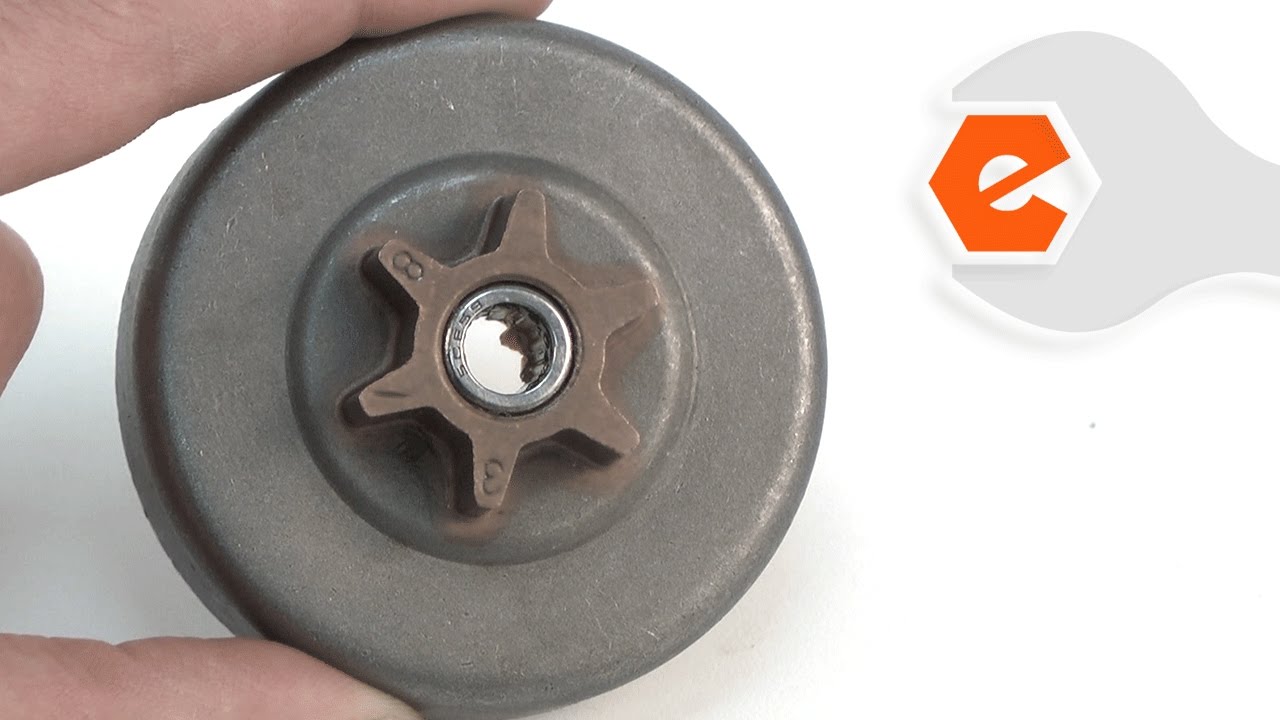

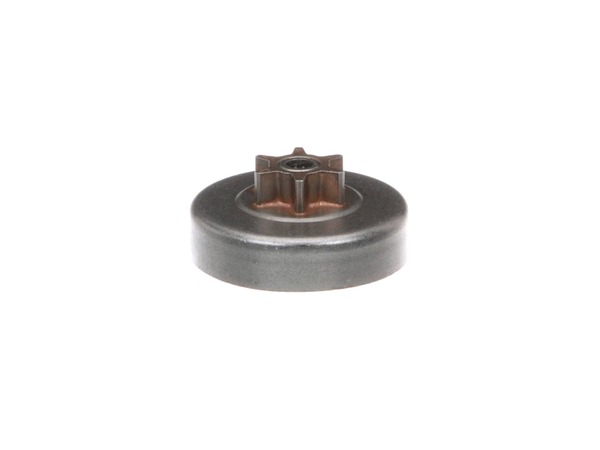

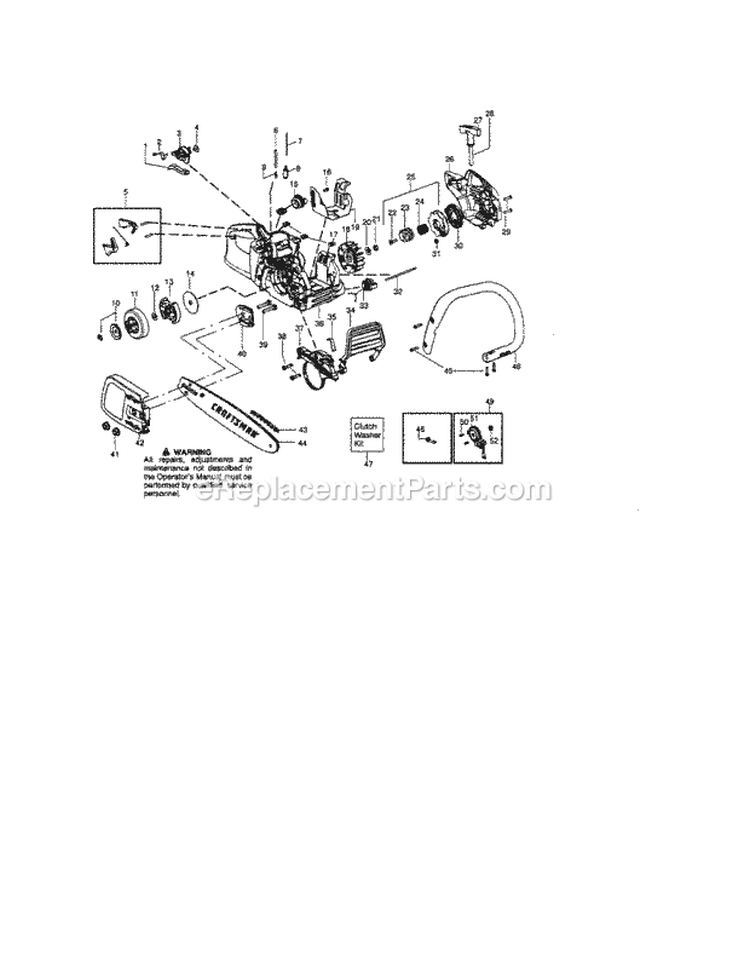

This is an authentic OEM sourced part which is specially made for Craftsman chainsaws. A centrifugal clutch is a part that uses centrifugal force to connect two concentric shafts, with the driving shaft nested inside the driven shaft. Today's centrifugal clutches will function even when they shouldn't, far beyond the point of when they need to be replaced. Keeping an eye on equipment performance will determine when the centrifugal clutch requires attention. It is a high-quality clutch drum which is made of durable metal and is sold individually. Please note, the <a href="http://www.ereplacementparts.com/clutch-p-1099174.html" target=blank><u>#530057907 Clutch </u></a> is sold separately.
Remove the clutch cover by removing two nuts. Remove e-ring and washer in front of the clutch drum. Remove old drum, do not lose the inside washer. Place new clutch drum on over the clutch. Install outside washer and e-ring, then attach the clutch cover. Done.
Did you find this story helpful?
Thank you for voting!
Chain drive sprocket welded to the clutch drum worn from use, binding chain
Remove two nuts holding chain cover, take chain off of bar, use small pick or screwdriver
to pry up horseshoe retainer clip on shaft outside of drive sprocket/clutch --take care as it
is spring metal. Pull off easily the sprocket/clutch drum, place new one and retainer on shaft.
Reinstall chain bar,chain and cover Done.
Did you find this story helpful?
Thank you for voting!
Teeth on clutch drum worn and chain slipped and came off.
Removed, cover and chain.
Removed c-clip retaining clutch drum and removed the drum.
Removed clutch assembly (left-hand threads !) by tapping it with the hammer and brass punch.
Removed the large clutch washer and replaced it with the new washer and clutch assembly.
Lubed the clutch drum bearing and installed the d
... Read morerum.
Re-installed the c-clip.
Ready for a new chain and cover.
Read less
Did you find this story helpful?
Thank you for voting!
Old sprocket was grooved causing chain to not feed
1. I removed the bar by removing the 1/2 inch nuts holding the bar cover.
2. Using a screw-driver I removed the e-clip holding clutch washer, and removed the washer.
3. At this point, the clutch drum should pull off. Mine was quite sticky so I ended up using my channel-lock pliers to pull on the sprocket. I was replacing this
... Read moreanyway (sprocket is on clutch drum) so I wasn\'t worried about marring the sprocket.
4. Replaced the clutch drum. Placed a new clutch washer back on (old one was perfectly serviceable but decided if I was in there I would replace it). Put the new e-clip on - be careful here, it can go flying!
5. Since I had lost my bar adjust screw earlier I replaced it in the bar cover. Then I bolted down the bar cover.
Loosen the tension on the blade. Remove the clutch cover. Then remove the bar and chain. Remove the e-ring and washer and the clutch drum. Now you have to lock up the engine for the removal of the clutch. To do this, remove the spark plug and place a length of rope into the cylinder, with some of the rope left out of the cylinder. Turn th
... Read moree clutch until the piston comes in contact with the rope and stops moving. With a screwdriver and hammer, strike the edge of the clutch in a clockwise motion until it is loose on the shaft. Remove the old clutch , then install the new clutch, tapping it with the hammer and screwdriver in a counterclockwise motion. Start replacing all of the parts that were removed from the saw ion reverse order. And don\'t forget about the spark plug. For the filter, simply remove the filter cover and remove the old filter and replace it with the new one, then replace the cover.
Read less
Did you find this story helpful?
Thank you for voting!
Chain would not turn - the drive gear teeth were worn and needed replacing
Removed cover. Removed spark plug. Rotated piston just short of TDC. Inserted nylon rope into spark plug hole to stop piston from moving. Used a hammer and punch to unthread the clutch (clockwise - reverse threads). Threaded on new clutch and reinstalled new clutch housing, washers, etc. Reinstalled spark plug and cover.
Did you find this story helpful?
Thank you for voting!
Spring broken in the clutch, fuel cap was hard to open,starter pulley had broken.
Remove starter pulley cover, remove pulley rope, replace with new starter pulley .
remove top cover to the spark plug, remove spark plug, put small rope into the cycled, move the clutch till it stop. use a screwdriver an a hammer tap the clutch to loosen it. clean with brake cleaner. let it dry. put back together starter it up. wor
... Read morek like NEW.
I removed the spark plug and inserted cotton cord into cylinder, turned clutch clockwise until snug, then used a hammer and drift to loosen clutch, replaced with new parts.
Removed spark plug
Removed chain and bar
Removed clip holding clutch drum
Removed clutch drum
Removed clutch (reverse threaded) - had to use pull cord rope in cylinder to stop rotation of piston while removing old and installing new clutch assembly
Installed clutch drum and retaining clip
Installed bar
... Read moreand chain
Installed spark plug
Read less
Did you find this story helpful?
Thank you for voting!
