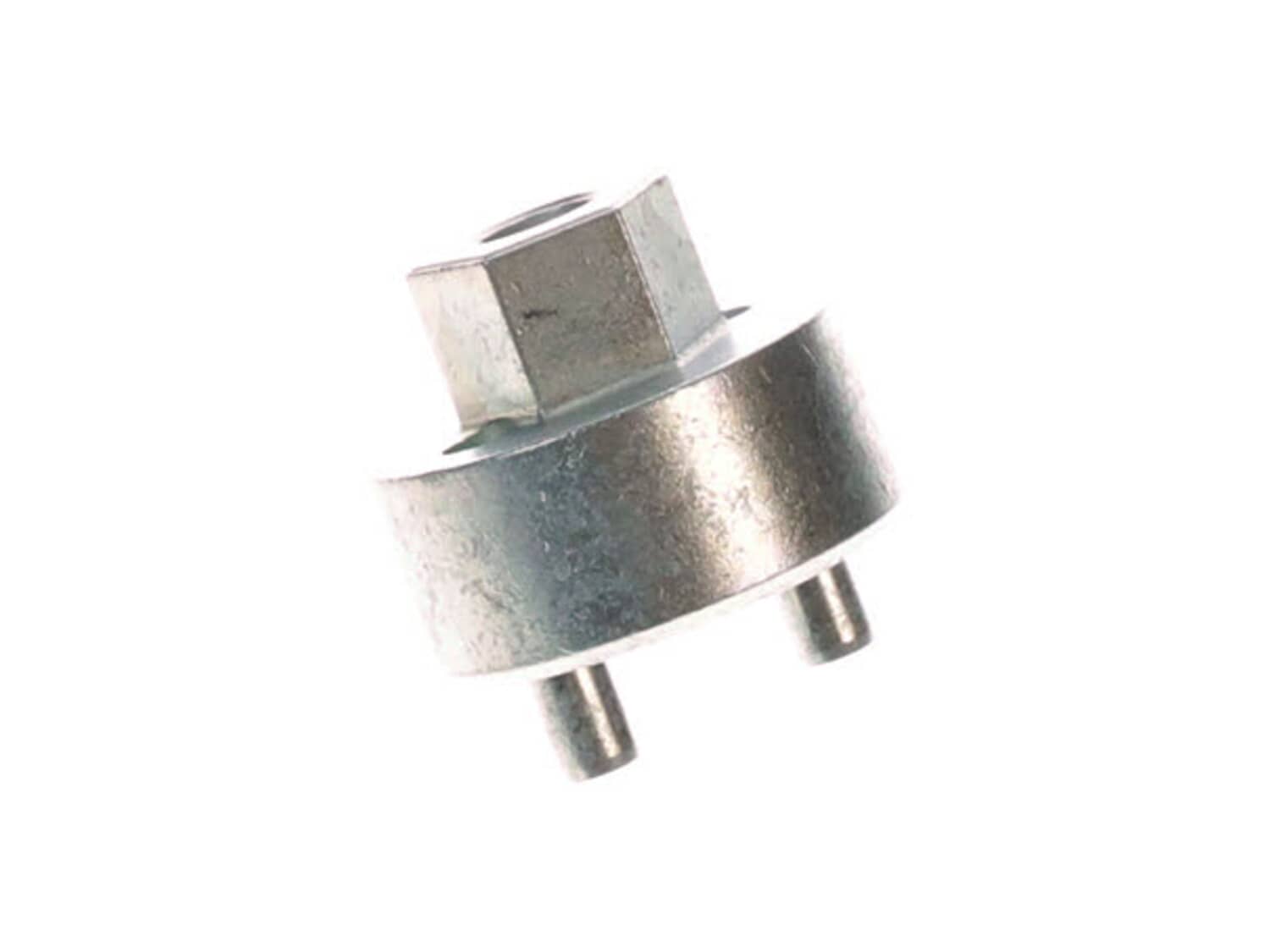

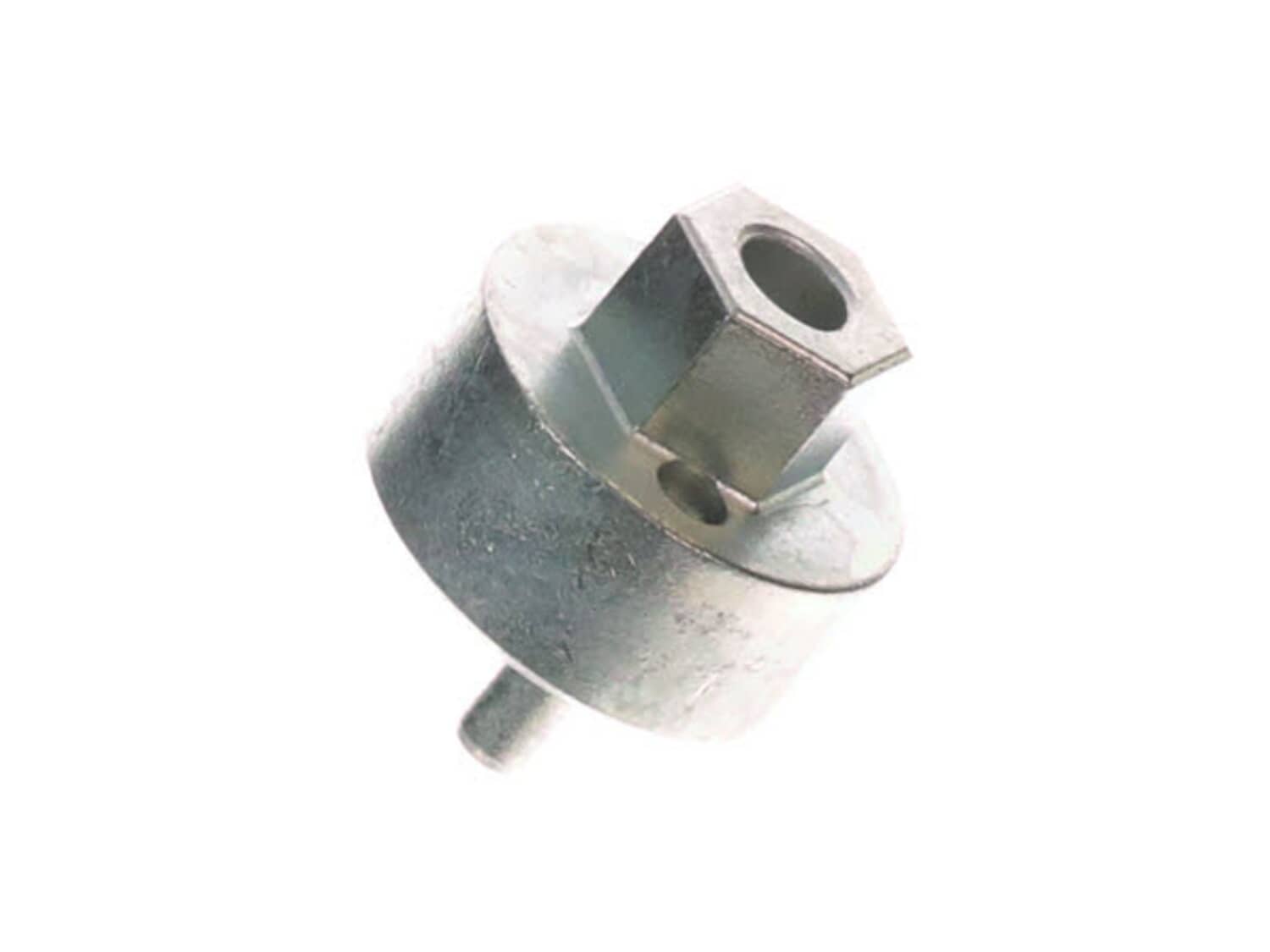

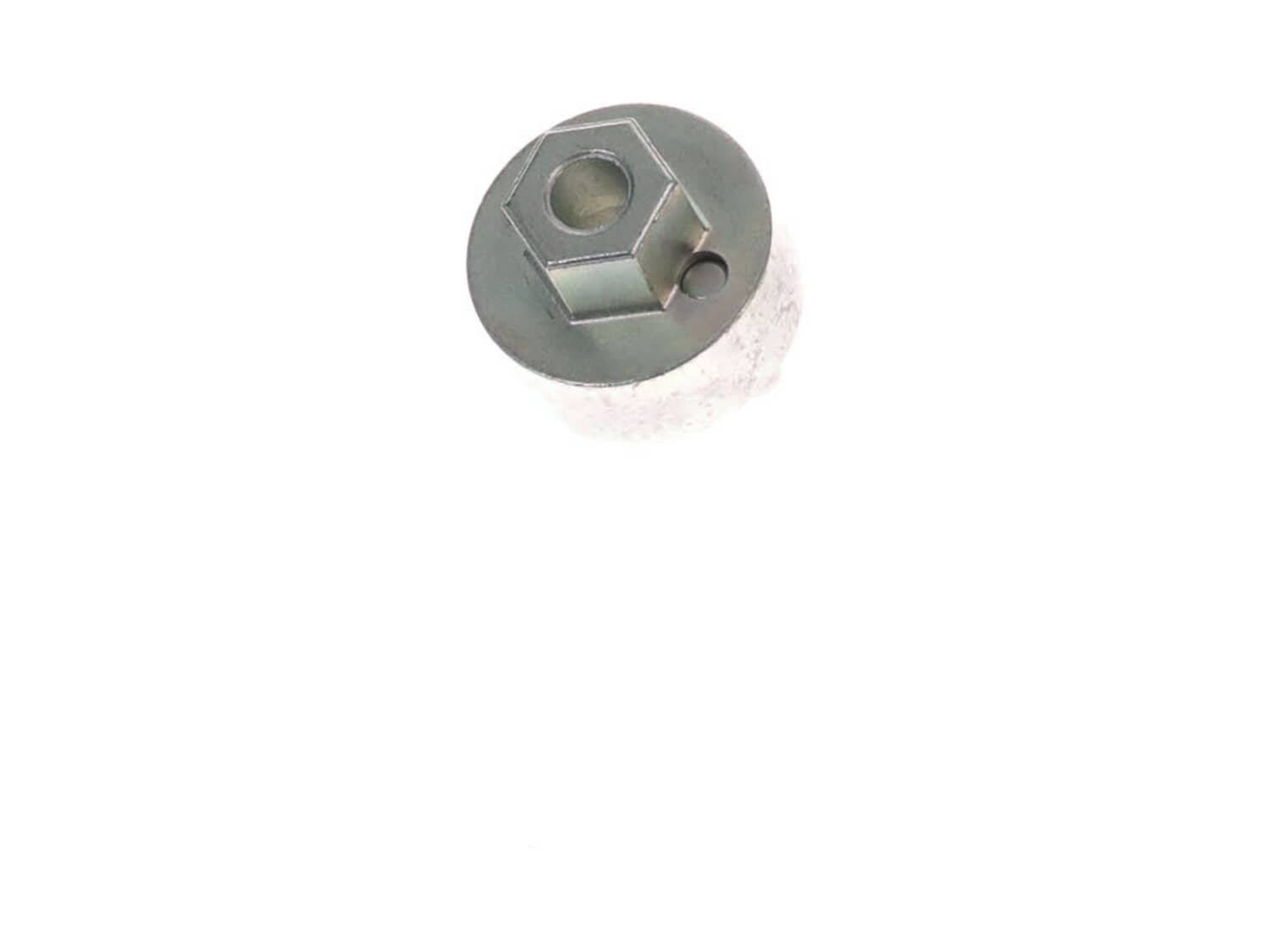

This is an authentic Poulan replacement part, not an aftermarket equivalent. This clutch removal tool is sourced directly from original equipment manufacturer. It is specially designed to remove clutch on small lawn and garden equipment. This item is made out of durable metal and it is sold individually.
Troubleshooting
This part works with the following brands:
Husqvarna
Part# 530031116 replaces these:
530031116,
★
Customer Part Reviews
?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(7 Reviews)
Click to filter by ratings:
5 stars
7
4 stars
0
3 stars
0
2 stars
0
1 star
0
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Time saver
A+
Kris - September 30, 2019
Verified Purchase
★★★★★
★★★★★
Nothing like having the correct tool!
There is nothing like having the correct tool for a job. I was trying to get the clutch off the chainsaw using the ol' "hammer it with a screwdriver or punch" method. Was not having any success despite somewhat heavy blows with the hammer. Got this tool and within two pops of an impact wrench the clutch was spinning off. Shocking how easy it was!
Tool was inexpensive and eReplacementParts got it to me quickly.
Guest - September 23, 2020
Verified Purchase
★★★★★
★★★★★
Worked great.
The part was perfect made my work a lot easier. Replacement parts did a great job. Fast and Great service. Will be using them many more times.
Guest - November 13, 2020
Verified Purchase
★★★★★
★★★★★
Almost a must have if you work on small engines.
Got my chainsaw back in the woods where it belongs
Guest - March 22, 2021
Verified Purchase
★★★★★
★★★★★
Easy repair
Tool worked great
Guest - June 18, 2021
Verified Purchase
★★★★★
★★★★★
Great tool
Removed clutch on saw with no problem,thanks
Guest - December 15, 2021
Verified Purchase
★★★★★
★★★★★
chain saw
worked great
Guest - March 2, 2023
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
I removed the spark plug and inserted a rope to lock the piston, then removed the clutch with the special clutch removal tool. Be sure to use a rope with no loose strands that can become stuck between the piston and cylinder wall. Remember the clutch is left-hand thread which means it loosens to the right. The trickiest part of the pro
... Read morecess is installation of the new coil spring gear onto the shaft using only screwdrivers, pliers, etc. I didn\'t have the special tool for this but would invest in one next time. Be sure the coils are equally spaced like they were before installation on the shaft. Replace the oil pump assembly and reconnect the pickup hose. Pretty easy and self explanatory installation once you remove the clutch.
1. Removed the cover from the clutch and rope starter.
2. Removed the clutch and washer.
3. Installed the new parts.
4. Installed the covers for the clutch and rope starter.
1 Watched several videos on U-tube
2 Took out spark plug Plugged piston with robe
3 Used Clutch Removal Tool -Easy
4 Replaced kit oil pump did not use spring afraid I would not get it set right Do not know if this was causing oil leak - old one looked good
5, Installed clutch drum and gear assembly and clutch
... Read more/>6 Not bad for a beginner and a woman - it worked !!
I was able to find a video on the internet that showed the whole process. It\'s amazing what you can find on the internet. It was very helpful in completing the repair.
Remove chain cover
Remove the spark plug and put in a length of rope to stop the piston, when the clutch is turned
Remove clutch with specially tool, reverse threads to loosen it\'s to the right
Remove clutch and,drum and washer
Reassemble is,reverse
Removed plug; removed chain and bar; removed clutch; took off the housing with the clutch housing; removed two screw holding the pump; removed the old pump; installed the new items; and it worked.
1. Removed housing
2. Used clutch tool to remove clutch
3. Replaced oil pump, 2 screws simple
4. Replaced housing, new chain break worn out, part of housing
5. Started up , everything fine
Removed old switch. replaced with new one. Bought clutch tool along with new clutch. Removed side cover, bar, and chain. removed spark plug and inserted small piece of rope so that it would not try to start. Took clutch tool and removed clutch. Installed new clutch and put back together.
Did you find this story helpful?
Thank you for voting!
Large clutch washer somehow came apart and jammed the clutch
I watched your YouTube video on this very repair, thank you it made it easy.
https://www.youtube.com/watch?v=akRk7F6ento
Did you find this story helpful?
Thank you for voting!
