This is a genuine replacement part sourced from original manufacturer for use with handheld gas trimmers and blowers. Spark arrester fits inside of the muffler and it helps to prevent the emission of flammable debris from the engine. It is made out of metal and it is sold individually.
1. Removed spark plug and side cover.
2 Removed air cleaner and carburetor including fuel lines and throttle link.
3. Disassembled carburetor on a clean cloth and laid parts out in sequence.
4. Completely washed carburetor body and all parts with carburetor cleaner and compressed air.
5. Installed small needle and
... Read more spring with tweezers.
6. Installed new diaphragm, purge bulb, and remaining carb kit parts.
7. Installed new spark arrester screen in the muffler.
8. Re-installed carb on the engine with new gasket / installed the new air filter.
9. Re-installed side cover and spark plug.
10. Started engine and adjusted high-speed jet for full rpm.
Read less
Did you find this story helpful?
Thank you for voting!
The trimmer had been used for three summers and was in need of a new head and tune up
I first disassembled the trimmer taking the outer plastic case off to access the muffler, tank, and other areas. I next took off the muffler and opened the gas tank to access the in tank filter. Once I had all of the parts off I then put them into a parts cleaner tank to remove the dirt, grease, oil, and grime from the parts. Once they
... Read more had soaked for about 30-45 minutes I pulled them out, dried them off and completed the cleaning process. Then using the parts that I purchased I replace the in tank filter, the spark arrester screen, the air filter, gapped and reinstalled the spark plug and replaced the bulb. Lastly, I lubricated the cables to ensure smooth operation and reinstalled the plastic cover. Once this was done I filled the gas tank and started the trimmer letting it idle for about 2-3 minutes to ensure everything worked as desired. The trimmer is now ready for many more seasons of work.
Remove the exhaust guide. Remove the screws holding the old muffler. Remove the muffler, the exhaust gasket assembly and the spark arrester. Install the new parts in reverse order as you removed them and tighten up the screws.
Remove the spark plug, then the engine housing. The spark arrestor screen and gasket are located under the muffler and accessible by removing three screws. Very easy to replace.
1. Remove engine cover.
2. Remove exhaust part of muffler.
3. Remove screen, be careful, it may drop into muffler.
4. Install new gasket.
5. Install screen.
6. Install exhaust part of muffler and engine cover.
.
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

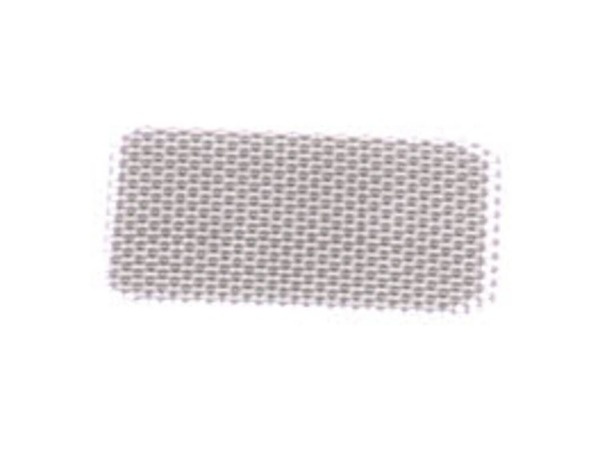

_(290323__Up)_WW_6.gif "Part Location Diagram of 14586240630 Echo Spark Arrester Screen")
