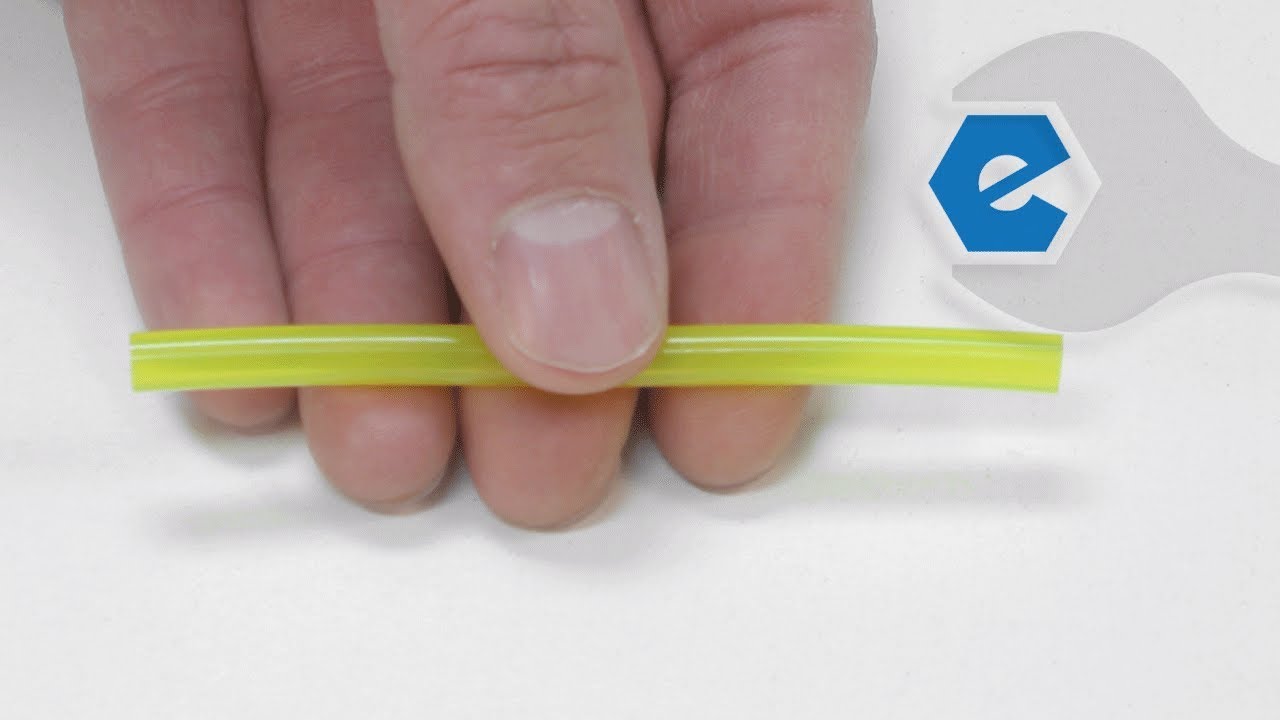

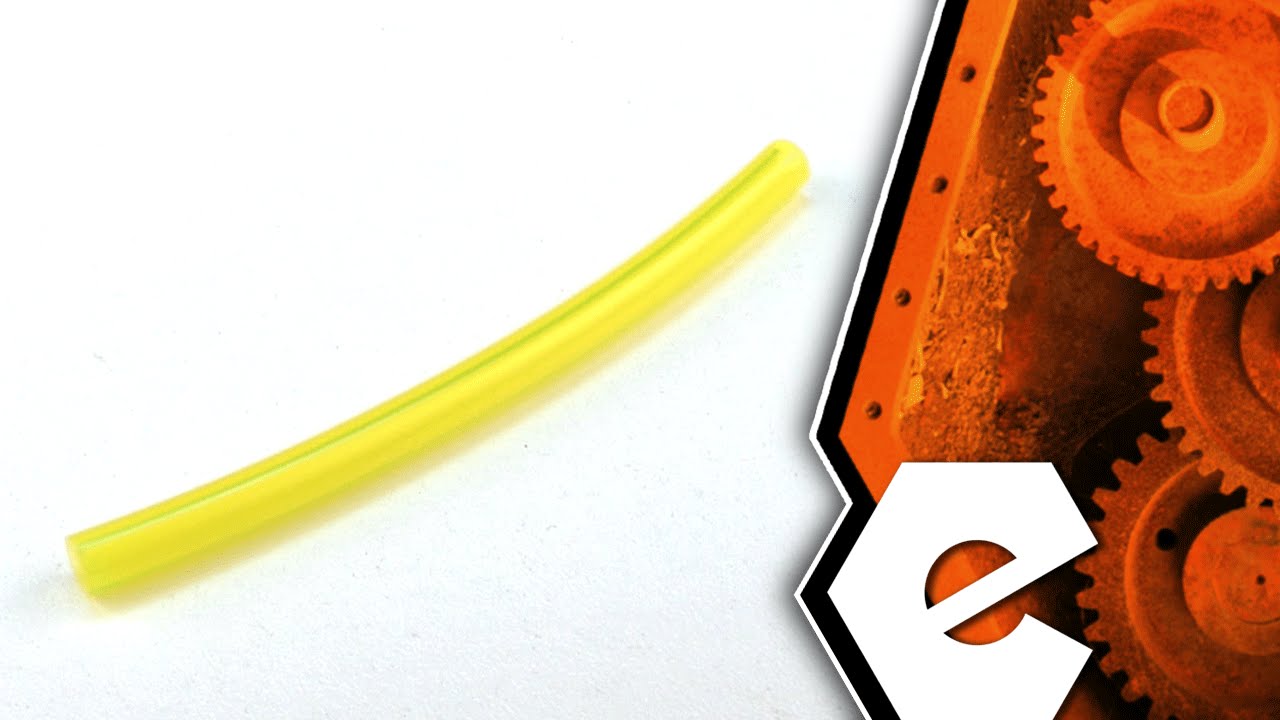

The purpose of the 13201056330 Fuel Return Tube is to return the excess fuel back into the fuel tank, after the primer bulb has been pressed and has primed the carburetor to start. After time the Fuel Return Line will become brittle and crack and will need to be replaced.
This maintenance was pretty straight forward. Replacing air filter and spark plug was easy. Instructions come with spark plug gap number so that you can adjust the gap yourself. Replaced fuel vent, filter and primer tubes which are easy removed and replaced. Replaced fuel filter, as it\'s attached to the end of a tube inside of fuel tank.
... Read more You use a 4\" wire and form a hook on the end of it in order to pull out the tube from inside the fuel tank. It has the fuel filter attached to it. Simple replace. I replaced the rubber primer bulb. It\'s attached by 4 screws to carburetor and easy to access. Just remove the screws and plate, then remove old bulb and replace with new primer bulb and reattach screws. This all took about 30 minutes. Very easy. You just need screwdriver, spark plug socket and wire cutters to cut a piece of wire with. Use a coat hanger wire or any flexible wire that you can stick inside the fuel tank.
Started by emptying the fuel, then took off the cover, and removed the tank. Ran the new lines into the tank, and connected them to the carb, then reassembled everything.
Removed fuel tank/removed old gourmet & fuel lines from tank /pulled fuel lines & etc loose from carburetor. Thread new lines through gourmet/installed new gas filter before installing gourmet & other lines into fuel tank. Used lite coat of oil on lines to get them through gourmet easier. The gas filter will fit through hole the gourmet c
... Read moreomes out of. When finished there was no more gas leaks & Echo weed eater runs like a new one . I did install a new spark plug which I already had,gap is .026.
Echo SRM 210 trimmer. Found fuel contaminated. Remove fuel tank, carb and fuel lines. Cleaned the tank, cleaned and rebuilt the carb using Ereplacement kit. Replace the fuel and return lines and fuel filter. Fresh fuel and one pull and it was running!!!! Using the posted ereplacements videos makes the repair easy! You may find less expens
... Read moreive parts on the net but not the quality of the Ereplacement parts!!!
Read less
Did you find this story helpful?
Thank you for voting!
Gasoline leaking from grommet in fuel tank. Old tubes also well worn. Time to replace air filter and spark plug too.
1. Removed \"foot\" from the base of the motor.
2. Removed pull starter.
3. Removed fuel tank, all tubes, and grommet.
4. Replaced grommet, tubes, and filters.
5. Also replaced air filter and spark plug.
No more leaks and unit runs well!
Did you find this story helpful?
Thank you for voting!
Leaking gas from fuel tank. Tank grommet was especially worn from exposure to gas.
Removed the air filter to make getting at fuel tank grommet with ease. Pulled all hoses out from the grommet. Used needle nose pliers to get the grommet out. Greased all hoses and the grommet to make ease of replacement. The wire was used to pull the gas line out and the sculpting tool to press in the grommet.
Removed the cover over the gas tank.
Disconnected the fuel lines from the carburetor.
Removed the gas tank from the edger and was able to see the gas tank was OK.
My problem was the fuel return tube. The tube is vinyl and was loose in the grommet.
The new grommet has metal sleeves that the old grommet doesn\'t. Bec
... Read moreause of the metal sleeves, the hoses were hard to install. Finally on the last hose, I put some light grease on it and the last hose went in a whole lot easier. I wish I had thought of that sooner. Actually, I should have used some of the oil you mix with the gas. I\'m not a full time mechanic.
I installed the grommet in the new tank (might as well use the new tank) and reinstalled the tank.
I reconnected the fuel lines to the carburetor.
I reinstalled the cover.
I filled the tank with gas and the edger started right up and I no longer have a gas leak.
If you experience a gas leak, try sliding all 3 hoses up and down. They shouldn\'t move. If they do, you might have an old grommet like I did without the metal sleeves. My vinyl fuel return hose was also deformed were it went thru the grommet causing my gas leak and the edger harder to start.
I hope some of this is helpful to somebody else. I\'m not an author either.
Removed fuel from gas tank, removed fuel tank grommet and fuel lines. Installed new fuel lines in grommet; use a little lube on new lines going thru grommet, then put new grommet in fuel tank and attach fuel lines to carburetor.
Did you find this story helpful?
Thank you for voting!
Needed a general tune up and fuel was leaking from old lines and a small crack on top of tank
Contacted small engine repair person that I normally use and got price on what repairs would cost. Then decided to do it myself. Found most of what I needed on the eReplacementParts.com website. A short phone call cleared up a couple of issues that I wasn\'t sure on. Parts (including a fuel tank that was ordered separately) arrived in
... Read more about 3-4 days. All parts were genuine Echo OEM parts, which was important to me.
Used cordless drill with torx attachment, a screwdriver and needle nose pliers to remove fuel tank, old primer bulb and fuel lines pulled off easily with fingers. While everything was apart, used Chemtool spray carb cleaner to good old red shop rag to clean up seven years worth of grime.
Reassembly with new parts was easy and quick. The only thing I would recommend if you think you might not remember.....take a pic of how the fuel pipe, fuel tank vent and vent tube are setup....just so you know you\'ve got the right one in the right place. Very easy though.
My seven year old Echo looks almost new and runs like a top with the tune up and replacement parts. Will for sure order from these guys again.
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
