Does this part fit my model?
Need help finding your model number?Jump to:

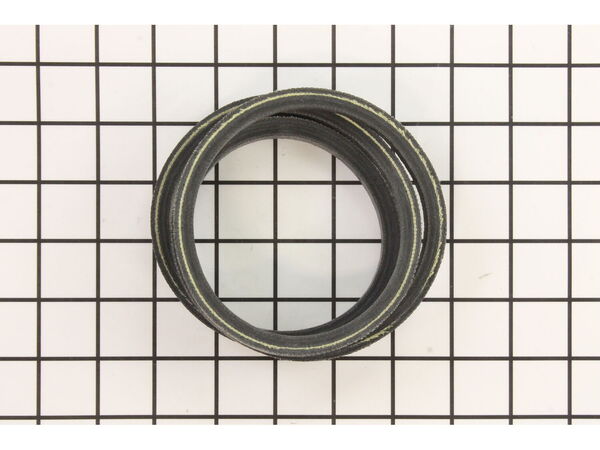

This Auger Drive Belt is an original part from Craftsman for use with Craftsman Snowblowers. The auger drive belt rotates the auger on the snowblower. The most common reason for replacing the drive belt is when the snowblower auger won't turn.This part is sold individually. Her is a list of tools that are needed to replace the auger drive belt are a 3/8 inch socket, 9/16 inch wrench, adjustable wrench and a clamp.
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Hello David, Thank you for the question. This repair is not too difficult. Before doing this repair, make sure that the engine has cooled and to prevent the engine from accidentally starting, remove the wire and boot from the spark plug. When doing this repair, make sure there is little or no fuel in the tank. To start, remove the screws securing the belt cover, so you can remove it. Then remove the belt from both the auger drive pulley and the idler pulley. Then, tip the snowblower forward, so that it rests on the auger housing and remove the frame cover. Then use a wrench to loosen the belt retaining bolt, so you can remove it. Next, depress the drive lever and use a clamp to hold the lever in place. Then remove the auger belt from the drive pulley and lift the drive plate to remove the old belt. Then feed the new belt under the drive plate and through the housing. Then loop the belt onto the auger drive pulley and remove the clamp to release the drive lever and reposition the belt retaining bolt and tighten it. Then reinstall the frame cover and secure it with the mounting bolts. Put the snow blower back in the upright position and align the new belt on the engine drive pulley and the idler pulley. Then reattach the belt cover and secure it with the screws. With the repair complete, reattach wire and boot to the spark plug and fill the tank with fuel. The snowblower should now work for you. If you have any questions. We hope this helps!
Hello David, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is Part Number: 585416MA. Thank you for the inquiry, good luck with the repair!
Hi Dean, Thank you for your question. If your snowblower will not throw snow very far, there are some parts that you will need to check to see which one is causing the issue. You will need to check the belts, the assembly chute, the and the friction disc wheel. Once you have determined the part you need, please feel free to call customer service. We are open 7 days a week and anyone will be happy to assist you. We look forward to hearing from you!
Hello Gary, thank you for asking. The Drive Belt is?? 1733324SM. The Auger belt is 585416MA. Thank you and have a great day.
Hello Matthew, thank you for your question. The Drive Belt is 1733324SM and the Auger Belt is 585416MA. We are pleased to have been able to help.
Hello Michael, Thank you for your inquiry. We have researched the model number that you have provided and show the drive belt as part# 1733324SM and the auger belt as part# 585416MA. Good luck with your repair.
Hello Vic, Thank you for your inquiry. We show this belt as 35 inches long. We hope this helps you.
All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.
Auger belt was worn out
Roger from Cambridge, Idaho
Snowblower drive weak
Richard from Dover, New Jersey
Both belts were burned and stretched
STEPHEN from Glenwood, Illinois
Old belts melted onto the pully could not start the machine, news paper stuck in the auger
Toby from Scotch Plains, New Jersey
snowbloower auger shaft bent
Ervin from Hatley, Wisconsin
BELTS WERE WORN
FRED from AVONDALE, Pennsylvania
Needed new belts, replaced with napa belts two years ago, did not work well. Buy the real factory belts, it saves you time and money.
william from fairfield, Idaho
Belts and cable stretched
Henry from Coventry , Rhode Island
Auger belt slopping
Wayne from COVENTRY, Rhode Island
Auger drive was slipping.
JAMES from NORTHFORD, Connecticut
| Brand | Model Number | Description |
|---|---|---|
| Murray | 1150-27 | Snow Blower - 27-Inch Snow Thrower, 11.5hp |
| Murray | 11527ES | Snow Blower - Murray 11.5tp 27-Inch Dual Stage Snowthrower |
| Murray | 1226HD | Snow Blower - Bands 11.5 Gross Tp 26-Inch Dual Stage Snowthrower |
| Murray | 1227MD | Snow Blower - Bands 11.5 Gross Torque 27-Inch Dual Stage Snowthrower |
| Murray | 1227MS | Snow Blower - Bands 11.5tp 27-Inch Dual Stage Snowthrower |
| Snapper | 1301695964 | Snow Blower - Gas Snowblower |
| Snapper | 130887650 | Snow Blower - Gas Snowblower |
| Snapper | 130887660 | Snow Blower - Gas Snowblower |
| Snapper | 13088768 | Snow Blower - Gas Snowblower |
| Murray | 14529ES | Snow Blower - 29-Inch Snow Thrower, 14.5hp |
| Murray | 16533ES | Snow Blower - Murray 16.5 Gross Tp 33-Inch Dual Stage Snowthrower |
| Murray | 1695363 | Snow Blower - 27" Dual Stage Snowthrower |
| Murray | 1695364 | Snow Blower - 27" Dual Stage Snowthrower |
| Murray | 1695365 | Snow Blower - 27" Dual Stage Snowthrower |
| Murray | 1695366 | Snow Blower - 29" Dual Stage Snowthrower |
| Murray | 1695367 | Snow Blower - 29" Dual Stage Snowthrower |
| Murray | 1695368 | Snow Blower - 29" Dual Stage Snowthrower |
| Murray | 1695369 | Snow Blower - 29" Dual Stage Snowthrower |
| Murray | 1695370 | Snow Blower - 33" Dual Stage Snowthrower |
| Murray | 1695373 | Snow Blower - 27" Dual Stage Snowthrower |
| Murray | 1695374 | Snow Blower - 27" Dual Stage Snowthrower |
| Murray | 1695375 | Snow Blower - 27" Dual Stage Snowthrower |
| Murray | 1695378 | Snow Blower - 33" Dual Stage Snowthrower |
| Murray | 1695383 | Snow Blower - 27" Dual Stage Snowthrower |
| Murray | 1695384 | Snow Blower - 30" Dual Stage Snowthrower |
| Murray | 1695385 | Snow Blower - 27" Dual Stage Snowthrower |
| Murray | 1695386 | Snow Blower - 31" Dual Stage Snowthrower |
| Murray | 1695420 | Snow Blower - 30" Dual Stage Snowthrower |
| Murray | 1695425 | Snow Blower - 24" Dual Stage Snowthrower |
| Briggs and Stratton | 1695425-6240900X196A | Snow Blower - 1695425 - 6240900x196a, Dual Stage Snowthrower (2007) |
