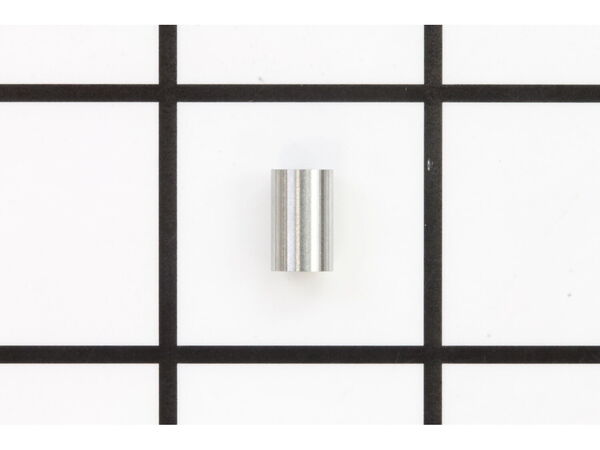

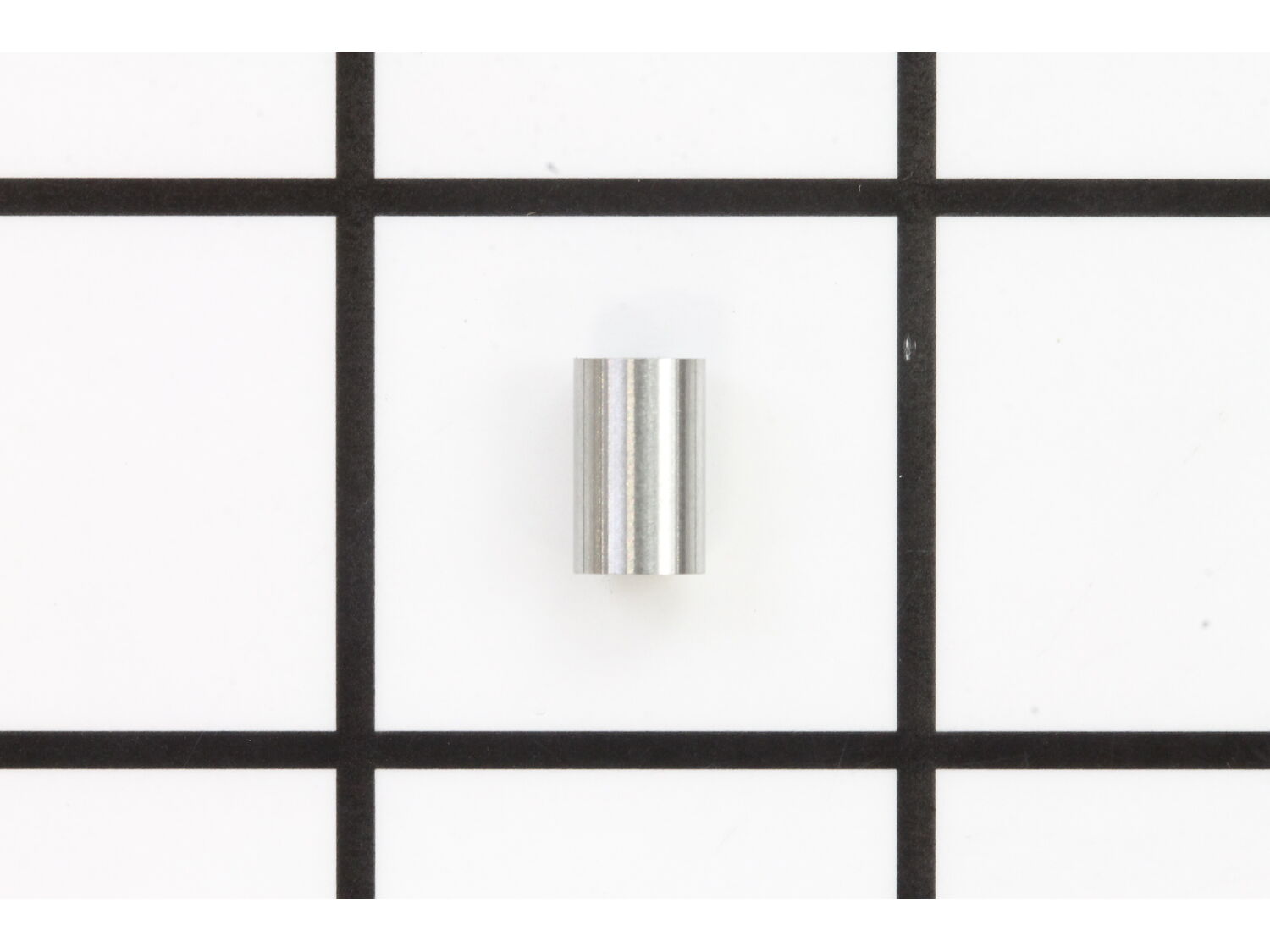

The short sleeve helps to distribute pressure evenly between connected components. Over time it will wear out, get damaged or lost eventually requiring a replacement. This authentic manufacturer-sourced part is specially designed for use with DeWALT and Delta scroll saws. Check the diagrams for your model for the exact location and the correct application of this hardware. Keep in mind this high-quality short sleeve is made of durable metal and is sold individually.
I replaced several sleeves, vertical rocker assembly, con rod assembly. Both come with bearings and sleeves. Con rod assembly must be purchased in order to get the proper sleeve. The sleeve that is listed in diagrams is wrong. Needed two new m6 screws to replace stripped ones. The project is still ongoing, waiting for con rod assembly to
... Read morearrive. Took all parts with sleeves and bearings apart to check for wear, then applied Valvoline synthetic bearing grease in all bearings using Q tips. Also did the sleeves. Inserted sleeves and wiped excess grease. Lubrication from the factory will only last around a year. Valvoline synthetic grease should last at least 10 years. If your scroll saw is new, I recommend stripping it down and use the grease mentioned to keep your bearings and sleeves in new condition. Check all sleeves for scratches and indentations. Replace the ones that are bad.
over a period of time the bearings are beat by the use of the saw and when this happens it damages the sleves and you can tell by the clicking sound when the saw is in use
All the bushings {sleeves} were worn. Also I found that all the needle bearings in the rocker arm were falling out. After replacing the sleeves & the rocker arm I\'m back scroll sawing again making Xmas gifts. It is probably a good idea to oil the pivot points once a year.
Removed bolt that went thru the bushing , pushed old bushing out , inserted new bushing , and inserted the bolt and tighten. That was it. . .
