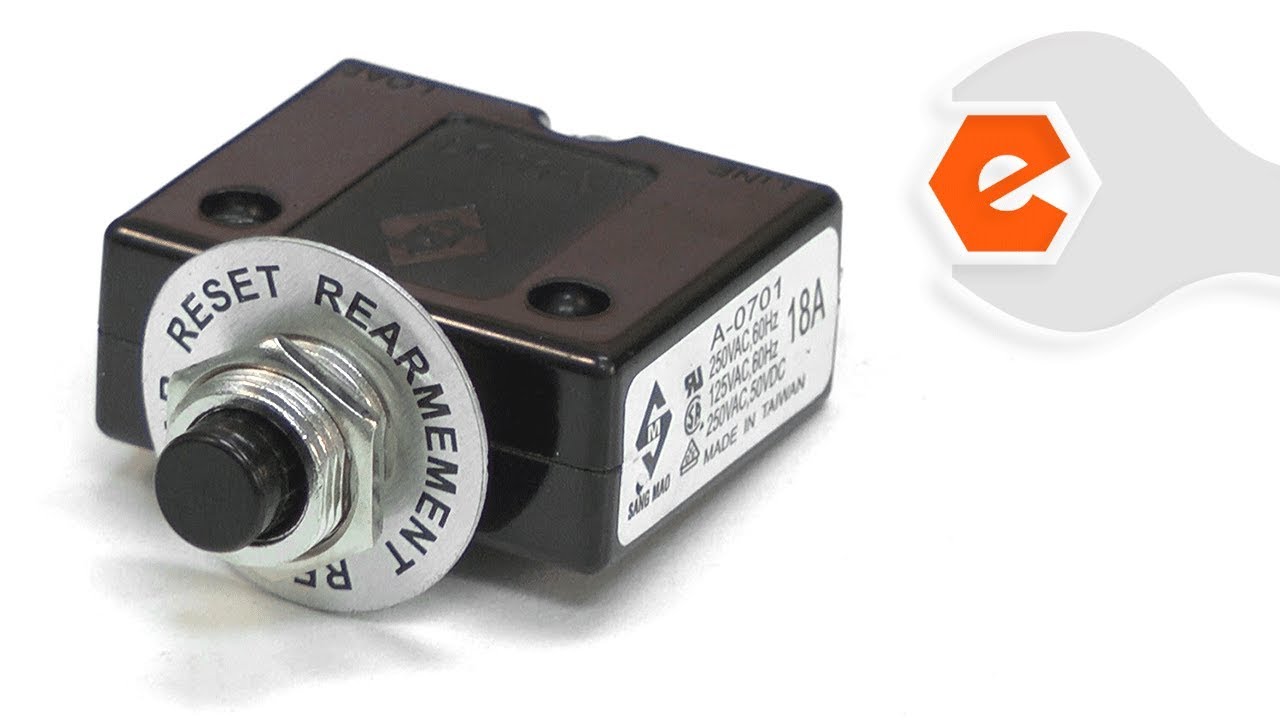

This circuit breaker is specially produced for Dewalt planers. It is a genuine OEM sourced replacement part, not an aftermarket equivalent. Your planer is equipped with an 18 amp circuit breaker. If your planer becomes overloaded and stops operating, turn off the planer and press the reset button. If you have a faulty circuit breaker the motor would not start. Please note, this item is sold individually. To complete this repair you should only need a screwdriver.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Dewalt planner circuit breaker
Circuit breaker that came with the planner lasted over 10 years and finally went out and the new breaker was easy to install and the planner works great once again.
Stan - December 27, 2021
Verified Purchase
★★★★★
★★★★★
Dewalt thickness planer Circuit breaker
Great value, easy fix and timely delivery
Anonymous - December 29, 2021
Verified Purchase
★★★★★
★★★★★
Fixed the issue
Circuit breaker was popping under the slightest load. Replaced and now runs like a champ.
Frank - January 22, 2022
Verified Purchase
★★★★★
★★★★★
Replace part
Part RRIVED WHEN IT WAS SUPPOSE TO. FAIRLY EASY TO REPACE
Larry - April 16, 2022
Verified Purchase
★★★★★
★★★★★
Purchased as a spare
I’m told the breaker can overheat on the DeWalt 735x if you overload it. So I ordered a backup in case I need one.
Guest - July 5, 2022
Verified Purchase
★★★★★
★★★★★
Dewalt planer breaker
Just the right fix for our planer that would keep tripping. Fast shipping great price.
Guest - July 23, 2022
Verified Purchase
★★★★★
★★★★★
Exact part I needed
Perfect fit/performance; same as OEM
Super fast shipping!
Guest - December 6, 2022
Verified Purchase
★★★★★
★★★★★
Easy repair
No problems. Part fit.
Guest - April 24, 2024
Verified Purchase
★★★★★
★★★★★
perfect replacement part
I installed the reset/circuit breaker in my dewalt 735 planer and it was fast, easy and a perfect fit
Bobby - December 2, 2019
Verified Purchase
★★★★★
★★★★★
DW 735 Planer circuit breaker replacement.
The circuit breaker came quickly. It was a perfect match. An on line tutorial made it easy to replace.
Rick - January 21, 2020
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Took most of the time to figure out how to disassemble the motor from the frame. Came up with very difficult. Last thing was to remove on/off switch... surprise! Access to circuit breaker via cavity behind switch. Breaker showed about 11 ohms, should have been zero. Tried a bypass, motor came on instantly, This breaker has been tripped MA
... Read moreNY times. I\'ve used the planer for hundreds of hours.
Went online to find ereplacement parts during my first investigation (drawings), and then to order parts after problem solved. The brushes were ok, but I figured order now, to use later.
Remove old breaker from front panel, Disconnected the wires from the old one, then connected the wires to the new one. Then replaced it in the front panel.
1. Went on line to determine the most likely reason for the machine not working
2. Ordered the part (circuit breaker)
3. Received the part (circuit breaker)
4. Went on line and found a DIY video on how to replace the circuit breaker
5. Watched the video while replacing the part
Did you find this story helpful?
Thank you for voting!
Motor on planer was dead
Mark from Lake Charles, Louisiana
1 personfound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Pulled motor out of planer.
Tore motor down.
One of the brush holders was broken (wire connector broke off brush holder)
Blower fan blades broken changed blower fan
Circuit breaker was bad changed out with new on
Removed the front panel
Removed circuit breaker
Replaced circuit breaker
Replaced front panel
Plugged in planer tested good
Now I am satisfied and ready too start another wood project. Switch cost 11 dollars better than replacing the whole planer for 500
Removed the nut on top of the circuit breaker.
Removed screws from power switch cover.
Removed power switch
Pulled circuit breaker down through power switch opening
Unplugged and replaced circuit breaker
Did you find this story helpful?
Thank you for voting!
Breaker would trip after 10 minutes or so of use or if under any major load for a few minutes
1. Removed the top from the planer
2. Removed several front screws
3. Due to the design of unit, had to remove the depth-gauge assembly to get at one screw
4. Unscrewed the keeper nut, pulled the unit out the back, swapped the wires for new one
5. Put the new one in and discovered I couldnGÇÖt find the washer,
... Read more so eventually found that and attached the keeper nut
6. Reversed 1,2,3
1. opened front of machine
2. removed wires,
3.removed circuit breaker, installed new one
Did you find this story helpful?
Thank you for voting!
