This is an authentic OEM part. The Bostitch driver guide is constructed of durable plastic, and is compatible with several nailers and staplers. The driver guide is fitted to the bumper in the overmold frame. This item guides the accuracy of the device's piston/driver. This part is sold individually. A screwdriver is necessary in the repair.

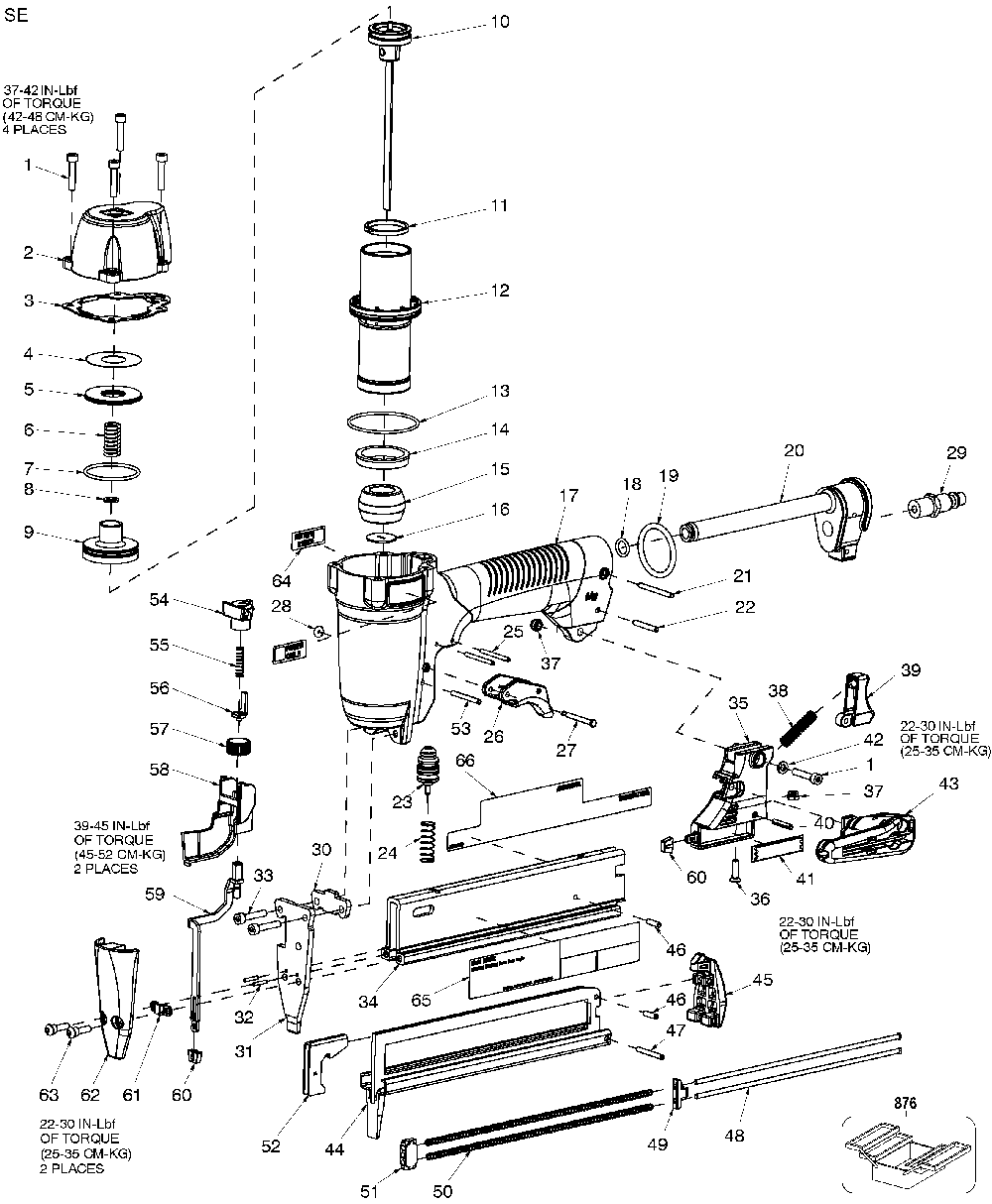

If you\'ve already diagnosed the issue, mine being that the nail gun wouldn\'t fire a nail, then this repair is very simple. I have the Bostitch BT-1855 18 gauge nailer. First you will need to remove the cap and (4) Allen head screws at the rear of the gun (part #181917, or item 2 if you are looking at your factory schematic which is the
... Read moreexploded diagram. Once you have removed the cap be sure to set aside the frame cap gasket (item 3, part #175682). Concealed inside the cap are items 4-9 on your schematic. You should see a clear bumper, spring and O-rings. You shouldn\'t need to replace these. You will need to remove and replace items 10-16 on your schematic. They are as follows: 10-piston driver (#180451) 11-piston ring (#180457), 12-cylinder sleeve (#180458), 13-O-ring (#180459), 14-check seal (#180460), 15-bumper (#180461), 16-driver guide (#180462). I pulled everything out and lined it up just as it went into the nailer, so as not to forget the original placement and mechanics. Remove your replacement parts from their packaging. Assemble items 10-16 together, then place the completed assembly into the gun; rather than putting each individual item back in place. Reattach frame cap seal and frame cap. Test fire gun. All told it should take about 15-30 minutes to complete this repair. You should only need the appropriate size Allen wrench and maybe a small flat head screw driver for prying some of the O-rings out.
Read less
Did you find this story helpful?
Thank you for voting!
Driver pin was broken and trigger valve was leaking
Simply dismantled the head and piston assy., removed the parts, cleaned vey well, greased the parts as required, re-assembled. Works like new. Applied magic marker writing to say \"do not oil\".
Did you find this story helpful?
Thank you for voting!
