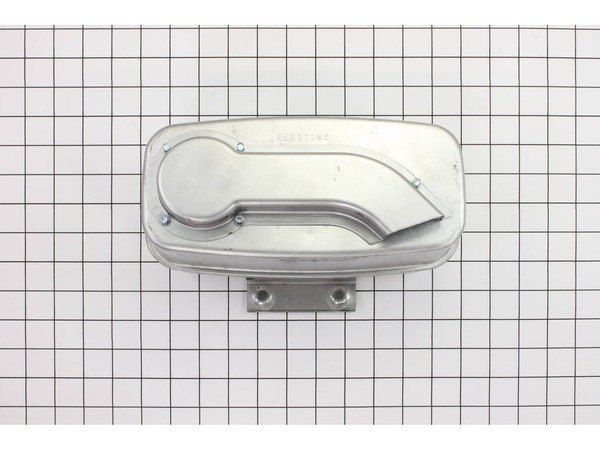

This item is available as an individual replacement part. The metal muffler connects to the exhaust tube and helps to reduce the noise from the exhaust. Over time this part may rust and will need to be replaced and may require a socket set and a wrench during replacement. This part is an OEM sourced directly from the manufacturer for use in Ryobi lawn tractors, Husqvarna ride mowers, Poulan lawn tractors, and Jonsered tractors.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Fit perfectly, mower is quiet(er) again!
The muffler arrived on-time and in good shape. Took me a few minutes to install, as the attachment points were not threaded, but the self-tapping screws that held its predecessor readily self-tapped again, and I was in business. Great to be able use this mower again.
Bruce - September 3, 2019
Verified Purchase
★★★★★
★★★★★
Muffler
The muffler was the right one and went on very easy. The mower works great.
Guest - September 7, 2019
Verified Purchase
★★★★★
★★★★★
100 0/0
Perfect and easy install as expected !
Dale - April 27, 2020
Verified Purchase
★★★★★
★★★★★
Feedback
Exactly the part I needed at a fair price and delivered on time.
Guest - August 31, 2021
Verified Purchase
★★★★★
★★★★★
Great service...quick and easy..
Part was just what I needed..so easy to install my 10 yr old grandson did it for me...
Thanks
Guest - March 27, 2020
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Removed engine cover/hood
2. Removed muffler underbody shield
3. Removed/loosen hood bracket assembly
4. Loosen exhaust pipe from the engine
5. Had to use attachment bolts to make new threads in the muffler bracket
6. Installed muffler
7. Reversed process
8. You do need to have some mechanical
... Read moreskills for this process
1. Removed mower deck.
2. Removed pulley that attaches to the idler return spring.
3. Removed old worn idler arm.
4. Installed new idler arm, pulley and deck.
1. I followed the instructions given to me in the packaged box and completed the task.
2. After I reassembled the engine .
3. Replaced fresh oil and changed Air Filter.
4. Filled gas tank with gas.
5. Started the engine and cut the front yard grass.
1. Disconnected the headlights cord.
2. Removed the engine cover.
3. Remove the bumper.
4. Remove the muffler screws.
5. Replace the old muffler w/the new one.
6. Reassemble steps 4,3,2,&1.
Remove the bolts holding the muffler
Removed the screw holding the exhaust tube
Remove the exhaust tube
Installed the new exhaust tube with the new gasket
Installed the new muffler
1. Open hood
2. Unplug wire harness for headlights
3. Lift hood up and away to remove.
4. Unscrew 2 bolts holding muffler guard
5. Unscrew 2 bolt holding muffler.
6. Muffler will drop out bottom of frame.
7. Replace muffler. New holes are not tapped, easier to screw original self tapping bolts in fir
... Read morest to tap holes.
8. Replace muffler guard
9. Replace hood
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >

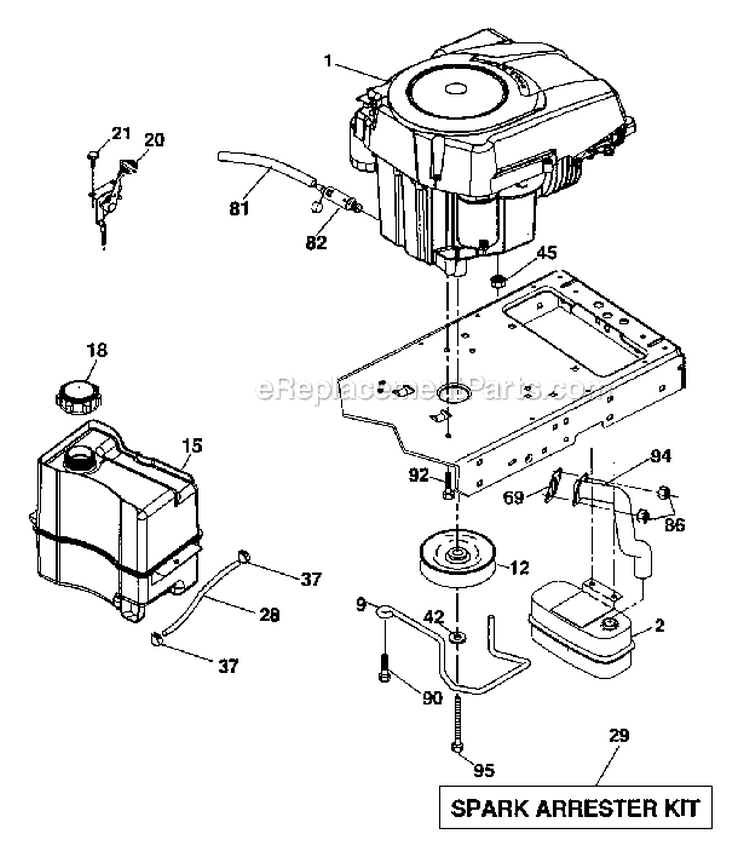

Model Cross Reference
This part works with the following models:
ERP Number: ERP9014671
Manufacturer Part Number: 532188655
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
