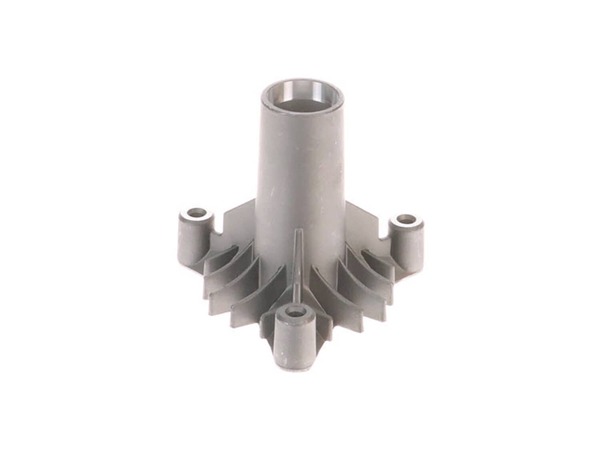

This is an OEM replacement part sourced directly from the original manufacturer. This Mandrel Housing is made out of Metal and it is Sold Individually. This is the part that Houses Shaft that mower blade attaches to, it is mounted to the deck of the mower by Three (3) Bolts (Sold Separately). Please note that the mounting holes on Mandrel Housing are not threaded. Bolts that are used to secure the Mandrel to the deck are self tapping. When doing this repair you would need a set of Wrenches. • First remove the Blade from the Mandrel Shaft • Remove the Three (3) Screws that are holding Housing to the Deck • Then, you will need to remove the Nut that is attached to the Mandrel Shaft, which is located above the Mandrel Pulley. The complete Mandrel Assembly should come right out now. • Remove Shaft from the old Housing and place it in the new housing. Re-attach the now Complete Mandrel Assembly back to the deck. • Attach pulleys, belts and blades.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
excellent service
I ordered the parts and received them in a very timely fashion. the lawnmower is up and running at this time. Thank you.
Guest - May 7, 2019
Verified Purchase
★★★★★
★★★★★
easy repair
arrived quickly - no issues
Michele - June 4, 2019
Verified Purchase
★★★★★
★★★★★
Just what I needed. Quality part.
This part fit like new. Very happy with the results.
Guest - June 24, 2019
Verified Purchase
★★★★★
★★★★★
Great part.
Website easy to navigate and easy to find what you want.
Guest - August 12, 2019
Verified Purchase
★★★★★
★★★★★
Perfect replacement parts.
The only thing you may want to look at is when a customer is purchasing the bearings with the spindle is to have it pre installed.
Guest - August 24, 2019
Verified Purchase
★★★★★
★★★★★
Great replacement
Received this mandrel and installation was quick and easy. Wife is back to riding and mowing. She is happy.
Guest - September 2, 2019
Verified Purchase
★★★★★
★★★★★
Exactly as ordered worked great
Fit perfectly. only issue is how they ship. ship via Fed Ex Ground and Fed Ex drops of at a Post Office for final delivery. Takes an extra 5 days for Post Office to deliver from 30 miles away. Would be better to have shipped directly through the Post Office.
Guest - March 19, 2020
Verified Purchase
★★★★★
★★★★★
Mower parts A+++ COMPANY
Exactly what I needed, great price and
Received 2 days earlier than expected.
Thank you!!!!
Guest - April 9, 2020
Verified Purchase
★★★★★
★★★★★
Quick and Easy.
Parts arrived exactly as promised. Exact replacements.
Guest - April 25, 2020
Verified Purchase
★★★★★
★★★★★
Exactly what I needed.
Part came quickly and was exactly what I needed. I was able to find the part for an older lawn mower, it was reasonably priced and I was able to fix my mower and get back to maintaining my lawn.
Guest - June 30, 2020
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
I removed the blade bolt and washer from the spindle and removed the blade. I then remove the deck from the mower. Remove the nut from the mandrel pulley and remove the pulley. I then remove the three bolts holding the mandrel to the deck, and the mandrel came right off. I used a brass rod to punch the spindle from the mandrel from the to
... Read morep. Then I used a block of wood and tapped the spindle into the new housing. I used the same block of wood to tap in the top bearing. I then placed the the new housing up to the deck and used the same screws to mount the mandrel. The mandrel is not threaded, but the screws are self tapping. I placed the pulley on the spindle and then tightened the nut down on the pulley. I installed the blade and then attached the deck to the mower.
Read less
Did you find this story helpful?
Thank you for voting!
Arm brake was damaged from belt pulley when mandrel broke at the deck mounting
1. Installed new mandrel on deck but I did not use the new stripper.
2. Put belt pulley back on mandrel.
3. Installed new arm brake.
4. Installed new extension spring from arm brake to bracket on deck. I used a screwdriver as a lever to stretch the spring to get it into place on the bracket. This was the most diffi
... Read morecult part of the repair since I did not a a spring stretching tool like those used for stretching springs on drum brakes on cars.
Re-drilled mounting holes to accept a 3/8\" bolts. Bolt head fit in casting as designed. The through hole can be tapped, but drilling a clear hole to fit the 3/8\" make the repair quicker. Then mount the mandrel with washer, lock washer, nut on the top side.
1.)Remove mower deck from chassis
2.)Remove damaged mandrel and mower blade.
3.)Disassemble damaged mandrel.
4.)Install bearings and stub shaft in new mandrel casting.
5.)Install new mandrel on deck.
6.)Reattach deck to chassis.
Did you find this story helpful?
Thank you for voting!
Deck mandrel housing broke off at one of three mounting points.
1. Remove the entire deck from under the mower.
2. Remove the pulley from the top of the mandrel housing.
3. Remove the blade.
4. Before installing the new housing, use the mount bolts to thread the new housing.
5. Transfer the old bearings from the housing to the new housing.
6. Install the new housing.
... Read more/>7. Install the pulley (used a new pulley in this case).
8. Install the blade.
9. Install the deck to the mower.
Read less
Did you find this story helpful?
Thank you for voting!
Housing mandrel (blade spindle) cracked on one of the three attachment mounts.
1. Removed deck from under mower.
2, Removed blade.
3. Removed drive belt and drive belt pulley.
4. Removed the three bolts holding the old spindle to the deck housing. (Two of the three sheared)
5. Removed blade shaft and bearings from old spindle and installed in new spindle.
6. Reverse order to complete re
... Read morepair using new self-tapping screws
I had to cut the nut on top. did this with a grinder cut off wheel. I actually split the nut vertically about %75 through, then unscrewed the nut. My old housing had one of three attachment points broken off, one broken bolt, and only one bolt holding it onto the deck.
When I got the new housing, I drilled out all three holes and u
... Read moresed 5/16 X 1 1/2 bolt. The housing will accept a 5/16 nut to match the bold. I ended up replacing both mandrels and also drilling out the holes in the existing mandrel.
ereplacement parts looked up my parts even though my serial number was not in their database on their website. Real nice and easy company to deal with.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9009199
Manufacturer Part Number: 532128774
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
