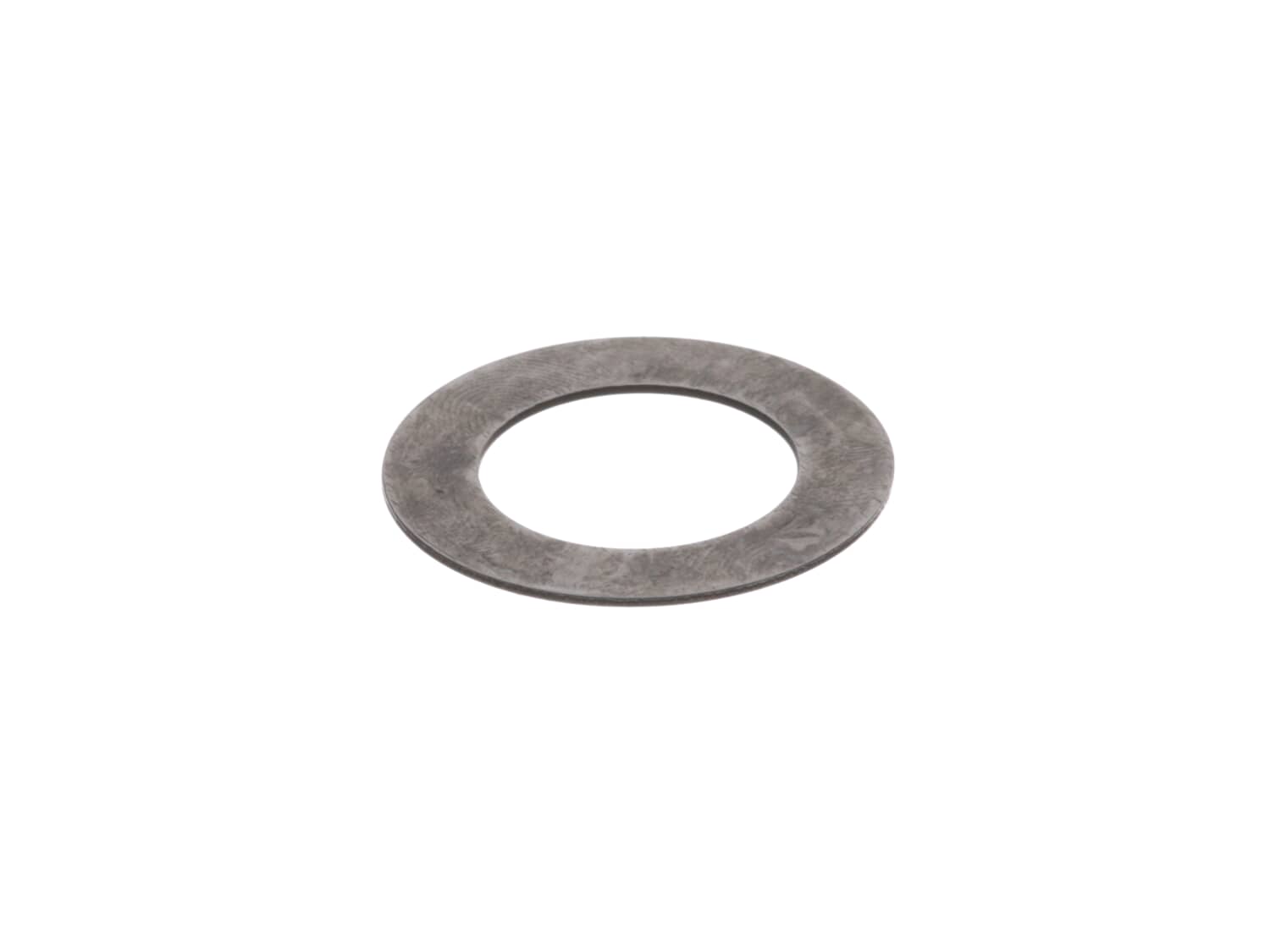

The thrust washer fits next to the ring and the 16 gauge washer. This is an authentic Craftsman replacement part used in compatible lawn tractors. This item is priced as an individual replacement. It is made of metal and may require a pair of pliers during the replacement of this part if it becomes broken.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Right Part Right Price
I use only eReplacements for all my parts needs.
Guest - May 17, 2020
Verified Purchase
★★★★★
★★★★★
Mower part
Perfect fit work like new
Anonymous - June 22, 2021
Verified Purchase
★★★★★
★★★★★
Everything was perfect. Thank you.
Everything was perfect.
Guest - June 28, 2022
Verified Purchase
★★★★★
★★★★★
Ordered multiple parts, received them all in a timely fashion.
Price was very reasonable. Received the order complete, installed on the lawn tractor and was using it the next day. Will use e-replacement again! Thanks for the user friendly site!
Guest - May 11, 2023
Verified Purchase
★★★★★
★★★★★
Thank you
Quality parts, very good customer services, fast delivery, received everything I ordered ( was a large order) thank you, keep it up, see you again
Guest - July 6, 2023
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Took the caps off of the wheels and the top of the spindle assemblies. i jack up the front of the riding mower and blocked it. Removed the e-clips from each wheel. Pulled them off. Check to see what the problem was. I could that the bearing on one of the wheels was bad. That the other spindle assembly was bent and the other had been worn
... Read moreby the bad bearing. I removed both wheels. Pulled the e -clips off the top of the spindles assemblies and pull them out. Unhooked the tie rods from the spindle assemblies. I pulled them apart and slid them out. I separated them and removed the bad parts. I saw that the link drag was also worn and bent. I removed it from under the steering assembly. I went to the website ordered the correct parts. I found a parts list by entering the serial number from the lawn mower. The website showed me my lawn mower and a picture of all the parts. I found the parts I needed by going the the front end of the lawn mowers pictures. The parts were picture so I could tell what exact parts I needed. I ordered the parts and waited for the parts. It took 3 days for them to come very nice. I clean up the areas of the old grease and anything that needed cleaning before I reassembled the front end of the lawn mowers. I check all the parts to make sure they were correct. I reassembled the lawn mower the same way I took it apart. I reconnected the link drag first. Then I re greased the spindle assembles and slid the black in to their correct position and put the e-clips on. I then connected the link drag to the spindle assembly on the correct side. I connected the tie rod to both sides of the two spindle assemblies. I took the wheel into my shop and use a large vise to hold the wheel so that I could knock out the bad bearings. I used a punch and a hammer to knock them out. I slid the punch down into the wheel so I could find the inner side oft he bearing and tap it out. I removed all four bearing two in each wheel. I examine them and found the one that was bad. I clean out the shell removing the geese and anything else I could find. I cleaned out the area where the grease zerks were so that I could replace the bearings in the correct position. The bearings have a piece of the inner bearing where the grease zerk is supposed to go. You need to place the bearing in the correct position so that the grease zerk fits in that spot. That way the zerk won\'t get in the way when you put it back in and the grease zerk will work properly when you need to put grease in to the bearing in the wheel. Place the bearings back into the wheel so it is in the correct position. Take block of wood or some to pound the bearings back in. That way you won\'t damage the bearing. After assembling the wheels . I replaced them back on the spindles and slid the e-clips back on. I tightens ll the nuts and bolts. I regressed all the fittings. I lowered the mower and try the steering assembly out it worked great. I went and test mowed my lawn works great. John
Jacked up the front end of mower.
Removed hubcap
Pried ring clip off
Removed washers and wheel, as well as inside washer
Removed spindle cap
Removed ring clip
Removed spindle
Pried out the two plastic bushings in the spindle tube and replaced with two purchased locally (did not show these o
... Read moren the parts diagram that cam with the mower.)
Replaced parts in reverse from above.
Installed two new wheel/tire assemblies purchased for 1/2 the price ereplacement parts wanted for two wheels (no tires); purchased from another dealer.
Read less
Did you find this story helpful?
Thank you for voting!
Lost steering bearing an stripped gear shaft. could only turn right!
1. Had to remove the mower deck
2. Disassemble the steering column.
3. Once disassembly was completed, the rest was straight forward. It wasn\'t all rusted fast. Things came apart easily.
Did you find this story helpful?
Thank you for voting!
Lawn Tractor front-end was damaged.
Bernard from Kalamazoo, Michigan
1 personfound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Removed tires and unhooked steering arms.
Removed axle.
Replaced axle and installed new washers and new spindles.
Secured with new clips and reinstalled steering arms and tires.
This is a extensive repair that required the removal of hood, battery, disconnect wiring, removal of steering assembly. Care should be taken to know where bolts are located for proper replacement, mark where wires are attached on dash and don\'t get in a hurry.
