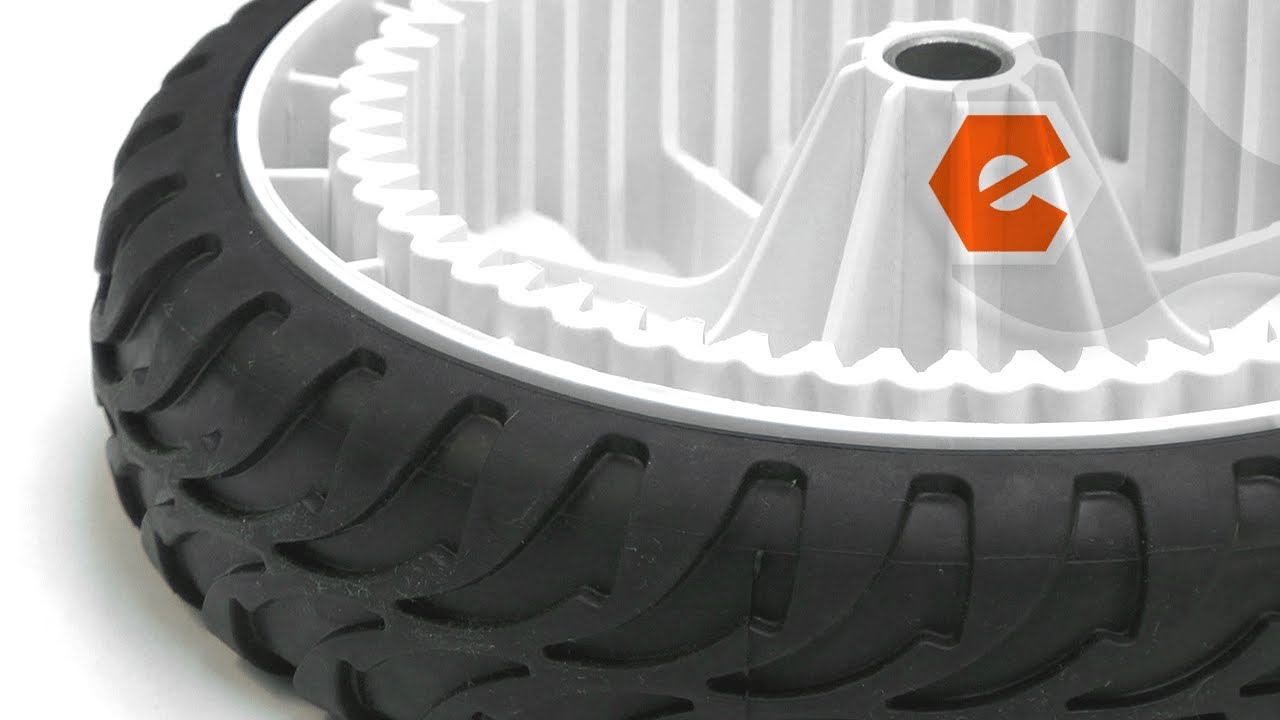

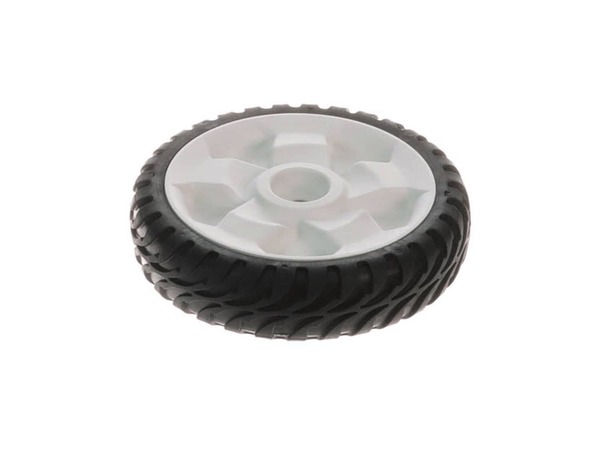

This replacement wheel assembly is an authentic OEM sourced part, not an aftermarket substitution. This is the drive wheel that moves the mower. This includes one plastic wheel per order. Please note, the gear that helps to drive this wheel is sold separately. To complete this repair you will need a wrench. • First you want to remove the shoulder bolt • Remove the old wheel • Align the new wheel with the gears • Secure the new wheel in place
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Easy repair!
The wheels arrived as promised and in good condition. They were an exact replacement and made a HUGE difference in pulling power.
I will be shopping this site again as my mower gets older!
Guest - July 28, 2019
Verified Purchase
★★★★★
★★★★★
Exactly what was needed
The wheel assemblies were in great condition, arrived quickly, and were a perfect fit. All just in time for mowing season to begin.
Guest - April 24, 2020
Verified Purchase
★★★★★
★★★★★
Very easy to install after watching video
I was a little misled by the wording of "Wheel Assembly" thinking it was two(2) wheels that make a complete "Assembly". But went ahead and ordered the second wheel. After 11 years they are a little slick.
Guest - July 28, 2020
Verified Purchase
★★★★★
★★★★★
Easy to replace the old worn tires in short time. Very satisfied!
Everything arrived in great condition and timely.
Guest - August 19, 2020
Verified Purchase
★★★★★
★★★★★
Tire replacement
Parts fit... they were on time... very professional
THOMAS - April 20, 2021
Verified Purchase
★★★★★
★★★★★
Wheel Replacement
The front wheel we ordered was a match for our mower. It came on time and was easy to put on. Thanks much!
Anonymous - October 22, 2021
Verified Purchase
★★★★★
★★★★★
Great service!
Parts delivered on time and worked great!
Guest - February 21, 2023
Verified Purchase
★★★★★
★★★★★
Past buyer
I have bought wheels before through this same company and I am very satisfied that I can still find parts for my Toro self-propelled lawnmower.
Guest - May 10, 2023
Verified Purchase
★★★★★
★★★★★
The front drive wheels of my lawn mower
The wheels were easy to install and now make cutting the lawn much.
Guest - September 16, 2023
Verified Purchase
★★★★★
★★★★★
Great Service
The front wheels for my self-propelled mower arrived quickly and in good shape.
Guest - July 26, 2024
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Drive wheels...worn out/drive belt...dry-rotted. Wheels removed/replaced with one bolt. For the belt...remove the cutting blade & plastic cover. Remove allen key headed bolts...remove/install new belt...install all removed hardware/equipment...
1. Remove plugg wire so engine can\'t start
2. Remove remains of drive belt. You have to remove a bracket umder the engine and on top of the transmission to do this. This involves removing 2 of the engine mount bolts. The bracket on the transmission uses Roberts bolts requiring a special driver. This will disconnect the control
... Read more cable also.
3. Remove the drive wheels.
4. Remove the pinion gears. This requires a snap ring pliers.
5. Remove the axle bearing assemblie from the frame. The transmission will now fall out.
6. If new bearings are going to be installed, use a hammer and pu ch to drive the old bearings out.
7. Use a vise, press or hammer to press in the new bearings.
8. Hold the transmission in place and install the axle bearing assemblies.
9. Install the pinion gears.
10. Install the drive wheels.
11. Install the drive belt.
12. Install the bracket on the transmission.
13. Install the bracket under the engine to retain the belt.
14. Reconnect the plug wire.
While i was replacing the right wheel and assembly i decided it was best to replace the left wheel also. unscrewed the bolt that acts as an axle saving the cog that drives the wheel Replaced the wheels with original cogs and inserted and tightened the new bolts (axles).
The schematics available on this site helped me determine exac
... Read moretly what parts I needed. They arrived within a week.
1. Removed bolts that drive wheels run on, cleaned bolts, and installed new wheels.
2. Turned mower onto side, removed belt cover, mower blade, belt tensioner, and belt retainer.
3. Cleaned out any grass clippings from area.
4. Installed new belt replacing all bolts, retainer, cover, and blade .
5. Checked operatio
... Read moren, and adjusted belt tensioner.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
3
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP16283588
Manufacturer Part Number: 137-4832
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
✖
