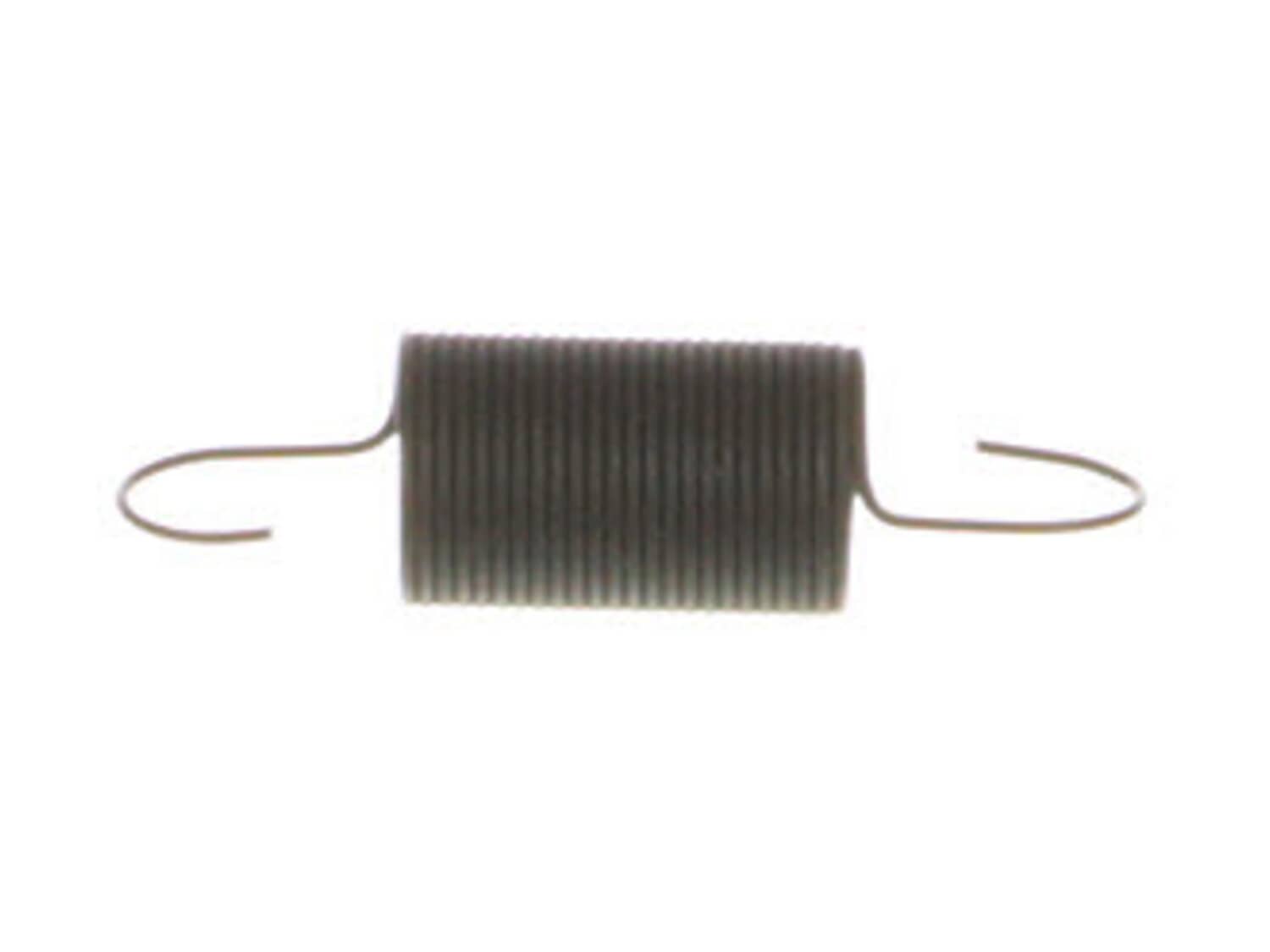

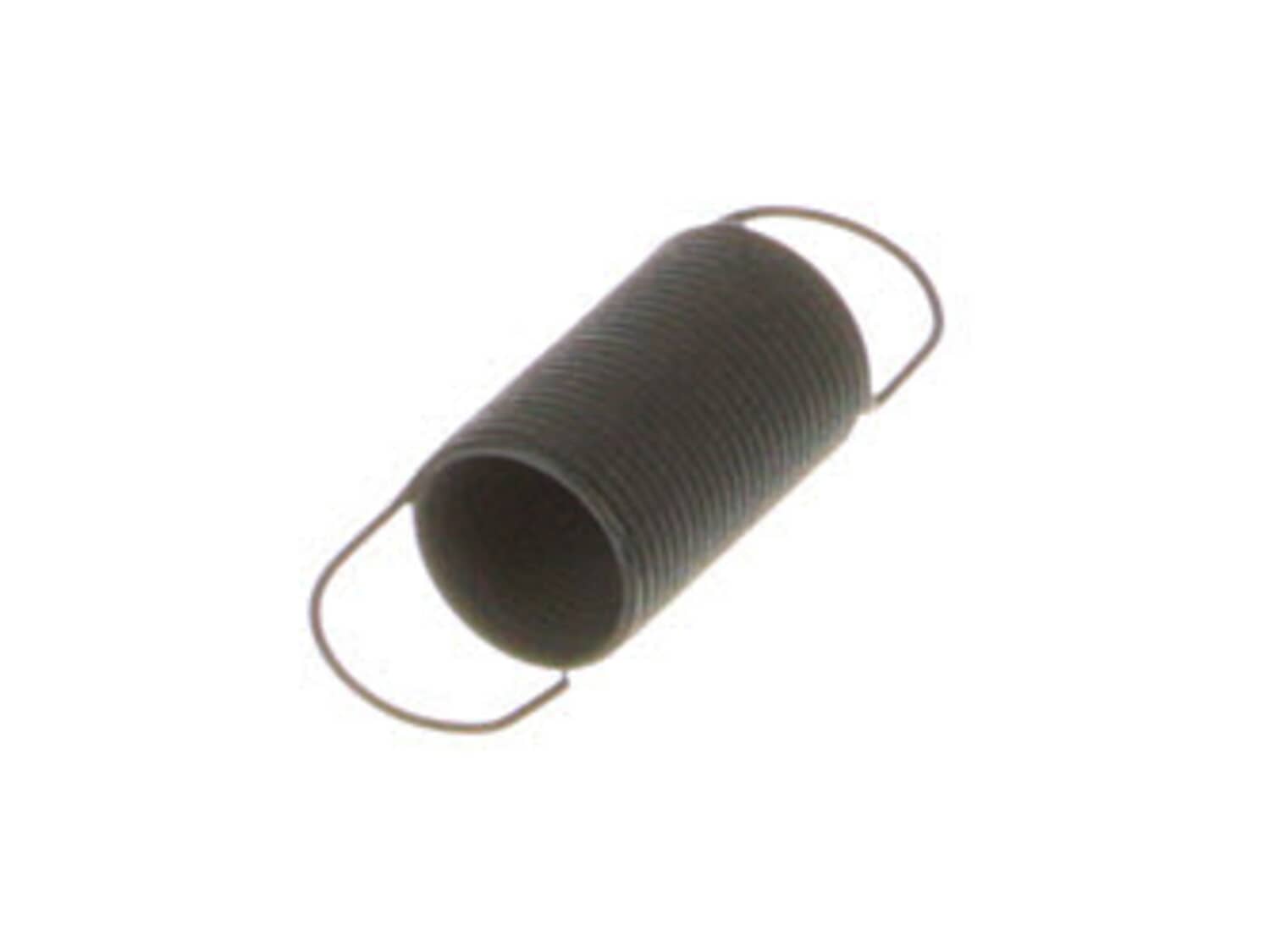

It is a genuine item that is supplied directly from the original equipment manufacturer for Husqvarna lawn mowers. This is a high-quality replacement for a missing or damaged tension spring that was installed on a new unit. Please make sure to check the appropriate diagrams of your model for the correct location and application of this hardware. Keep in mind this tension spring is made of durable metal and is sold individually.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Working with eReplaccementParts has been great
Fantastic customer service and great products that fit the originals
Guest - September 24, 2019
Verified Purchase
★★★★★
★★★★★
Part was OEM quality.
Parts ordered @ a fair price, exact fit. Wish the belts for mower were carried. I've used e replacement parts for several machines around the house. Fair prices, exact fit & arrive on time.
Guest - May 4, 2020
Verified Purchase
★★★★★
★★★★★
Easy Repair
Fast shipping , Lawn mower work's great again.
Guest - May 18, 2020
Verified Purchase
★★★★★
★★★★★
Quick repair
Worked great! Thanks
Guest - April 10, 2021
Verified Purchase
★★★★★
★★★★★
very easy repair , correct part
arrived on time
Guest - January 3, 2023
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
NOTE: I include changing the drive cable and belt, cleaning the mower deck and changing engine oil in the process. Printing out the parts diagrams, and taking pictures when disassembling will help you if you forget how stuff goes together.
Supplies: Owners manual for reference, oil, fuel, shop rags, wood block for blade removal, li
... Read morethium grease for anchor points of tension spring and cable ends. I greased the whole spring to ward off corrosion.
1) Remove spark plug.
2) Drain fuel and oil from engine. See owners manual
3) Tilt mower on its side, remove mower blade and parts that come off with it..
4) Remove belt cover, rear baffle. The two side screws for the baffle can be removed and replaced easier if the rear wheels are removed.
5) Clean under mower deck, rear baffle and belt cover as needed. Replace belt if worn or frayed.
6) Remove screws from control, remove upper end of drive control cable.
7) Remove lower end of drive control cable from mower housing using pliers to squeeze retainers under the housing, simultaneously pulling up.on the cable with pliers.
8) Install cable end in control, reassemble control onto handle.
9) Install cable end on transmission under mower housing.
10) Replace belt housing and rear baffle.
11) Use spring hook to install tension spring on transmission and baffle.
12) Replace blade and parts, torque bolt to specs.(35-40 ft.lbs, See owners manual).
12) Replace rear wheels.
13) ADD FRESH OIL TO THE ENGINE BEFORE STARTING!(see owners manual for specs)
14) Add fuel.
15 Replace spark plug wire.
16) Start mower, adjust drive cable per owners manual.
17) Happy mowing.
Replaced all idler pulleys, drive belt, drive cable and return spring. Found that it didnGÇÖt fix the problem. Ultimately it turned out to be a mfg defect; the drive cable was too long. Tied a knot in the cable near the engagement lever and now it works well.
1. Removed the old stretched out spring.
2. Used needle nose pliers to install one end of new tension spring into slot hole on drive gear box.
3. Used needle nose pliers to install other end of new tension spring into spring hole slot on rear plastic shroud under deck of mower.
4. Checked the new spring for how well it f
... Read moreunctioned.
5 The new spring seemed to disengage the rear drive gear box properly.
1. Followed the instructions and repair hints from previous customers. Very useful.
2. Used a large screw driver and leaf blower to remove accumulated grass particles.
3. The belt part xxx609 fit perfectly.
4. I decided that the idler wheel needed replacement. Ordered it and a new tension spring. on a separate order. A
... Read morell orders arrived quickly.
5. Fun project for kids and grandkids to help.
Read less
Did you find this story helpful?
Thank you for voting!
Drive belt worn out, trans cable worn and clutch cable worn.
Removed cover, blade, center pulley, rear tires, dropped transmission to remove clutch belt, removed screws on rear pulley guard to be able to remove belt. Removed and replaced clutch and throttle springs.
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9982331
Manufacturer Part Number: 581351301
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
