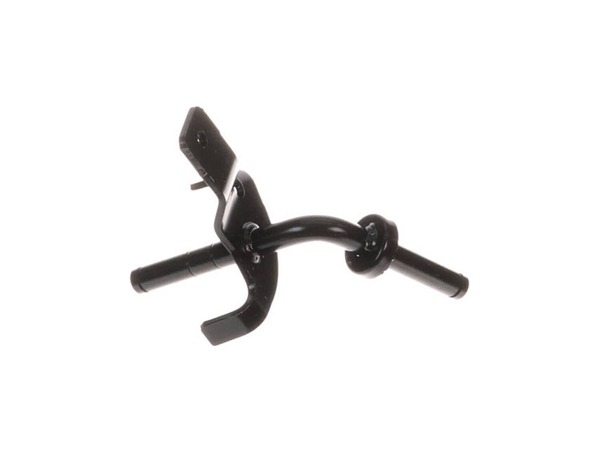

17086141-1-M-Husqvarna-538691101-Spindle Asm.-lh 16
Part Location Diagram of 538691101 Husqvarna Spindle Asm.-lh 16
See part I-4 in the diagram
17086141-1-S-Husqvarna-538691101-Spindle Asm.-lh 16 360 view
( Grid squares measure 1x1 inch )
17086141-1-S-Husqvarna-538691101-Spindle Asm.-lh 16 17086141-2-S-Husqvarna-538691101-Spindle Asm.-lh 16 17086141-3-S-Husqvarna-538691101-Spindle Asm.-lh 16 17086141-1-S-Husqvarna-538691101-Spindle Asm.-lh 16 360 view
Part Location Diagram of 538691101 Husqvarna Spindle Asm.-lh 16

Spindle Asm.-lh 16 538691101

Manufactured by:
Husqvarna
ERP Number:
ERP17086141
Part Number:
538691101
Original Equipment Manufacturer ?
  Works with your model  LOGTH!
$29.88
★★★★★
★★★★★
1 Review
In Stock
Delivers in 3-5 Business Days!

Easy

15 - 30 mins

(3 rated repairs) ?
  Works with your model   LOGTH!

Jump to:

Description Frequently Purchased Together Troubleshooting Reviews Questions & Answers Repair Instructions Model Cross Reference

Product Description

?

This part is an OEM from Husqvarna, Poulan and Jonsered Lawn Tractors. The spindle connects the front wheel to the front axle. The most common reason for replacing the spindle is when the spindle is bent, causing the mower to not steer straight. This part is sold individually. The tools that you will need to replace the spindle are floor jack and a large flat-head screwdriver.

Frequently Purchased Together

?
Lawn Mower Washer
★★★★★
★★★★★
(17)
$6.16
In Stock
Minimum Quantity of 2 required
Lawn Mower Hardened Washer
★★★★★
★★★★★
(8)
$6.16
In Stock
Minimum Quantity of 2 required
Lawn Mower Washer
★★★★★
★★★★★
(7)
$6.16
In Stock
Minimum Quantity of 2 required
Spindle Asm.-rh
$29.88
In Stock
Rim Assembly. 8x5, Front
$135.33
In Stock

Troubleshooting

This part works with the following brands:
  • Husqvarna
  • Poulan
  • Jonsered
  • Craftsman
  • RedMax
This part works with the following products:
  • Lawn Mower
  • Lawn Tractor
Part# 538691101 replaces these:
532197937, 532403089, 536052702,
★

Customer Part Reviews

?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(1 Review)
Click to filter by ratings:
  • 5 stars
    1
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
My repair was made easy.
My parts came quickly and were exactly what I needed!
Pat - October 5, 2020
Verified Purchase

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(3 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Wife hits trees too fast . Weld broke on spindle so unable to steer. Replaced (the part/not the wife)

Marcus from Thayer, Kansas

7 of 7 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Wrench set
Parts Used:
538691101
Jacked up the garden tractor ; blocked the wheels and put a block under the deck. Safety is paramount. Pried off rubber cap on wheel and removed the retaining clip , washers and wheel. Got 2 wrenches to remove nut from \"tie rod end thingy\" pried off spindle rubber cap , clip , washer and part fell to ground. Greased up new part and inst alled in reverse order. I used pliers to install the retaining clips and the 90 degree \"hose pick\" to help install the rubber caps. Removed blocks lowered machine , MOC and test flight complete. Works good/lasts long time.
Read less
Did you find this story helpful?
Thank you for voting!

The left hand spindle was bent.

Donald from Oakhill, West Virginia

3 of 3 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Wrench set
Parts Used:
538691101
Replaced the old one with the new.
Did you find this story helpful?
Thank you for voting!

Left Front axle worn out

Lee from Martinsville, Indiana

3 of 3 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Socket set, Wrench set
Parts Used:
538691101
1. Removed Wheel
2. Pried rubber spindle cap off
3. Removed Spindle clip
4. Removed Steering Link arm from spindle
5. Reversed Procedure with new spindle
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP17086141
Manufacturer Part Number: 538691101
Brand Model Number Description
Husqvarna 143RII Brush Cutter - 143 Rii (20150400001-20180500000)
Husqvarna 1848XPT Lawn Tractor - Ride Mower
Husqvarna 20F42T Lawn Tractor - Ride Mower
Husqvarna 2354GXLS Lawn Mower - Husqvarna Lawn Mower Model 2354GXLS Parts
Husqvarna 240471 Lawn Mower - Husqvarna Lawn Mower Model 240471 Parts
Husqvarna 240472 Lawn Mower - Husqvarna Lawn Mower Model 240472 Parts
Husqvarna 2448T Lawn Tractor - Ride Mower
Husqvarna 2454 Lawn Tractor - Ride Mower
Husqvarna 2454T Lawn Tractor - Ride Mower
Husqvarna 2648 Lawn Tractor - Ride Mower
Husqvarna 2654 Lawn Tractor - Ride Mower
Husqvarna 2654T Lawn Tractor - Ride Mower
Husqvarna 26K54 Lawn Tractor - Ride Mower
Husqvarna 26K54T Lawn Tractor - Ride Mower
Husqvarna 272XP Chainsaw - 272 Xp (20163200001-20173200000)
Husqvarna 2748GLS Lawn Tractor - Ride Mower
Husqvarna 2754GLS Lawn Tractor - Ride Mower
Jonsered 2754GTHI Lawn Tractor - Garden Tractor
Jonsered 2754GTHI-96043019100 Lawn Tractor - Tractor
Jonsered 2754GTHI-96043019200 Lawn Tractor - Tractor
Husqvarna 289571 Lawn Mower - Husqvarna Lawn Mower Model 289571 Parts
Husqvarna 289580 Lawn Mower - Husqvarna Lawn Mower Model 289580 Parts
Husqvarna 323S25 Sprayer - 323 S25 - 967078401 (For China Only)
Craftsman 91725947 Lawn Mower - Craftsman Lawn Mower Model 917.25947 (91725947, 917 25947) Parts
Craftsman 917259472 Lawn Mower - Craftsman Lawn Mower Model 917.259472 (917259472, 917 259472) Parts
Craftsman 917279260 Lawn Mower - Yard Tractor
Craftsman 917289571 Lawn Mower - Craftsman Lawn Mower Model 917.289571 (917289571, 917 289571) Parts
Husqvarna 917289580 Lawn Tractor - Tractor
Husqvarna 96041006204 Lawn Mower - Husqvarna Lawn Mower Model 96041006204 Parts
Husqvarna 96041017301 Lawn Mower - Husqvarna Lawn Mower Model 96041017301 Parts
