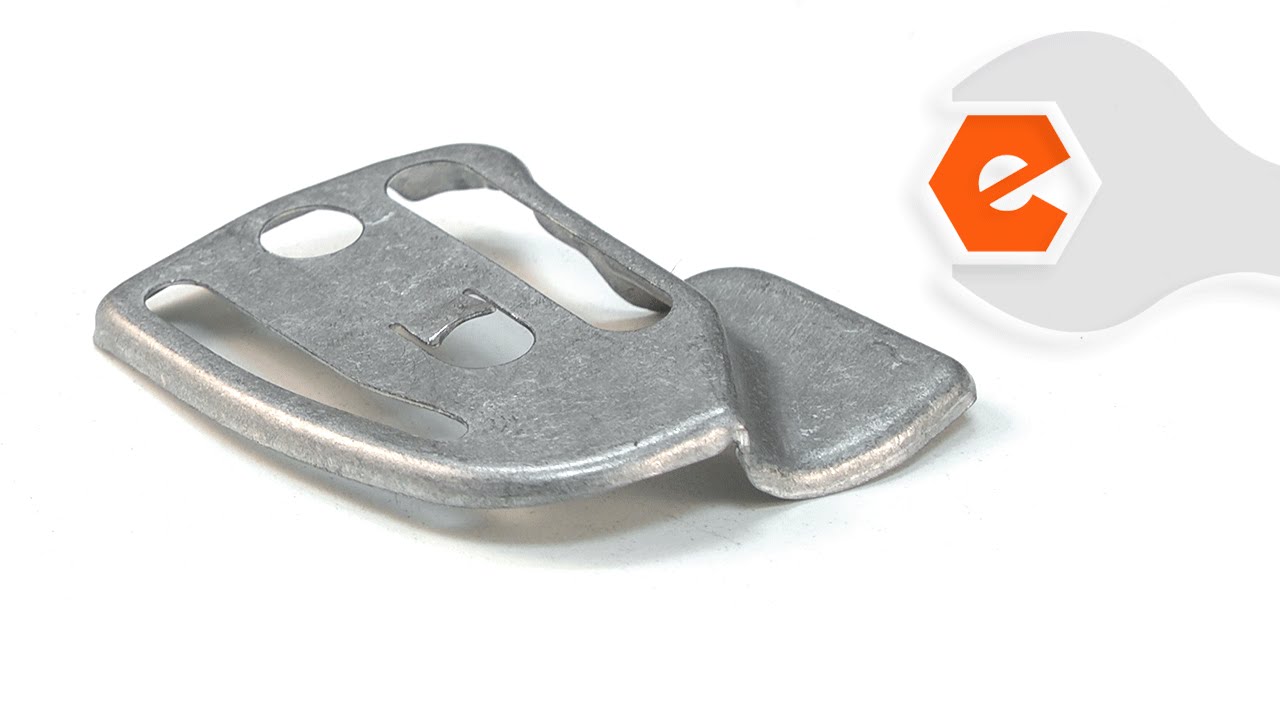

This is a genuine replacement part manufactured for use with chain saws from Craftsman. This part secures the bar to the clutch. It is recommended to review your models diagram to verify the parts compatibility. This bar mounting plate is made of metal and sold individually.
1.Remove clutch cover.
2.Removed bar and chain.
3.Removed snap ring,washer kit, clutch drum.
4.Installed new parts.
Chainsaw working great like brand new.
Did you find this story helpful?
Thank you for voting!
Loose chain cut into plate bar and clutch cover. Also, clutch drum gear had some teeth a little worn down that cause chain to jump off bar.
I removed all worn/damaged parts and replaced them. I used a screw driver to remove the cir-clip that allowed the clutch drum to be removed, slid off the worn one, put the new part on and replaced the cir-clip. The Plate-Bar was removed by expanding the bolt clip (part of the plate-bar) and sliding it off; the new one had the same type
... Read morepinch clip, and I slid it in place. The clutch cover is held in place by a finger tightening part which is used for normal maintenance.
1. Removed cover from the saw.
2. Removed spark plug.
3. Removed chain and bar.
4. Insert the short length of rope into the cylinder pull rope to get cylinder at top dead center.
5. Remove washer clip that holds clutch drum.
6. Remove clutch counter clockwise with the tool I made.
7. Reassemble in rever
... Read morese order.
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
✖
