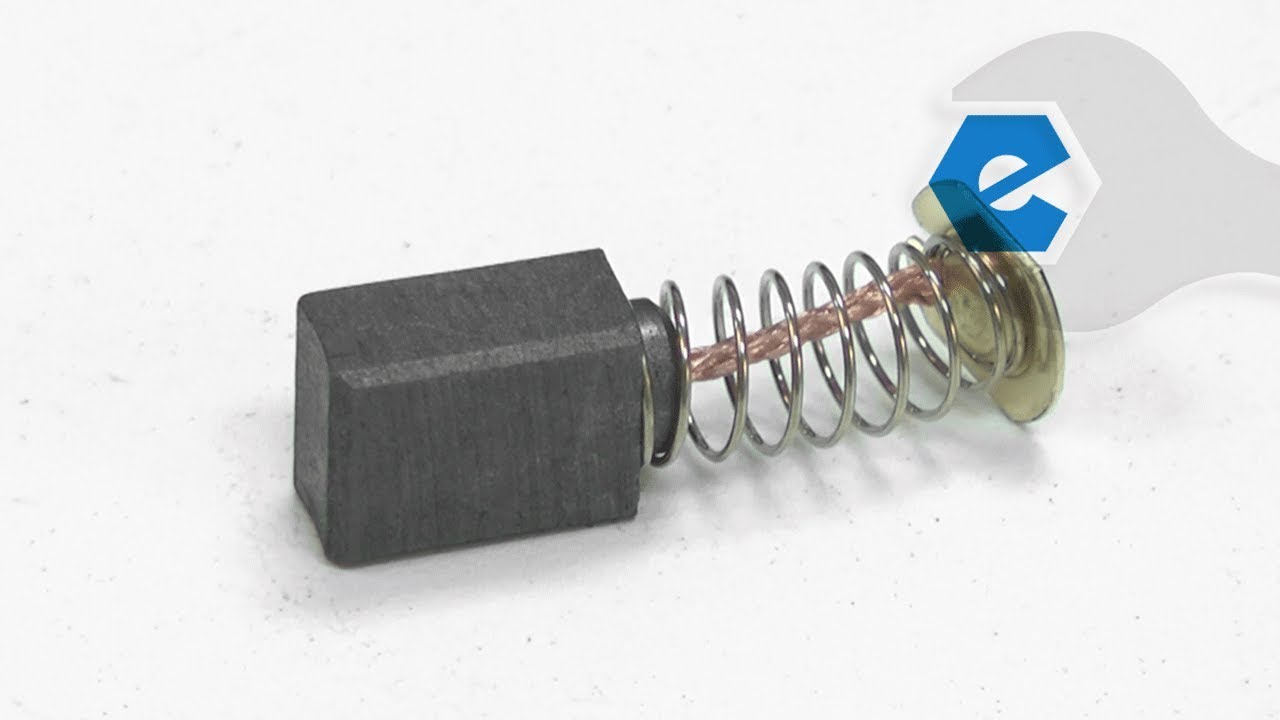

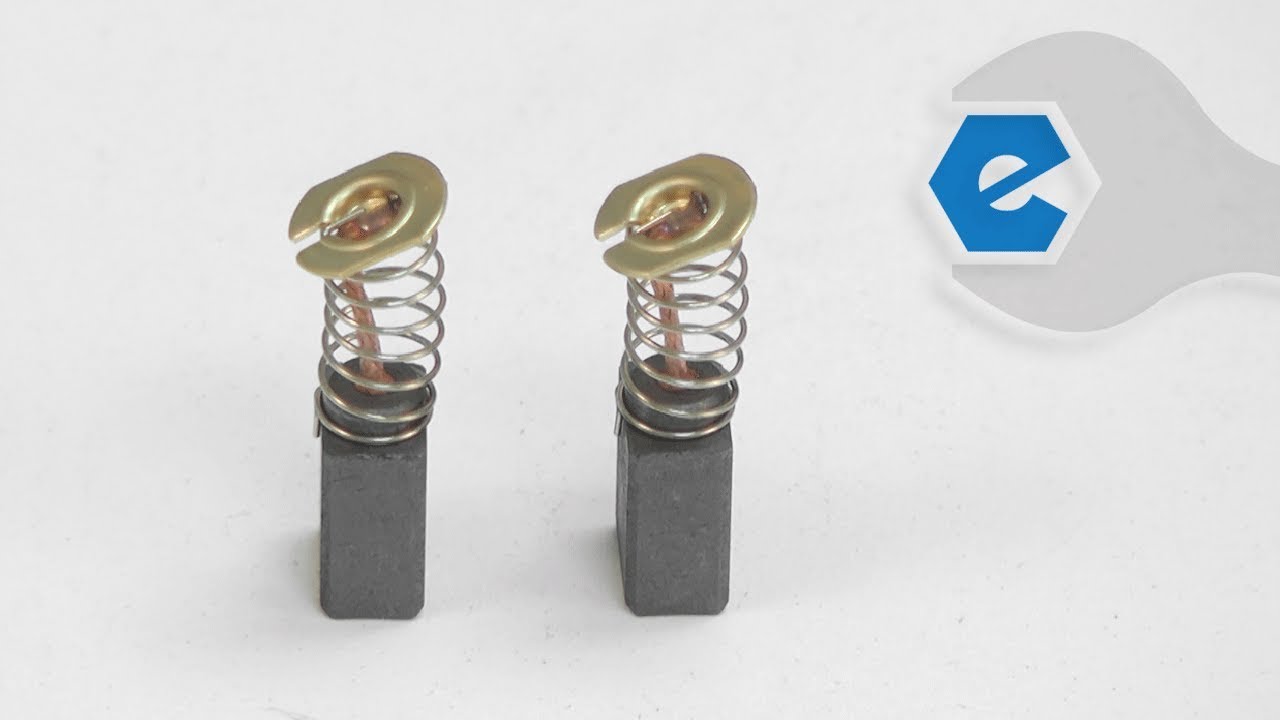

This #191938-1 (CB-408) Makita carbon brush set contains two individual carbon brushes with wire leads and brush springs attached. The set contains genuine Makita replacement parts, and comes packaged in a Makita retail box. This brush set will fit the Makita tools listed at the bottom of the page. • Worn brushes are often the cause of a poorly running motor • Replacing brushes can fix an intermittent motor • New brushes can restore a motor's electric braking Carbon motor brushes are one of the most commonly replaced power tool components. Because carbon brushes are wear items, meaning that through friction and use they will gradually wear away, they will eventually require replacement. Worn brushes are common causes of intermittent motor function, reduced electric braking, and reduced motor power. A worn out brush will often be worn down near the wire lead and may be cracked, pitted, or burned. When replacing carbon brushes, be sure to also inspect your armature for burns, cracks, or other damage which indicates a larger motor problem.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Great service
The parts I purchased from eraplacementparts brought my makita beltsander back to life. This was my favorite beltsander and has been a discontinued model for several years now. It's great to have a source for hard to find parts. I'm a woodworker and always have power tool that need repair. I'll definitely be back. Thank you for your help and speedy service.
Guest - December 18, 2019
Verified Purchase
★★★★★
★★★★★
Easy Fix. It worked perfectly
The part came quickly and it saved me from buying another $300 tool
Guest - January 24, 2020
Verified Purchase
★★★★★
★★★★★
Proper part sent, speedy shipping
I ordered some brushes for a router. my 1st order from ERP. All went perfectly - happy to use them again.
Guest - January 20, 2021
Verified Purchase
★★★★★
★★★★★
The brush set order
The brush set works perfect and it arrived sooner than expected. The cost was good and it was so easy to locate with ereplacement parts system. I have order several items and they were all great.
Guest - June 16, 2021
Verified Purchase
★★★★★
★★★★★
Mikita brush set
Parts were exactly what I needed to avoid replacing the entire tool, which is one of my favorites.
Guest - November 14, 2022
Verified Purchase
★★★★★
★★★★★
quick and easy
quick and easy
Guest - February 6, 2023
Verified Purchase
★★★★★
★★★★★
Outstanding company
These guys have everything! I’ve used them for quite a few repairs. I love being able to get the replacement parts I needed for appliances, power tools, pretty much everything that needs replaced from one vendor. I highly recommend ereplacementparts.com!!!
Guest - May 15, 2019
Verified Purchase
★★★★★
★★★★★
fit perfect..
As ordered...
Guest - August 2, 2019
Verified Purchase
★★★★★
★★★★★
I’ve ordered this before.
My router was quitting me and I knew this was a cheap , easy fix. Thanks. Right part/ on time.
Guest - April 1, 2023
Verified Purchase
★★★★★
★★★★★
The item was great.
The carbon Brush Set worked great. My Makita router is working again.
Russell - June 19, 2023
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
simple unscrew case wiggle apart
dismantle clips and use socket to pop out first bearing
use vise with 2 screw drivers holding underneath the bearings and with soft blow hammer
Using a flat blade screw driver I removed the brush caps
Then removed the worn brushes from the brush holders
Installed the new brushes in the brush holders
Screwed on the brush caps
Using a flat head screwdriver, remove the brush caps, then remove the old brushes. You may want to blow out the brush holders and clean the edges of them so the brushes will slide easily. Then install the new brushes and replace the brush caps.
Carbon brushes had worn out. I have had this Makita for 15 years. I was easy to install by taking the screws on one side out, take the two screws for the brushes out and install the new ones.
Remove brushes
Remove outer case
Remove belt transmission with drum and armature
Unhook field and brushes connections
Pry field (melted into case)out of case
Prepare case where melted
Extract inner armature bearing
Install and connect field and brush terminals (spiral springs)
Remove drive b
... Read moreelt, remove drive pulley (LH threads)
Install drive pulley on new armature
Press into case
Install brushes
Install case
1. Separated the case halves.
2. Removed the motor armature.
3. Removed the bearings from the armature.
4.Replaced the bearings on the armature.
5. Cleaned the brush housing by removing the brushes and using compressed air cleaned the brush housing and replaced the brushes.
6. Cleaned the inside of the housin
... Read moregs and reassembled them.
7. Installed the missing grip.
8 Installed a new grind disk and tested.
9. Worked like a new one and the brushes did not spark a lot nor did the bearings vibrate and squeal.
Simply removed the handle screws (4)...unplugged old switch, snapped in new... Put cover on with the same 4 screws, removed the caps over the brushes... Unsnapped old brushes, snapped in new...replaced caps.. Went back to using tool as normal. Easy fix.
