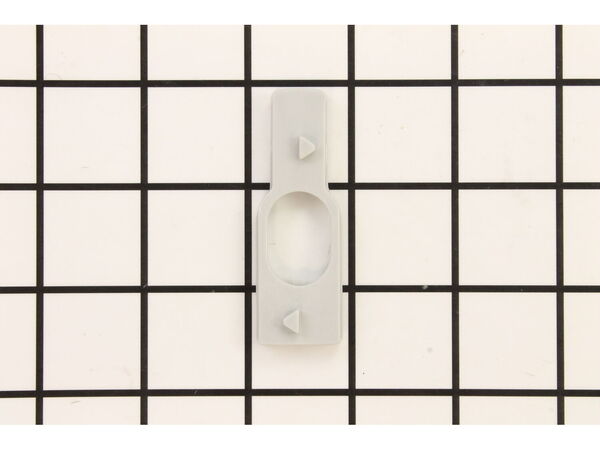

This is the plastic slider for your trimmer. It is made of plastic and metal and is white and color. It measures approximately 2 ½ inches long and 1 inch wide. The slide works with the spool and uses centrifugal force to automatically release the cutting line from the spool. The main reason to replace the slider is if it is damaged or missing, or if the cutting line is not being automatically released. This part is sold individually and is an OEM part sourced directly from the manufacturer.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Easy repair. Worked great
Fixed the line feed just as expected. Thank you for having these parts.
Guest - September 3, 2019
Verified Purchase
★★★★★
★★★★★
Perfect fit
Worked perfect
Guest - September 23, 2019
Verified Purchase
★★★★★
★★★★★
Repair parts for Ryobi weed whacker
I ordered all the parts that may have caused the problem. Turned out I got more than I needed but the prices were so reasonable I have no regret.
3 dimensional schematics might make ordering parts
( for somebody who doesn’t repair garden equipment professionally, like me) a little easier.
Guest - September 26, 2019
Verified Purchase
★★★★★
★★★★★
Ryobi 40V string trimmer
This part plus a compression spring enabled me to return the string trimmer to a like-new condition.
Guest - October 9, 2019
Verified Purchase
★★★★★
★★★★★
Exact fit
This was for a battery operated Ryobi weed wacker, which in the discribetion fits several weed wackers, I purchased this for an older neighbor to which the head fell off while they were using it, due to not putting it back together correctly, so she called me and said it wouldn't work and I noticed the piece was missing, they said to order it. when it came quickly I took it to them and they said that looks like the piece on the front porch. lol now we have a spare part. I was going to return it but the shipping cost me twice the amount of the price of the part. Completely satisfied with the part.
Guest - July 6, 2020
Verified Purchase
★★★★★
★★★★★
Plastic slider
It is too cold to use here, but I expect that it will work like to one I ordered previously.
Guest - February 6, 2020
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Put small screwdriver into hole to hold shaft,used pliers to remove old thread base,put new spoolbase on with hands,could not find anything to tell me how to remove old thread base,but luckily i have a jack of all trde daughter ,,Ryobi 18 volt weed trimmer
Did you find this story helpful?
Thank you for voting!
Trimmer not releasing new string, and deflector shield not cutting the line well.
1. Remove the old cap
2. Take out the spool.
3. Remove 4 screws (Phillips) securing the grass deflector assembly.
4. Looked at a great YouTube video showing how to remove the plastic slider and spring.
5. Mine did not come as easily as in the video had to use a flat screwdriver to pop it back and out.
6. Put
... Read morein the new plastic sider and compression spring.
7. Put the new deflector assembly on.
8. Put the 4 screws back in.
9. Replaced the spool.
10. Put the new cap on.
11. Works like a champ again; line feeding out like it used to.
Read less
Did you find this story helpful?
Thank you for voting!
The parts were missing and might have fallen out. Replacing parts was easy, took about 10 minutes
Place spring into imprinted hole. Begin to slide the plastic slider onto shaft until extended plastic slips into collar hole. Depress end of spring to fit in hole in inside of collar. Install string bobin and cap. Test if string works and feeds normally.
Remove the spool
Then push the plastic slider in against the spring
Then lift up slider and remove it and spring.
Then put in new spring
Then install slider
Took off the three screws for guard, pried out the plastic slider. I then inserted the new spring into slider, then replaced the slider, and guard after cleaning both.
Did you find this story helpful?
Thank you for voting!
Lower boom bent run over bu my Toyota Pickup. Other parts missing
1. Separate upper boom from lower.
2. Remove all screws holding motor assembly together and disconnect wiring harness
3. Connect wiring from new \"Straight\" Boom assembly.
4. Replace all securing screws to reassemble motor housing.
5. Rebuild string control assembly with new parts supplied.
6. Install string
... Read more spool and attach new spool cover.
7. Repair complete trimmer works great!
Read less
Did you find this story helpful?
Thank you for voting!
I bought the floor model and the compression spring and plastic slider were missing. Got the parts fast, took less than 5 minutes to fix and trimmer is working perfect!
1. Cleaned string trimmer.
2. Remove plastic cap and string spool.
3. Used flat head screwdriver to gently push and lift the plastic slider out of place.
4. Removed old spring and old plastic slider.
5. Placed new spring into end of new plastic slider.
6. Gently pushed parts into place.
7.Restrung line
... Read moreonto spool.
8.Thread string through spool hole.
9.Put spool into place.
10. Placed plastic cap back in place.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9939457
Manufacturer Part Number: 310920001
