9030700-1-M-Husqvarna-545081848-Trimmer Carburetor Kit

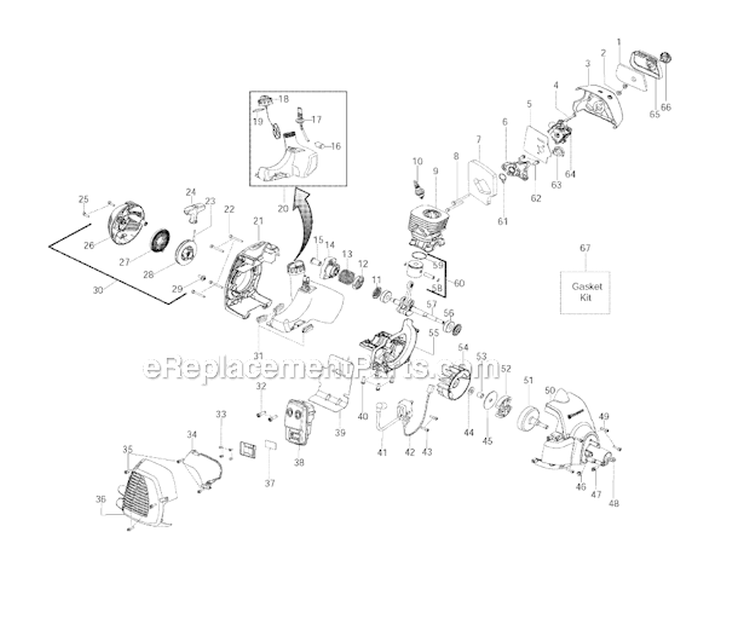

Part Location Diagram of 545081848 Husqvarna Trimmer Carburetor Kit
See part A-64 in the diagram

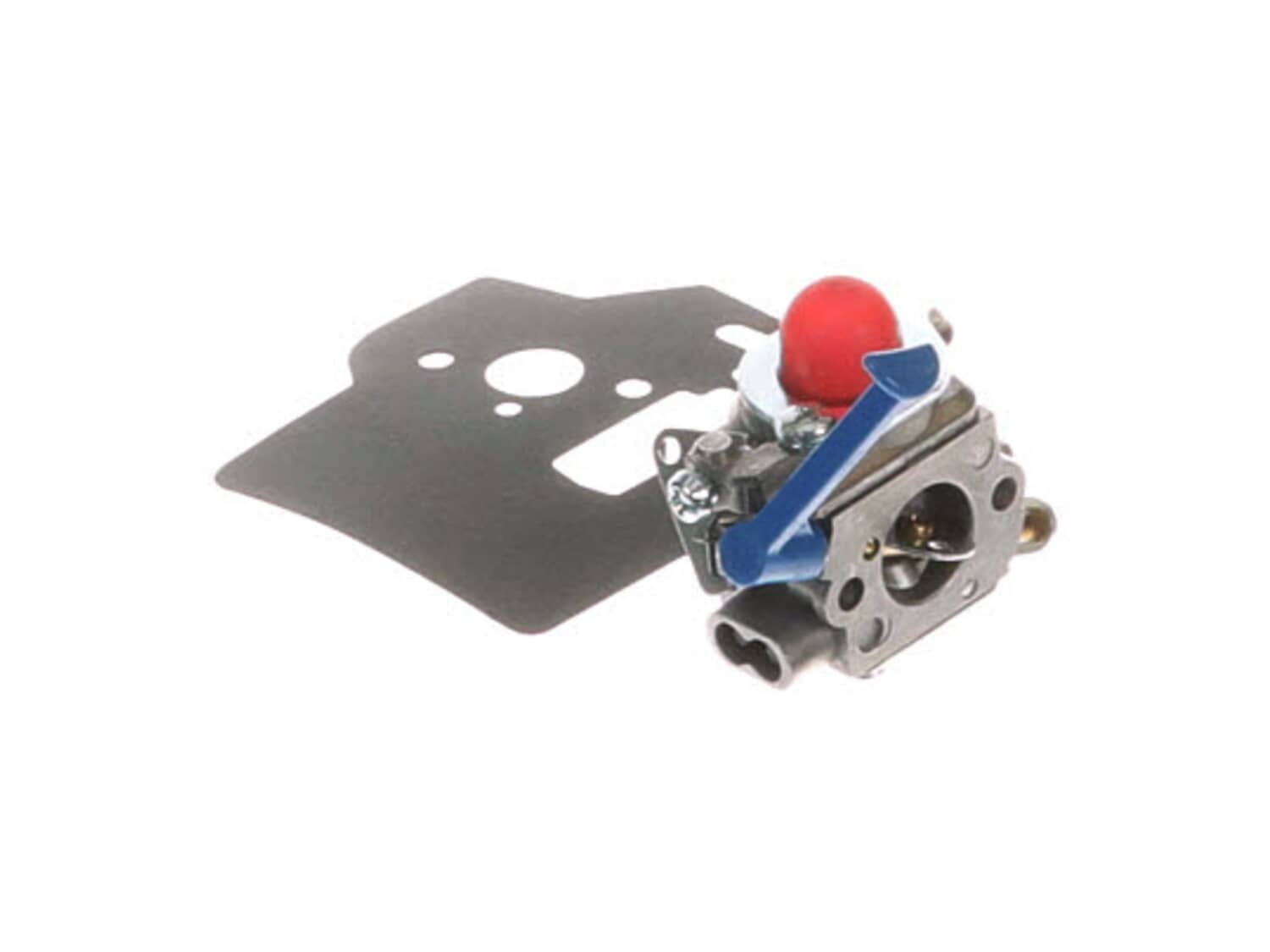

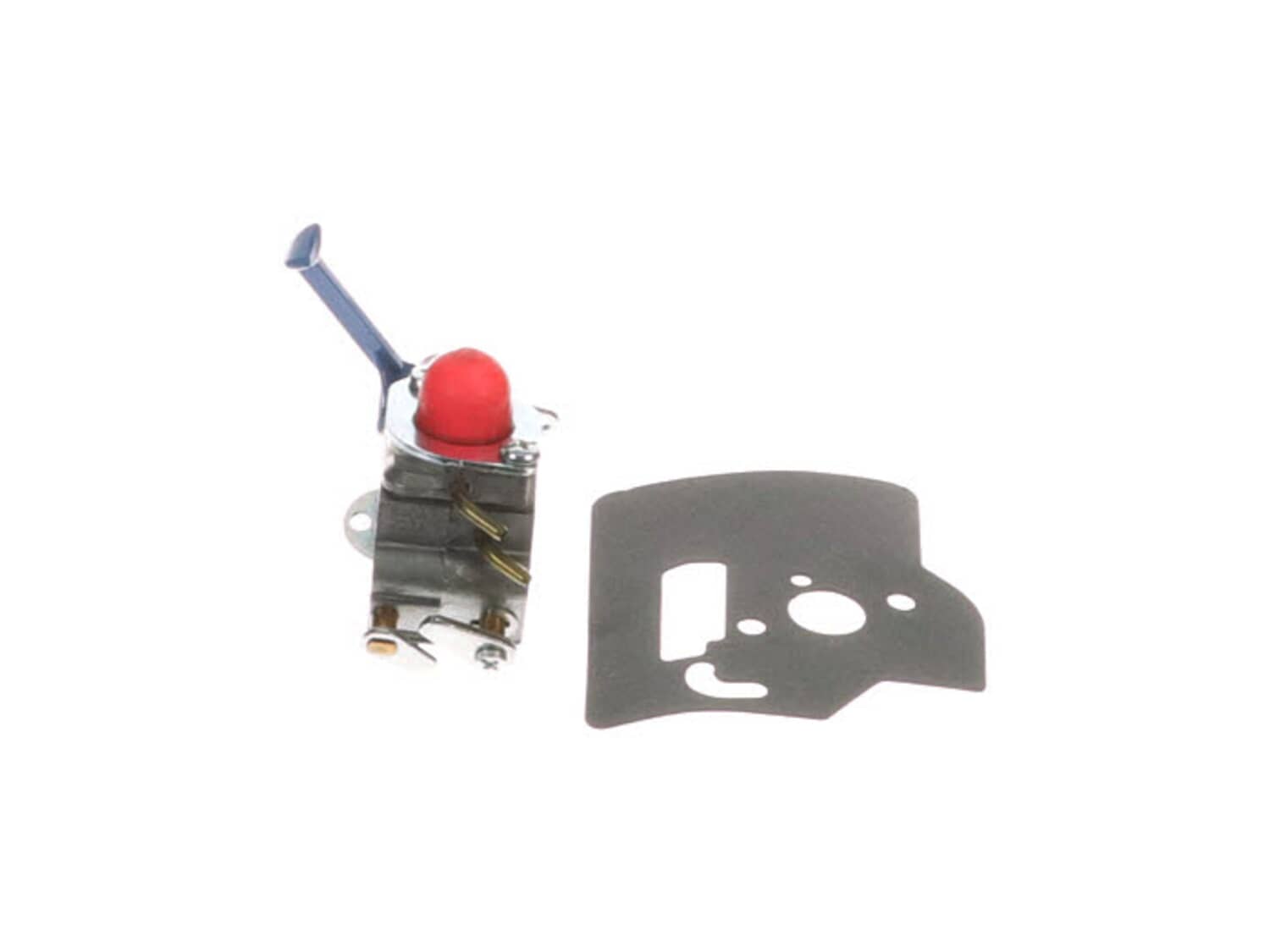

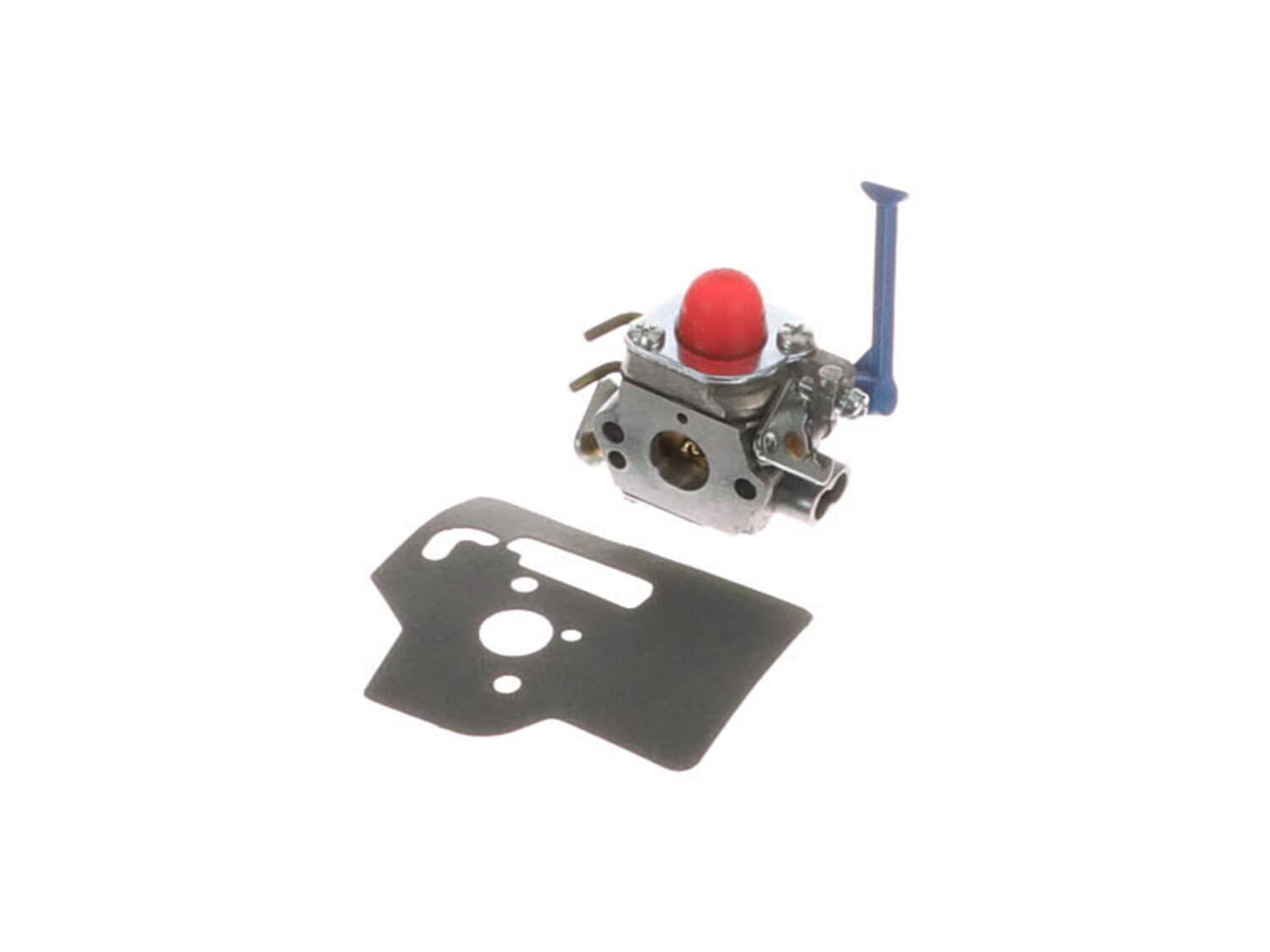

9030700-1-S-Husqvarna-545081848-Trimmer Carburetor Kit 360 view
( Grid squares measure 1x1 inch )
9030700-1-S-Husqvarna-545081848-Trimmer Carburetor Kit 9030700-2-S-Husqvarna-545081848-Trimmer Carburetor Kit 9030700-3-S-Husqvarna-545081848-Trimmer Carburetor Kit 9030700-1-S-Husqvarna-545081848-Trimmer Carburetor Kit 360 view
Part Location Diagram of 545081848 Husqvarna Trimmer Carburetor Kit

Trimmer Carburetor Kit 545081848

Manufactured by:
Husqvarna
ERP Number:
ERP9030700
Part Number:
545081848
Original Equipment Manufacturer ?
  Works with your model  128CD!
$56.30
★★★★★
★★★★★
34 Reviews
In Stock
Delivers in 3-5 Business Days!

Easy

30 - 60 mins

(26 rated repairs) ?
  Works with your model   128CD!

Jump to:

Description Frequently Purchased Together Troubleshooting Reviews Questions & Answers Repair Instructions Model Cross Reference

Product Description

?

This carburetor rebuild kit (part number 545081848) is for lawn and garden equipment engines. Carburetor rebuild kit 545081848 includes gaskets and parts for rebuilding the carburetor. Work in a well-ventilated area and drain the fuel from the tank and fuel lines before rebuilding the carburetor

Frequently Purchased Together

?
Service Kit
$30.96
In Stock

Troubleshooting

This part works with the following brands:
  • Husqvarna
  • Jonsered
  • RedMax
  • Poulan
  • Craftsman
This part works with the following products:
  • Trimmer
  • Brush Cutter
  • Edger
Part# 545081848 replaces these:
5450060-33, 5450060-34, 5450060-62, 545006033, 545006034, 545006062, 545006063, 5450818-49, 545081847, 545081848, 545081849,
★

Customer Part Reviews

?
4.8
Average Rating (out of 5):
★★★★★
★★★★★
(34 Reviews)
Click to filter by ratings:
  • 5 stars
    28
  • 4 stars
    6
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
  • 1
  • 2
  • 3
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Part All Good
New carb identical to original for my string trimmer, works just fine, easy install
Guest - June 29, 2019
Verified Purchase
★★★★★
★★★★★
Worked as usual
Have bought quite a few different parts,all have worked as expected. All have fit with no problem. Thanks for providing this service!!!!!!
Jj - July 4, 2019
Verified Purchase
★★★★★
★★★★★
Easy order
Very Satisfied
Guest - September 20, 2019
Verified Purchase
★★★★★
★★★★★
Simple repair
When your weed whacker starts to act up, won't run, runs only on choke etc. Don't waste your time trying to clean out the carb. I just order this kit, bolt it on and continue where I left off with the trimmer. Ta Da
Michael - October 20, 2019
Verified Purchase
★★★★★
★★★★★
fuel system issue
Quality part, only a small adjustment for idle which is expected. Good price and quick shipping.
Ernie - December 16, 2019
Verified Purchase
★★★★★
★★★★★
Good job
Excellent service. Everything worked as planned
Ray - April 20, 2020
Verified Purchase
★★★★★
★★★★★
Husqvarna Trimmer Carb Kit
The kit arrived in a timely manner and was an exact replacement. In order to accelerate from idle i had to increase the idle speed. Even after doing that it has a tendency to hesitate. Do you sell the mixture adjustment tool for this carburetor?
Guest - May 10, 2020
Verified Purchase
★★★★★
★★★★★
Simple repair
I think I use one of these every season now. When my trimmer gets cranky and won't run or start unless using choke, I replace the carb and continue with my trimming. Works every time.
Michael - May 28, 2020
Verified Purchase
★★★★★
★★★★★
DYI - saved MAJOR $$
Ordered/received replacement carburetor for Husqvarna 128 LD trimmer. 2 retainer bolts & 10 minutes later trimmer 'fired up'/ran like it was it was brand new (no adjustments - no nothin')! Trimmer lists for around $200. so with your $42. carburetor I am more than satisfied! Will GLADLY revisit your services if necessary in future!
Guest - July 18, 2020
Verified Purchase
★★★★★
★★★★★
Great part.
Easy to install. Delivery was smooth and quick. 5 stars service.
Guest - September 7, 2020
Verified Purchase
  • 1
  • 2
  • 3

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?
  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
I have a have a Husqvarna 128LD string trimmer. Which carb would be the best replacement form my trimmer? Thank You.
Tom For model number 128LD - August 30, 2022

Hello Tom, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is Part Number:545081848. Thank you for your inquiry, good luck with this repair!

eReplacementParts Team
August 30, 2022

Did this question help you?
Thank you for voting!

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

30 - 60 mins

(26 rated repairs) ?
  • 1
  • 2
  • 3
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Trimmer was starting, running for 3 minutes then stalling.

william from lone tree, Iowa

17 of 17 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Socket set
Parts Used:
545081848
Remove the air filter assembly, remove the fuel lines and throttle from the old carburetor. Note where the fuel lines went. Remove the old carburetor and gasket and install the new ones. Install the air box to secure the new carburetor. Install the fuel lines and throttle. Install the filter and filter cover. Press the primer a few times, choke it until it kicks over, open the choke, and you should be running.
Read less
Did you find this story helpful?
Thank you for voting!

Carburetor had had ethanol gas run through it. Needed replacement.

Bryan from Blairsville , Georgia

11 of 11 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Socket set
Parts Used:
578931503, 530095646, 545081848, 530069599, 530150253
Repair was simple. Most difficult part was replacing fuel and return lines. Cut lines at an angle, put oil on them, push through hole and grab with a pair of hemostats and pull. Not sure pliers would work. Other than that simple.
Did you find this story helpful?
Thank you for voting!

Would not start. Carburator was plugged up and would not deliver fuel with plunge bulb. Tried carb and choke cleaner. Spark was good.

Robert from Hemphill, Texas

10 of 10 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Pliers, Screw drivers
Parts Used:
545081848, 545008084, 530150253
1st Drain remaining fuel and discard. Unpacked the new parts and familiarized with all.Took off cover with nut driver. Discarded used air filter and replaced it with the new one and set it aside. The throttle cable and fuel tubing were removed with needle nose pliers. Removed the old carburetor. Removed old gasket and installed the new. Replaced the old carb with the new. Without cover the carb is loose for attaching the throttle cable first and then the fuel tubing. Used needle nose pliers to attach the throttle cable and to attach the tubing to the new carb and carefully slid them up snug to the carb. Tested the throttle and it worked properly. Replaced cover. Tightened cover nuts with nut driver. Added fresh oil and gas mix. Pumped the new plunge bulb about 4 to 6 times, with no throttle pulled 2 times at full choke, and then on 3rd pull at half choke it fired up. I let it warm up for10+/- seconds and flipped off the choke. Idle is slightly high but haven\'t changed it with the idle adjust screw yet. Went right work and it ran for about 2 hours like it was brand new.
Read less
Did you find this story helpful?
Thank you for voting!

Carburetor problems

chris from Kirkwood, Missouri

9 of 9 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver
Parts Used:
545081848
Remove the air cleaner cover then the air filter. Remove the fuel lines and throttle ( pay attention where the fuel line went) Remove the two nuts holding the air box and carburetor. Remove the old carburetor and gasket. Then install the new gasket and carburetor and tighten up the two nuts behind the air box. Install the fuel lines and t hrottle. Then the air cleaner assembly.
Read less
Did you find this story helpful?
Thank you for voting!

With choke full on engine ran at full throttle like there was an air leak. If given throttle or set choke to normal engine would die

Gary from Arlington, Texas

6 of 6 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set
Parts Used:
545081848, 545008086
1. Pulled the engine covers.
2. Removed the carb.
3. Removed the carb spacer.
4. Replaced the o-ring gasket between the plate and the engine (must buy gasket kit o-ring doesn\'t come with carb kit).
5. Inspected the crankshaft seals (looked good).
6. Replaced the carb gasket and the carb.
7. Replaced th e covers
8. Since it looked like the o-ring gasket was leaking I replaced the gaskets and reused the old carb and had the same symptoms so I ended up using a new carb
9. Runs like a champ
Read less
Did you find this story helpful?
Thank you for voting!

Carburator replacement

Kevin from Houston, Texas

6 of 6 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers, Socket set
Parts Used:
545081848
1- Remove the air cleaner
2- Remove the fuel lines and throttle from the old carburetor
3- Remove the nut holding the old carb and gasket on
4- Place the new gasket and carb on and tighten the nuts
5- Place the fuel lines and throttle on the new carb.
6- Install the air cleaner assembly
Did you find this story helpful?
Thank you for voting!

Carburetor was leaking gas.

Rose from Ellabell, Georgia

5 of 5 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
Parts Used:
545081848
Remove the air cleaner assembly, Then remove the fuels lines (Note where the fuel lines were connected) and the throttle cable from the old carburetor. Install the fuel lines and throttle cable on the new carburetor. Then install the air cleaner assembly.
Did you find this story helpful?
Thank you for voting!

Trimmer would only run with choke turned halfway on and would not accept any throttle.

Ron from GREENBRIER, Tennessee

4 of 4 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Screw drivers
Parts Used:
545081848
1. Remove air filter cover and air filter.
2. Remove two visible hex nuts.
3. Remove plastic cowling over carburetor.
4. Remove fuel lines. Push lines of carburetor fittings with flat blade screw driver.
5. Gently pull carburetor from side of engine.
6. When clear of the studs, unhook throttle cable from car buretor. Remove gasket.
7. Install gasket, hook throttle cable in carburetor and slide carburetor over studs.
8. Reinstall remaining parts. Do not over tighten hex nuts.
Read less
Did you find this story helpful?
Thank you for voting!

Weed eater only run with choke on.

juan from mebane, North Carolina

4 of 4 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Socket set
Parts Used:
545081848
Removed the plastic cover.
Removed nuts holding carburetor.
Removed gas lines.
Removed carburetor.
Installed new carburetor re-attach gas lines.
Done.
Did you find this story helpful?
Thank you for voting!

Trimmer would not stay running, tried cleaning the carb. Continued to run poorly even after adjusting the carb. Replaced with a new carb from replacement parts and it now runs perfectly.

James from Fernandina Beach, Florida

2 of 2 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Socket set
Parts Used:
545081848
Removed air breather cover, disconnected fuel lines and throttle cable. Removed old carb and replaced with new one in reverse order.
Did you find this story helpful?
Thank you for voting!
  • 1
  • 2
  • 3

Model Cross Reference

This part works with the following models:
ERP Number: ERP9030700
Manufacturer Part Number: 545081848
Brand Model Number Description
Husqvarna 124R Brush Cutter - Brushcutter
Husqvarna 125LDX Trimmer - 125 Ldx, 20093400001-Current, Us_can
Husqvarna 125LDXTEST Trimmer - 125ldx Test (2010-06)
Husqvarna 125R Brush Cutter - Brushcutter
Husqvarna 125RJ Brush Cutter - Brushcutter
Husqvarna 128C Trimmer - Trimmer/Edger
Husqvarna 128CD Trimmer - 28cc Gas Line Lawn Trimmer
Husqvarna 128CD-LOWES Trimmer - Gas Line Trimmer
Husqvarna 128DJX Trimmer - Husqvarna String Trimmer Model 128DJX Parts
Husqvarna 128L Trimmer - Husqvarna String Trimmer Model 128L/2008-11 (128L/200811, 128L/2008 11) Parts
Husqvarna 128LD Trimmer - Trimmer/Edger
Husqvarna 128LD-LOWES Trimmer - Gas Line Trimmer
Husqvarna 128LD9527119692010-06 Trimmer - Trimmer/Edger
Husqvarna 128LDX Trimmer - Husqvarna String Trimmer Model 128LDX/2008-12 (128LDX/200812, 128LDX/2008 12) Parts
Husqvarna 128LX Brush Cutter - 128 Lx
Husqvarna 128PS Pole Saw - 128ps
Husqvarna 128R Brush Cutter - Brushcutter
Husqvarna 128RJ Trimmer - Husqvarna String Trimmer Model 128RJ/2009-08 (128RJ/200908, 128RJ/2009 08) Parts
Craftsman 358792030 Trimmer - Trimmer
Craftsman 358792031 Trimmer - Trimmer
Craftsman 358792032 Trimmer - Trimmer
Craftsman 358792033 Trimmer - Trimmer
Husqvarna 530IPX Pole Saw - 530ipx
Husqvarna 545011599 Trimmer - Husqvarna String Trimmer Model 545011599/2008-11 (545011599/200811, 545011599/2008 11) Parts
Husqvarna 545012636 Trimmer - Husqvarna String Trimmer Model 545012636 Parts
Husqvarna 545192135 Trimmer - Husqvarna String Trimmer Model 545192135 Parts
Husqvarna 545192138 Trimmer - Husqvarna String Trimmer Model 545192138/2009-03 (545192138/200903, 545192138/2009 03) Parts
Husqvarna 545192139 Trimmer - Husqvarna String Trimmer Model 545192139 Parts
Husqvarna 545192149 Trimmer - Husqvarna String Trimmer Model 545192149 Parts
Husqvarna 545192186 Trimmer - Husqvarna String Trimmer Model 545192186/2009-01 (545192186/200901, 545192186/2009 01) Parts
Trimmer Carburetor Kit
