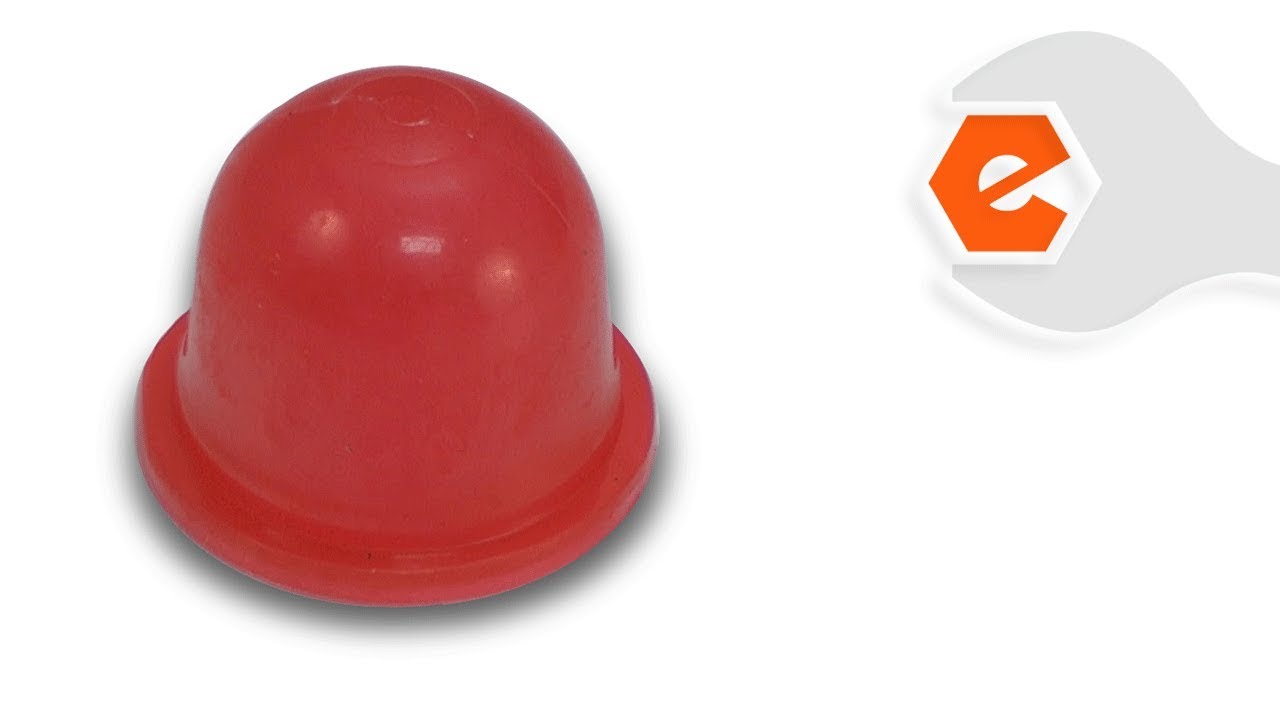

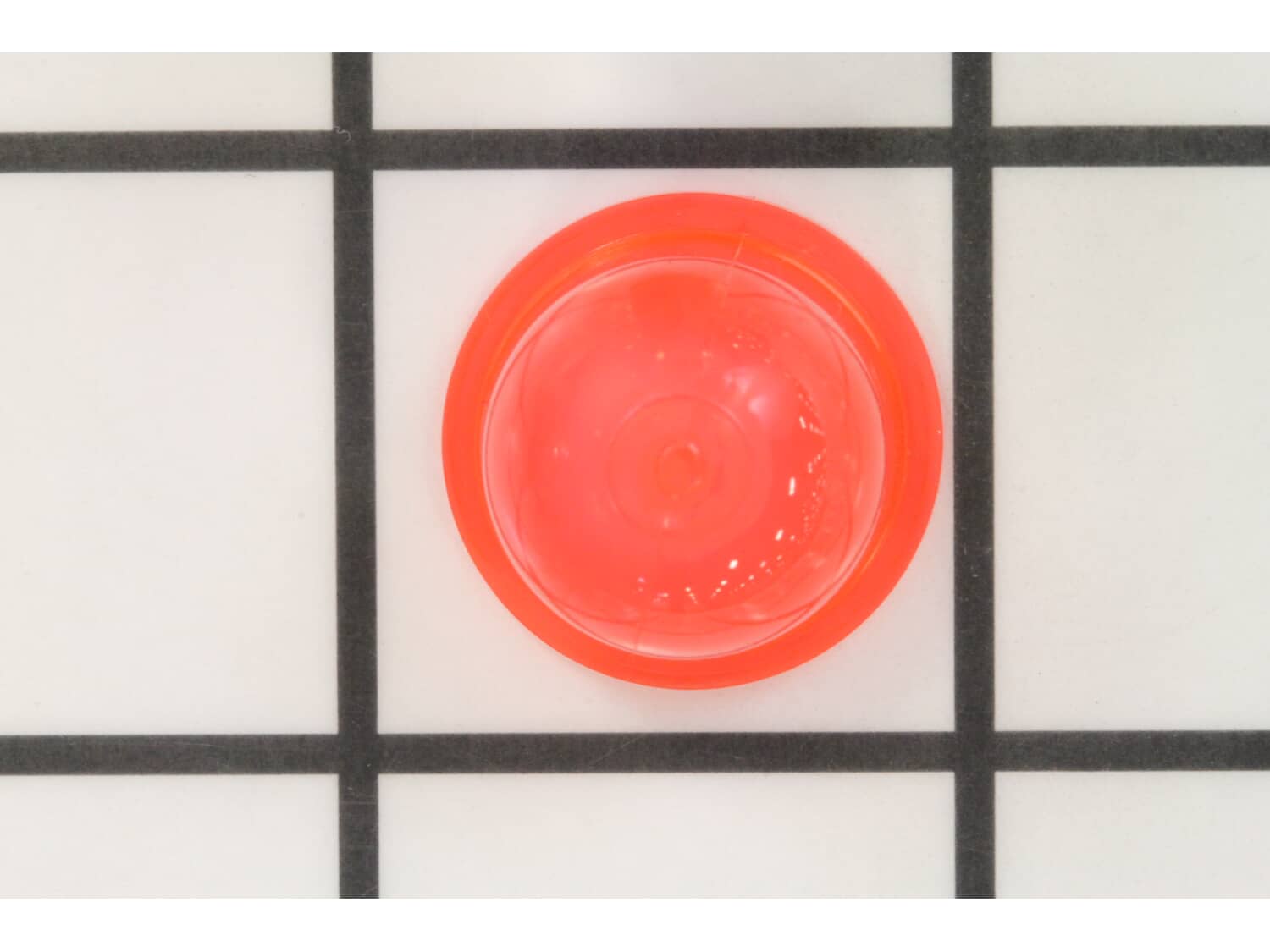

This purge bulb is an authentic OEM part from Craftsman for gas blowers, trimmers, blowers and weed wackers. This part disperses fuel to the carburetor to provide starting the blower faster. You will need a screw driver to replace this part. This purge bulb is made of rubber and sold individually.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Fast & easy repair.
The replacement purge bulb was better than the original. It was delivered within 5 days & took only minutes to replace original bulb. It works great & price was very reasonable.
Richard - June 17, 2019
Verified Purchase
★★★★★
★★★★★
Easy repair
quick and easy!
Guest - July 8, 2019
Verified Purchase
★★★★★
★★★★★
Perfect fit on my edger good job =ƒÅâ like new thanks
Thanks the parts fit perfectly on my edger machine =ƒÅâ like new got it on time good shipping and handling.
Guest - August 2, 2019
Verified Purchase
★★★★★
★★★★★
Exact replacement
Good part.
Robert - October 1, 2019
Verified Purchase
★★★★★
★★★★★
i love this site i always get my part fast and correct
part worked perfect starts better then before
Guest - November 5, 2019
Verified Purchase
★★★★★
★★★★★
Easy replacement and works great.
Arrived on time was easy to replace and works great.
Guest - November 11, 2019
Verified Purchase
★★★★★
★★★★★
Exact PART!
Fast delivery and PART fit EXACTLY
Guest - April 6, 2020
Verified Purchase
★★★★★
★★★★★
Average Guy
The diagram used on web site was easy to understand and shown me the exact parts I needed. Once ordered, it arrived within a few days. Which is amazing considering how backed up the delivery systems are at this time. Parts were the exact replacements I needed.
Guest - April 27, 2020
Verified Purchase
★★★★★
★★★★★
Easy peezy
Parts arrived promptly, got my WeedEater started. Was so easy placing my order. Great service
Guest - May 22, 2020
Verified Purchase
★★★★★
★★★★★
Great part
Part arrived quickly, perfect fit.
David - July 9, 2021
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Remove the screws from the primer bulb cover and remove the old primer bulb.
2. Insert the new primer bulb in the cover and screw it to the carburetor.
3. Remove the old fuel cap and install the new one.
Removed two screws on bulb retainer, removed old bulb and replaced it with the new bulb. Reattach bulb retainer and check for priming. Started blower, it works perfectly.
1) Remover air filter cover and air filter.
2) Take the 2 nuts off that secure the air filter housing to the engine. Remove the 2 screws on the primer bulb and replace.
3) Remove the primer and fuel line from the tank and carburetor.
4) Install the fuel filter to the fuel line and reinstall in the tank. Attach the lines
... Read moreto the carburetor.
5) Reinstall air filter housing, filter and cover.
Snapped off the air box cover and removed the old filter and replaced it with the new one. Then snapped the cover back on. Remove the screws from the purge bulb cover and removed the old bulb. Replaced it with the new one, then screwed the cover on.
Empty the fuel from the tank. remove the thank. replace the fuel line and the old filter. reinstalled the tank. secured the fine lines to the carburetor. Put in fresh fuel. Started the chainsaw.
Removed the screws from the purge bulb retaining plate
Removed the old bulb and inserted the new bulb
Screwed the new bulb and retaining plate back on the carburetor
1. Pried and pulled off the fuel line and fuel purge line from the nipples on the trimmer. Be sure to note which line from the fuel tank goes to which nipple prior to removing them.
2. Removed 2 torx screw that hold the fuel tank to the trimmer. Disposed of the old fuel tank after removing old fuel in the tank. (The fuel was fr
... Read moreesh so I simply poured it into the new fuel tank.)
3. Removed 2 slotted/phillips screws from the plate holding the cracked primer/purge bulb.
4. Carefully pulled off the plate and removed the cracked primer/purge bulb.
5. Carefully lifted the gasket off of the plate. Inspected the gasket for integrity and wiped clean with a lint-free cloth.
6. Wiped clean with a lint-free cloth both metal surfaces the gasket mates with to ensure a good seal when reassembling.
7. While depressing the throttle, placed gasket back in position, positioned the new primer/purge bulb in the recess, positioned the metal plate on top of the gasket with the new bulb protruding through it and firmly screwed in the 2 slotted/phillips screws. (Note: Throttle must be depressed to ensure proper alignment of all these parts which is necessary to get a good fuel seal.)
8. Attached the new fuel tank with the 2 torx screws removed earlier. Tightened screws firmly.
9. Pushed the fuel line and the fuel purge line onto the nipples as far as they would go. (Make sure the lines are attached in the exact same manner as they were with the old fuel tank.)
10. Put fuel in the fuel tank and pressed the primer/purge bulb several times until fuel fills the bulb. Checked for fuel leaks.
11. Started the trimmer per normal process. Checked for fuel leaks, again, after running the trimmer for a couple of minutes.
Overall, a very simple repair that took less than 15 minutes from start to finish. And the best part is my 7 yr old trimmer now run like it was brand new!
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
3
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9007868
Manufacturer Part Number: 530058709
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
