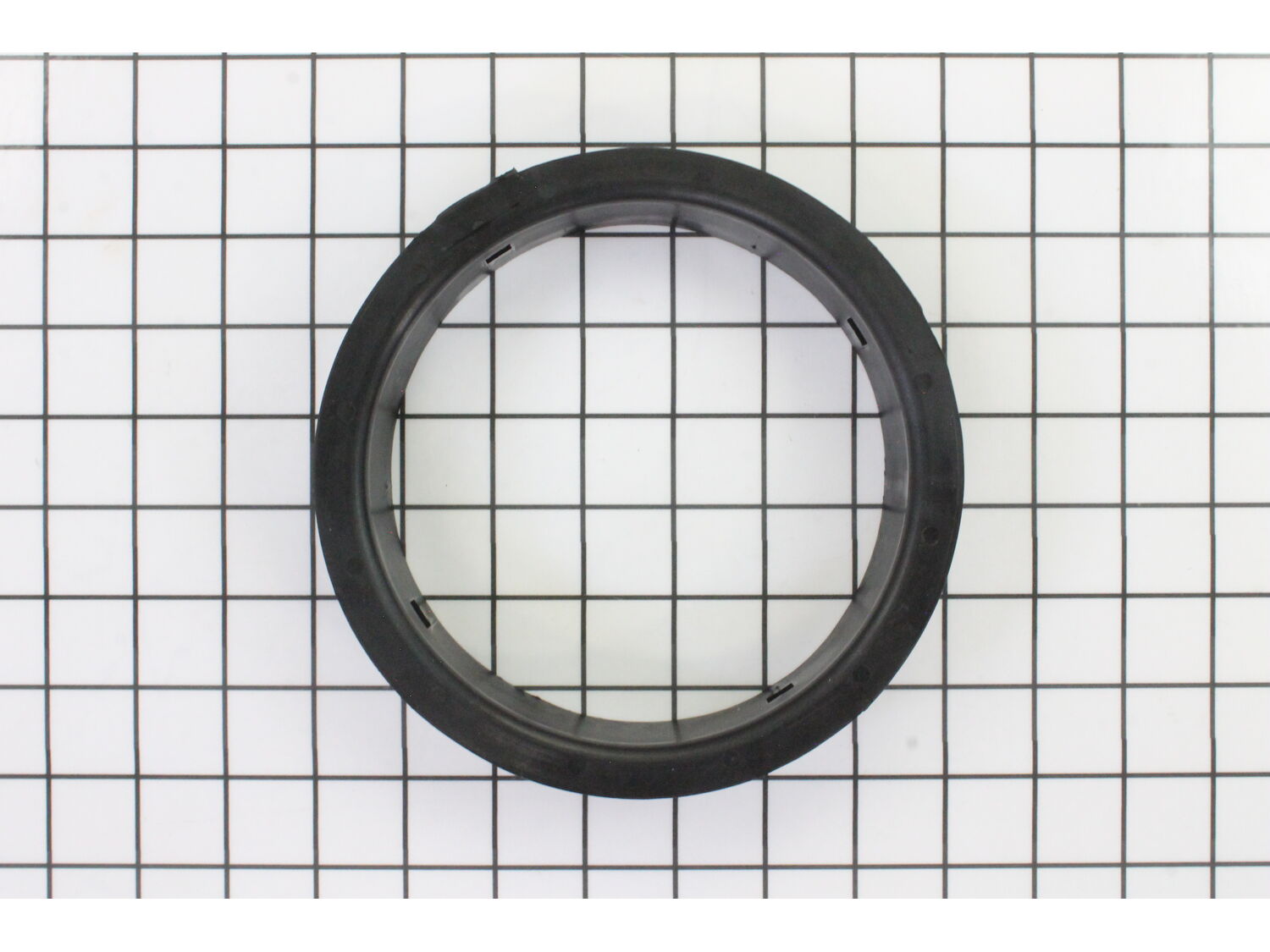

This is a genuine OEM sourced part is which is specially designed for use with Murray snowthrowers. The inner retainer ring helps to secure the chute collar and the lower chute. Over time it may wear out or get damaged eventually requiring a replacement. It is made of durable plastic and is sold individually. Note, the hardware to secure it is sold separately. Make sure to check the appropriate diagrams for your model to ensure the exact location and the correct application. A wrench set will be needed to perform this repair.
Remove the four nuts & bolts from the chute & retainer rings (1/2\" socket). Remove the four nuts & bolts from chute collar (7/16\" socket). Set the outer chute retainer ring in place and reinstall the chute collar. Set the inner chute retainer ring in place and install the front retainer ring nut & bolt.
The only time I ran
... Read more into an issue was that when installing the lower chute, I tried starting with the center (rearmost nut & bolt) then installed the right nut & bolt. When it came time to install the left bolt, the hole in the chute didn\'t seem to reach the bolt. When installing the chute, I recommend installing the two outermost nuts & bolts and finally, the center (rearmost) nut & bolt. Once I switched to this method, I had no problems.
I took it apart with 1/2\" and 7/16\" sockets and wrenches, swapped the old rings with the new ones. Very easy, Just be sure to line up the index marks on both rings or your chute won\'t turn all the way right or left. Perfect fit !
Did you find this story helpful?
Thank you for voting!
The outer retaining had some missing teeth, I ordered any parts in the affected area.
1. Removed the 4 bolts holding the chute housing
2. Removed the worm gear bracket
3. Removed 4 nuts and bolts from the retaining ring holder
4. Removed the tiny cotter pin for the worm gear
5. reassembled all the parts.
Note: The only damage I could see were the broken teeth on the outer ring. I would have b
... Read moreeen very angry if I didn\'t order the worm gear bracket. The damage to the worm gear bracket was only found when it was disassembled.
Read less
Did you find this story helpful?
Thank you for voting!
After 21 years of use, the outer and inner retainer rings for the chute broke.
Removed bolts from broken parts, removed retaining plate and installed one ring, placed wnd ring on first ring and retained with one bolt. Attached snow chute and secured with last three bolts.
Simply put, I replaced the damaged parts with new parts using a socket set. I suspect I will have to make the same repairs in a season or two based on the fact that so much plastic is used in the manufacture of modern day products. I did not purchase this product, it was a gift. I will continue to use ereplacement in the future.
Old broken parts were already removed. I noticed that it would be easier to put capscrew that goes thru both inner and outer rings at the snow shoot on first. Making it easier to get everything else to line up. It all went on easy and I was happy that all parts looked original.
Did you find this story helpful?
Thank you for voting!
Both inner and outer rings cracked not allow the blower to swivel.
The replacement of these parts is an easy job and should have been, however the bolt holes on the replacement chute do not line up will the inner and outer rings which required the careful drilling of two new holes to secure the chute. \"Repair easy, Part less than perfect fit\".
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP8954550
Manufacturer Part Number: 337227MA
Snow Blower
- 1695374 - Snow Throwers And Other Snow Products
✖
Stock Status
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
