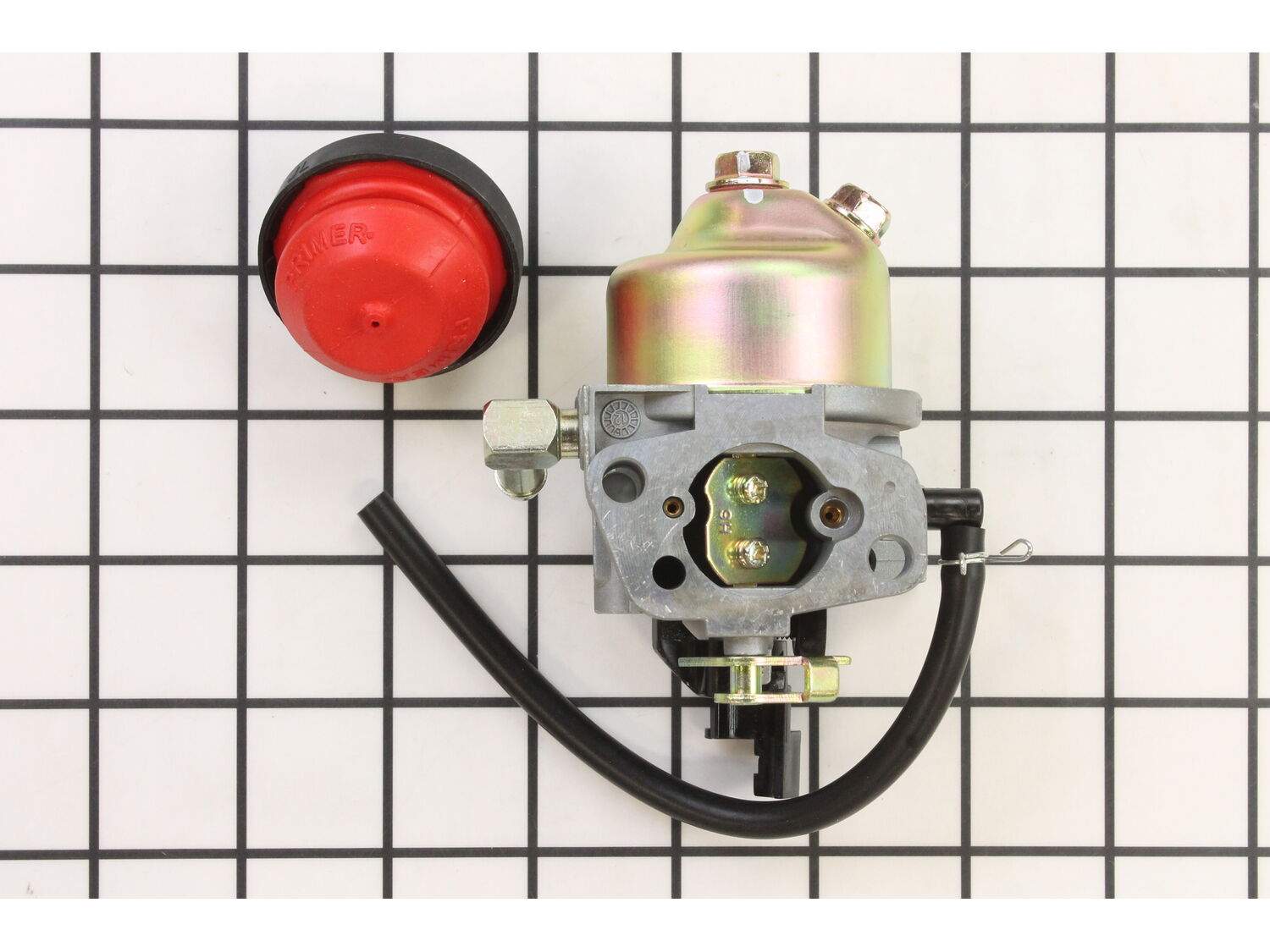

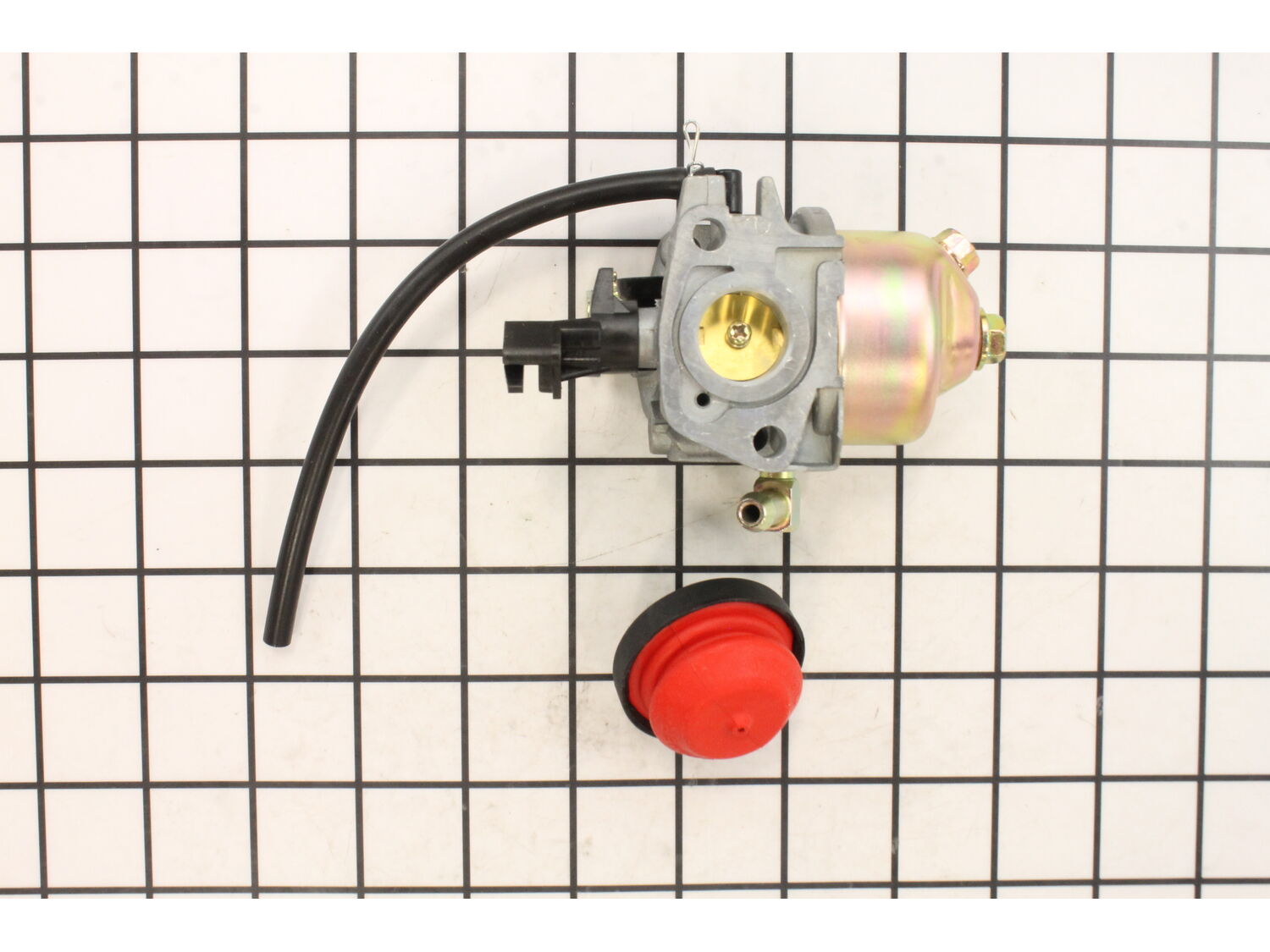

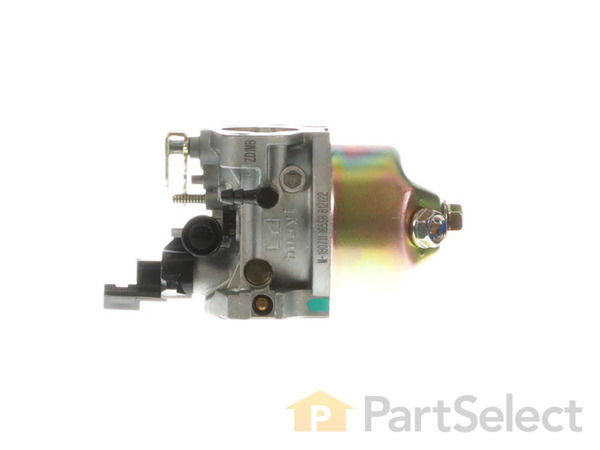

This genuine carburetor assembly is sourced from original equipment manufacturer for use with Subaru/Robin engines. Carburetor is a crucial component of a gas powered engine because it supplies a combustible mixture of gas and air needed for the engine to run. This carburetor has a metal body and it is sold individually. It is recommended to replace gaskets when replacing carburetor to ensure top performance. You would need a wrench to complete this repair. • Remove the cover and screws that secure carburetor • Remove the old carburetor and install the new one • Re-assemble and test the unit
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
yes! Great part , carburetor
the carburetor arrived and worked as expected without any adjustment, thank you for having parts available. It would even be better if you would have an exploded diagram view with the part package. what a great online store.
Alan - April 25, 2019
Verified Purchase
★★★★★
★★★★★
Great service in selecting and installing the right part.
The part arrived in excellent condition. It fit perfectly and was quick to install. The motor start on the first pull. the web site was very helpful in being able to pick out the right part.
Guest - November 7, 2019
Verified Purchase
★★★★★
★★★★★
Worked exactly as expected. Easy install, started right up after.
Started right up after install, ran like new again, just in time for snow season to start back up.
Guest - November 26, 2019
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
After taking the bowl off of the carberator it became clear that a new carberator was going to be needed. I just had to remove the fuel tank and control panel for access to the carberator. Swap in new carberator and reassemble. Set idle speed and my snowblower is good to go at a fraction of what a repair shop would have charged.
I started by watching 2 You Tube videos on carb replacement, it was the most involved. Many parts had to come off and in a special order for repair. The Parts ordered fit perfect and all were as listed.
Did you find this story helpful?
Thank you for voting!
Getting old ND needed some TLC
Steven from Brodhead, Wisconsin
1 personfound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench set
I cleaned the Engine, changed the Oil, replaced the Spark Plug replaced the coil assembly and replaced the Carb that was in bad shape. It went pretty smooth. You just have to lay out your parts and take your time.
Pinch off fuel line, disconnect spark plug wire, remove heat shields, and belt covers, disconnect fuel line and primer tube. Removed old carburetor, and gaskets. Replaced with new parts. Replaced covers etc. Fresh fuel and test. Works perfect.
Did you find this story helpful?
Thank you for voting!
Snow blower would not start. Fuel tank had holes, Carb bowl was rusted and full of water.
1. Remove the key, choke knob, and throttle knob.
2. Remove plastic shroud over carburetor.
3. Disconnect wires to safety key.
4. Remove primer bulb hose and fuel line from carburetor. If there is gas in the tank, clamp the hose to prevent gas from pouring out.
5. Disconnect spring and linkage from carburetor and
... Read moreslide carburetor off the bolts noting the location of the gaskets.
6. Remove start switch for access to the tank bolt.
7. Remove the V belt housing cover between motor and blower hood.
8. Remove the 3 tank bolts.
9. Clean all the gaskets and sealing surfaces for the carburetor and begin assembling the unit.
10. Clean the spark plug and change if needed.
11. Check the oil level and fill or change as needed.
12. Start it and let it run to make sure there are no issues.
Removed gas tank and cleaned it to remove all the old gas. Removed the carburetor and installed new one and replaced the spark plug. All parts was purchased from replacement parts. I hope you keep carrying parts for the items I have.
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP11813532
Manufacturer Part Number: 951-12705
Snow Blower
- Craftsman Snowblower Model 31A-32BD799 (31A32BD799, 31A 32BD799) Parts
✖
