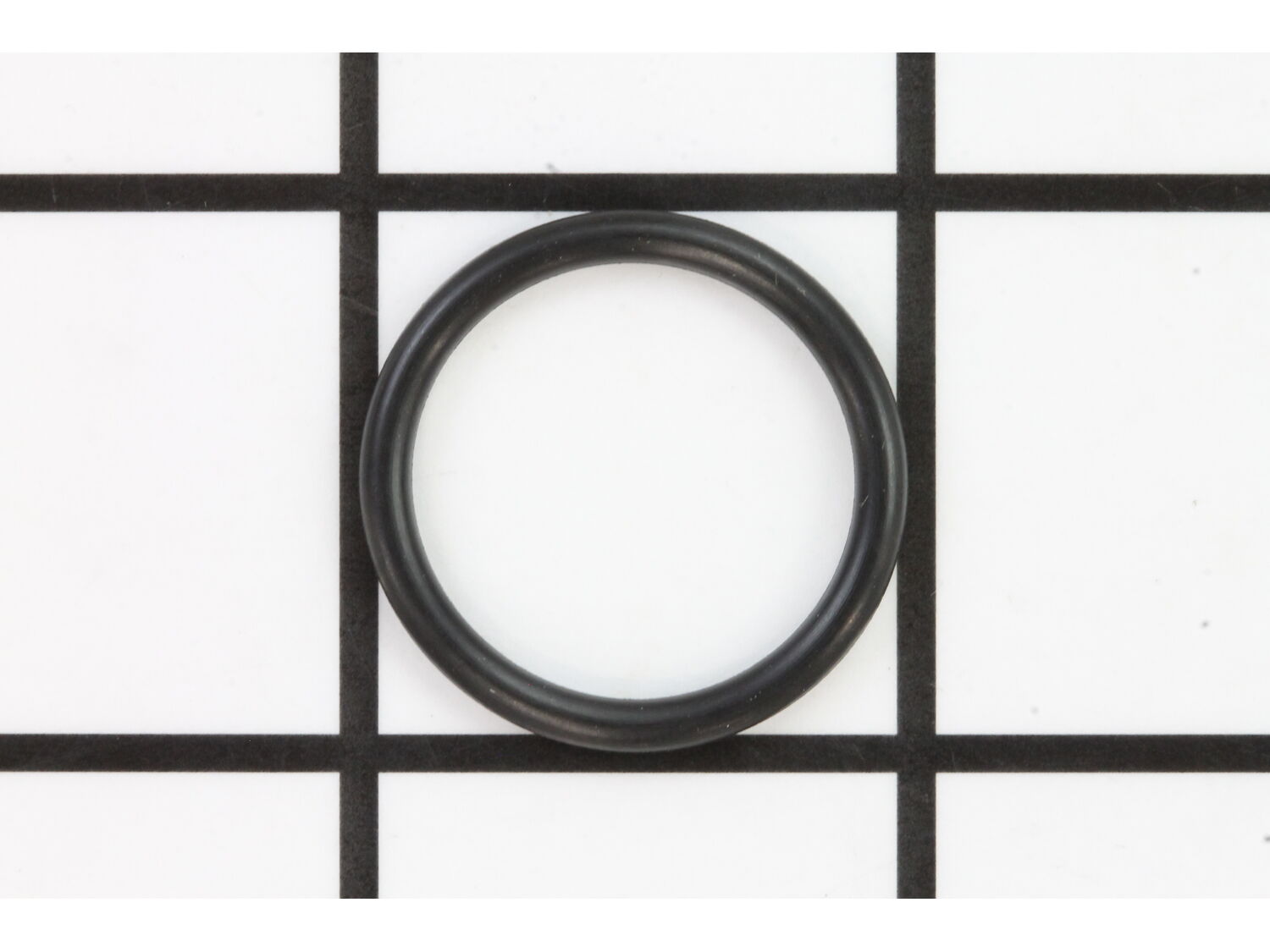

An authentic OEM sourced replacement part which is specially designed for use with Porter Cable nailers and staplers. The purpose of this part is to provide an air-tight seal between components, over time it may wear out and begin to crack eventually requiring a replacement. Please make sure to refer to the appropriate diagrams of your model for the correct location and application of this hardware.
Everyone said top bumper causes the problem. The bumper was shot so I replaced it. Still did the same thing. Messing with it I found that if I pulled on the trigger pin just a little bit it would let go and retract the driver. I pulled the trigger assembly out and started messing around with it. No luck. However I now noticed a slight air
... Read more leak at the trigger. I purchased all new O rings and trigger pin and spring. Installed and WahLah. it works. Thanks for your help with parts. Have referred U to friends.
Trigger assembly is screw in type; Removed retainer and the pin that secures the trigger, removed trigger then used wrench to loosen and remove the trigger assembly.
Disassembled the trigger valve, breather valve, plunger.
Removed and replaced all the o-rings: 1x- 883831, 1x-883935, 2x- 883936, 1x- 883938, 2x- 883848, 1x- 8839
... Read more42, 1x-urethane retainer 890725.
Reinstalled trigger valve assembly.
Air leak is gone, nailer working great!
1. Took nailer apart.
2. Ordered parts.
3. Cleaned nailer.
4. Installed new parts.
5. Tested nailer.
6. Complete job nailer working good as new.
