Part Location Diagram of KN12278 Max Arm Guide
See part 108 in the diagram

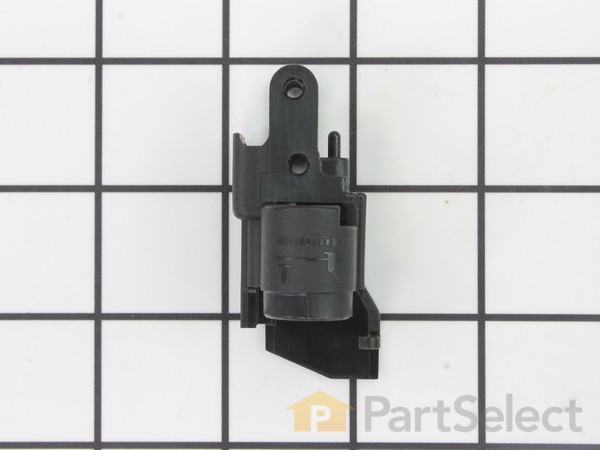

( Grid squares measure 1x1 inch )

Arm Guide KN12278

Manufactured by:
Max
ERP Number:
ERP10413712
Part Number:
KN12278
Original Equipment Manufacturer ?
$33.42
Special Order

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Max
This part works with the following products:
  • Nailer

Model Cross Reference

This part works with the following models:
ERP Number: ERP10413712
Manufacturer Part Number: KN12278
Brand Model Number Description
Max SN883CH/28 Nailer - Clipped Head Stick Nailer
Max SN883CH/34 Nailer - Clipped Head Stick Nailer
Max SN883RH Nailer - Full Round Head Stick Nailer
Max SN883RH2 Nailer - Full Round Head Stick Nailer
Max SN890CH2 Nailer - Max Sn890ch2 Nailer
Max SN890CH2_34_ Nailer - Clipped Head Stick Nailer
