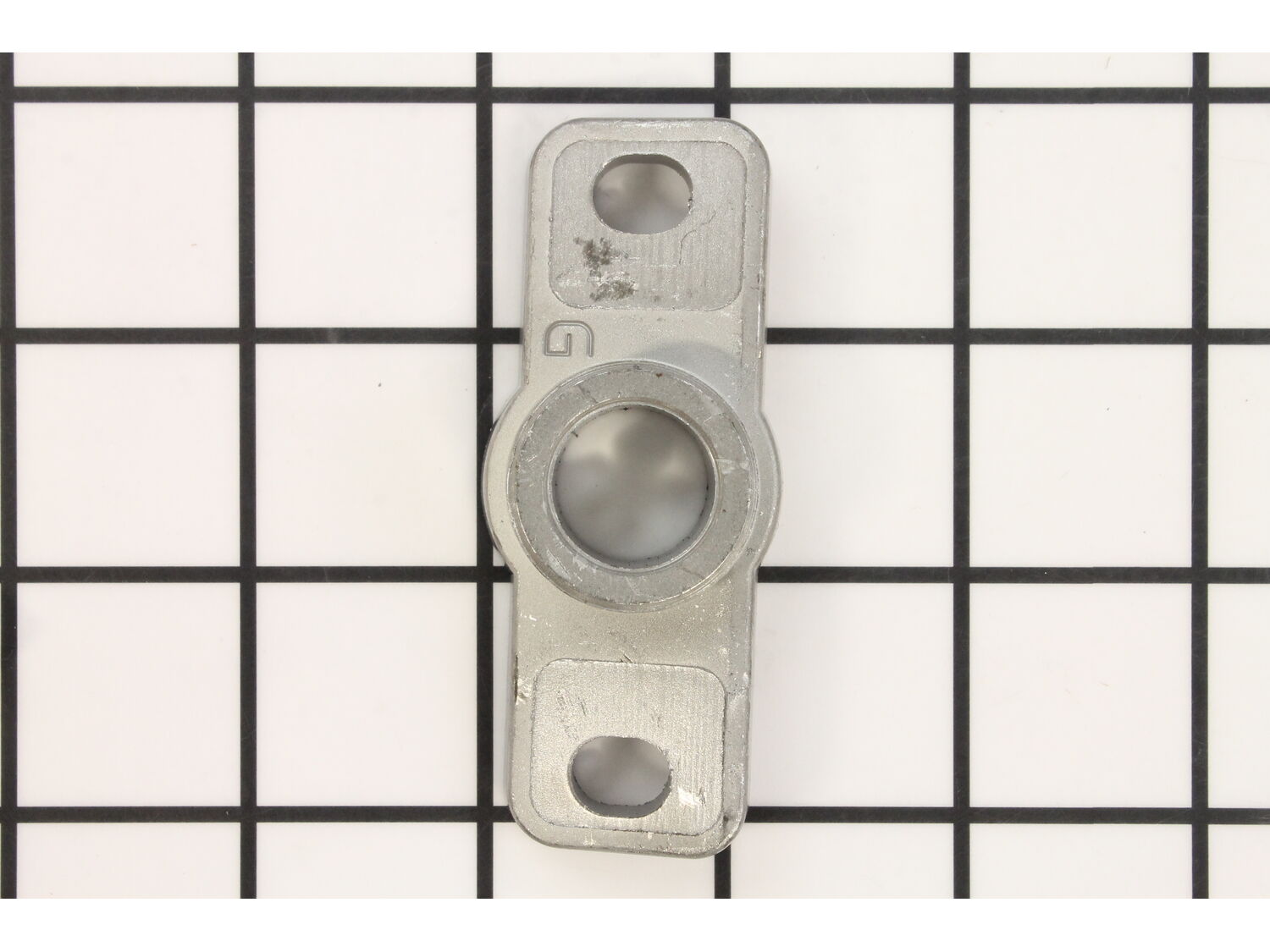

This part is commonly used in Murray lawn tractors and Briggs & Stratton engines. In lawn tractors it connects to the steering post. In engines it connects to the guard-rewind starter. Bearings of this type control and direct motion. They are therefore subject to metal fatigue and it is common to replace them regularly. A wrench is usually needed in this repair.
Troubleshooting
This part works with the following brands:
Murray
Briggs and Stratton
Snapper
Craftsman
Simplicity
This part works with the following products:
Lawn Tractor
Lawn Mower
Engine
Lawn Tractor Accessories
Part# 94124MA replaces these:
094124MA,
★
Customer Part Reviews
?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(1 Review)
Click to filter by ratings:
5 stars
1
4 stars
0
3 stars
0
2 stars
0
1 star
0
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Worked as expected
Worked great. Mower working like new
Guest - July 18, 2023
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Removed mower deck and moved gas tank aside to gain access.
2. Removed clip from bottom of steering shaft.
3. Jerk up on steering wheel to remove partially - just enough to come out of bearing and leave in place to side of bearing. Steering gear will drop off if you didn\'t pull it off in last step.
4. Used sock
... Read moreet extensions to unbolt bearing and bolt new one in place. Pay attention to top vs bottom of bearings. Steering gear won\'t fit back on if you get it reversed.
5. Insert steering column through bearing.
6. Position steering wheel and front tires for steering straight ahead.
7. Insert steering gear on shaft and replace C-clip.
8. Put everything else back on.
The repair was not that hard . Pulled the stearing shaft out just two screws and two bolts then with ring pliers remove snap ring an then then pinion gear and bearing replace with new parts and replace stearing shaft back on mower replace bolts then the two screws job done .
1. Disassembled/removed the cutting deck.
2. Removed the steering pinion.
3. Removed the steering gear sector.
4. Removed the steering shaft bearing.
5. Installed the new shaft bearing (loose).
6. Installed the new gear sector (loose).
7. Installed the new pinion.
8. Tightened the mounting fastene
... Read morers for the newly installed parts.
9. Reinstalled the cutting deck.
Read less
Did you find this story helpful?
Thank you for voting!
Pinion gear would not engage steering gear plate due to a worn out bearing. Could not steer lawn tractor.
It was necessary to remove the fuel tank, steering wheel shaft to replace the bearing. The gear at the end of the steering shaft needed to be removed in order the remove the old bearing. To remove the gear , a pair of snap ring pliers were needed to remove the snap ring. When everything was put back together the tractor steered like when
... Read moreit was new.
1. Remove snap ring below pinion gear on under side of mower.
2. Remove pinion gear.
3. Slide steering shaft out.
4. Remove two bolts holding bearing.
5. Replace bearing using original bolts.
6. Insert steering shaft.
7. Install new pinion gear and snap ring.
Deck must be removed first.
... Read more Using snap ring pliers would have made the job easier. I was able to remove snap ring with needle nose pliers and a screwdriver.
Remove snap ring from pinion gear. Pull pinion gear off. Shove steering shaft up and out of the bearing. Reach up behind bearing and remove 2 bolts. The heads are not visible, go by feel. Once you start to turn them, the threads are visible on underside and you can see if you are on them. Take out old bearing and install new bearing same
... Read moreorientation. Tighten 2 bolts. Guide steering shaft down into new bearing. Reinstall pinion gear and snap ring. Good as new. I did not need new gear or snap ring, but ordered them just in case.
Read less
Did you find this story helpful?
Thank you for voting!
Failed to steer properly, and could barely move in forward or reverse
Side panel sheet metal and the fuel tank must be removed to access the steering shaft and bearing. (my fuel line was long enough to allow for the fuel tank to be rested on the engine so I did not drain the fuel)
Remove two retaining bolts from the bearing and slide the steering shaft upward so you can see the retaining snap ring.
... Read morer />Remove the snap-ring that retains the steering gear and bearing to the shaft.
Remove and replace the worn out bearing.
Reassemble in reverse order.
To replace the spring. Jack the rear wheels of the lawnmower about 8\" off of the ground (use jack stands for safety) and you will have enough room to replace the spring without removing the mower deck.
Removed e ring, pulled steering pinion and column wheel,replaced bearing with two bolts put steering back thru replaced pinion and e ring. Parts fit perfect
1. Disconnected battery cable
2. Removed snap ring from end of steering shaft at broken pinion gear. Removed gear.
3. Removed plate from frame under steering wheel (in front of seat) to access bearing screws.
4. Removed solenoid screws - moved solenoid to side to access bearing screws.
5. Removed 2 screws holding
... Read morebearing to frame.
6. Removed 3 phillips screws under steering wheel - pulled steering wheel, shaft and bearing from mower.
7. Installed new bearing by replacing 2 screws.
8 Re-inserted steering wheel with shaft through hole in the new bearing.
9. Installed new pinion gear onto steering shaft and replaced snap ring.
10. Re-installed phillips screws below steering wheel.
11. Replaced screws in solenoid - re-attached battery cable.
Note: Mower deck had to be removed from the mower before beginning repairs and re-installed after repairs completed.
