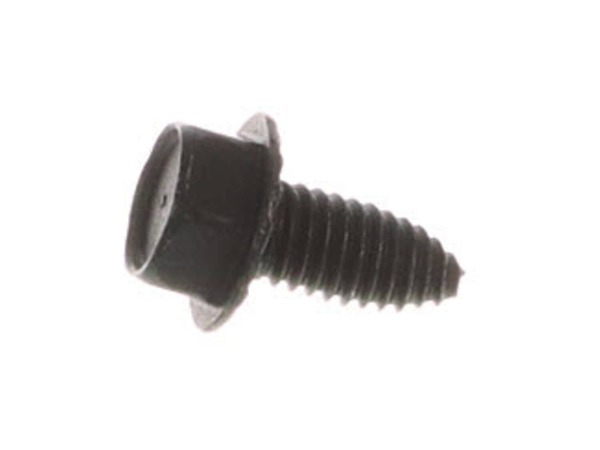

The screw with hex washer attaches to the pivot bracket assembly. This item is available as an individual replacement part. This genuine part is supplied by the original equipment manufacturer for use with Craftsman lawn tractors and lawn mowers. A wrench will be necessary during the installation of this item. It is made of metal and will require replacing if it becomes broken or stripped.
1. Removed steering wheel cap removed bolt and washer
2. Removed bolts on gear sector plate.
3. Removed tie rods from gear sector plate
4. Removed bolts from bushing
5. Removed steering shaft
6. Installed steering shaft
7. Installed bushing, and gear and Gear sector plate and retainer spring
8. Re
... Read moreplaced new bolts and washers
9. Installed new washer and nut
10. Replaced steering cap, completed job
Read less
Did you find this story helpful?
Thank you for voting!
Blade brakes were worn out, the Blades need replacing and the grass shout lost the spring
Pulled the hanger pins that hold the deck
Removed old Blade brakes
Replaced with new brake arms and pads
Adjusted the brake release arm
Removed grass shroud
Replaced the spring
Replaced shroud
Replaced deck under the mower
Hung deck back on mower
Started cutting Grass
Did you find this story helpful?
Thank you for voting!
Lots of small repairs that needed to be done to the mower deck
1. removed broken parts
2. lift the tractor
3, Disconnect the wheel rods
4. clean the area
5. star mounting new parts
6. It is necessary to disconnect all wheel rods and arms in order to have more space and flexibility
Removed the Deck from the tractor.
Removed the pulley
Removed 4 bolts from the mandrel
Replaced the mandrel with the new one purchased
Put on the new pulley
Replaced the old blade
Reconnected the deck to the tractor
Did you find this story helpful?
Thank you for voting!
It is 15 years old. The deck and some components were worn out.
Replaced the deck with new one. Also replaced belts, blades, guage wheels and nose roller.
I had to repair the chassis where the anti sway bar attaches with a piece of 2\" angle bolted in place.
Removed old screws, damaged nose roller, RH & remaining LH brackets. Placed new brackets, nose roller and shaft all together. Then used new screws to anchor to mower deck.
