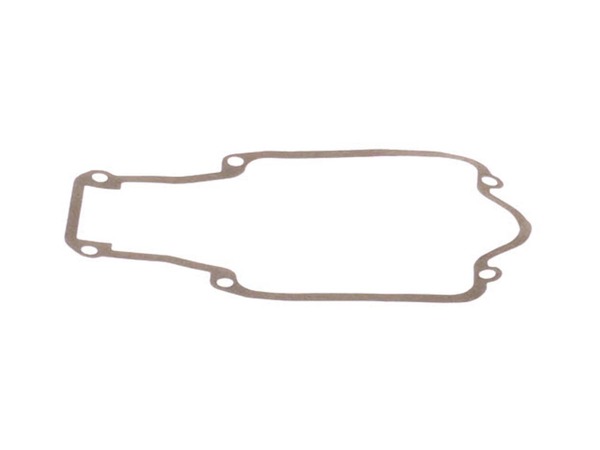

It is an OEM component which is made for Shindaiwa and Shindaiwa handheld hedge clippers. This gasket helps to provide a tight seal for the gearcase. A worn gasket can cause leaks which can seriously affect engines performance and even cause damage to the internal component. To ensure the proper installation procedure, please refer to the appropriate diagrams of your specific model. Keep in mind this high-quality gearcase gasket is made of durable composite material and is sold individually. You will need a wrench set to take the gearcase apart in order to perform this repair.
Completely dismantled trimmer to replace gear box then reassembled using all the parts ordered. I had to be careful reassembling the blades as the two gears had to be installed 180 degrees so blades would oscillate as designed otherwise the gear shaft could be bent again when starting engine.
Did you find this story helpful?
Thank you for voting!
Gear case needed lube replacement necessitating gasket renewal.
Remove the bottom cover of the gear case. Clean out old grease and remove the old gasket. Replace grease with the new and replace with the new gasket. Replace screws on the gear case cover.
I used a hex wrench to remove screws of gear case cover. Placed the missing seal (used a small flathead screwdriver to push it in place in order to close cover). Replaced worn gasket and added grease. Used a phillip screwdriver to remove handle screws and replaced broken throttle lockout.
1-Remove lower housing plate (8 hex bolts) and remove the 2 10mm bolts closest to the gear box.
2-Remove spur gears(2). Make note of how gears an washers are placed.
3-Clean out old grease.
4- Make sure all broken gear teeth are removed. Use a telescopic pen magnet.
5-Replace washers and new gears and seals. Finger
... Read more lube with grease from grease gun.
6-Refill gear box with grease gun.
Read less
Did you find this story helpful?
Thank you for voting!
Gear tooth busted on transmission in hedge trimmer
Removed Cutting bar and hex head screww holding case. dissassembled gear case and removed broken gear. Cleaned out old grease with metal chips. reassembled new gear and sealed case with grease.
Did you find this story helpful?
Thank you for voting!
Screws we\'re too loose. I\'d tighten them ,and in 20 to 30 mins they were loose again. Gear gasket was broken
1. Removed gearbox cover.
2. Retighten cutter bar bolts after re-applying grease to both bars.
3. Removed and replaced gearbox Gasket and Seal.
4. Repacked grease in gearbox.
5. Replaced gearbox cover with new gasket.
6. Replaced missing gearbox screw.
7. Replaced gearbox screws that showed wear.
... Read more>8. Torqued all screws and bolts.
9. Tested Hedge Trimmer for proper operation and clearance.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9047132
Manufacturer Part Number: 61041406560
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
✖
