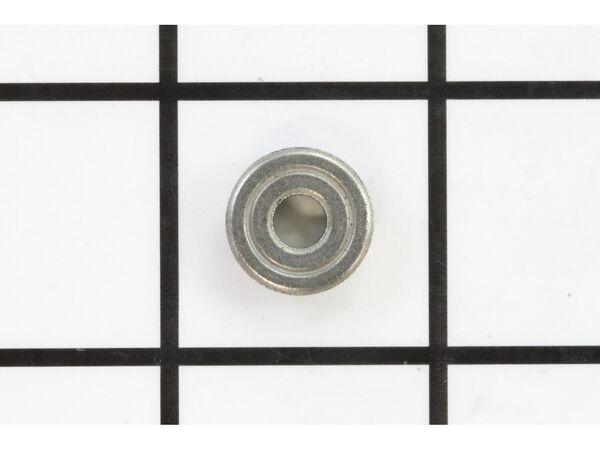

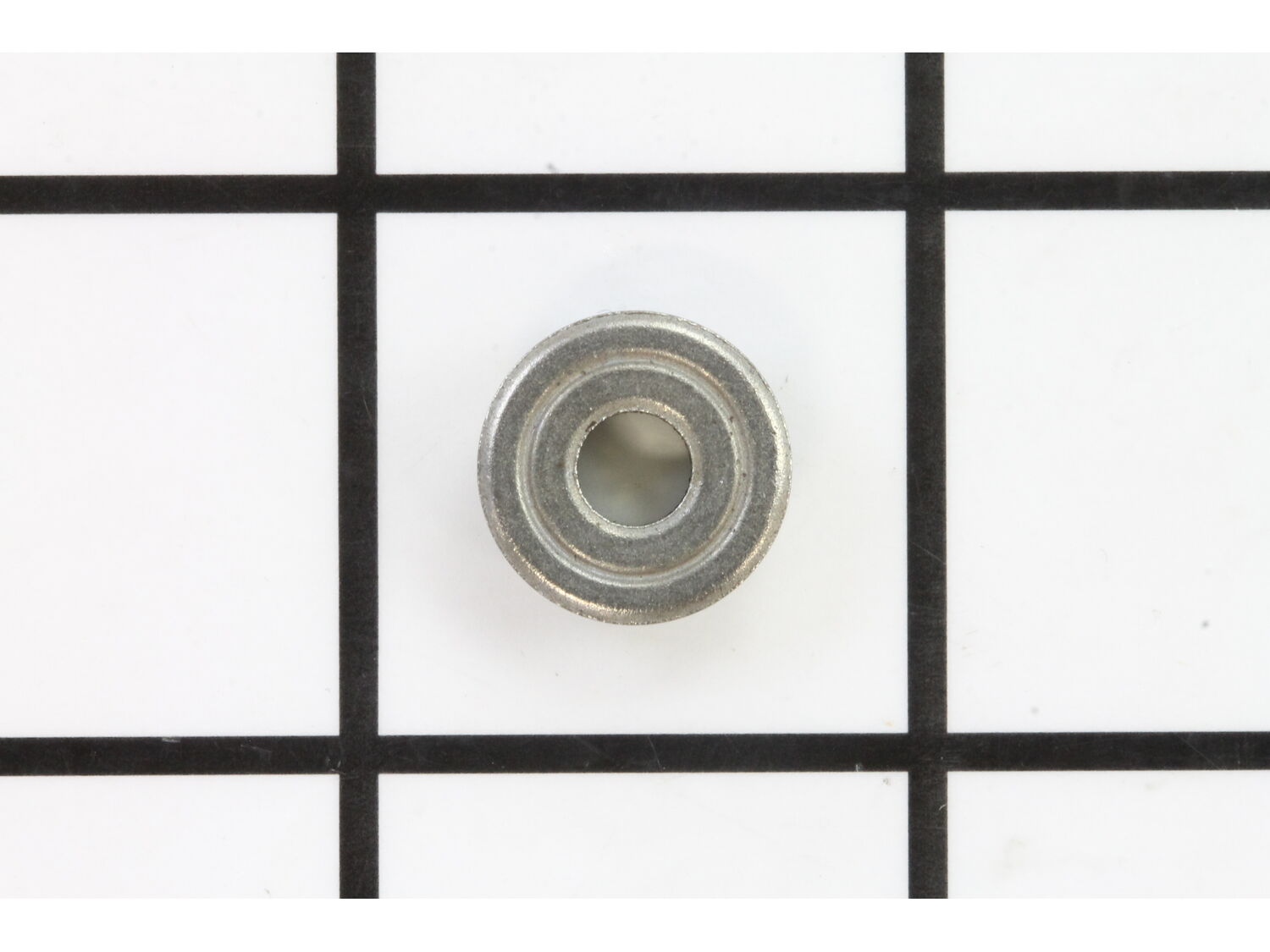

It is a genuine item that is supplied directly from the original equipment manufacturer for DeWALT and Black and Decker hedge trimmers. It is an identical replacement for a missing or a faulty spacer that was installed on a new unit, unfortunately, over time it may get damaged or simply lost eventually requiring a replacement to ensure a proper fit. Keep in mind this high-quality hardware is made of durable metal and is sold individually. Please make sure to refer to the appropriate diagrams of your model for the correct location and application of this part.
removed cover exposing the motor, cleaned in and around motor, removed old brushes and installed new ones, cleaned and greased lower blade drive assembly, reassembled, and test run, proved smoother and quieter operation .
1. Remove handle and blade guard.
2. Remove all screws. Screw has star and blade slot.
3. Separate two halves.
4. Use latex gloves.
5. Remove all parts from the motor to the blade gear.
6. Remove the grease that is contaminated with iron fillings from the stripped gear.
7. Add half the tube of new grea
... Read morese.
8. Starting at motor, assemble the new parts, slide them into place.
9. Add the remaining grease.
10. At this point, I replaced the switch lock.
11. Assemble the halves and replaces the screws.
The screws are self threading. Turn the screw to the left to feel a little click. Tighten screw.
12. Replace the blade guard and handle.
13. Clean the blade and lubricate it.
14. Test to verify the Hedge Trimmer is running properly.
Read less
Did you find this story helpful?
Thank you for voting!
The spacer between the blades had wore out all that was left was the lock nut and bolt that was to hold it on and in place.
1.I found on-line at ereplacementparts.com a good replacement part that was recommend. It was make by DeWALT and worked just fine on my Remington hedge trimmer.
2. I took the old lock-nut and small bolt apart that held the old spacer in its place.
3. Put the new spacer in the slots of the two blades and put the small bolt thro
... Read moreugh the blades and spacer and put the lock-nut on.
4. Important not to tighten it to tight the blades have to be able to move freely. That is the purpose of the lock-nut.
Took motor out of case.
Removed old brushes from motor.
Installed new brushes.
Took blade apart. Replaced broken/missing spacer.
Sharpened blade and reassembled.
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9949271
Manufacturer Part Number: 394476-00
