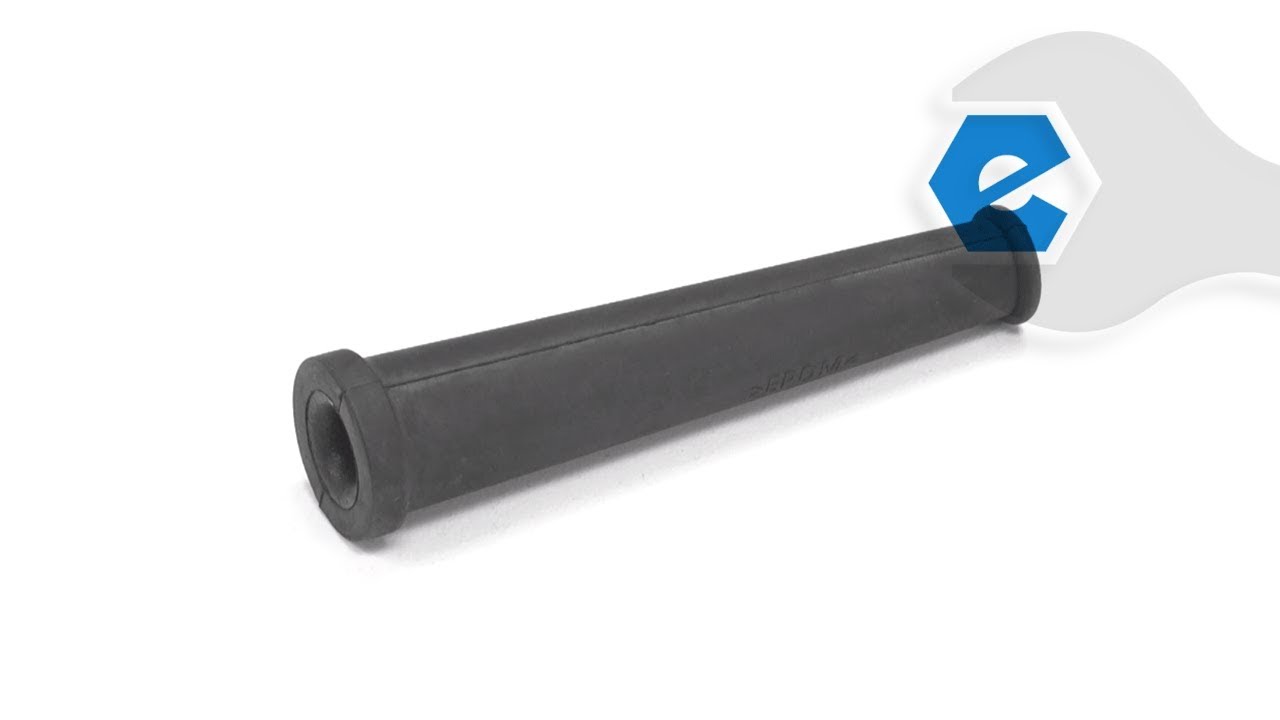

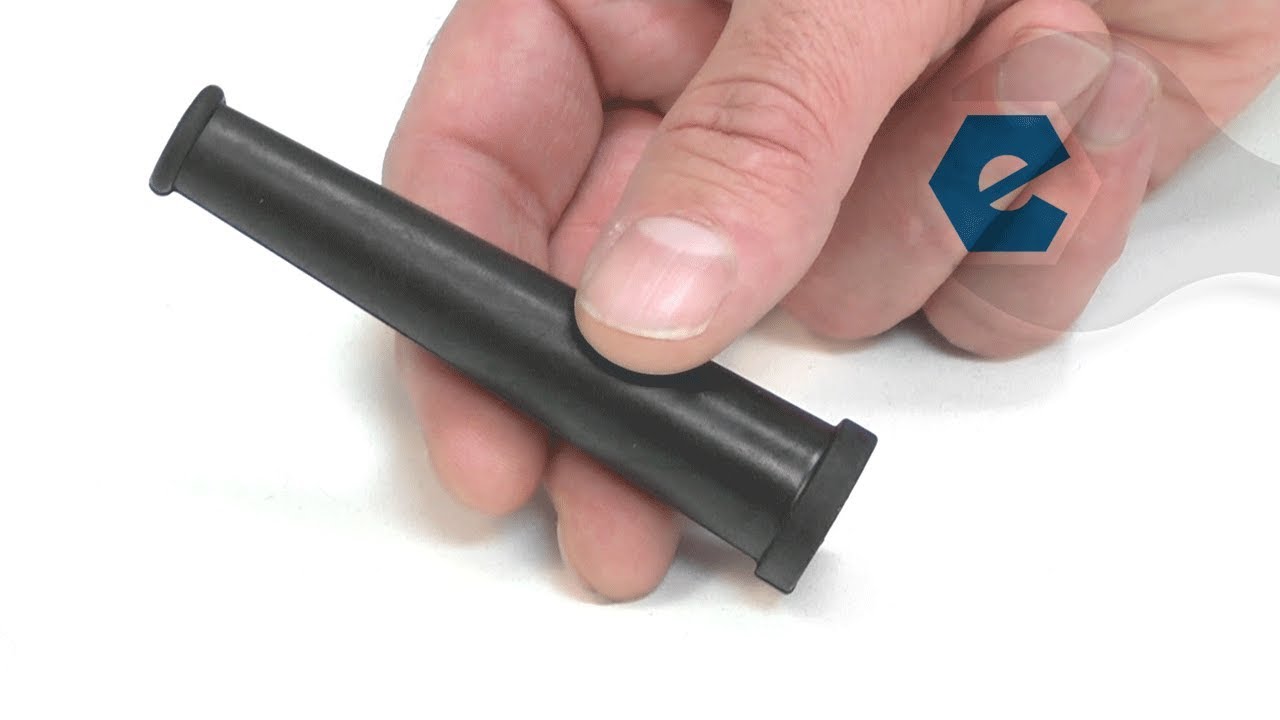

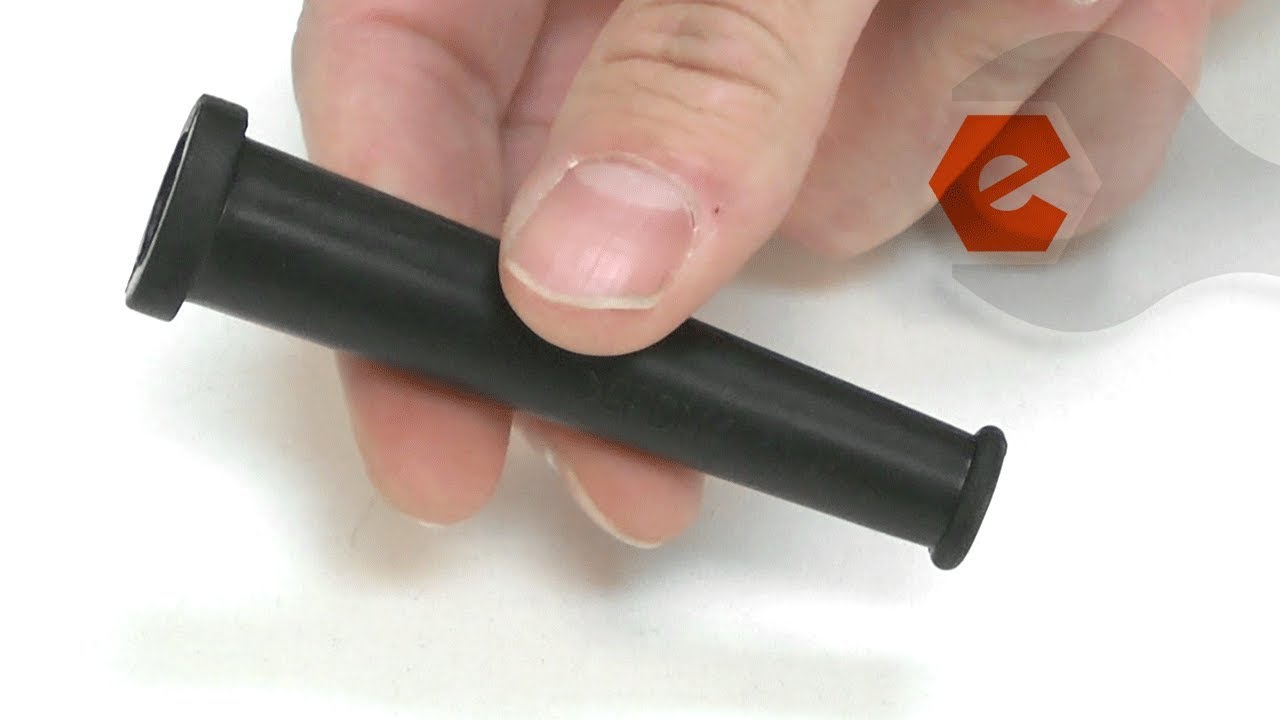

• This cord guard is a genuine Makita replacement part and is sold individually. • Cord guards, also called cord protectors, are designed to slide onto your cord and fit securely at the end, where it's firm rubber will protect the base of the cord from getting bent and pinched, which can expose the wires and become a safety hazard. • This cord guard will fit cords for the tools listed under the "Compatible Tools" listing. It is not guaranteed to fit any other cords.
1. Remove screws on right side of handle.
2. Remove clamp (2 screws) holding cord. Note orientation for cord guard and power cord
3. Remove two screws connecting power cord
4. Place cord guard over new power cord, crimp on ring terminals, reinstall in reverse order.
Replace carbon brushes
1. Remove brus
... Read moreh retainer caps
2. Use small pic to ease out brush, note orientation, replace with new brush kit CB-124, replace retaining caps
3. Inspect overall condition of grinder, if all is good, plug in and test.
Removed drill handle (containing switch) from drill body
Identified wiring scheme
Cut each wire pair, but left some of the departing plug wire attached to the switch wires to ensure correct rewiring with new plug.
After double checking correct wiring pair, cut off the rest of old cord wire on each pair and stripped the t
... Read morewo connecting wires
Crimped connected each new cord wire to the correct drill switch wire
Packed wires carefully into drill handle and installed the 6 screws to reattach switch handle to drill body
1. Took screws out of handle to split handle in half.
2. Unscrewed old cord connections and measured against new cord.
3. Cut to length and crimped on new fasteners.
4. Attached new fasteners to connections and replaced handle.
Did you find this story helpful?
Thank you for voting!
Trigger lock on my grinder is visibly broken. Also replace cracked electrical cord.
I removed 5 screws to remove cover. Remove 2 screws that hold down the cord to the other side of the cover. Remove 2 screws that hold the electrical clips on the trigger, slide the new cord guard onto the new power cord.Replace old cord by installing the new electrical cord and attaching the 2 electrical clips to the new trigger. Attach t
... Read morehe 2 screws that hold down the electrical cord to the cover. Align the electrical cords to fit so they will not interfere with placement of the other side of the cover. Install the 5 screws and I am done.
Read less
Did you find this story helpful?
Thank you for voting!
Replace cord on grinder 15 year old Makita 9005 B grinder, my favorite grinder
Removed side panel removed cord, by unscrewing it from switch. Then crimped on 2 wire terminals and the screwed the cord to the switch. Slid on cord guard. Screwed side panel back on. job done, the 9005 B Makita grinder is easy to repair . Wayne T.
1. Removed screws from the handle assembly.
2. Removed the old cord.
3. Replaced the cord guard and the new cord onto the switch.
4. Installed the switch and the cord into the handle half.
5. Screwed the other half of the handle to the first half.
6. Installed the complete handle assembly to the grinder.
Did you find this story helpful?
Thank you for voting!
Cord old and cracked. Replaced brushes as a matter of general principle while apart
1. Unscrew handle housing from motor housing
2. Separate handle housing
3. Remove cord and boot
4. Install electrical eyelets on new cord for connection to switch.
5. Install cord
6. Assemble housing.
7. Remove brush cap screws and install new brushes (very easy) (can be done with out disassembly of ho
... Read moreusings)
Read less
Did you find this story helpful?
Thank you for voting!
