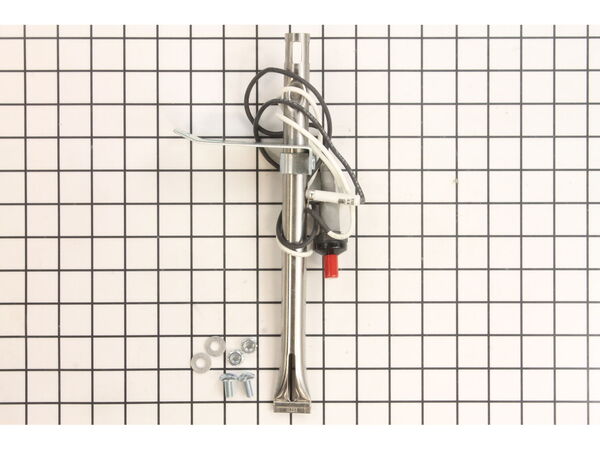

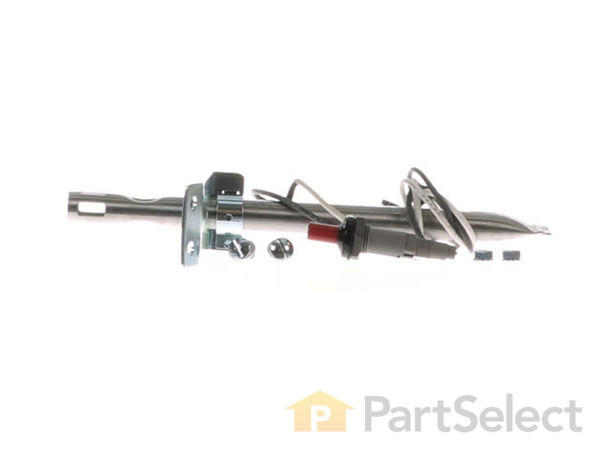

This is an authentic replacement igniter and burner assembly that is supplied directly from original manufacturer. It is specially designed for use with Weber gas grills. Igniter produces the spark to ignite the burner. Burners are connected to the control valves and it is where the flames would rise from. This assembly includes mounting screws, igniter, burner tube and lead wires. You would need a wrench, screwdriver and pliers to complete this repair. • First make sure the gas tank is disconnected • Remove screws securing the old burner • Disconnect old burners from control valves and replace them with a new burners • Remove old igniter and secure the new one in place • Reconnect igniter wires • Make sure everything is connected and test the grill
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
A few modifications
I have an old performer and would have liked to used my old 5 lb tank. Screws holding tube to tank could not be removed so used existing holder. Made it all work fine.
Alec - March 30, 2021
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
I followed the printed instructions that came with each package of parts. All it took to do the job was simple tools and a little time. You start by lifting out the charcoal bin and then removing the tabletop (4 screws). With that done all other parts are exposed and easy to get at.
Overall I was quite impressed with the
... Read morequality of the materials and the step by step instructions. Problems solved!!!!!!!!
I thank \"Ereplacement parts\" for quality parts and fast service.
Bob
Read less
Did you find this story helpful?
Thank you for voting!
The table had cracked in half, the burner assembly when out, and the char-baskets were cooked after 14 years of use.
1. Removed the old table with screw driver
2. Removed the burner assembly with pliers and screw driver
3. Replaced the burner assembly with the new one using pliers and screw driver
4. Replaced the table top using screw driver
5. Tested burner
6. Threw out old char-baskets
7. Placed two baskets inside.
Did you find this story helpful?
Thank you for voting!
Propane charcoal starter stopped working, no gas flow.
1. Removed and replaced the one touch cleaning system.
2. Removed the side work surface.
3. Screws and bolts had seized over the last 10 years of use. The screw heads had to be ground off with a hand held grinder to remove the flame tube from the kettle.
4. Replaced parts connected the propane supply, pressed the igniter
... Read more and my grill was good as new.
Thank you for the great replacement parts so that i can continue to enjoy my Weber Performer Series grill for another decade.
Read less
Did you find this story helpful?
Thank you for voting!
Didn\'t see how it happen but grill overheated melting the wheels, lid holder. The other parts were replaced due to age.
Was able to salvage a $400 grill by replacing by replacing a $125 in parts. Repairs was straight forward just unbolting the old burner, one touch cleaner, lid holder, lower end panel and wheels.
removed old parts. instructions did not fit my model exactly, but close enough. replaced part. gas now works fine, still have problem with ignitor, have to light manually.
Unplugged the igniter
Removed mounting hardware
Removed the assembly.
Removed the igniter and replaced with new stock.
Connected leads correctly
Applied LP bottle
Turned on the fuel, pressed the igniter button.
Tube lit on the first try.
Removed 4 screws and took off table top/ counter surface exposing burner, disconnected wire clip and gas feed hose and unbolted burner from bowl and removed old part. Reversed process to install new part and reinstalled counter top which finished job. Part came with instructions which I read before starting, which speeded job somewhat. I
... Read morewas in a hurry, and I have a lot of mechanical experience.
