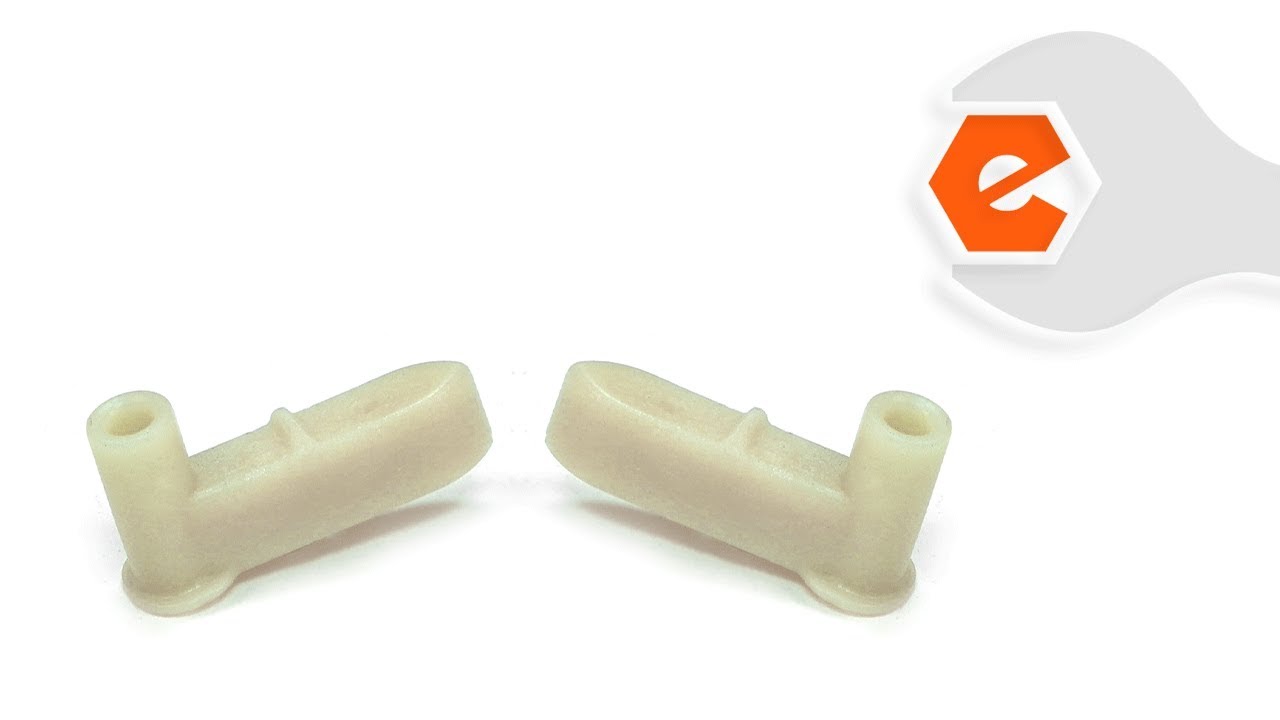

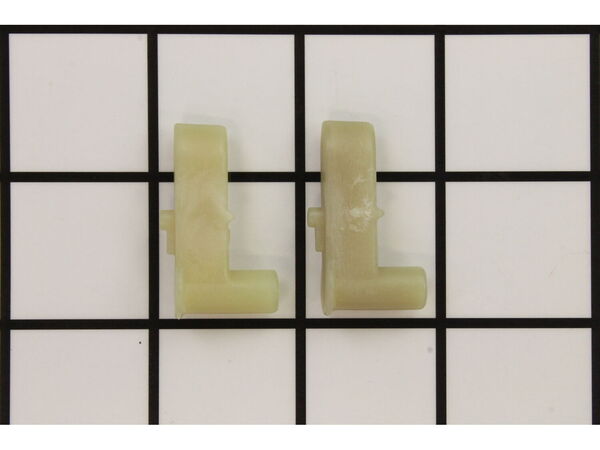

This Genuine OEM ratchet pawl is a critical component designed to engage the recoil starting system with the engine, ensuring smooth and reliable starts. Manufactured from durable plastic, this replacement part is engineered to match the original specifications for a precise fit and dependable performance. Over time, a worn pawl can cause the recoil mechanism to slip, making it difficult to start the engine. Replacing it restores proper function and helps extend the life of your equipment. Sold individually, this part is ideal for routine maintenance or repair of compatible outdoor power tools.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Power washer.
Part arrived quickly and worked.
Guest - June 17, 2019
Verified Purchase
★★★★★
★★★★★
Fast delivery
Not quite a replacement for what i needed but that is due to B&S changing the pawl design
Guest - June 28, 2019
Verified Purchase
★★★★★
★★★★★
Exactly what I needed.
I appreciate the help from the agent I spoke with who recommended this part. It fit perfectly and my power washer is working again
Guest - September 20, 2019
Verified Purchase
★★★★★
★★★★★
Easy Repair, Great product, great service!
The parts we ordered fit perfectly, easy to match up with the model and the service was fast and efficient. Will definitely look here for future parts.
Guest - October 3, 2019
Verified Purchase
★★★★★
★★★★★
easy peasy
Worked well thanks
Guest - January 31, 2020
Verified Purchase
★★★★★
★★★★★
as expected
the parts were correct and did solve the problem. Finding parts is easy on epeplacement parts and so far you are batting 1000 on having them in stock.
Guest - July 16, 2021
Verified Purchase
★★★★★
★★★★★
What I am used to , the great service.
What can I say, fast, reliable and simple. Doesn’t get any simpler and easier. That’s why I keep returning. Amen.
Guest - November 5, 2022
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Remove the 4 screws holding the pull cord assembly ,remove assembly. take small ratchet or nut driver and remove screw holding friction plate on. Remove old plate install new ratchet pawl, then put new friction plate back on, replace assembly with the 4 screws your done....easy
Did you find this story helpful?
Thank you for voting!
Pin that holds one of the pawls in place broke off.
1. Removed the starter rope assembly by drilling out the rivets.
2. Removed the Screw with the ratchet pawls and replaced the missing one.
3. Re assembled and secured with rivets.
4. Replaced air filter by removing the single screw for the cover.
5. Replaced the spark plug.
6. Using a 13mm socket I removed
... Read morethe fuel bowl and cleaned with a rag.
7. Rinsed the bowl, and carburetor with carb cleaner. Then reassemble
8. Changed oil.
9. Removed the blade and sharpened
10. Reassembled and started it to make sure everything works.
Read less
Did you find this story helpful?
Thank you for voting!
Lawn mower rope broke and coil spring loop had become undone and twisted.
Remove the engine shroud and then remove three bolts holding the gas down. Loosen another bolt left rear & down of the gas tank and you can tilt the gas tank back w/o removing it completely. Then remove another bolt holding the oil fill tube, pull up slightly and turn to the side so that it clears the engine cover. Remove 4 bolts holding
... Read morethe engine cover/pulley spring assembly and lift it up slowly(make sure you recall how it is mounted over some engine flanges). Remove a bolt holding down the Pawl friction plate over the pulley spring assembly and lift up on the assembly carefully as it contains the recoil starter spring. I then discovered that my new pulley spring assembly had the anchoring loop (the one that anchors on the center tab of the engine cover) looping to the right. My original spring looped to the left. I then had to use two needle nose pliers to carefully grab the spring loop and bend it around to the left making a new anchoring loop. This was very time consuming as you have to be careful of the spring not uncoiling. Once you done the new loop, bent the spring loop towards the center of the coiled spring so that it can catch on the center tab of the engine cover. Once you insert the pulley spring assembly, turn it counter clockwise until tight and then turn it back one turn to release some tension. You have to stick a small screwdriver in-between the pulley assembly and one of the slots in the engine cover to keep the spring from uncoiling. You them align the rope hole in the pulley with the rope hole in the engine cover and insert the new rope, grab it with needle nose and pull it, giving you some slack to tie the knot. You can now release the rope slowly (make sure you have the pull rope handle attached to the other end of rope) until the rope winds completely. You now attach cover back onto engine, making sure it fits correcting onto its location. You can now reattach all other parts in reverse of how you took them off. If you have a digital camera or phone, take pictures before or as you unassemble the engine, so you can remember what goes where.
Read less
Did you find this story helpful?
Thank you for voting!
Pawls where worn out had to replace them and other parts
Replaced four blower housing screws. The air cleaner cover just snaps in place. I then remove the complete starter assembly by removing the screws holding it. I turned it upside down and removed the screw for the pawl friction plate, then the plate and the worn pawl ratchets and replaced them with the new pawl ratchets. Installed the new
... Read morefriction plate and new friction plate screw. Installed the complete starter assembly. Done.
Removed engine cover, gas tank and pull starter assembly.
Disassembled pull starter assembly.
Installed new parts in starter assembly and rewound starter rope.
Reinstalled pull starter assembly, gas tank and engine cover.
Pretty easy and straightforward to fix, especially if you took the old one apart. Mine had all the parts missing. I wish they were metal or tougher parts. They wear out break to easily in my opinion. The rewind spring was the hardest part to get right. There are good YouTube videos that show how though.
You can do it! Lol
1) Removed recoil starter cover.
2) Removed broken pawls, friction plate and pulley.
3) Installed new pulley, note: be very careful indexing the spring tip into the housing.
4) Installed new pawls ad friction plate. 5) Mounted assembly back onto engine
