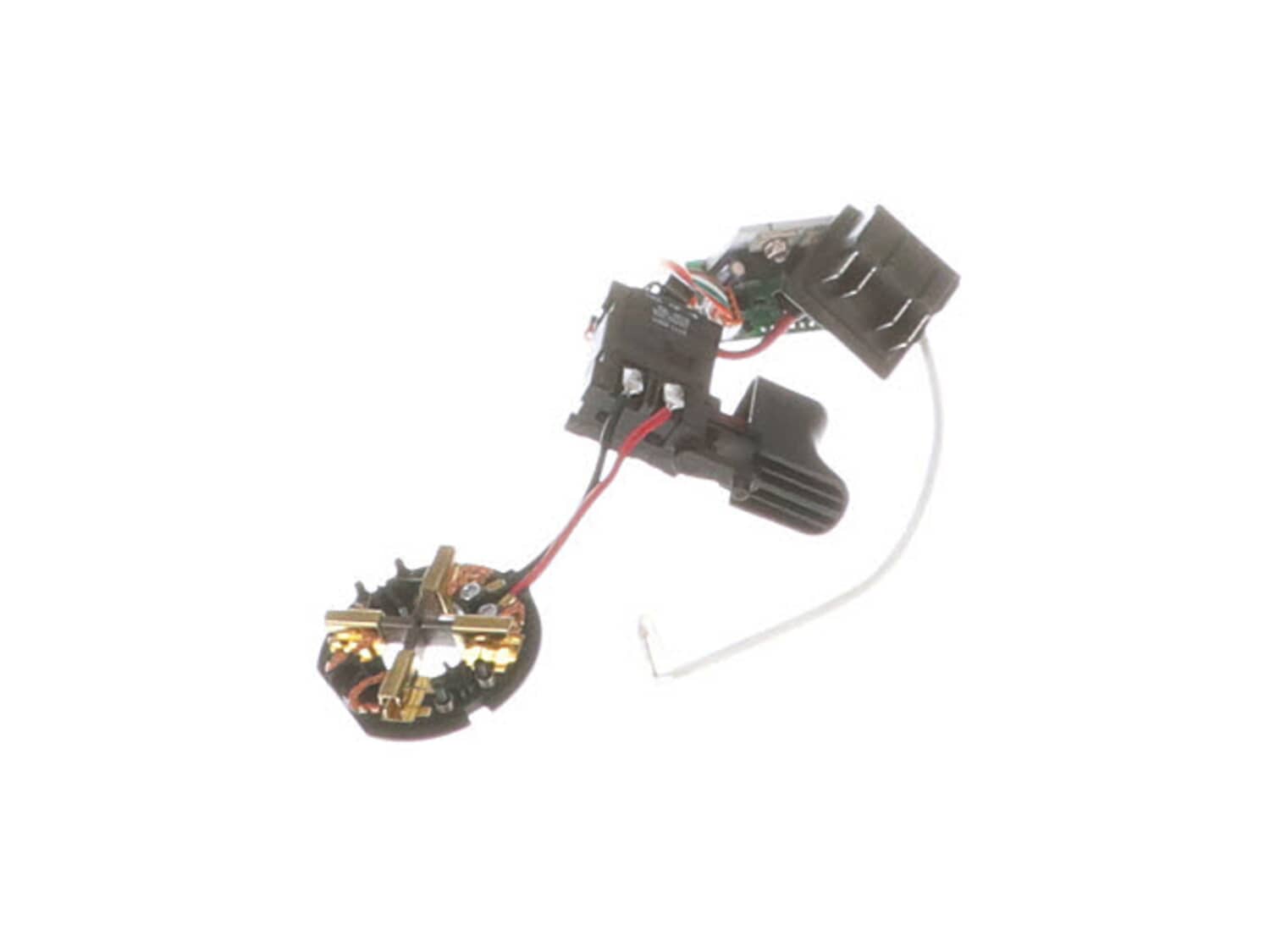

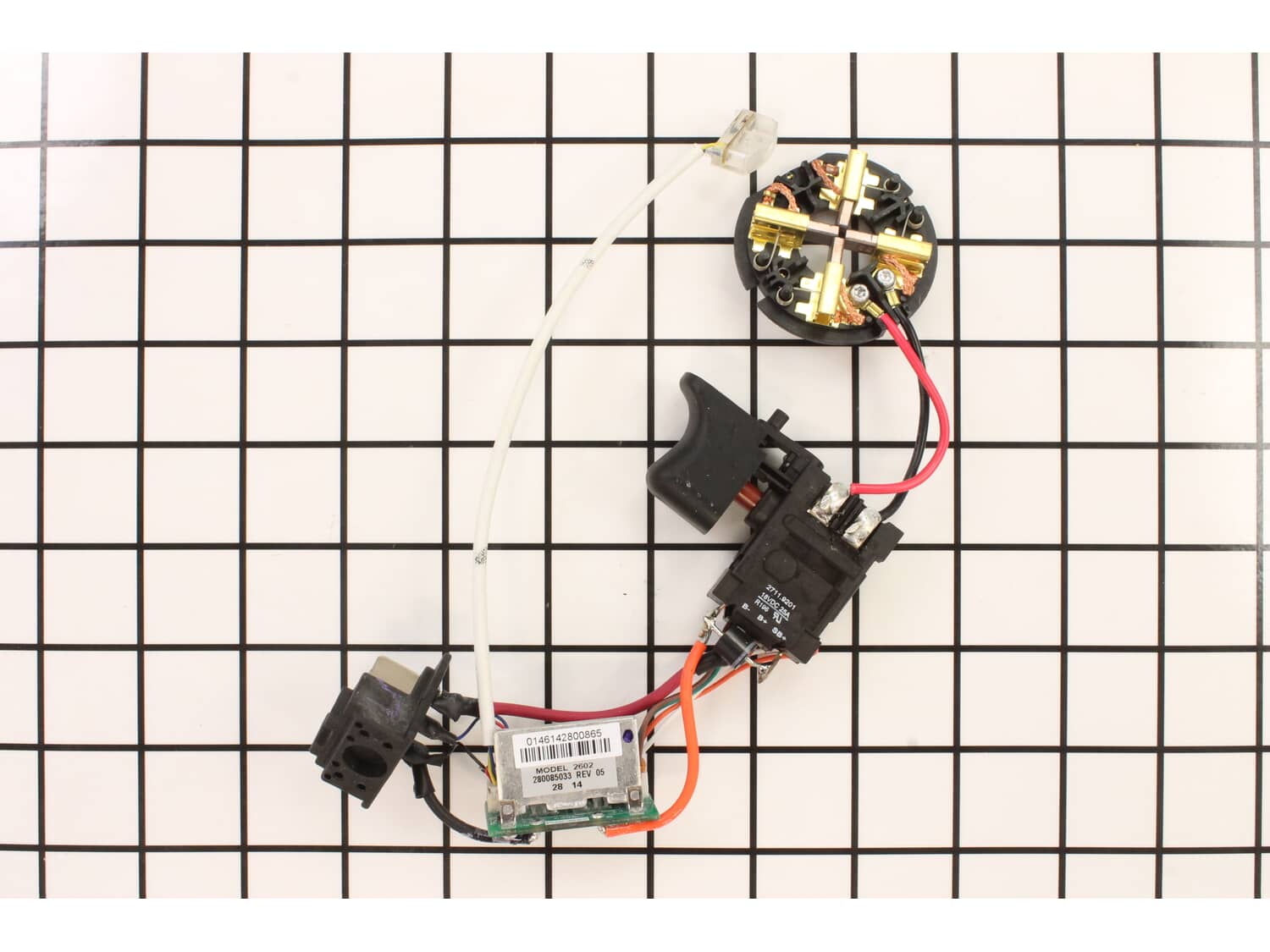

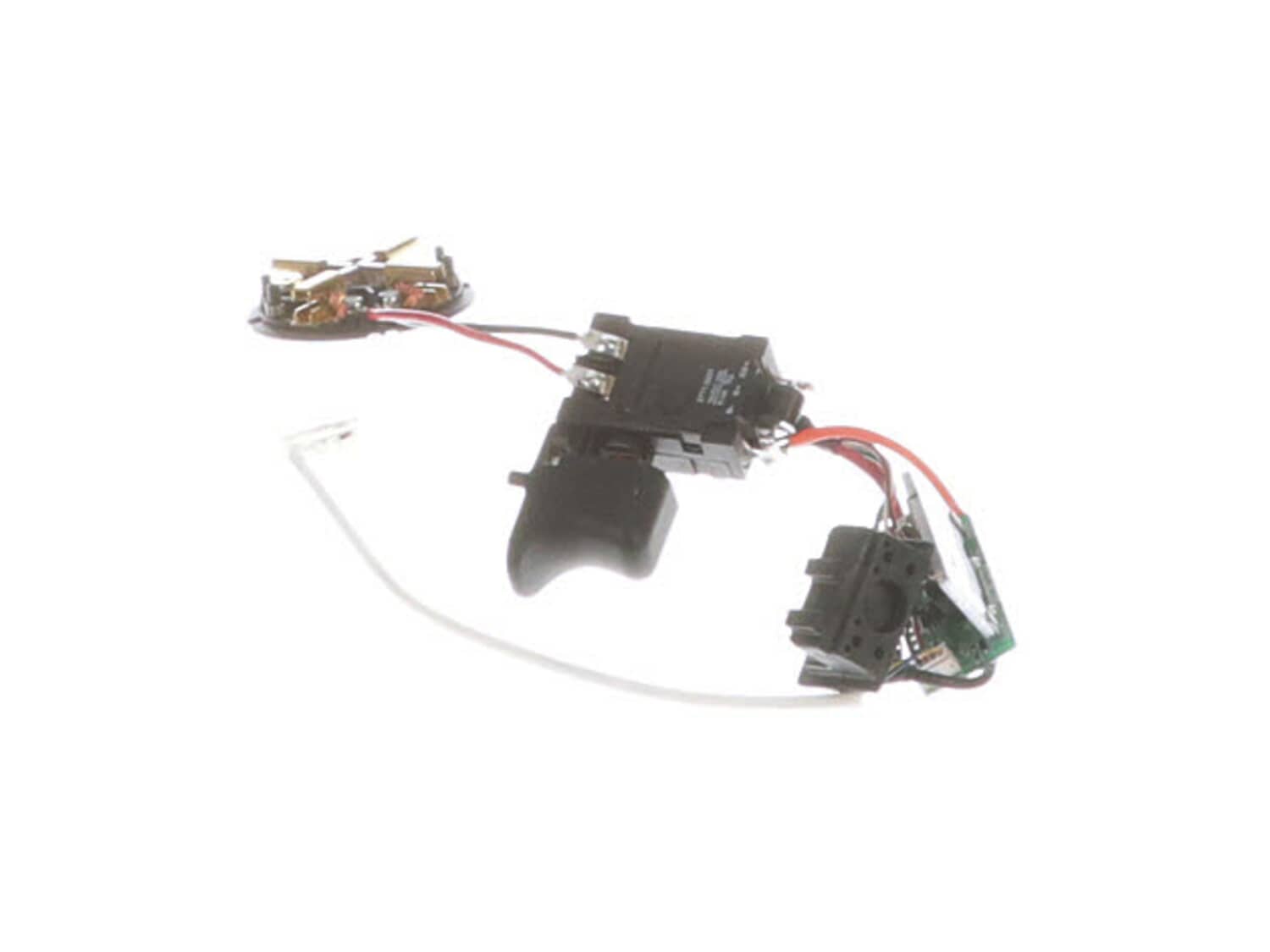

This replacement service switch assembly is utilized on Milwaukee compact hammer drills. It is an authentic OEM sourced item, not an aftermarket imitation. This assembly includes a switch and a carbon brush holder with lead wires attached. Mechanical on/off switches tend to wear out and eventually fail requiring replacement. Carbon brushes play an important role in an electric motors because they help to conduct electricity. To replace this service switch assembly you would need a screwdriver. • First make sure the tool is unplugged • Remove the housing screws • Separate the housing pieces • Disconnect wires from the old switch and the brush card • Remove the old assembly • Secure the new service switch assembly • Connect the wires • Reassemble and test the tool
Troubleshooting
This part works with the following brands:
Milwaukee
This part works with the following products:
Cordless Drill
Hammer Drill
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
I found this video on youtube. Even though it\'s not the same tool. It sure helped me with my repair. Here is the link.
https://www.youtube.com/watch?v=h2hcIGQlMw0
Removed all torques screws from side,back,and front. Carefully separate and pay close attention on how everything is laid in place ,wires ,motor ,switch,brushes , for it has to go back to gather the same way. That is the key to a successful repair.
1. Remove screws
2.pop open cover
3. Remove old failing part
4. Install new part
5.ensure fitment, no pinched wires,correct routing
6. Reinstall cover ensuring easy fitment
7. Install screws an snug down
8. Check operation, good to go
Did you find this story helpful?
Thank you for voting!
The hammer drill was squealing, and had loss of power.
1. Removed the end cap.
2. Removed the case screws.
3. Removed the 4 screws off the drive housing.
4. Removed the old brush and trigger assembly.
5. Reinstalled the new brush and trigger assembly in their place.
6. Reattached the drive housing to one side of the case.
7. Reattached the other half of t
... Read morehe case.
8. Reattached the end cap.
9. Runs like new again.
Read less
Did you find this story helpful?
Thank you for voting!
