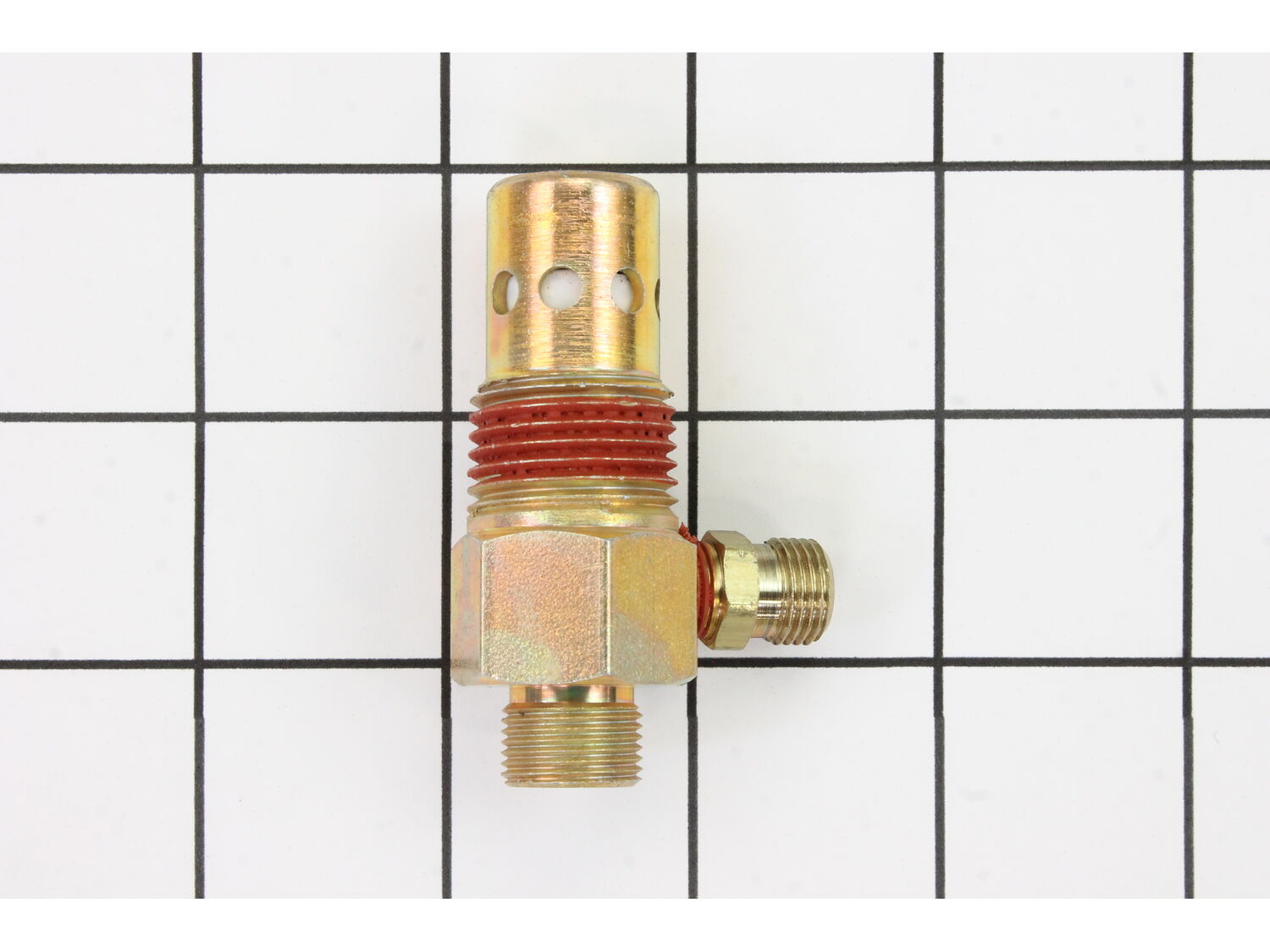

This check valve is used to direct air from the cylinder to the tank, and to prevent air from going back into the pump. It is a genuine OEM part used on air compressors. It features threaded fittings to attach it to the tank, pump, and pressure switch. A faulty check valve can cause the pump to restart even with a full tank, that in turn can overload the motor. This brass part is sold individually, and the tubes are sold separately. Always make sure to drain the tank before beginning the repair.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Fast service & easy to use!
This service was easy to use. I was notified when my part was shipped & it arrived quickly. It was exactly the part I needed, & got my air compressor back up and running!
Guest - April 24, 2019
Verified Purchase
★★★★★
★★★★★
Great quality, fast shipping
This Check Valve was the exact part I needed. When I shut off my compressor there was air leaking from the back of the regulator. I pulled the line off the back and figured out that everything there was not damaged and working properly. After some brain storming I decided I better check this peice going into the tank itself. I figured that should be a single direction air flow valve of some sort, but I could blow through it in both directions. Replaced the check valve with this new one and it works great now. Thanks eReplacementparts
Guest - July 20, 2019
Verified Purchase
★★★★★
★★★★★
Perfect fit.
Sales person was very knowledgeable and friendly
Exact replacement part arrived within one week.
Compressor works like new again...would definitely buy from again!
Guest - August 7, 2019
Verified Purchase
★★★★★
★★★★★
Parts
Perfect
Guest - October 21, 2019
Verified Purchase
★★★★★
★★★★★
Was the correct part. And installation was easy.
This had been a problem for a long while, I changed out the part in about 20 minutes, very happy.
Guest - February 17, 2020
Verified Purchase
★★★★★
★★★★★
Perfect fit!!!!
Part was perfect thanks!
Guest - June 12, 2020
Verified Purchase
★★★★★
★★★★★
Replacement
Worked great perfect replacement part
Guest - September 16, 2020
Verified Purchase
★★★★★
★★★★★
Compressor check valve
Thank you for new valve no longer available from Craftsman for my compressor. Old one was corroded and causing compressor to trip breaker when trying to start. Works like it’s supposed to again.
Guest - August 5, 2021
Verified Purchase
★★★★★
★★★★★
Easy repair and perfect fit
Perfect fit and it stopped the slow leak on the air compressor. The tank has been holding the same air pressure for days...
Guest - August 31, 2021
Verified Purchase
★★★★★
★★★★★
Saw comment about check valve and unloader
Piece fit exactly. Old part removal required a pipewrench a d extender on handle plus a bit of muscle. Everything works now as it should.
Guest - November 2, 2021
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Removed four head bolts on compressor
2. Removed piston rod from bearing
3. Removed check valve with large adjustable wrench, removed tubing
4. Replaced piston with new ring
5. Replaced check valve
6. Cleaned points on contractor, repaired burned wire connection
7. Let compressor run with tank drai
... Read moren valve open to break in piston ring
Read less
Did you find this story helpful?
Thank you for voting!
Wouldn\'t compress air
bill from CANAAN, New Hampshire
3 of 3 peoplefound this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
1)Loosened flare nuts and tubing on value.
2) Removed value and screwed in new value..
3) Reattached piping and tightened flare nuts.
4) Plugged in compressor.
1. Removed the fittings from the two air input lines.
2. Removed the faulty check valve.
3. Replaced the new valve.
4. Replaced the two lines.
5. Tried it out and celebrated with a glass of ice tea.
1. Make sure compressor air tanks empty & unplugged from power source
2. Loosen 2 compression fittings
3. With heat gun, warm tank where defective check valve located
4. With 7/8ö deep-set socket on breaker bar, slowly loosen defective valve
5. Install new eReplacement check valve and 2 connecting air line tube fit
... Read moretings
6. Test air compressor start and refill functions
7. Replacement of faulty check valve successful
Removed inlet nut and valve nut with open end wrench.
Placed sensor in socket on valve and used breaker bar to remove valve.
Installed new valve with socket and wrench.
Reinstalled inlet nut and valve nut.
Did you find this story helpful?
Thank you for voting!
rebuild 30 gallon porter cable brand air compressor
Removed old and broken parts then replaced with the new repair parts I ordered from ereplacementparts.com my compressor was up and running like new in no time.Thank You Ereplacementparts!
Did you find this story helpful?
Thank you for voting!
The compressor would but Schroeder off after building full presssure.
1. Removed both shrouds (used torx screwdriver).
2. Removed Tubing attached to check valve.
3. Removed The Old Check Valve.
4. Installed the New, replacement check valve.
5. Attached tubing to the new check valve
6. Installed a New air filter.
7. Re-installed both shrouds.
8. Did a success
... Read moreful trial run.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP18990718
Manufacturer Part Number: A19712
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
