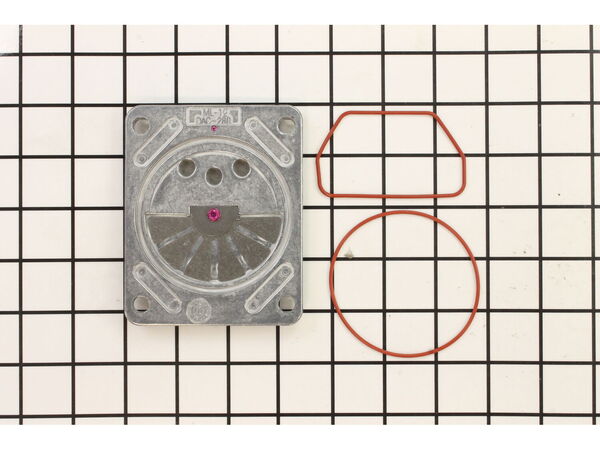

This replacement valve plate assembly is a high quality item designed for use on Craftsman air compressors. It is a genuine manufacturer sourced item that is used to control the airflow into the cylinder. Once the piston starts traveling up, the reeds on the valve plate open and air is sent into the air tank. Overtime the reeds will get worn eventually requiring valve plate replacement. One metal valve plate with reed valves and two rubber seals are included in this assembly. When replacing this valve plate assembly it is also a good time to replace the head gaskets which are sold separately. You will need a wrench set to complete this repair.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
PLEASED AGAIN !!!
Happy again: the part arrived way sooner than expected, fit great and is now running happily;-)))) ibjb
Guest - November 8, 2020
Verified Purchase
★★★★★
★★★★★
Great part
Parts came in quickly got my compressor working
Guest - April 6, 2021
Verified Purchase
★★★★★
★★★★★
Got the right part the first time works great
Got the right part and a short amount of time now my air compressor works better than new
Guest - August 23, 2021
Verified Purchase
★★★★★
★★★★★
Fit just like it was supposed to. Even the included gaskets fit correctly.
The valve plate assembly I ordered was an updated version. It and the gaskets fit perfectly with the new cylinder sleeve repair kit I ordered also. After finishing the repair with a new fan blade installed. I plugged the air compressor in and it built up pressure in no time. Great parts!!!
Guest - December 27, 2021
Verified Purchase
★★★★★
★★★★★
all worked great!
parts worked great in my air compressors. both was to easy to install. well worth the expense instead of buying 2 new compressors.
Kenneth - July 19, 2022
Verified Purchase
★★★★★
★★★★★
Great company to work with
Parts worked perfectly. Found the parts for my 25 year old discontinued air compressor. Great customer service
Anonymous - July 30, 2022
Verified Purchase
★★★★★
★★★★★
All good
The parts arrived on time and I installed them on air compressor. Now it works like new. thanks ereplacementparts
Guest - October 28, 2022
Verified Purchase
★★★★★
★★★★★
great
product came quickly and compressor is back up and running
Adam - February 28, 2023
Verified Purchase
★★★★★
★★★★★
Easy repair worked as expected.
the parts were shipped promptly and arrived on time with no damage. the repair was easy and quick. I will order again web site was easy to maneuver to parts and was easy to see and get the right part easy.
Edwin - August 23, 2023
Verified Purchase
★★★★★
★★★★★
easy to repair
quickly, perfect fit
Guest - December 22, 2023
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Removed shroud - Need long star bit
2. Removed air line
3. Pulled head
4. Removed fan blade
5. Removed Rod
6. Installed new rod kit
7. Re-installed fan
8. Installed gaskets on new head
9. Installed head
10. Re-installed air line
11. Re-installed shroud
12. Pressure teste
... Read mored. Worked great!
Removed the bolts securing the head, then removed the head. Removed the old valve plate assembly, and installed the new one. Replace the head, and torqued the bolts @ 8ft.lbs. in a cross pattern. Runs like new again.
Remove 4 bolts from the compressor head, then remove the head. Then remove the old valve plate and o-rings, then install the new ones. Replace the head. Fire up compressor and get back to work.
This was the 2nd rebuild on this unit last one was about 7 years ago.
Instructions were informative and easy to read, also helped that I was
familiar with the disassembly.
1. Removed the cowling, which involved drilling out the front two Torx screws, which were seized up in the compressor body.
2. Disconnected the air line to the compressor head.
3. Removed the four bolts holding the head in place.
4. Removed the fan.
5. Removed the screw securing the piston rod to the crankshaft.
<
... Read morebr />6. Installed the new crank and piston.
The securing screw wallowed out before reaching the specified torque, so replaced the screw with a cap head metric screw, lock washer and nut. Be sure and use thread compound to keep the nut from backing off!
7. Re-installed the fan, after carefully positioning it so it didn\'t hit the compressor body and torqued it to the specified torque.
8. Installed the new O-rings in the head assembly.
9. Re-installed the four head bolts and torqued them to the specified torque.
10. Re-installed the cowling using #8 self-tapping hex head screws instead of Torx screws.
11. Installed the new drain plug and tested the compressor, which hit 165 PSI in about 5 minutes.
Read less
Did you find this story helpful?
Thank you for voting!
Compressor failed to build up pressure
Gregory from Orland, California
2 of 2 peoplefound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Used the attached instructions and all went well. One exception, the pin removal from the motor. Really needed more directions on getting it out. Just used a screwdriver to wedge it loose. Other than finding time it was a breeze.
Did you find this story helpful?
Thank you for voting!
Compressor would not build pressure, also external regulator leaked.
Removed cover, and cooling fan.
On low pressure cylinder:
- Removed valve plate assy, piston/rod, and cylinder.
- Installed new cylinder.
- Replaced piston seal: removed piston top, replaced seal on piston, put piston top back on piston and hand tightened screw a bit, inserted piston in cylinder, finished tightenin
... Read moreg piston top screw.
- Attached piston rod to crank, replaced fan.
- Placed and tightened new valve assembly with new o-rings.
Removed/replaced external regulator.
Did not address high pressure side, parts are no longer available.
Still, compressor does build pressure good as new.
Read less
Did you find this story helpful?
Thank you for voting!
