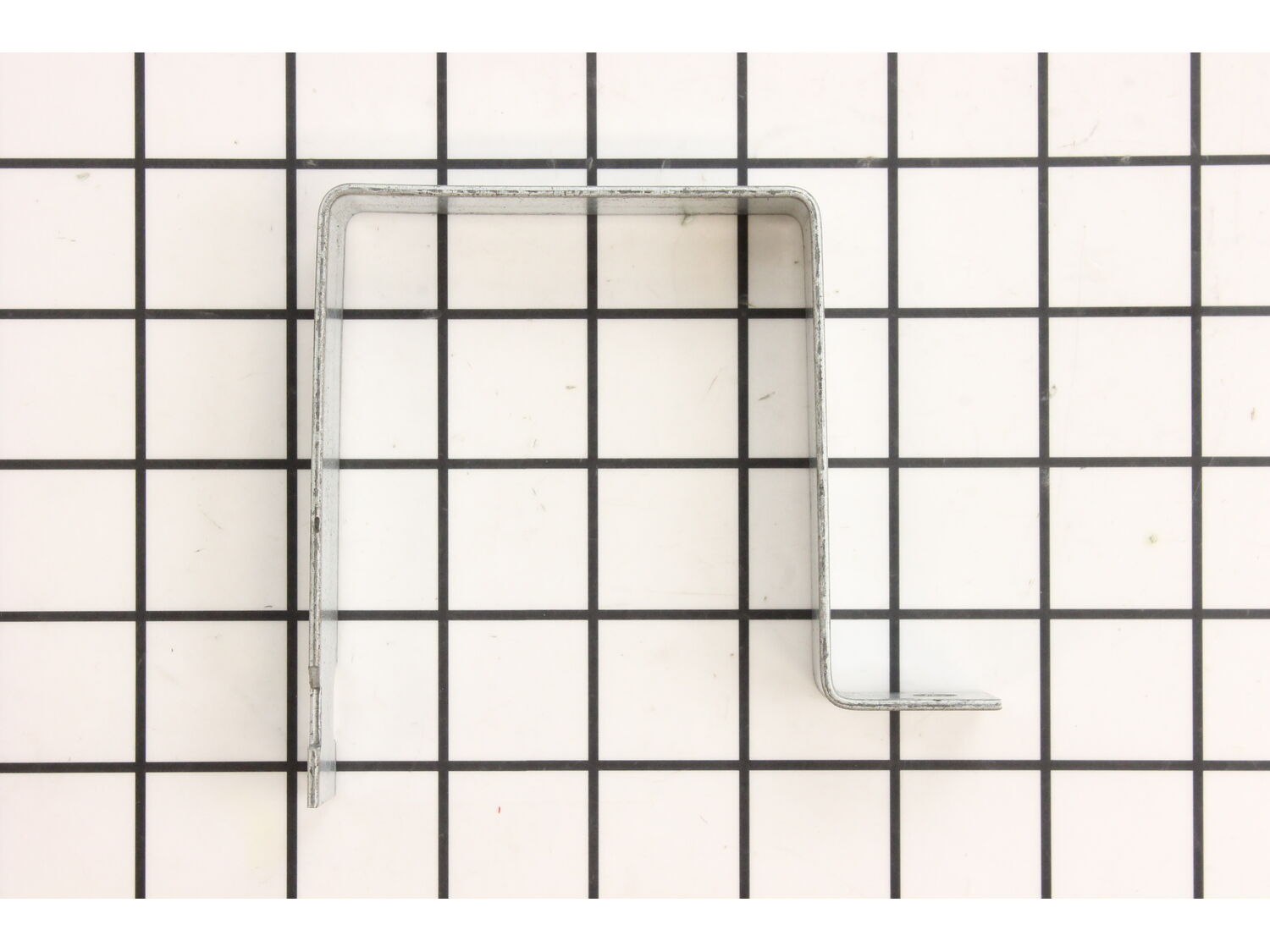

This motor bracket is an original part from Campbell Hausfeld. The metal bracket is compatible with many air compressors. This item has been designed to secure the pump/motor assembly to the compressor tank. A wrench and a screwdriver are helpful in making the removal and repair. The motor bracket is sold individually.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Part fit perfectly, easy to install.
More than just the part, it's amazing to have a resource like eReplacementParts.com to get this rather obscure parts. This is for a compressor that is close to 15 years old, and the parts were easy to find with the model number.
Guest - February 4, 2020
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed the bottom side cover, removed the motor and compressor. I used an easy out to get the sheared bolt out and replaced it with the new one. Put it all back together and the compressor is running like new again!
Did you find this story helpful?
Thank you for voting!
Compressor wouldnÆt cut-in and motor bracket was broken.
Unplugged the compressor. Removed the old pressure switch and the broken bracket. Successfully installed both by using a phone camera (to get a picture of wiring) and tools listed above. All works well!
Remove the motor bracket then remove the pump and motor assembly. Remove the four bolts that hold the head, gaskets, valve plate and place them all in the order that you removed them. Unscrew the piston assembly and remove the piston and cylinder. Install the new piston with the cylinder. Place all of the gaskets valve plat, etc back on t
... Read morehe cylinder head, then Install the four bolts that hold it all together. I also replaced the motor bracket and the isolator pad.
The motor bracket I ordered had to be replaced. When it broke for sometime, this let the motor rotate back and copper tube I ordered had to be replaced due to rubbing against the back. As you stated in the instructions the copper tube had to be cut to fit. With a tube cutter I cut the tube to right size and installed the tube with hardwar
... Read moree I ordered and everything works fine (no leaks). I\'m glad I founded your Web site, I have had this Campbell Hausfeld Compressor for quite a few years Thanks for your support Gene S.
Read less
Did you find this story helpful?
Thank you for voting!
Regulator leaking, Broke & Missing Filter, Motor Bracket Broke
1. Remove top shroud.
2. Remove broken motor bracket & replace new one.
3. Remove old regulator & install new regulator.
4. Trim top shroud because 2\" diameter filter would not line up for installation.
5. Replaced top shroud & tested compressor.
6. Runs quite & hold air for days.
Did you find this story helpful?
Thank you for voting!
Plugged compressor in and while it was building up psi, the motor sparked and caught on fire, so i figured it was time for a new motor
1. Took cover off compressor cover
2. Took off the white and black connector
3. Took off the bolt for the bracket, and the bolt on the side of the motor
4. Took old one out, installed new one
5. Put everything back together
Removed the top cover
Removed the cracked exhaust tube
Installed the new tube with the new ferrules and compression nut
Remove the old motor bracket and installed the new on
1. Removed cover off of the compressor
2. Remove the old motor bracket and replace the motor bracket
3. Remove old exhaust tube cut new exhaust tube to length and replace
Did you find this story helpful?
Thank you for voting!
