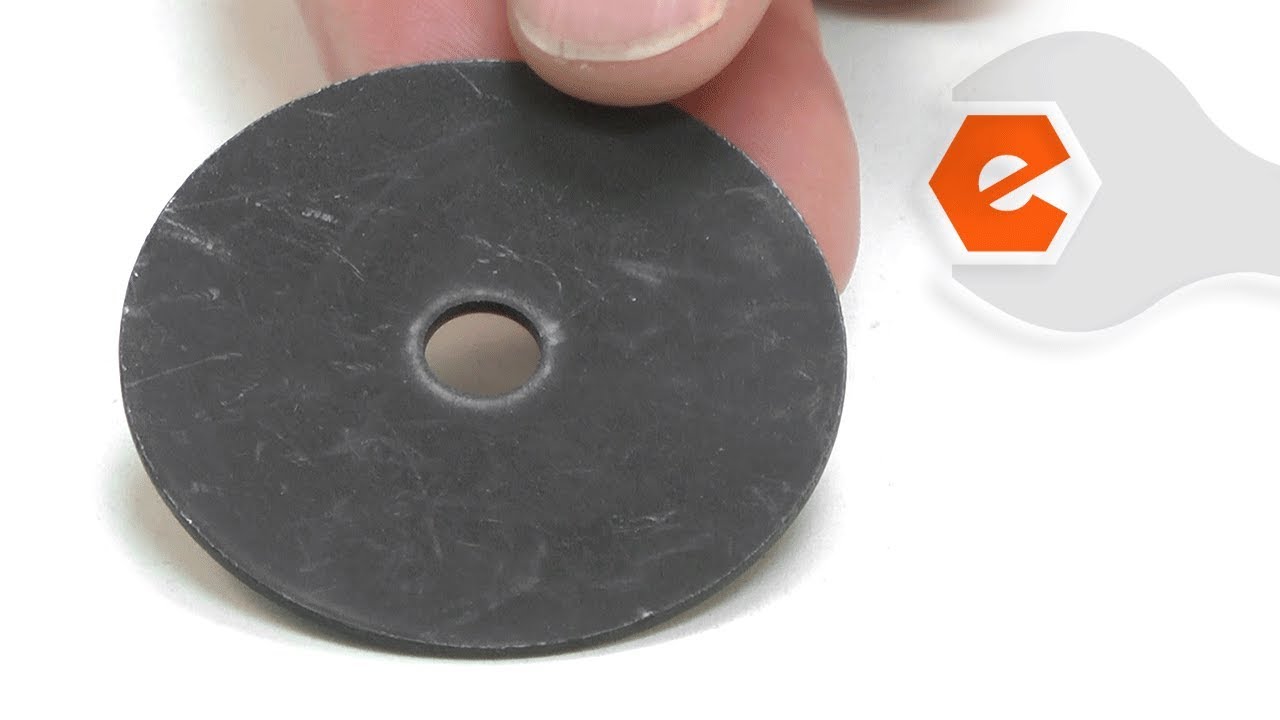

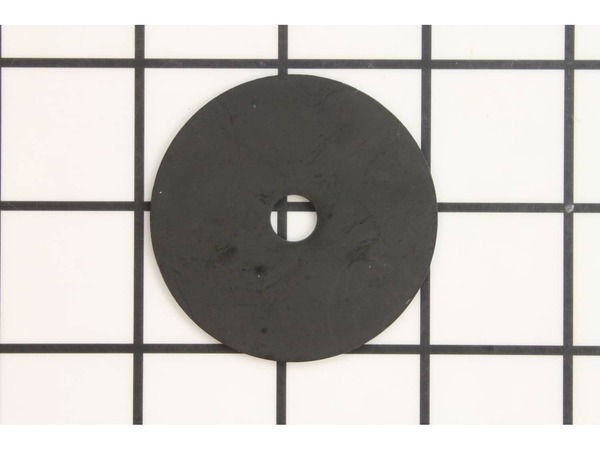

It is a genuine item that is supplied by the original manufacturer for use with Poulan and Weed Eater chainsaws. This washer-clutch is a special friction disk that helps to engage the clutch by ensuring a right fit between connected components. It provides an identical replacement for a damaged or a missing hardware that was installed on a new unit. Check the diagrams of your model for the exact location and the correct installation of this part. One durable metal washer-clutch is included. You may need a screwdriver and a wrench set to perform this repair.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Chainsaw repair
Parts ordered were exact fit
Lynn - August 14, 2019
Verified Purchase
★★★★★
★★★★★
easy repair, part was exactly what ordered
Snail mail but not ereplacementparts fault...typical USPS
Guest - November 26, 2019
Verified Purchase
★★★★★
★★★★★
Exzact fit
New replacement parts clutch washer was great cluch assembly exzact fit but the clutch drum and sprocket was wrong not part number I ordered would order from again
Guest - February 2, 2021
Verified Purchase
★★★★★
★★★★★
How can it be wrong
Fit just perfectly. Less scored than the old one.
Guest - April 27, 2021
Verified Purchase
★★★★★
★★★★★
Replacement was effortless
All parts arrived in a timely fashion as notified and installation went as expected. Required minor adjustment concerning chain tension.
Gregg - April 28, 2019
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Removed the cover from the clutch and rope starter.
2. Removed the clutch and washer.
3. Installed the new parts.
4. Installed the covers for the clutch and rope starter.
Removed the spark plug.
Pushed rewind rope down into the cylinder.
Put the clutch tool on the clutch, turning backwards till the piston comes up against the rope in the cylinder.
Remove the clutch, the clutch drum, the thrust washer.
Put the new parts on In the reverse order.
Pull the rope out of the cylinde
... Read morer, replace the spark plug.
Replace the bar and chainsaw, and covers.
Read less
Did you find this story helpful?
Thank you for voting!
Chain would not hold tension, and was continuously slipping off bar. Also got very hot when cutting small logs
I simply replaced the old parts with new ones in the reverse order of their removal. I did have to refer to my owner\'s repair manual for the clutch set.
1. Remove cover take bar and chain off
2. Spray wad-40 on threads where clutch assemble is.
3 remove spark plug insert 1/2GÇ¥ rope to lock it up.
4. Use torch if needed to help free the clutch.
5.Reverse threads disassemble clutch.
6. In reverse order all new hardware.
1- remove bar assembly
2- Secure the flywheel on the opposite side against the handle using a socket and ratchet
3- remove the clutch assembly using the clutch tool and in the direction of the off arrows
4- Install new parts in the order as old parts were removed.
5- tighten clutch assembly with the clutch tool i
... Read moren the opposite direction, remembering to reposition your socket and ratchet on the flywheel for opposing force against the handle.
6 - in the event, you must assemble the clutch, lay it on a flat surface, place the spring in the grove under one arm of the center section, slip a flat tip screwdriver under the spring just to the edge of the opposite arm and flip the spring into place under the arm and into the grove while maintaining the first arm in place. A bit tricky and may require assistance.
7 reassemble bar assembly.
Read less
Did you find this story helpful?
Thank you for voting!
