There are all kinds of quick fixes for a damaged cord. And some of them are great when you need your saw working again on the job site, but a damaged cord is always a safety risk and should be replaced as soon as possible. This article will help get you through a cord repair on your Makita 5277B saw. These steps will also work for other saw repairs.
Remember to find the right cord for your saw by visiting our Makita saw parts page.
Replacing the Cord
1. Remove the handle side cover
Remove the five screws that secure the handle side cover to gain access to the switch and power cord.
2. Remove the cord clamp
Now you can remove the two screws that hold the cord clamp down.
3. Remove the cord wires
Pull the switch away from the handle assembly. Then note where each of the power cords attaches to it so you can install them later.
Now unscrew the cord wires from the switch.
4. Pull the cord away
Now you can pull the strain relief and wires out of the handle assembly.
5. Inspect the strain relief
Take a moment to inspect the strain relief for cracking or other damage. If it seems worn, you should replace the strain relief too.
6. Install the new cord
Thread the cord wires through your strain relief--using the replacement if needed.
Then set the strain relief back into its holder on the base of the handle.
7. Install the cord clamp
Secure the strain relief and cord by tightening down the cord clamp with the two screws.
8. Re-attach the cord wires
Attach the cord wires to the switch as they were before.

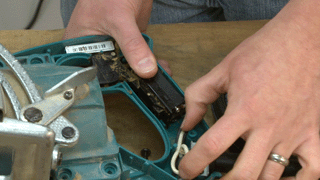

Nestle the switch back into the handle, then route the cord wires into the handle of the saw so they won't get pinched when you attach the cover.
9. Secure the handle cover
Now just replace and secure the handle cover to finalize your repair.
Conclusion
And that's how easy it is to replace the cord on your Makita saw. Now you've saved money compared to a repair shop and have cut down on your chances of electrocution on the job site thanks to a bad cord. You can perform this simple repair anytime you notice cord damage. It's inexpensive and only takes about 10 minutes!
