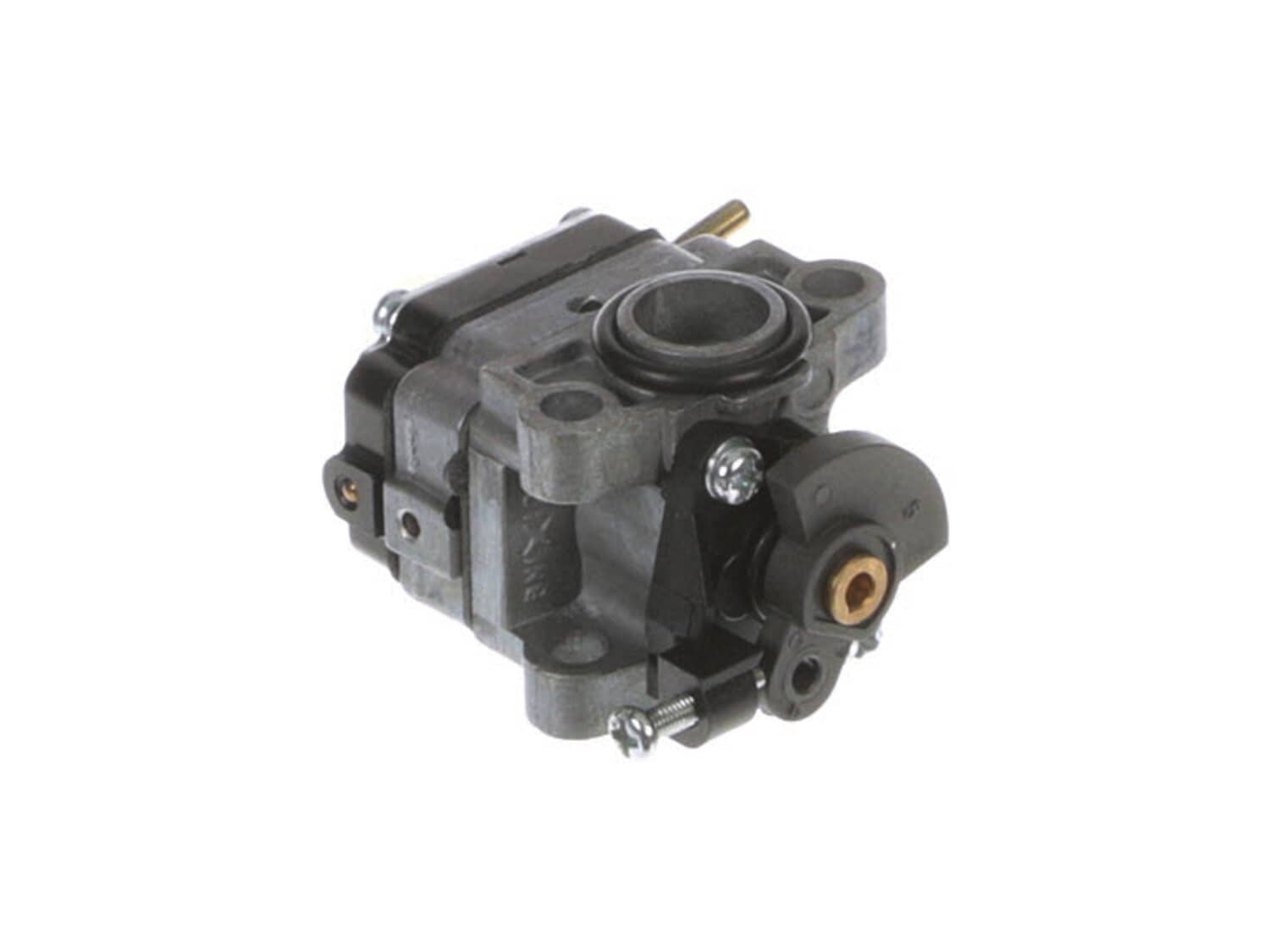

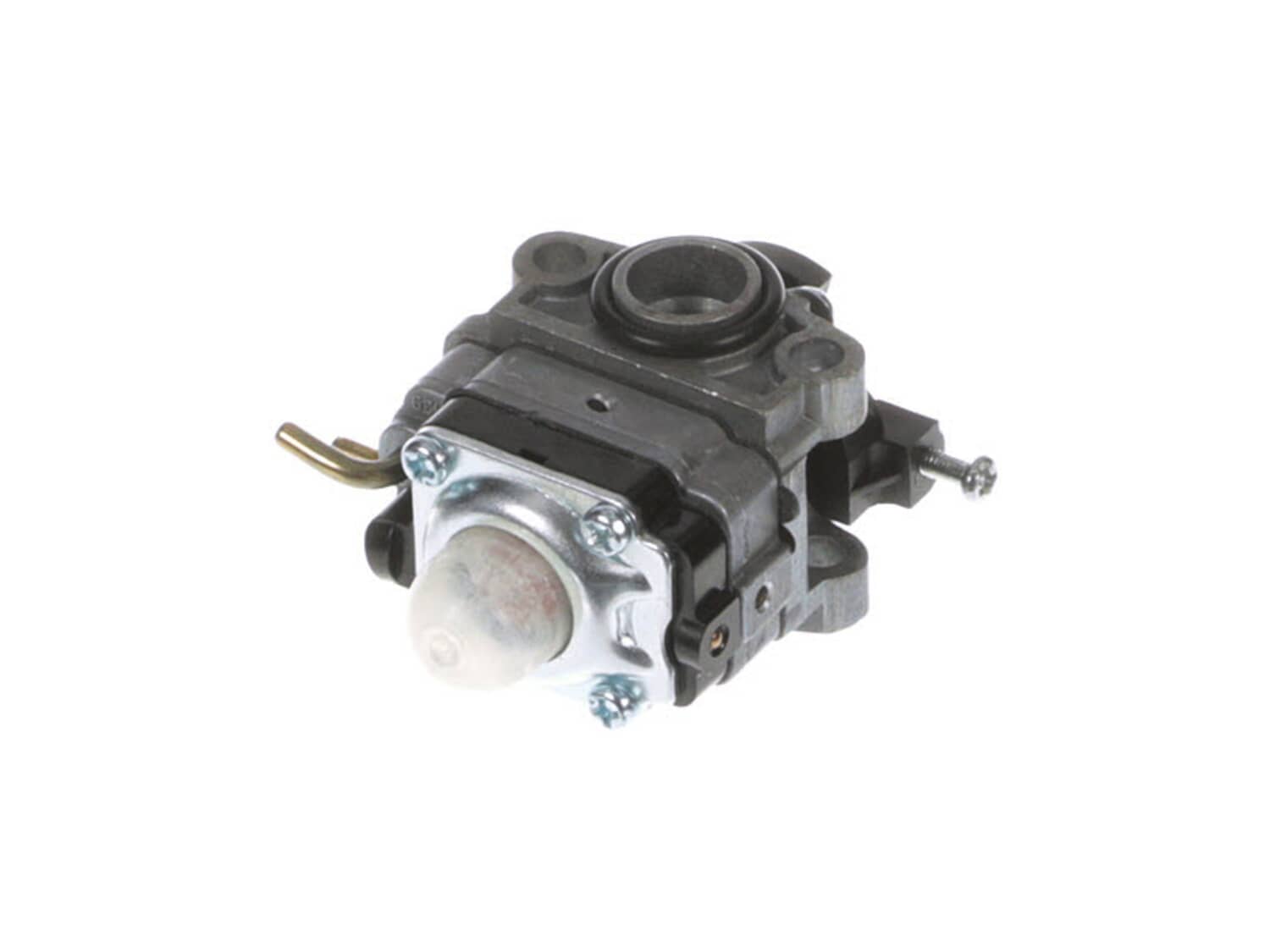

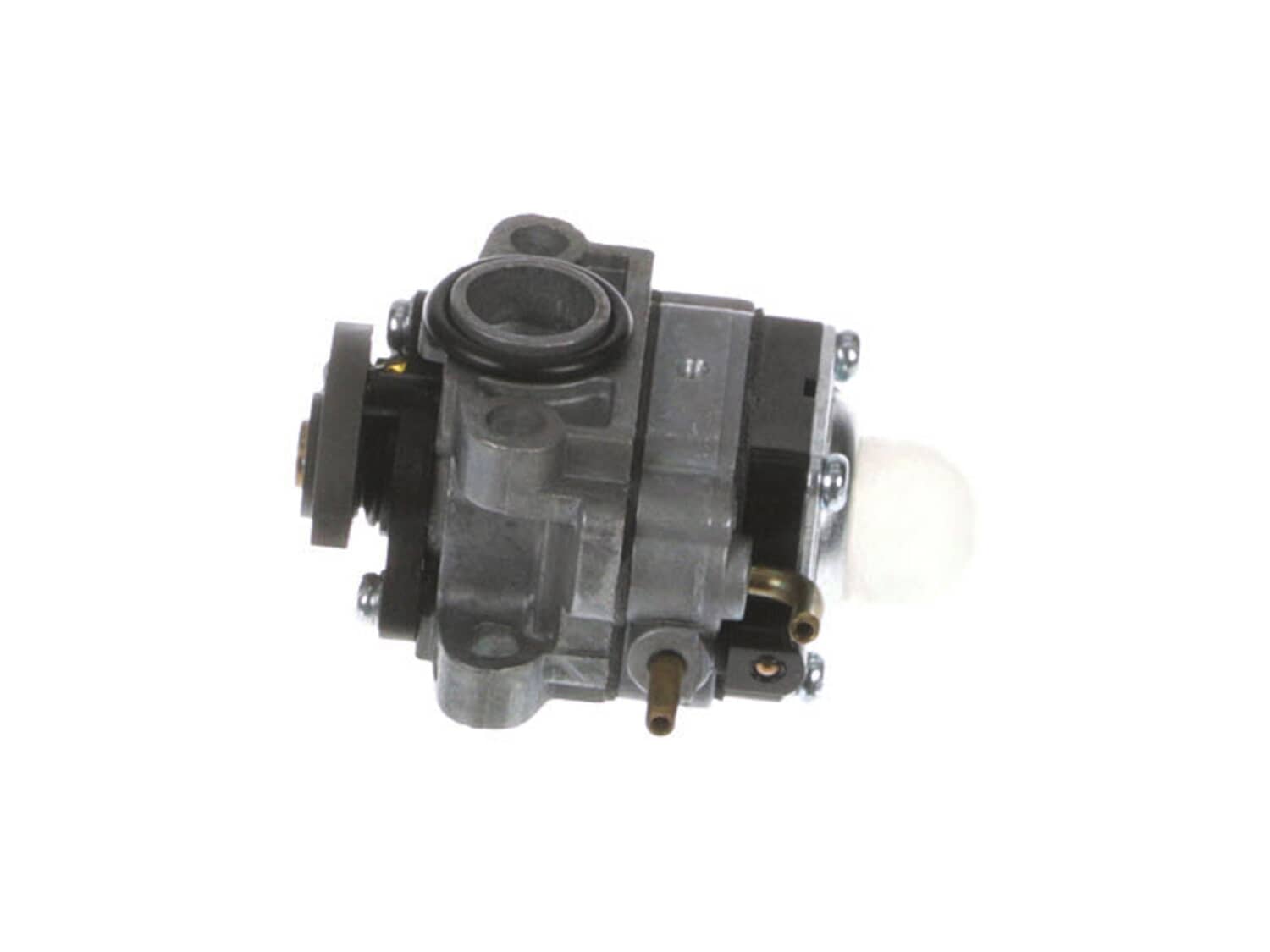

The carburetor attaches to the gasket and the carburetor o-ring. This is an original Ryobi part for use in trimmers and brushcutters. Keep in mind this high-quality item is made of metal and plastic and is sold individually. During replacement, it may require a screwdriver and a set of pliers to help install this part correctly. This item may become broken and will need to be replaced.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
great company and courteous personnel
all items ordered were exact and installed well
Guest - June 6, 2019
Verified Purchase
★★★★★
★★★★★
Easy part replacement
Part worked great. Exact replacement. Only wish it came with gasket
David - November 7, 2019
Verified Purchase
★★★★★
★★★★★
Super simple!
The part showed up pretty quickly...it took all of 10 minutes to swap out the part. 3 pulls and it started right up. Super simple!!
Guest - November 20, 2019
Verified Purchase
★★★★★
★★★★★
Right part, right price, on time
I needed a new carburetor assembly for my weed eater and eReplacementParts had the right item at a good price and delivered it on time in the middle of the Coronavirus pandemic, well done! My only criticism would be that while you had the right "exploded parts" view of my particular model weed eater, the PDF was a little hard to read in an enlarged view (the resolution was low) to identify the part/part number.
Guest - April 28, 2020
Verified Purchase
★★★★★
★★★★★
Ryobi carb
Great part , good price , shipped quickly, easy to install .
Guest - May 31, 2021
Verified Purchase
★★★★★
★★★★★
Just the thing
One off and the new on. Unit started right up and has worked fine since
Guest - December 4, 2024
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Removed the old carburetor and Replaced with new
2. There are two screws that hold the carburetor to the manifold, two hoses to the gas tank (which are difficult to confuse as to their placement given their respective lengths), and a simple hook-up to the idle switch. Very simple.
3. I hate small engines but this repair was
... Read more brutally simple and my trimmer runs now like it\'s brand new.
Read less
Did you find this story helpful?
Thank you for voting!
Fuel was not getting into the carburetor, even after replacing the fuel filter
1. Removed the air cleaner cover and air filter sponge.
2. Removed fuel lines to carburetor.
3. Used nut driver and torx tip to remove long machine screws.
4. Carefully removed carburetor from intake, preserving mounting gasket.
5. Unhooked throttle wire from carburetor.
6. Completed earlier steps in reverse
... Read moreorder with new carburetor.
7. Pressed primer bulb and fuel started to draw after just a few presses.
8. Followed starting instructions and trimmed runned like a champ.
Remove air filter and clean while off.
Remove the two torx screws holding carb to intake
Remove fuel lines noting which line attaches to which port.
Save the carb to intake gasket if possible. Gasket is no longer made
Remove throttle cable noting installation direction, can be installed two ways and will bind if on
... Read more the wrong side. simple slide out of the mount hole and reinstall on new carb.
Install fuel lines
Align screws with gasket and tighten back down
Reinstall air filter
Adjust idle if necessary
removed old carb and fuel tank and installed new ones. I didn\'t have to change out the fuel tank but the price of the tank was so low I did it anyway.
Removed old carburetor installed new filled with fuel and trimmer performed like new. Might add that I had previously ordered a new carburetor from another vendor, replaced with this one and problem solved
Did you find this story helpful?
Thank you for voting!
Replaced carburetor
