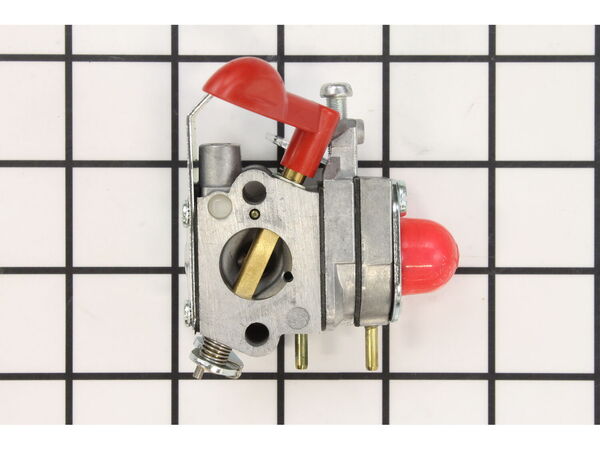

This is a genuine OEM replacement part, it is sold individually. It is used on specific Gas Trimmers. The purpose of this part is to mix air and gas before the fuel mix goes to the engine. If the engine won't start and the tank is full of fresh fuel, test the carburetor by removing the air filter and pouring about a teaspoon of fuel into the carburetor. Pull the starter rope. If the engine starts and then quickly dies, the carburetor is likely the problem.
Repair instructions we\'re not needed simple. Remove the air filter assembly, then remove two screws, remove the gas lines and throttle cable the cable from the old carburetor. Remove old carburetor and install the new one. Assemble in reverse order.
These are the steps i used... Remove fuel lines from carburetor note position of each. Open up cover of air box. Remove air filter. Remove two screws with Allen wrench. Remove air box. Slighty remove carburetor and unhook throttle cable linkage noting the way it hooks up. Remove carburetor. Make sure old gasket doesn\'t stick to carburet
... Read moreor adapter. Remove two screws and remove carburetor adapter. Take carburetor adapter, air box, and air box cover and clean with toothbrush and dishwash liquid. Dry thoroughly. Take a q-tip dip in cleaner and clean around cylinder where adapter fits. Push screws through carburetor adapter and put new gasket on screws pushing it on adapter so it lines up perfectly. Tighten adapter on cylinder. Push screws through air box, new carburetor, and place new gasket on screws against carburetor so gasket lines up perfectly. Install throttle linkage cable to carburetor. Tighten screws back down. Clean air filter, or replace then install air box cover. Hook fuel lines back up in proper position. Always, ALWAYS use non-ethanol gas in your weed eater with proper oil mixture. My Poulan weed eater is 13 years old and this is the first time I habe replaced anything on it.
Basically, remove the carburetor assembly, existing fuel lines and fuel filter. Screw the new carburetor (bolts) onto its mount. Measure the length of the existing fuel lines and cut the new ones to that length(s). Cut the ends of the new fuel lines at a 45 degree angle so they can be twisted into the fuel tank without damage. After inse
... Read morerting the lines, hook them back out of the fuel tank with a piece of curved wire, re-cut them straight across and twist on the new fuel filter. After inserting the lines back into the fuel tank, and connecting them to the carburetor, add fuel, pump up the carburetor and pull start the engine. After it warms up, adjust the carburetor idle speed screw and it\'s all done. It works like new.
You start by removing the air cleaner assembly. Remove the fuel lines from the old carburetor and mark where they go. Remove the throttle assembly. Then remove the two screws securing the carburetor and gasket. Remove the old carburetor and gasket.. The install the new gasket and carburetor, and tighten down the screws. Replace the fuel l
... Read moreines and throttle. Then put the air cleaner assembly back on the unit. And your done.
Read less
Did you find this story helpful?
Thank you for voting!
Weed Wacker was hard to start and wouldn\'t stay running.
1. Disconnected fuel lines and throttle linkage
2. Removed 2 bolts from carb and removed carb.
3. Removed 2 bolts from carb plate and removed carb plate.
4. Installed new parts, fit perfectly!
I tested the carb with starter spray by spraying some into the carb, and it started briefly so I knew the carb was not sending air and fuel to the cylinder. Rather that rebuilding the carb it was easier just to replace it.
Removed the two gas lines from the carburetor removed the two screws holding it in place under the air cleaner unhook the throttle cable.
Used new gasket and carburetor from ereplacementparts in reverse order. It was simple primed the carburetor pulled the starter three times back in business
Did you find this story helpful?
Thank you for voting!
carburetor was old - would not start each time I tried
Removed fuel lines.
Used proper size allen wrench to remove carb.
Installed new carb, attached fuel lines.
Started on first pull.
Took less then 5 minuets to complete.
Poulan weed eater would not run carb was shot ordered the correct unit and fuel lines, removed old carb. That was about ten minutes, cleaned and wiped off intake installed new carb and replaced the fuel lines fifteen minutes, gased it up, pumped it up and it started and it ran great no adjustmentsGÇï was needed.
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
3
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP16352852
Manufacturer Part Number: 530071811
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
