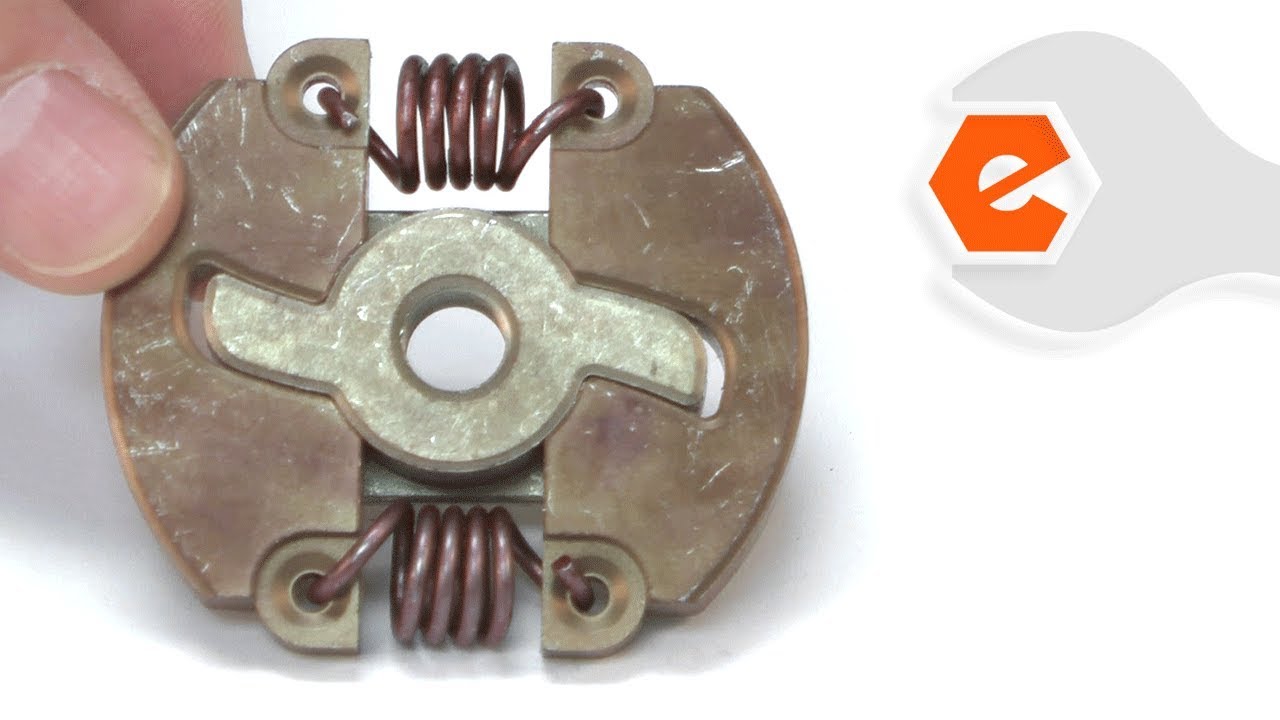

This is a genuine item that is supplied by the original equipment manufacturer for use with trimmers. The metal clutch goes between the clutch drum and the clutch washer. It helps to spin the cutting head and the flex shaft. It may require a screwdriver and a hammer for installation. This clutch is available as an individual replacement part and comes with a washer.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Exactly what I ordered
Product was well described with accurate picture. Fast shipping and reasonable prices.
Guest - June 5, 2019
Verified Purchase
★★★★★
★★★★★
Every part was as described , thumbs up
Easy repair, smooth fix, parts were not that expensive as compared to a new trimmer thanks great job
Guest - July 10, 2019
Verified Purchase
★★★★★
★★★★★
Weed whacker clutch
Worked great running like a charm thankyou
Guest - July 20, 2019
Verified Purchase
★★★★★
★★★★★
Replacement clutch
Item was a direct replacement. Installation was as easy as described. Machine is like new again. Price was fair. A+
Guest - September 17, 2019
Verified Purchase
★★★★★
★★★★★
Perfect
Arrived in time and worked perfectly
Guest - April 23, 2020
Verified Purchase
★★★★★
★★★★★
Great service
I’ve been receiving excellent service and parts spot-on from y’all for many years now. I’ve repeatedly told my friends about the service and site they have been telling others.
Your magnets are a great reminder to call E-Replacement first.
Thanks =ƒÿè
Guest - May 1, 2020
Verified Purchase
★★★★★
★★★★★
Very satisfied!
Part was exactly as ordered and was the same as original part. Shipping was fast even with COVID 19 delays. Very satisfied!
Guest - May 19, 2020
Verified Purchase
★★★★★
★★★★★
Successful Repair
Really appreciate the informative diagnostic info provided to repair the slipping weedwhacker. Part arrived quickly, and was easy to install with the on line instruction video. Thanks!
Guest - January 30, 2021
Verified Purchase
★★★★★
★★★★★
Great service
The part arrived quicker than expected and I was able to get the rototiller repaired and my project completed.
Thank you
Guest - September 21, 2021
Verified Purchase
★★★★★
★★★★★
Needed parts
Quality parts arrived in a timely manner.
Always top notch service.
Guest - July 23, 2022
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed the spark plug, then inserted a length of rope into the cylinder with a few inches remaining outside of the cylinder. This is to stop the engine from rotating when removing the drum and clutch. Then remove the clutch cover. Insert a torx driver into the clutch drum and remove it. The use a screwdriver and hammer to hit the edge of
... Read more the clutch to loosen it from the shaft. Remove the clutch and install the new one. Then install the new clutch drum and clutch cover. Then remove the rope from the cylinder and replace the spark plug
Read less
Did you find this story helpful?
Thank you for voting!
Clutch came apart and dug into the starter pull rope housing and melted housing plastic.
Installed new cover. Attached all screws.
Then the spacer.
Attached to mower frame.
Attached clutch (have to put rope in cylinder so you can tighten screw)
Attached clutch cover.
Then all parts to finish, idler pulley, belt, drive pulley, covers, blade bearings and blade.
Need to take notes, or picture
... Read mores or place parts in order how you took them off to get it al back in order and with the right screws.
I followed the instructions others had posted above and the repair could not have been easer. Saved my 4-cycle trimmer for less than $100 and that including buying a full set of torx screwdrivers (because why only buy the one you need!).
I took off the boom, clutch housing, unscrew the bolt in the center of the clutch drum. Then, with a hammer and a drift released the clutch by hitting it counter-clockwise. I had to tap the hole in the boom so that I could screw bake the throttle control and shut off switch.
Did you find this story helpful?
Thank you for voting!
Clutch failed..string was always spinning, even at idle
I watched your YouTube video and did it exactly as you showed.
Disassemble shaft
Remove clutch cover
Remove spark plug
Shoved a bunch of parachute cord into the head thru the spark plug hole to stop the cylinder from moving..make sure to leave enough to pull it out when you are done.
Unscrew clutch cover usi
... Read moreng torx driver
Unscrew clutch from shaft..( this is where you need the parachute cord in the cylinder)
Screw new clutch on.
Screw clutch cover on
Reassemble shaft, and clutch guard
Put spark plug and wire back on.
That\'s it.
Followed the supplied directions on how to remove and install the new clutch.
I had two problems. One, aligning the drive shafts, that took several tries. The second problem, I some how managed to break the gas line. I had to order a new line. Replacing the gas line seemed harder than replacing the clutch. I also took th
... Read moree carburetor apart and cleaned it. I really did not know what I was doing. But, I did not have anything to loose.
My normal mechanic said the trimmer was not worth repairing. It has been in the garage for years, waiting on me to try to repair. I am glad I did not listen to the repair man. The trimmer worked like a charm.
Read less
Did you find this story helpful?
Thank you for voting!
