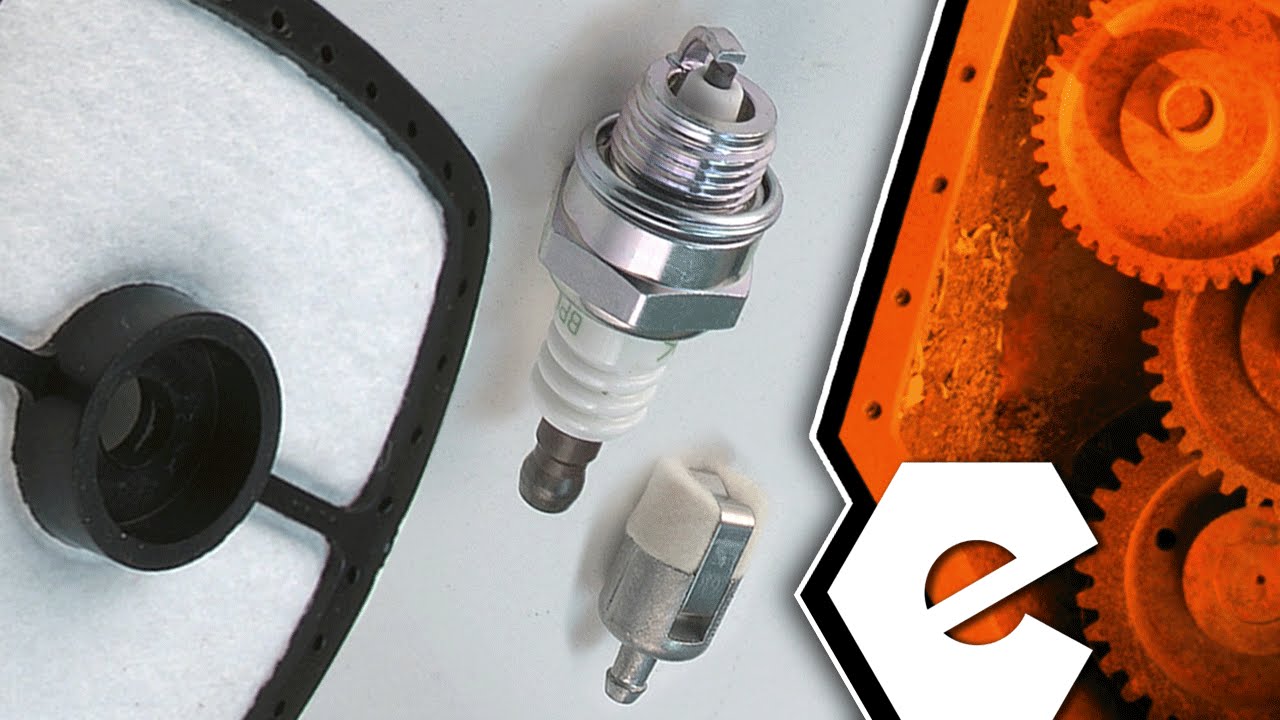

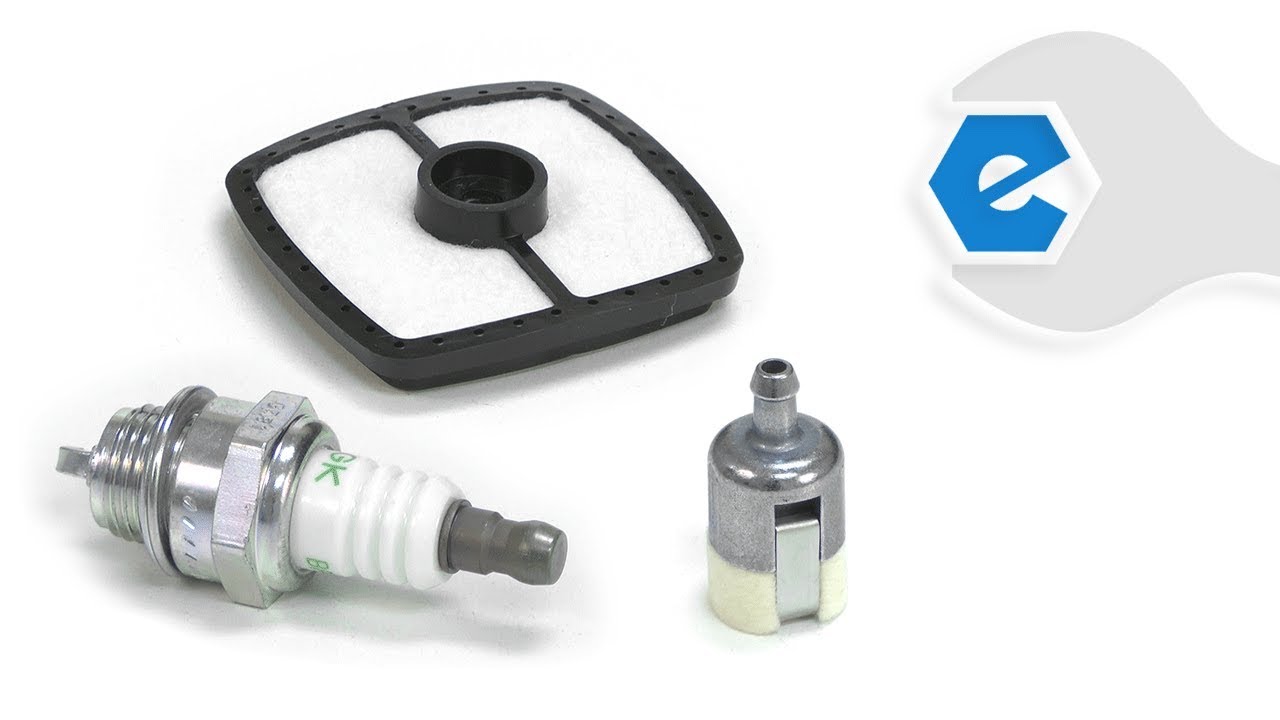

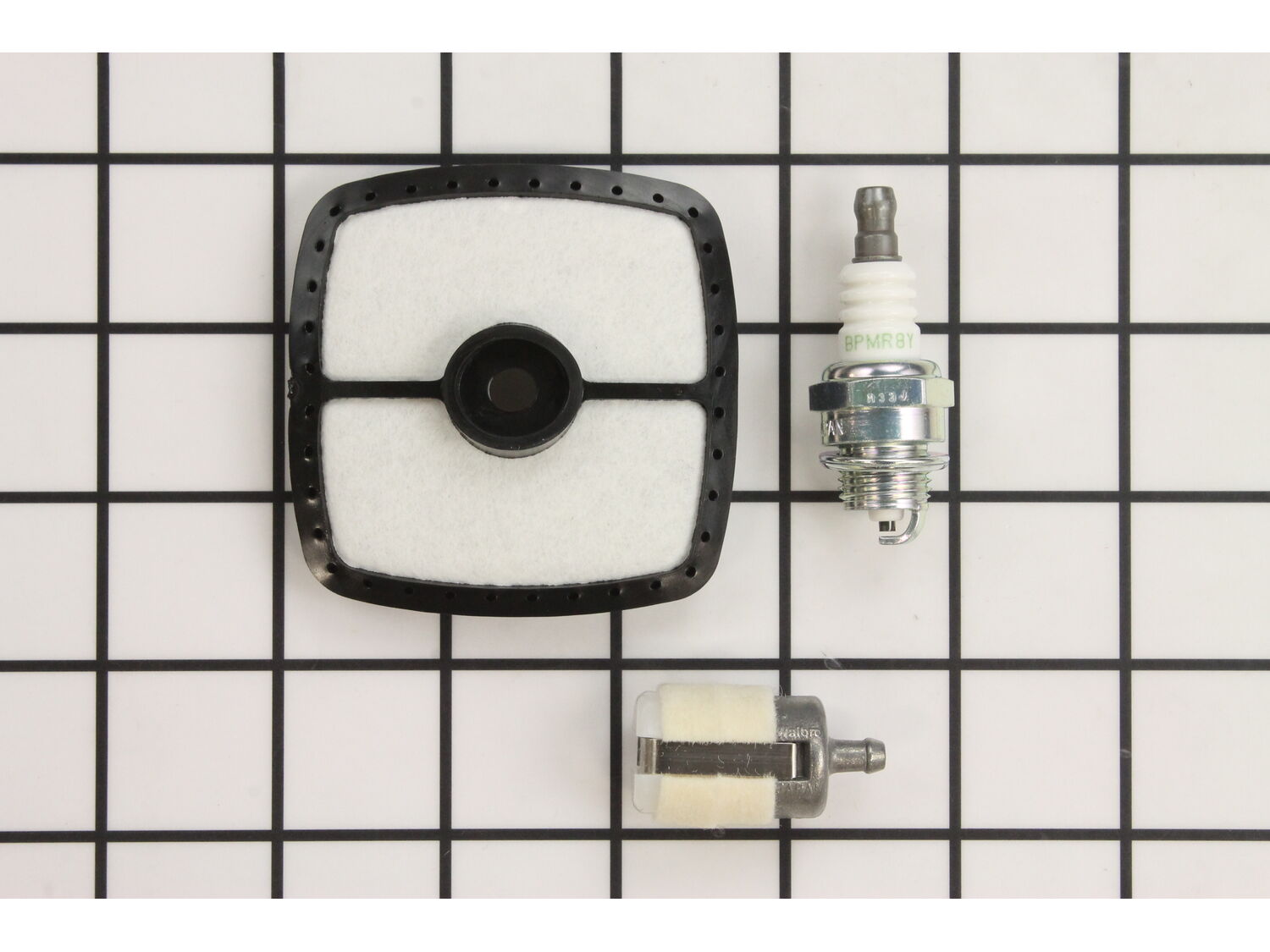

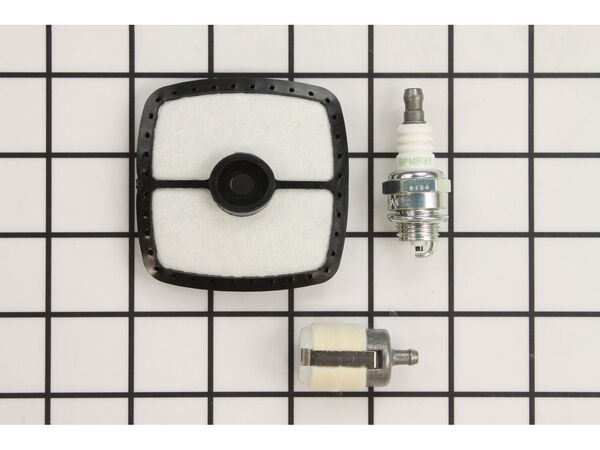

This is a genuine Echo tune-up kit that contains all the parts needed to perform your routine maintenance. By scheduling these repairs on a timely basis, you will extend the life of your engine, optimize fuel consumption, and improve its performance. All the parts in this kit are components that should be inspected and replaced every 3 months or 90 hours (or earlier depending on your use and conditions). Most kits can be installed in under five minutes. When replacing items from this kit you would need a wire hook (to retrieve fuel line), spark plug wrench (or socket) and a spark plug gaping tool. Included in this kit: Air filter Spark plug Fuel filter
This maintenance was pretty straight forward. Replacing air filter and spark plug was easy. Instructions come with spark plug gap number so that you can adjust the gap yourself. Replaced fuel vent, filter and primer tubes which are easy removed and replaced. Replaced fuel filter, as it\'s attached to the end of a tube inside of fuel tank.
... Read more You use a 4\" wire and form a hook on the end of it in order to pull out the tube from inside the fuel tank. It has the fuel filter attached to it. Simple replace. I replaced the rubber primer bulb. It\'s attached by 4 screws to carburetor and easy to access. Just remove the screws and plate, then remove old bulb and replace with new primer bulb and reattach screws. This all took about 30 minutes. Very easy. You just need screwdriver, spark plug socket and wire cutters to cut a piece of wire with. Use a coat hanger wire or any flexible wire that you can stick inside the fuel tank.
Remove the air cleaner cover, then replaced old air cleaner with the new one. Replaced air cleaner cover. Drained fuel tank removed fuel filter line, with old fuel filter on it,removed the old fuel filter, then replaced it with the new one and placed it back in the duel tank. Removed the old spark plug. Then gapped the new one at .026. Th
... Read moreen installed the new spark plug. Do not over tighten.
Remove the fuel filter by making a hook with some wire and hook it to fuel line in the tank with it. Pull the fuel filter out and off of the line. Install the new filter on the line and place the new filter in the tank.
Remove the air filter cover and remove the old filter and replace it with the new one.
Remove the old spark
... Read more plug and replace it with the new spark plug
1. Blew off dust and wiped off grease and oil.
2. Emptied all used gas/oil.
3. Removed old plug, gapped and retorqued.
4. R&R Fuel filter.
5. R&R Air filter.
6. Motor started but would not run.
7. Removed carburetor, wiped down gaskets and blew out debris.
8. Re-assembled and motor started and ra
... Read moren properly
Read less
Did you find this story helpful?
Thank you for voting!
Echo Trimmer- I broke the Guard Top and it is an old trimmer and had never been tuned up
1. Screwdriver to remove broken Guard Top and used same screw to put the new on on- 2 minutes. super easy for anyone
2. Checked gap on plug used socket to remove old one and install new one- 5 minutes
3. Undid wingnut to remove air cleaner cover and took out old air cleaner and replaced with new one- 5 minutes
4. Cha
... Read morenging fuel filter was a little tricky. The fuel filter is on the end of the fuel line which sits in the bottom of the fuel tank. Pulled fuel lines out of tank by pulling out rubber grommet which is on top surface of fuel tank. Pulled old fuel filter off the end of fuel line. New filter was significantly bigger than old one and was too big for the hole that the grommet came out of. Had to replace grommet with fuel lines back in top of tank and then fish the fuel line out with needle nose pliers. Then put new filter on fuel line and was able to feed it back into the tank through the fuel filler hole. This took about 10 minutes.
5. The trimmer runs just fine- I am just a home owner but there is a reason why the professional yard guys use Echo equipment. I have an Echo Back pack blower in addition to the trimmer and both are rugged beyond belief.
Read less
Did you find this story helpful?
Thank you for voting!
Would not idle at first, then would not start. Leaking fuel from gas tank.
Replaced, air filter, fuel grommet, spark plug and throttle trigger. Fairly easy repair, my Echo is running like a top again. Overall, good experience, I plan to come back to eReplacementParts.com for a similar tune-up on my Echo leaf blower.
Did you find this story helpful?
Thank you for voting!
Broken choke new blade installed and serviced gear box
Opened the gear case. Put the new blades in while greasing different parts in housing. The bolts and spacers inserted and oiled with wd 40 oiled blades. Put the shield on and tightened the nuts. Put the new spark plug and the new air filter in. Started it, ran 5 minutes. The oiled again and put away.
Took off the carburetor took it apart sprayed it down with Carb cleaner ,Reassembled with the new parts supplied in the kit after I used the carb cleaned to spray out all the inner orifices finished it off with Compressed air , put in fresh gas ,installed the tune up kit ,cleaned the exhaust screen ,reassembled , hit the priming bulb a fe
... Read morew times ,ign switch on ,choke on ,it lit right up on the first pull ,give it time to warm up ,and then went and wacked some weeds full throttle no problem .This was not my first one I\'ve ever worked on ,Take pictures what parts go where as you go along if you have no experience ,it will save you a lot of frustration in the end .
Just decided to do a whole tune up with new fuel system parts, spark plug etc. Took pictures before disassembly, oiled up screws, nuts, bolt couple days ahead. Had done similar work on my echo trimmer awhile ago so familiar with parts. As I took out old parts, set on table with correct orientation. All replacement parts were same so made
... Read morejob easy.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
3
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP11826164
Manufacturer Part Number: 90152Y
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
✖
