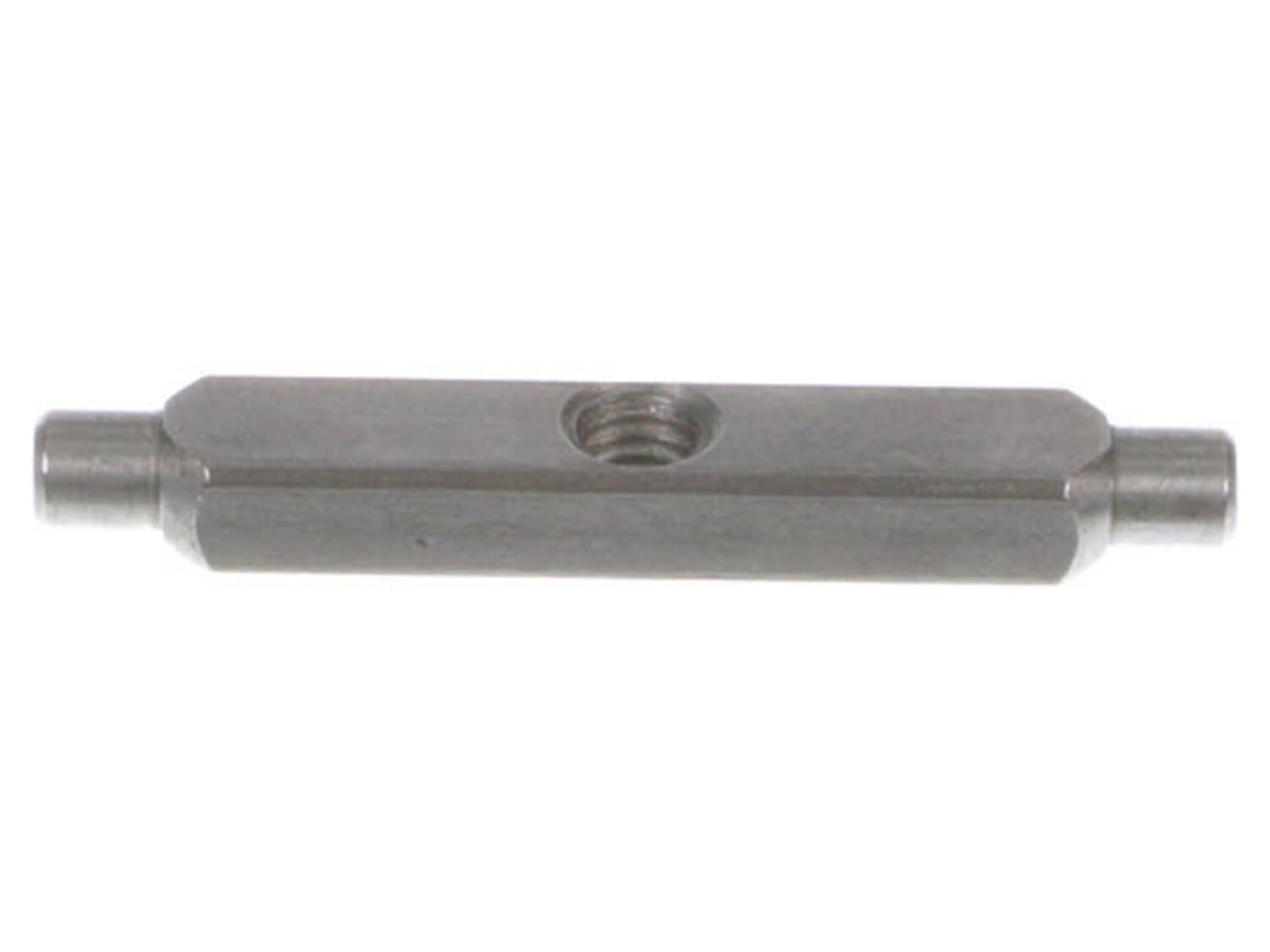

The block connects to the work plate with hex nuts. This is an authentic Ryobi part sourced directly from the manufacturer for use in table saws. Keep in mind this high-quality part is sold individually. It is made out of metal and will require replacing if it becomes broken. A screwdriver, a set of pliers, and a wrench set may be needed during the installation of this part.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Just What I needed
Great company. They had the part I needed . . . offered a fair price . . . and got it to me within days. No drama. I'll definitely order from these guys again.
Guest - June 10, 2019
Verified Purchase
★★★★★
★★★★★
Perfect match
Easy to install
Guest - October 29, 2019
Verified Purchase
★★★★★
★★★★★
Perfect trouble shooting
the blade wouldn't rise or drop and I didn't know why. I selected the symptoms and ordered the parts. I highly recommend the clips along with the rest. I fixed it in two hours and now it works.
Guest - July 14, 2020
Verified Purchase
★★★★★
★★★★★
Too easy
Quick, consise, convenient.
David - June 29, 2021
Verified Purchase
★★★★★
★★★★★
Level Block for Table Saw
I received the wrong Level Pin but the correct Level Block. Been waiting the correct Pin to arrive. Tim argued with me that's only been 6-7 days. Basically be patient it's going to ship out 11days plus the 3-5 days delivery later.
Omar - May 21, 2023
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
We replaced the block with threaded hole that moves to raise/lower the saw blade. The old part had worn ends and would twist in its slots (also slightly worn) and lock up the screw that moves the blade. Getting the lock washer off and back on the end of the drive screw was tricky. We took the saw off its stand and turned it upside down to
... Read more get access to the mechanism. We loosened the nuts on the drive screw holding it against the front plate. Lacking the right lock washer pliers, we used electronics hooks and picks to open the lock washer and used a screwdriver to lever it off the end of the drive screw. With the lock washer off, we could unscrew the drive screw from the block. We then angled the block so it just came out of the slots, with just a little help from a soft-tipped hammer.
Reversing the operations, we angled the replacement block into the slots and screwed the drive screw into the block and tightened the nuts holding the drive screw assembly against the front plate. We pulled the lock washer open and put a screwdriver blade in to hold it open (this lock washer has slots, not holes for the removal tool). Angling the washer partially on the end of the drive screw, we used a screwdriver to push the washer on and snap it into the retaining groove. We put some grease on the drive screw and the saw blade now raises and lowers, though we cannot lower it too much or the mechanism gets stuck, probably due to wear of the slots. But, the saw is usable again!
Read less
Did you find this story helpful?
Thank you for voting!
Blade wouldn\'t raise or lower - elevation screw was stripped, the block nut was also stripped and damaged the screw.
There are two jam nuts on the screw shaft that were seriously jammed! Tried all my wrenches, lock pliers, and wishful thinking to get them loose. Finally I got my oscillating saw with metal blade and cut the shaft in two places to remove the segment with the two jam nuts. Then put one nut in my metal vise and used an adjustable wrench on
... Read morethe other jam nut. That worked. But the nuts were cornered by all that work so I sent in a second order to get two nuts. There\'s a teeny c-ring on the end of the shaft and I used a cold chisel to break it off since I didn\'t have the c-ring pliers yet. All of this was the 1.5 hours of the work. Once I got the parts from eReplacementParts and the c-ring pliers took 30 minutes to fix everything. To be on the safe side I ordered a second set of screw shaft and block nut in case I need another fix.
The parts from eReplacementParts got here quickly (I used USPS), they were reasonably priced. And they worked. Thanks to them I didn\'t have to buy a new table saw.
The blade depth adjustment pulley had seized - the elevation shaft and the block had totally fused together. Ordered a new one of each.
The Repair: First, I took note of the stacking order of the nuts and washers on the shaft. I drew a diagram.
Once the new parts arrived, I took my hacksaw and cut old shaft to get it and the o
... Read moreld block out of thereGǪ You might be tempted to pry out the old parts but better not to risk bending anything out of alignment in the assembly.
Removing the old washers and nuts from the old shaft is easy once itGÇÖs cut.
Starting with the pulley handle, thread that on and insert the shaft into the case. Then add back the nuts, washers and new block as they were before.
One important detail on this repair - the small retaining ring at the end of the shaft that holds it in place. This was a bit of a pain to remove and replace because I didnGÇÖt have the proper tool. Used needle-nose pliers.
Removed old stripped block and elevating shaft. You will need a thin wrench to loosen the two nuts that hold the shaft in place. THE SHAFT IS LEFT HAND TRHEAD!! So to loosen you turn it clockwise. Also the snap ring on the end of the shaft is very small and would be easy to lose. Once the nuts are loose and the snap ring is remove it goes
... Read more quite easy. Just install the new stuff in reverse order. If new shaft does no come with adjusting wheel -mine did- you will need to drive out the drive pin holding he wheel on and put it on the new shaft.
Unplug saw turn saw upside down on suitable support ,remove blade, snap ring retainer at end of shaft and friction washer. Inside the housing back off the crank handle until shaft is out of the cross bar. If the shaft is stripped and will not come out of cross bar, hacksaw the shaft off near the handle. There is a double nut lock 14 mm in
... Read moreside of saw base housing . Also there is friction washer, remove crank handle, remove center trim cover. Replace shaft reverse process. When install double nut depth is set for the amount of drag on the housing. Align the cross bar when setting depth, to much clearance will allow the snap ring come off end of the shaft. Be sure to order enough parts to make the job complete. Nuts washers and clips. Joe M.
Read less
Did you find this story helpful?
Thank you for voting!
The blade height could not be adjusted. It was frozen.
I removed the adjustment wheel (crank) and loosened the lock nuts on the old elevating shaft. Then I removed the lock rings at the end of the shaft and unscrewed it out of the stripped block. Once it was out, the new block and shaft went on in minutes. I put new lock rings on the shaft end just to be sure nothing came loose and reinst
... Read morealled the adjustment wheel. Works great. One must remember to grease the shaft threads. I didn\'t. It\'s what caused the problem.
Read less
Did you find this story helpful?
Thank you for voting!
Threaded block was bent on new table saw. Ryobi wanted me to return the whole unit but instead I just replaced the block.
Removed snap ring from end of threaded rod. Loosened two nuts on threaded rod then removed threaded rod from hole in bracket. With the threaded rod now free I could slide the block out of the two slots. Installed new block, re-inserted threaded rod into hole and replaced snap ring. Then tightened the two nuts on the threaded rod to fi
... Read morermly hold it in place, it allowed for the threaded rod to be cranked. Applied grease to threaded rod.
Removed the retainer nuts from the blade height adjuster dial. Removed clip from adjuster bolt. Slipped bolt out and removed block. Started bolt in new block and reassembled
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP10077061
Manufacturer Part Number: 089037007033
Table Saw
- Rts23t 10 In. Table Saw 2-24-21 (Rev:04)
✖
Stock Status
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
