Removed holding plate from saw by:
1. Unbolting tabs (4 bolts - Allen key 5 mm)
2. Removing dust collection piece (6 screws - philips)
3. Remove horizontal threaded rod by removing wheel crank, red angle adjuster, large hex nut, spring, 2 mounting screws (philips)
4. Remove vertical threaded rod by removing double
... Read morenuts and toothed gear (punched pin out with small allen key), and threading up out of the holding plate
5. Unscrewed motor with 4 philips
6. Took rods out by removing c clamps (2 on each rod)
7. Replaced new holding plate by putting rods back in, through the motor, and reattached everything
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP19513393
Manufacturer Part Number: 2610950053
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

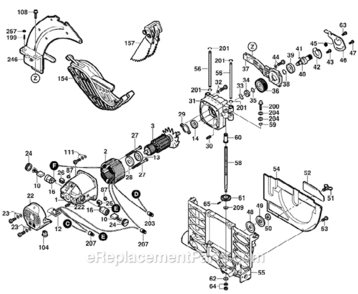

_WW_2.gif "Part Location Diagram of 2610950053 Bosch Tool THREADED ROD")
