Part Location Diagram of 161-2170 Toro BLADE-ROTOR
See part H-1 in the diagram
( Grid squares measure 1x1 inch )

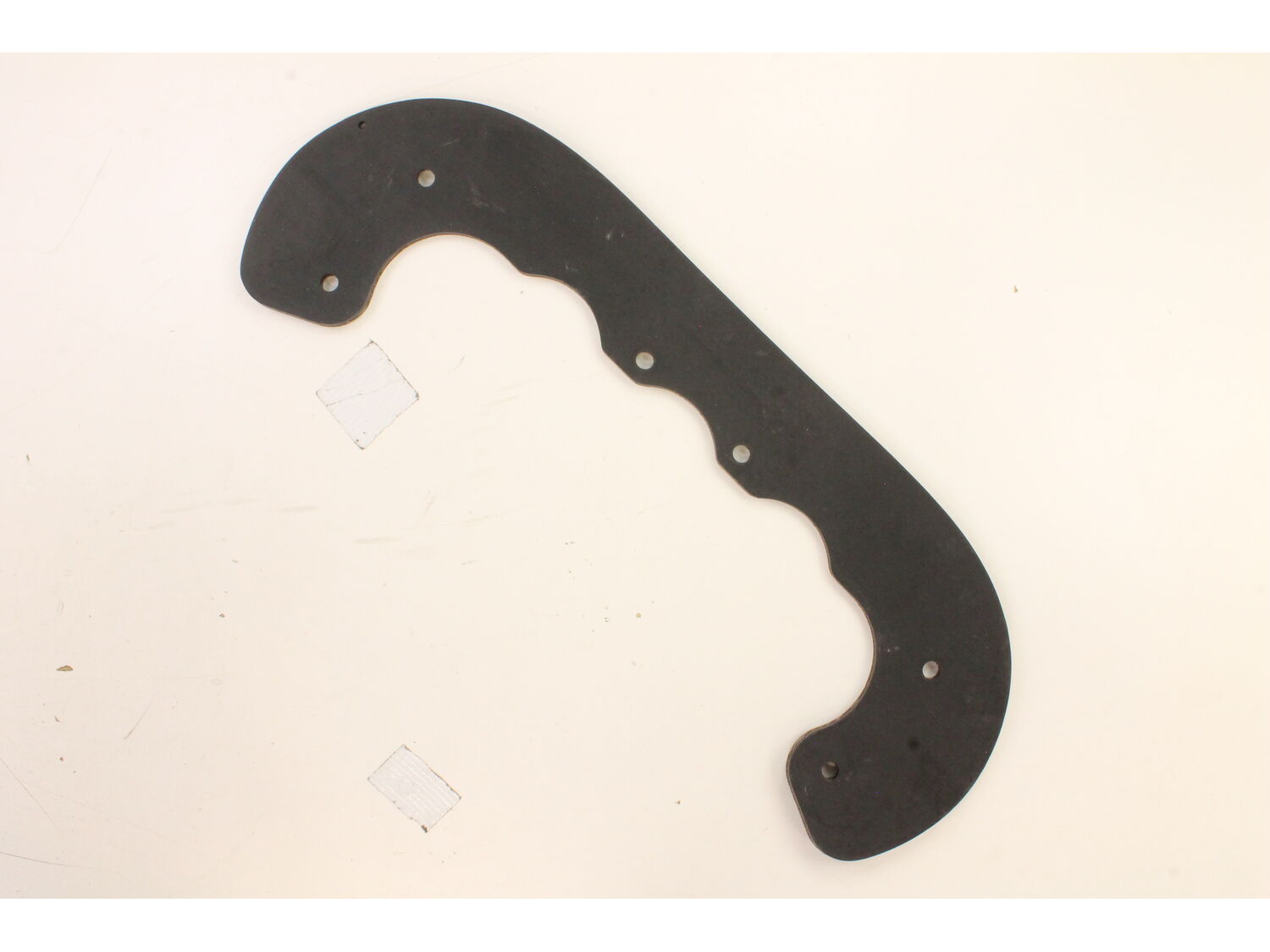

BLADE-ROTOR 161-2170

Manufactured by:
Toro
ERP Number:
ERP18426128
Part Number:
161-2170
Original Equipment Manufacturer ?
On Order

A Bit Difficult

1- 2 hours

(26 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Frequently Purchased Together

?

Troubleshooting

This part works with the following brands:
  • Toro
  • Lawn Boy
This part works with the following products:
  • Snow Blower
Part# 161-2170 replaces these:
99-9313,

Customer Part Reviews

?
4.7
Average Rating (out of 5):
★★★★★
★★★★★
(9 Reviews)
Click to filter by ratings:
  • 5 stars
    8
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    1
  • 1 star
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

1- 2 hours

(26 rated repairs) ?
  • 1
  • 2
  • 3
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Replace Blade-Rotors

Ed from Pella , Iowa

33 of 33 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Wrench set
Parts Used:
161-2170
1st tip is that the parts do not come as a kit. You have to order qty 2 of the rotors to get a set.

1. Remove old blade rotor. Make sure you remove the metal spacer tubes in the center of the blade.
2. Good time to replace the scraper with blade rotor removed.
3. Move spacer tubes to new blade rotor and inst all on machine.
4. Rubber rotor is reinforced with 2 nylon layers that are not symmetric. Looking at new snow blowers the face that contacts the snow should be the side with thicker rubber.
Did you find this story helpful?
Thank you for voting!

Removing blade caused rotor to shift

Larry from Denver , Colorado

13 of 13 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Pliers, Socket set, Wrench set
Parts Used:
161-2170
Removing blade might cause the rotor to shift and holes not to line up. Loosen up the bolts on the 2nd blade. On the first blade the 2 center bolt holes should be easy. The outside 2 will be hard to align. Use a center punch to align hole and a clamp to hold in position. Insert bolt, it may take several tries as you find the proper spot f or the clamp to hold. Repeat for the other hole. Do not tighten bolts yet. Repeat all steps for other blade. When done tighten all bolts.
Did you find this story helpful?
Thank you for voting!

Replaced rotors and scraper

James from Fishkill, New York

11 of 11 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Pliers, Socket set, Wrench set
Parts Used:
161-2170, 55-8760
Unbolted the old parts and bolted on the new parts. Some of the bolts may need to soaked in penetrating lube to help remove them.
Did you find this story helpful?
Thank you for voting!

The rotor and scraper were worn out.

Mark from Centennial, Colorado

10 of 10 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Socket set, Wrench set
Parts Used:
1610963, 161-2170
I bought a Toro Power Clean snow blower from a flee market for $50, new it would have cost me $650. It started right up, but it wouldn\'t blow the snow. I went on U-tube to figure out the problem. I saw an ereplacementparts video. It showed me exactly what I needed to do. I ordered the parts from ereplacementparts.com. Very easy to find the correct parts and I received them in a couple of days. I replaced the parts in about an hour. Now it works like it\'s brand new.
Did you find this story helpful?
Thank you for voting!

The snow blower wasn\'t throwing the snow as far as it use to and it was not getting all the snow down to the driveway surface. Also the engine ran rough because the choke lever broke.

LUKE from SWARTZ CREEK, Michigan

4 of 4 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Socket set, Wrench set
To replace the blade scraper I removed the 2 bolts holding it in place and used a set of pliers to remove the tension springs. Reinstalled the new blade scraper without any problems. The 2 rubberized blades were held on by 6 bolts/nuts each. Those were fairly easy to remove and take the old rubber blade off and replace with the new one s. The old ones still looked new but upon closer inspection they were wore down by 1/2\" - 3/4\". This made all the difference in throwing the snow. Then new blade scraper allowed the snow blower to get down to the surface of the driveway and not leave any snow on it. The only problem I noticed was the choke lever. The actual choke lever is attached with a screw that screw into a plastic piece which is formed into the choke butterfly itself. That being said, there was no need to by a new choke lever. This is a bad design by the manufacturer in my opinion. Now I either have to by that part and tear the carb apart to fix or if I can\'t get just that part, then I\'m sure I will have to buy the whole carb as a kit. Absolutely No Problems with ordering parts from Ereplacement parts at all. I had my parts in 2 days and everything I ordered was in the box properly labeled. Definitely will order parts from them again.
Did you find this story helpful?
Thank you for voting!

Replaced the auger blades and scraper blade on my Toro snowblower

Vincent from Byfield, Massachusetts

4 of 4 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Pliers, Socket set, Wrench set
Parts Used:
1610963, 161-2170
First I watched the video on line provided by replacement parts.com, also I had the manual for the machine. Very easy with no surprises!
Did you find this story helpful?
Thank you for voting!

Not throwing snow very far and getting clogged in deep snow

Roger from Saint Paul, Minnesota

2 of 2 people found this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Wrench set
Parts Used:
161-2170, 55-8760
Removed old rotor blades. Two nuts were difficult to get at but could barely get a small wrench between blade and housing to hold the nuts. Replacing the same two nuts difficult to get them to line up with the bolt while holding them with a needle nose pliers. Finally got a slightly longer bolt and that worked. Scraper blade had carriage bolts and they eventually turned before getting the nuts loose. Tried heating them, using liquid wrench, drilling them, finally used a grinder on my electric drill and after 10-15 minutes on each head was able to pound the bolt through and replace the scraper. My snowblower was quite old and probably had never had the scraper replaced.
Roger
Did you find this story helpful?
Thank you for voting!

Needed worn parts replaced

George from Marion, Iowa

2 of 2 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set, Wrench set
Parts Used:
1610963, 161-2170, 108-4921
Removed cover, belt cover, drive pulley, removed rotor. Then replaced paddles, scraper. mounted rotor, drive pulley, new belt and reassembled.
Did you find this story helpful?
Thank you for voting!

Housing assembly was bent and wore out scrapper

Rich from Omaha, Nebraska

1 person found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench set
Parts Used:
161-2170, 55-8760, 38-7820, 119-1551
Everything went Ok except one of the bearings were rusted on. Going to see if I could get a small engine business to remove it.
Did you find this story helpful?
Thank you for voting!

Worn out blades

Scott from Lincoln, Nebraska

1 person found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Screw drivers, Wrench set
Parts Used:
161-2170, 136-7182, 3296-56
Took off blades
Replaced blades with new ones
Did you find this story helpful?
Thank you for voting!
  • 1
  • 2
  • 3

Model Cross Reference

This part works with the following models:
ERP Number: ERP18426128
Manufacturer Part Number: 161-2170
Brand Model Number Description
Lawn Boy 28226 Snow Blower - 720E Snowblower
Lawn Boy 33005 Snow Blower - 1000 Insight Snow Thrower
Lawn Boy 33006 Snow Blower - 1000 Insight Snow Thrower
Lawn Boy 34001 Snow Blower - Insight Snowblower
Lawn Boy 34002 Snow Blower - Insight Snowblower
Toro 38180 Snow Blower - Ccr 2000 Snowthrower
Toro 38180C Snow Blower - Ccr 2000 Snowthrower
Toro 38181 Snow Blower - Ccr 2000 Snowthrower
Toro 38185 Snow Blower - Ccr 2000 Snowthrower
Toro 38185C Snow Blower - Snowthrower
Toro 38186 Snow Blower - Ccr 2000 Snowthrower
Toro 38409 Snow Blower - Ccr 2400 Snowthrower
Toro 38410 Snow Blower - Snowthrower
Toro 38411 Snow Blower - Snowthrower
Toro 38412 Snow Blower - Ccr 2400 Snowthrower
Toro 38413 Snow Blower - Snowthrower
Toro 38414 Snow Blower - Ccr 2400 Snowthrower
Toro 38415 Snow Blower - Snowthrower
Toro 38416 Snow Blower - Snowthrower
Toro 38417 Snow Blower - Snowthrower
Toro 38418 Snow Blower - Snowthrower
Toro 38419 Snow Blower - Snowthrower
Toro 38420 Snow Blower - Snowthrower
Toro 38421 Snow Blower - Ccr 2500 Snowthrower
Toro 38422 Snow Blower - Snowthrower
Toro 38423 Snow Blower - Snowthrower
Toro 38424 Snow Blower - Ccr 2500 Snowthrower
Toro 38425 Snow Blower - Snowthrower
Toro 38426 Snow Blower - Snowthrower
Toro 38427 Snow Blower - Snowthrower
