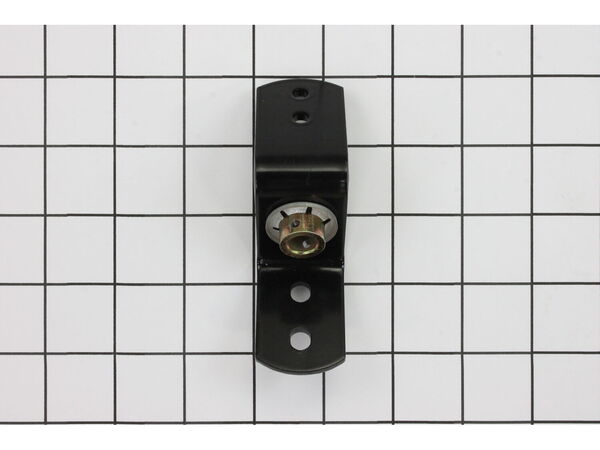

9015839-1-M-Ariens-53214200-Bracket- W/pinion Gear
Part Location Diagram of 53214200 Ariens Bracket- W/pinion Gear
See part C-9 in the diagram
( Grid squares measure 1x1 inch )

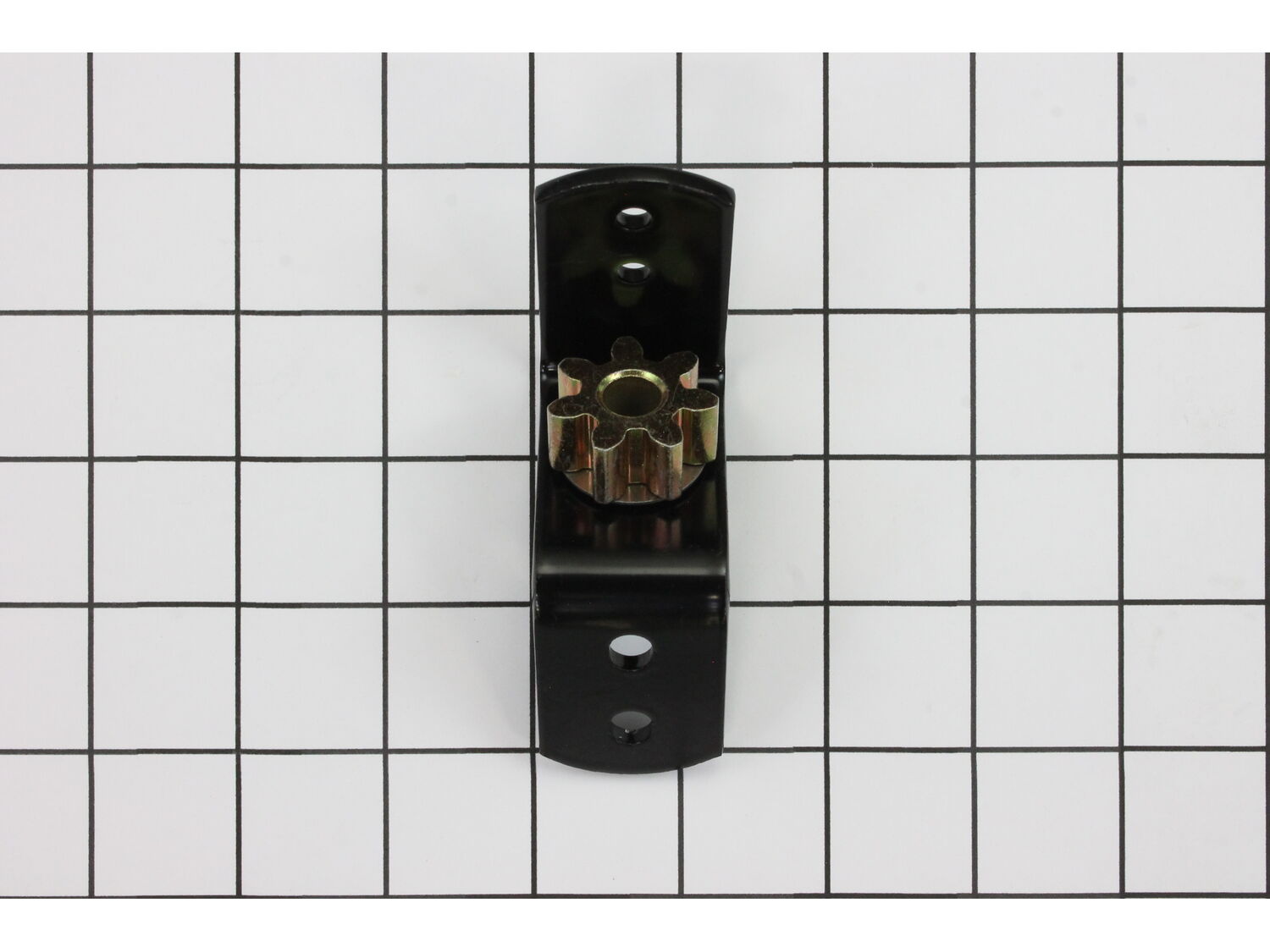

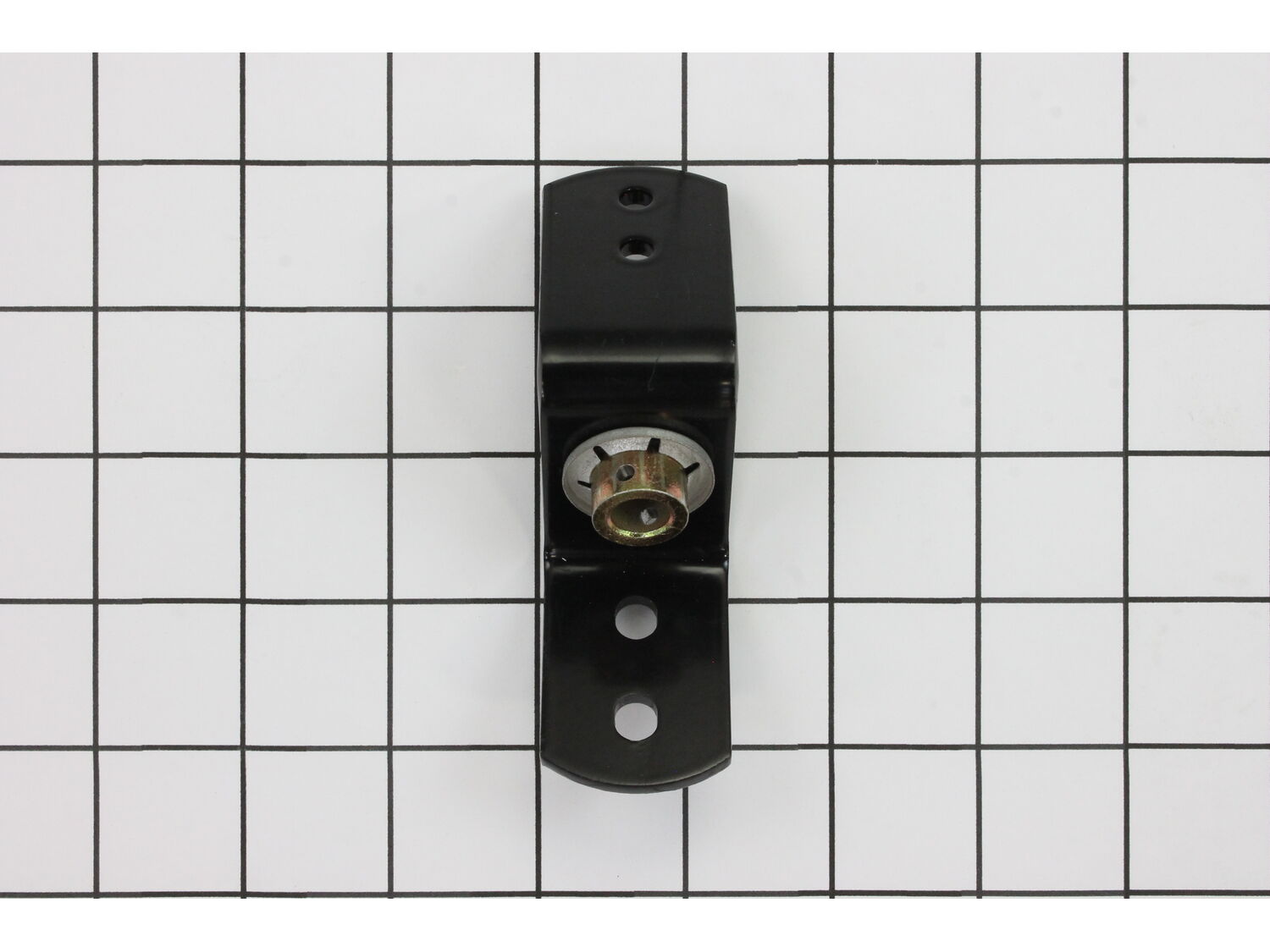

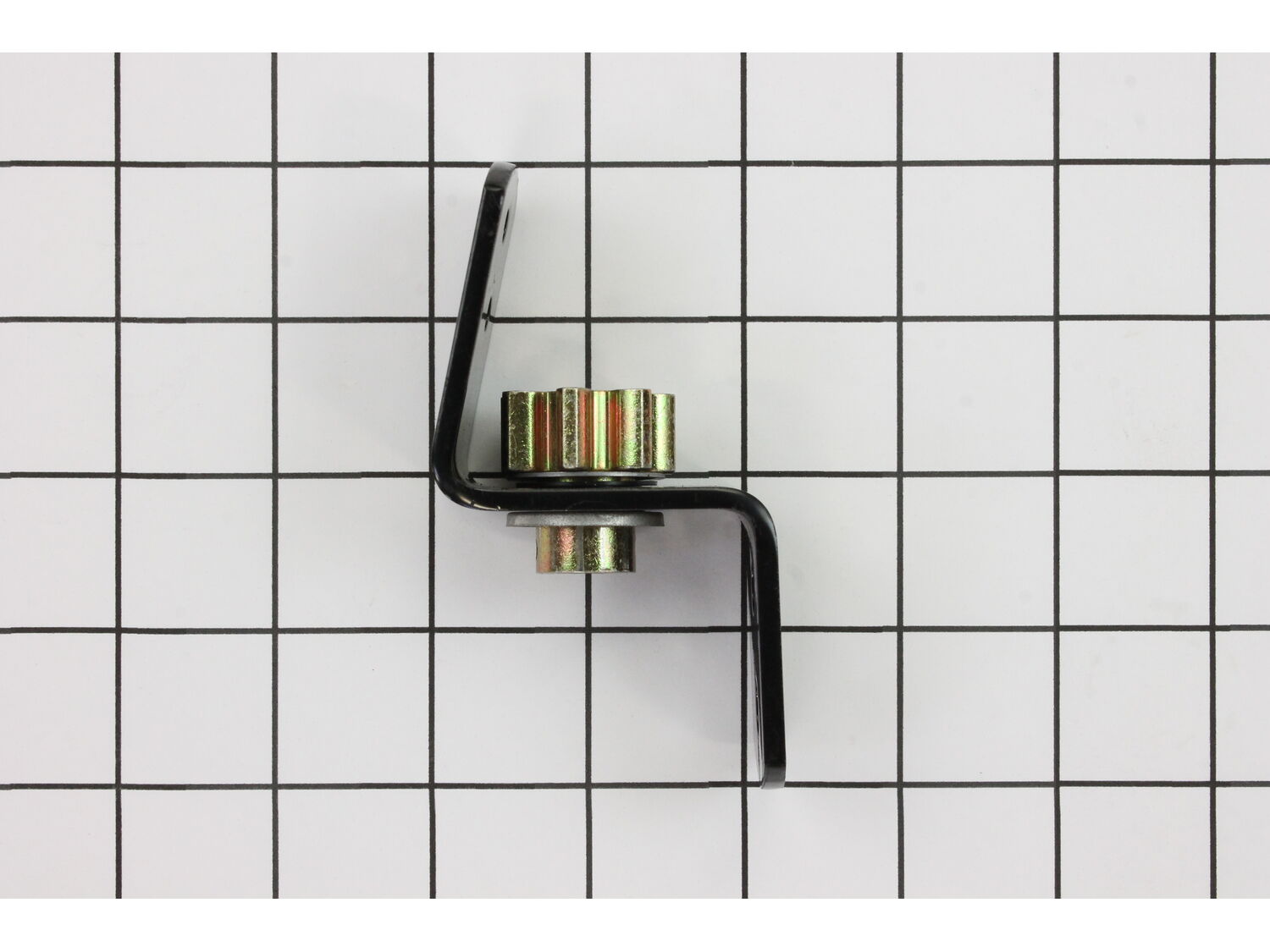

9015839-1-S-Ariens-53214200-Bracket- W/pinion Gear 9015839-2-S-Ariens-53214200-Bracket- W/pinion Gear 9015839-3-S-Ariens-53214200-Bracket- W/pinion Gear Part Location Diagram of 53214200 Ariens Bracket- W/pinion Gear

Bracket- W/pinion Gear 53214200

Manufactured by:
Ariens
ERP Number:
ERP9015839
Part Number:
53214200
Original Equipment Manufacturer ?
$67.34
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

15 - 30 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Description Frequently Purchased Together Troubleshooting Repair Instructions Model Cross Reference

Product Description

?

It is an authentic manufacturer-sourced component which is specially designed for Ariens snowblowers. If the item is damaged or is missing, this will provide an identical replacement. This pinion gear w/bracket is made of high-quality metal and is sold as an individual item. Check the diagrams for your model to ensure the correct replacement procedure. A wrench set will be needed to perform this repair.

Frequently Purchased Together

?

Troubleshooting

This part works with the following brands:
  • Ariens
This part works with the following products:
  • Snow Blower

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

15 - 30 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Snow Blower Chute control gears were worn out

William from Farmington, Connecticut

2 of 2 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Socket set
Parts Used:
06200234, 06500825, 06401013, 53214200, 08320900, 03222900, 03219000
Removed the 2 cover cap screws, and then removed the retaining pin from the chute gear. Then removed the lock nut from the bolt holding the pinion gear. I was then able to replace the chute gear, pinion gear, friction plate, compression spring, and all washers with new replacement parts. The job took about a 1/2 hour as I took my time an d the chute now works like new.
Read less
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP9015839
Manufacturer Part Number: 53214200
Brand Model Number Description
Ariens 824012 Snow Blower - 28" Sno-Thro Attachment
Ariens 924108 Snow Blower - ST824 SLE 8hp Electric 24" Snowblower
Ariens 924109 Snow Blower - ST1028 SLE 10hp Electric 28" Snowblower
Ariens 924110 Snow Blower - ST824 DLE 8hp Electric 24" Snowblower
Ariens 924111 Snow Blower - SB 936 LE 9hp 36" Rotary Brush
Ariens 924112 Snow Blower - ST928 LE 9hp Electric 28" Snowblower
Ariens 924113 Snow Blower - ST1132 LE 11hp Electric 32" Snowblower
Ariens 924116 Snow Blower - ST1028 10hp 28" Snowblower
Ariens 924117 Snow Blower - ST1024 10hp 24" Snowblower
Ariens 924118 Snow Blower - ST8524 DLE 8.5hp Electric 24" Snowblower
Ariens 924119 Snow Blower - ST1028 10hp 28" Snowblower
Ariens 924121 Snow Blower - ST1128 LE 11hp Electric 28" Snowblower
Ariens 924122 Snow Blower - ST1124 DLE 11hp Electric 24" Snowblower
Ariens 924124 Snow Blower - ST926DLE Classic 9hp Electric 26" Snowblower
Ariens 924125 Snow Blower - ST11528LE 11.5hp Electric 28" Snowblower
Ariens 924126 Snow Blower - ST11526DLE 11.5hp Electric 26" Snowblower
Ariens 924127 Snow Blower - ST11528DLE 11.5hp Electric 28" Snowblower
Ariens 924128 Snow Blower - ST1332LE 13hp Electric 32" Snowblower
Ariens 924300 Snow Blower - ST1024 10hp 24" Snowblower
Ariens 924327 Snow Blower - ST1028 SLE 10hp Electric 28" Snowblower
Ariens 924328 Snow Blower - ST824 DLE 8hp Electric 24" Snowblower
Ariens 924329 Snow Blower - ST928 LE 9hp Electric 28" Snowblower
Ariens 924330 Snow Blower - ST1132 LE 11hp Electric 32" Snowblower
Ariens 924332 Snow Blower - ST1124 DLE 11hp Electric 24" Snowblower
Ariens 924333 Snow Blower - ST1024 10hp 24" Snowblower
Ariens 924334 Snow Blower - ST1028 11hp 28" Snowblower
Ariens 924335 Snow Blower - ST926DLE Classic 9hp Electric 26" Snowblower
Ariens 924336 Snow Blower - ST11526DLE 11.5hp Electric 26" Snowblower
Ariens 924337 Snow Blower - ST11528DLE 11.5hp Electric 28" Snowblower
Ariens 924338 Snow Blower - ST1332LE 13hp Electric 32" Snowblower
